JCG11-AEAZH (2001)

Toyota Progres

Production Apr 2001 - Jun 2007
Engine 2JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

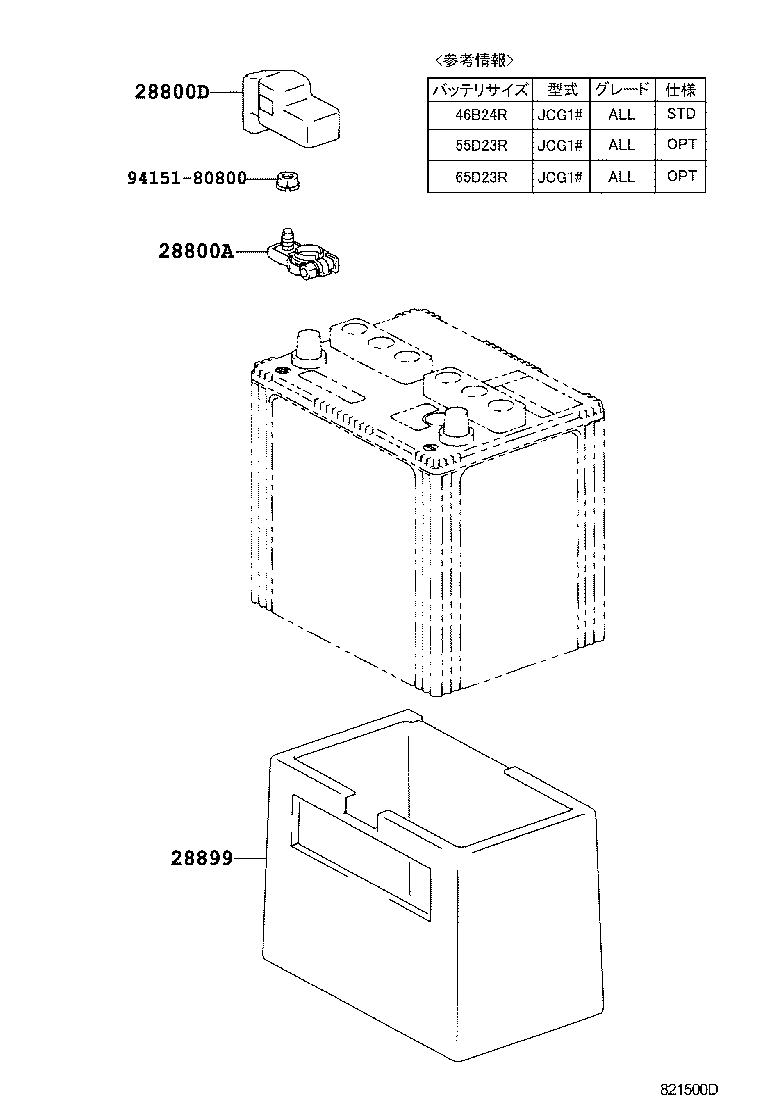

Click highlighted areas on diagram

diagram 28800A 28800D 28899 9415180800
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05053

1JZFSE,2JZFSE..JCG1#

ｱﾘ(ﾊﾞﾂﾃﾘ=55D23R)

 1
90982-05052

1JZFSE,2JZFSE..JCG1#

ｱﾘ(ﾊﾞﾂﾃﾘ=46B24R)

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

1JZFSE,2JZFSE..JCG1#

 1
28899 - INSULATOR, BATTERY
28899-76010

1JZFSE,2JZFSE..JCG1#

ｱﾘ(ﾊﾞﾂﾃﾘ=55D23R)

 1
28899-76030

1JZFSE,2JZFSE..JCG1#

ｱﾘ(ﾊﾞﾂﾃﾘ=46B24R)

 1
Common parts
94151-80800
