JCG11-AEAZH (2001)

Toyota Progres

Production Apr 2001 - Jun 2007
Engine 2JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

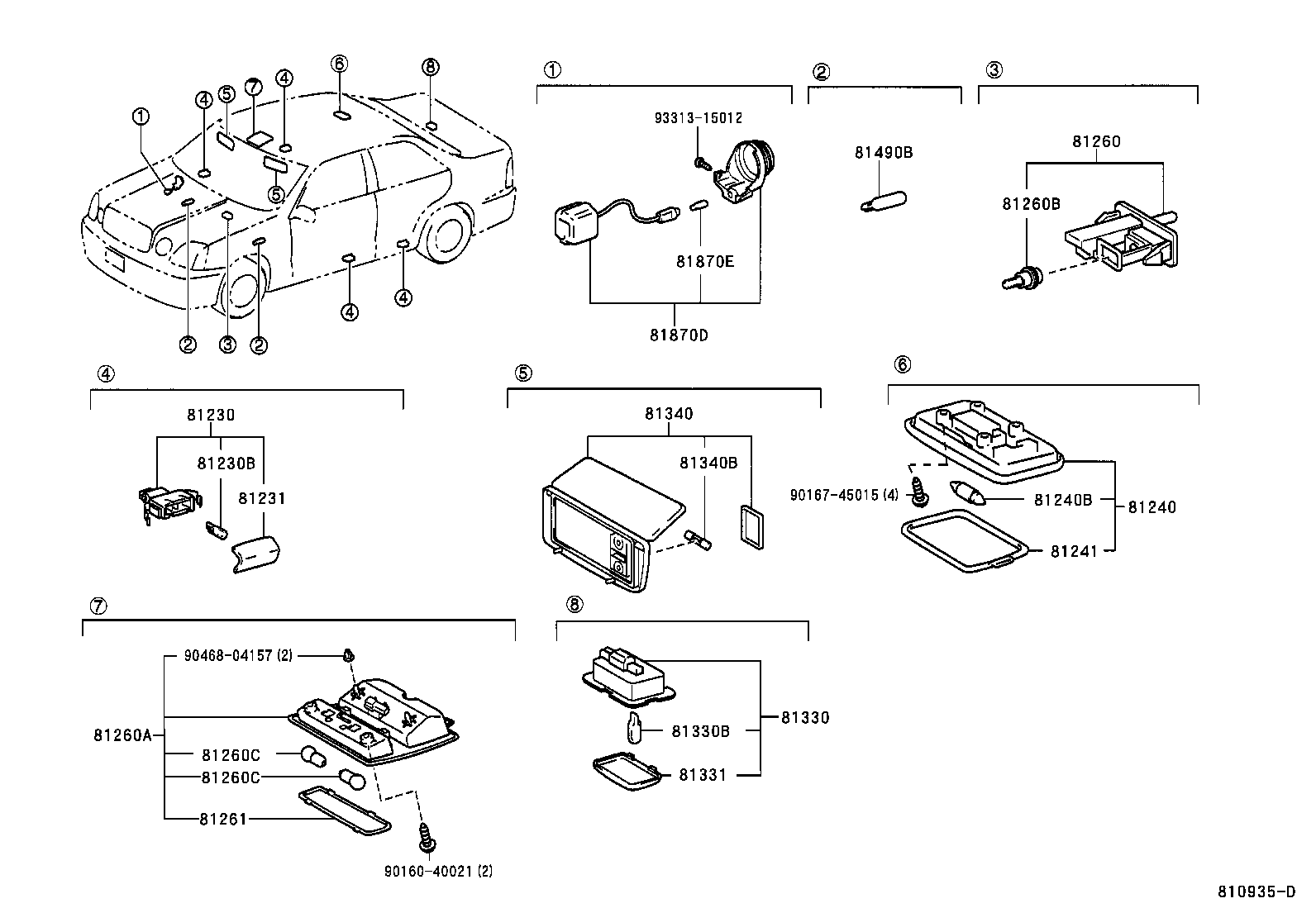

Click highlighted areas on diagram

diagram 81230 81230B 81231 81240 81240B 81241 81260 81260A 81260B 81260C 81260C 81261 81330 81330B 81331 81340 81340B 81490B 81870D 81870E 9016040021 9016745015 9046804157 9331315012
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-30160

JCG1#

 4
81230-30160

JCG1#

 4
81230B - BULB(FOR COURTESY LAMP)
90981-11020

JCG1#

12V 3.8W

 4
90981-11020

JCG1#

12V 3.8W

 4
81231 - LENS, COURTESY LAMP
81231-50050

JCG1#

 4
81231-50050

JCG1#

 4
81240 - LAMP ASSY, ROOM, NO.1
81240-51010B0

JCG1#

LT.GRAY,TRIM2#

 1
81240-51010A0

JCG1#

IVORY,TRIM00,01

 1
81240-51010A0

JCG1#

IVORY,TRIM0#

 1
81240-51010B0

JCG1#

LT.GRAY,TRIM2#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14004

JCG1#

12V 8W

 1
90981-14004

JCG1#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-51010

JCG1#

 1
81241-51010

JCG1#

 1
81260 - LAMP ASSY, GLOVE BOX
81260-33030

JCG1#

 1
81260-33030

JCG1#

 1
81260A - LAMP ASSY, MAP
81260-51010B0

JCG1#

LT.GRAY,TRIM2#

 1
81260-51010A0

JCG1#

IVORY,TRIM00,01

 1
81260-51010A0

JCG1#

IVORY,TRIM0#

 1
81260-51010B0

JCG1#

LT.GRAY,TRIM2#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

JCG1#

12V 1.2W ｿｹｯﾄ無し

 1
90981-11018

JCG1#

12V 1.2W ｿｹｯﾄ無し

 1
81260C - BULB(FOR MAP LAMP)
90981-12020

JCG1#

12V 8W

 2
90981-12020

JCG1#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12020

JCG1#

12V 8W

 2
90981-12020

JCG1#

12V 8W

 2
81261 - LENS AND COVER, MAP LAMP
81265-51010

JCG1#

 1
81265-51010

JCG1#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-50021

JCG1#

 1
81330-50021

JCG1#

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

JCG1#

12V 3.8W

 1
90981-11020

JCG1#

12V 3.8W

 1
81331 - LENS, LUGGAGE COMPARTMENT LAMP
81331-50010

JCG1#

 1
81331-50010

JCG1#

 1
81340 - LAMP ASSY, VANITY
81340-51010B1

JCG1#

LT.GRAY,TRIM2#,右側

 1
81340-51010B1

JCG1#

LT.GRAY,TRIM2#,右側

 1
81350-51010A1

JCG1#

IVORY,TRIM0#,左側

 1
81340-51010A1

JCG1#

IVORY,TRIM0#,右側

 1
81340-51010A1

JCG1#

IVORY,TRIM00,01,右側

 1
81350-51010B1

JCG1#

LT.GRAY,TRIM2#,左側

 1
81350-51010A1

JCG1#

IVORY,TRIM00,01,左側

 1
81350-51010B1

JCG1#

LT.GRAY,TRIM2#,左側

 1
81340B - BULB (FOR VANITY LAMP)
90981-14003

JCG1#

12V 1.5W

 2
90981-14003

JCG1#

12V 1.5W

 2
81490B - BULB (FOR FOOT LAMP)
90981-11041

JCG1#

14V 1.4W

 2
90981-11041

JCG1#

14V 1.4W

 2
81870D - LAMP ASSY, KEY CYLINDER
81870-30060

JCG1#

 1
81870-30060

JCG1#

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

JCG1#

14V 1.4W

 1
90981-11014

JCG1#

14V 1.4W

 1
Common parts
90160-40021
90167-45015
90468-04157
93313-15012
