JCG11-AEAZH (2001)
Toyota Progres
Production
Apr 2001
-
Jun 2007
Engine
2JZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(9805- )
Click highlighted areas on diagram
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK) | ||||
| 77019-51010 |
JCG1# 長さ=200 |
1 | ||
| 77019-51010 |
JCG1# 長さ=200 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-30010 |
JCG11 |
1 | ||
| 77024-22010 |
JCG1# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77030-51010 |
JCG1# |
1 | ||
| 77030-51010 |
JCG1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-51020 |
JCG11 |
1 | ||
| 77001-30522 |
JCG1# |
1 | ||
| 77001-30520 |
JCG1# |
1 | ||
| 77001-30521 |
JCG1# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
JCG1# |
1 | ||
| 90105-12116 |
JCG1# |
1 | ||
| 90105-12116 |
JCG1# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
JCG1# |
1 | ||
| 90430-12245 |
JCG1# |
1 | ||
| 90430-12245 |
JCG1# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95333-06020 |
JCG10,11 *H,L=110 |
1 | ||
| 77249-30030 |
JCG1# |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-12240 |
JCG1# |
1 | ||
| 77168-33050 |
JCG1# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
JCG1# |
1 | ||
| 77169-33020 |
JCG1# |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-33010 |
JCG1# |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-30020 |
JCG11 |
1 | ||
| 77175-30030 |
JCG1# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
JCG1# |
1 | ||
| 77179-33010 |
JCG1# |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-51020 |
JCG1# |
1 | ||
| 77201-51020 |
JCG1# |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-30080 |
JCG1# |
1 | ||
| 77209-30070 |
JCG1# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-51010 |
JCG10,11 |
1 | ||
| 77213-30170 |
JCG1# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-51010 |
JCG1# |
1 | ||
| 77216-51010 |
JCG1# |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-51010 |
JCG1# |
1 | ||
| 77217-51010 |
JCG1# |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-51010 |
JCG1# |
1 | ||
| 77229-51010 |
JCG1# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
JCG1# |
2 | ||
| 77241-33011 |
JCG11 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
JCG1# |
2 | ||
| 77241-33011 |
JCG11 |
1 | ||
| 77245D - TUBE, FUEL TANK RETURN VENT | ||||
| 77245-30150 |
JCG1# |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30150 |
JCG1# |
1 | ||
| 77285-30150 |
JCG1# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-51010 |
JCG1# |
1 | ||
| 77290-51010 |
JCG1# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-51010 |
JCG1# |
1 | ||
| 77293-51010 |
JCG1# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
JCG1# |
1 | ||
| 77310-48010 |
JCG1# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
JCG1# |
1 | ||
| 77316-16010 |
JCG1# |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-51010 |
JCG1# |
1 | ||
| 77340-51010 |
JCG1# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-51010 |
JCG1# |
1 | ||
| 77350-51010 |
JCG1# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30020 |
JCG1# |
1 | ||
| 77360-30020 |
JCG1# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-22060 |
JCG1# |
1 | ||
| 77377-22060 |
JCG1# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-51010 |
JCG1# |
1 | ||
| 77391-51010 |
JCG1# |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-51010 |
JCG1# |
2 | ||
| 77601-51010 |
JCG1# |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-51010 |
JCG1# |
2 | ||
| 77601-51010 |
JCG1# |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-51010 |
JCG1# |
1 | ||
| 77606-51020 |
JCG1# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77653-51010 |
JCG1# |
3 | ||
| 77653-51010 |
JCG1# 長さ=220 |
1 | ||
| 77651-30100 |
JCG1# 長さ=580 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
JCG1# |
7 | ||
| 77652-12100 |
JCG1# |
7 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
JCG1# |
2 | ||
| 77681-32060 |
JCG1# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
JCG1# |
2 | ||
| 77681-32060 |
JCG1# |
2 | ||
| 77725 - CUSHION, FUEL FILTER, NO.1 | ||||
| 77725-33010 |
JCG1# |
1 | ||
| 77726 - CUSHION, FUEL FILTER, NO.2 | ||||
| 77726-33010 |
JCG1# |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-33010 |
JCG1# |
1 | ||
| 77785-52020 |
JCG1# |
1 | ||
| Common parts | ||||
| 77277-51010 | ||||
| 90119-06398 | ||||
| 90119-10814 | ||||
| 90159-50269 | ||||
| 90159-50343 | ||||
| 90159-50365 | ||||
| 90179-06156 | ||||
| 90179-06159 | ||||
| 90179-06264 | ||||
| 90179-10186 | ||||
| 90189-05151 | ||||
| 90189-05167 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00745 | ||||
| 91621-B0816 | ||||
| 91645-C1032 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||

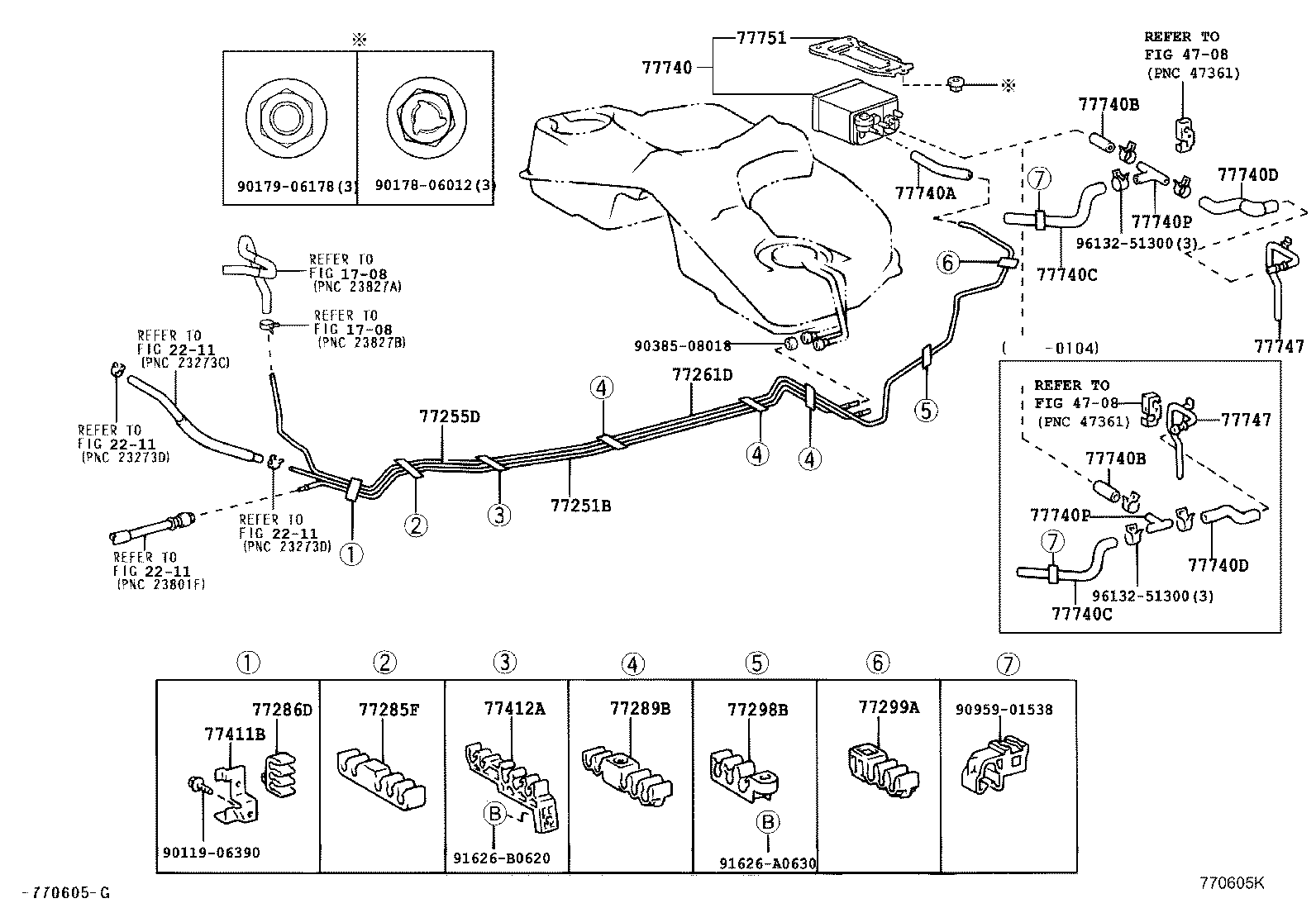

ILLUST NO. 2 OF 2(9805- )
Click highlighted areas on diagram
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-51010 |
JCG1# |
1 | ||
| 77251-30410 |
JCG10,11 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-30160 |
JCG10,11 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-51010 |
JCG1# |
1 | ||
| 77261-30250 |
JCG1# |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-51010 |
JCG1# |
1 | ||
| 77285-51010 |
JCG1# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-30100 |
JCG1# |
1 | ||
| 77286-30100 |
JCG1# |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-51010 |
JCG1# |
3 | ||
| 77289-51010 |
JCG1# |
3 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-51010 |
JCG1# |
1 | ||
| 77298-51010 |
JCG1# |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-51010 |
JCG1# |
1 | ||
| 77299-51010 |
JCG1# |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-22020 |
JCG1# |
1 | ||
| 77411-22020 |
JCG1# |
1 | ||
| 77412A - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-51010 |
JCG1# |
1 | ||
| 77412-51010 |
JCG1# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-51010 |
JCG10,11 |
1 | ||
| 77740-22460 |
JCG1# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23829-46290 |
JCG1# 長さ=185 |
1 | ||
| 23829-46220 |
JCG1# 長さ=200 |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 23826-50030 |
JCG1# 長さ=37 |
1 | ||
| 23829-46320 |
JCG1# 長さ=40 |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 23826-50030 |
JCG1# 長さ=37 |
1 | ||
| 23829-46320 |
JCG1# 長さ=40 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 23829-46230 |
JCG1# |
1 | ||
| 23829-46270 |
JCG1# |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 23829-46230 |
JCG1# |
1 | ||
| 23829-46270 |
JCG1# |
1 | ||
| 77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER) | ||||
| 23829-46280 |
JCG1# |
1 | ||
| 23829-46240 |
JCG1# |
1 | ||
| 77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER) | ||||
| 23829-46280 |
JCG1# |
1 | ||
| 23829-46240 |
JCG1# |
1 | ||
| 77740P - WAY, 3(FOR CHARCOAL CANISTER) | ||||
| 90413-07002 |
JCG1# |
1 | ||
| 90413-07002 |
JCG1# |
1 | ||
| 77740P - WAY, 3(FOR CHARCOAL CANISTER) | ||||
| 90413-07002 |
JCG1# |
1 | ||
| 90413-07002 |
JCG1# |
1 | ||
| 77747 - PIPE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-51010 |
JCG1# |
1 | ||
| 77747-51010 |
JCG1# |
1 | ||
| 77747 - PIPE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-51010 |
JCG1# |
1 | ||
| 77747-51010 |
JCG1# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-22140 |
JCG1# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90178-06012 | ||||
| 90179-06178 | ||||
| 90385-08018 | ||||
| 90959-01538 | ||||
| 91626-A0630 | ||||
| 91626-B0620 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
| 4708 | ||||
