Toyota Progres JCG11 LOCK CYLINDER SET

JCG11-AEAZH (2001)

Toyota Progres

Production Apr 2001 - Jun 2007

Engine 2JZFSE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

Part #	Description	Period	Qty
69503 - CYLINDER SET, LOCK
69005-51071	JCG1#	10/2005 - 12/2999	1
69005-51070	JCG1#	04/2004 - 09/2005	1
69005-51040	JCG1#	04/2001 - 04/2004	1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-51010	JCG1#	05/1998 - 04/2001	1
69510-51010	JCG1#	04/2001 - 12/2999	1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-51010	JCG1#	05/1998 - 04/2001	1
69520-51010	JCG1#	04/2001 - 12/2999	1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-30130	JCG1#	05/1998 - 04/2001	1
69550-30130	JCG1#	04/2001 - 12/2999	1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-30310	JCG1#	05/1998 - 04/2001	1
69560-51030	JCG1#	04/2001 - 04/2004	1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-30310	JCG1#	05/1998 - 04/2001	1
69560-51030	JCG1#	04/2001 - 04/2004	1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24090	JCG1#	05/1998 - 04/2001	1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-22080	JCG1# ｵﾚﾝｼﾞ	05/1998 - 04/2001	1
69759-22090	JCG1# ﾋﾟﾝｸ	05/1998 - 04/2001	1
69759-22080	JCG1# ｵﾚﾝｼﾞ	04/2001 - 12/2999	1
69759-22090	JCG1# ﾋﾟﾝｸ	04/2001 - 12/2999	1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-22080	JCG1# ｵﾚﾝｼﾞ	05/1998 - 04/2001	1
69759-22090	JCG1# ﾋﾟﾝｸ	05/1998 - 04/2001	1
69759-22080	JCG1# ｵﾚﾝｼﾞ	04/2001 - 12/2999	1
69759-22090	JCG1# ﾋﾟﾝｸ	04/2001 - 12/2999	1
Common parts
90119-06137
90179-06070
91651-40612
93567-54512
Linked diagrams
8420
8424

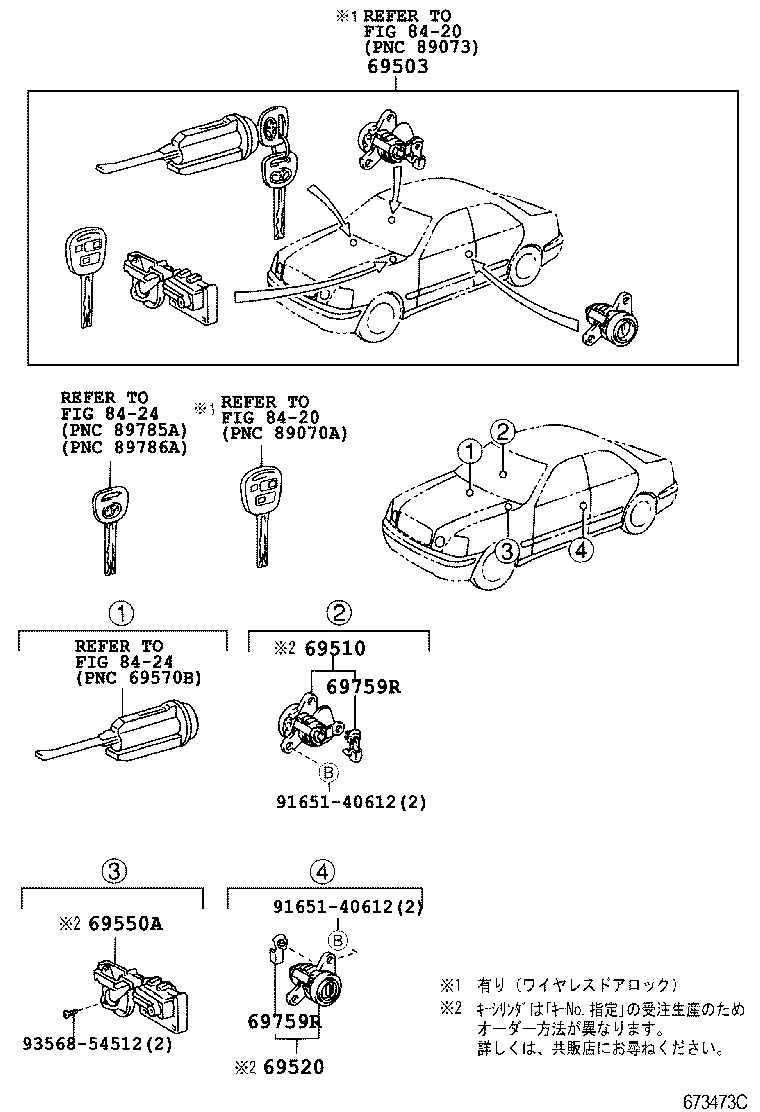

Click highlighted areas on diagram

Part #	Description	Period	Qty
69503 - CYLINDER SET, LOCK
69005-51071	JCG1#	10/2005 - 12/2999	1
69005-51070	JCG1#	04/2004 - 09/2005	1
69005-51040	JCG1#	04/2001 - 04/2004	1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-51010	JCG1#	05/1998 - 04/2001	1
69510-51010	JCG1#	04/2001 - 12/2999	1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-51010	JCG1#	05/1998 - 04/2001	1
69520-51010	JCG1#	04/2001 - 12/2999	1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-30130	JCG1#	05/1998 - 04/2001	1
69550-30130	JCG1#	04/2001 - 12/2999	1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-22080	JCG1# ｵﾚﾝｼﾞ	05/1998 - 04/2001	1
69759-22090	JCG1# ﾋﾟﾝｸ	05/1998 - 04/2001	1
69759-22080	JCG1# ｵﾚﾝｼﾞ	04/2001 - 12/2999	1
69759-22090	JCG1# ﾋﾟﾝｸ	04/2001 - 12/2999	1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-22080	JCG1# ｵﾚﾝｼﾞ	05/1998 - 04/2001	1
69759-22090	JCG1# ﾋﾟﾝｸ	05/1998 - 04/2001	1
69759-22080	JCG1# ｵﾚﾝｼﾞ	04/2001 - 12/2999	1
69759-22090	JCG1# ﾋﾟﾝｸ	04/2001 - 12/2999	1
Common parts
91651-40612
93568-54512
Linked diagrams
8420
8424
