JCG11-AEAZH (2001)

Toyota Progres

Production Apr 2001 - Jun 2007
Engine 2JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

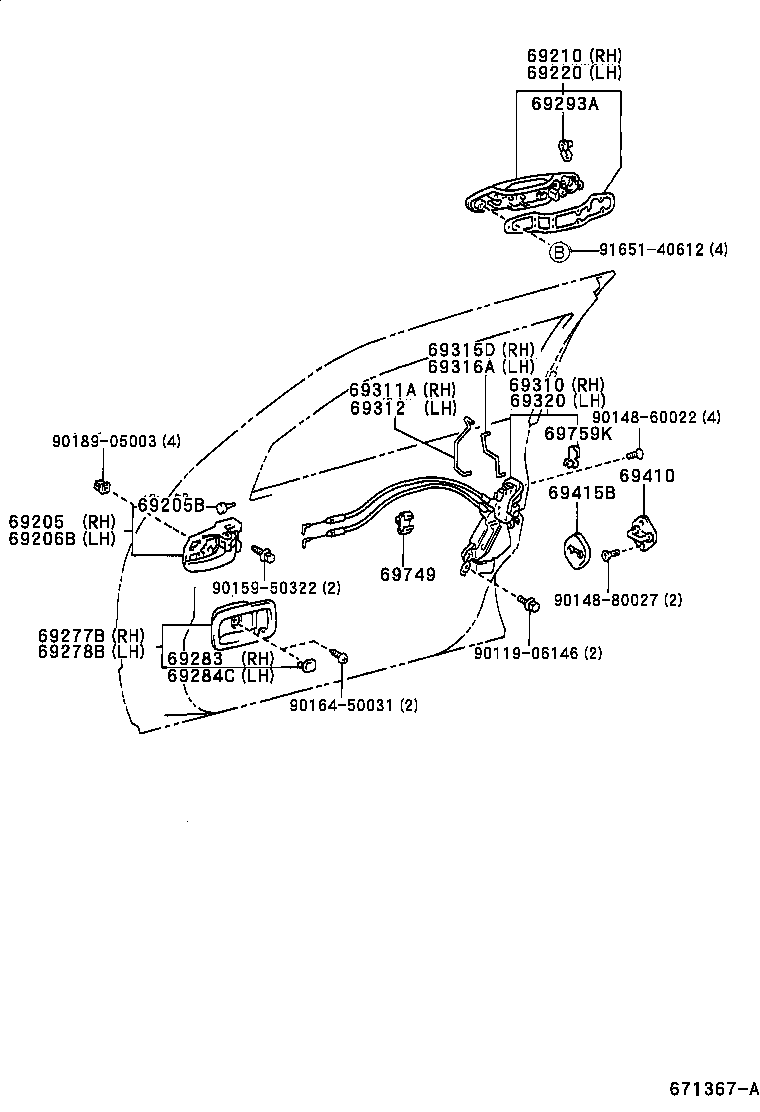

Click highlighted areas on diagram

diagram 69205 69205B 69206B 69210 69220 69277B 69278B 69283 69284C 69293A 69310 69311A 69312 69315D 69316A 69320 69410 69415B 69749 69759K 9011906146 9014860022 9014880027 9015950322 9016450031 9018905003 9165140612
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-51010C0

JCG1#

BLACK,TRIM2#

 1
69205-51010A0

JCG1#

IVORY,TRIM00,01

 1
69205-51010A0

JCG1#

IVORY,TRIM0#

 1
69205-51010C0

JCG1#

BLACK,TRIM2#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04014

JCG1#

 2
90541-04014

JCG1#

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-51010C0

JCG1#

BLACK,TRIM2#

 1
69206-51010A0

JCG1#

IVORY,TRIM00,01

 1
69206-51010C0

JCG1#

BLACK,TRIM2#

 1
69206-51010A0

JCG1#

IVORY,TRIM0#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-51010

JCG1#

ﾒｯｷ

 1
69210-51010

JCG1#

ﾒｯｷ

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-51010

JCG1#

*CR

 1
69220-51010

JCG1#

*CR

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-51010A0

JCG1#

IVORY,TRIM00,01

 1
69277-51010A0

JCG1#

IVORY,TRIM0#

 1
69277-51010C0

JCG1#

BLACK,TRIM2#

 1
69277-51010C0

JCG1#

BLACK,TRIM2#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-51010A0

JCG1#

IVORY,TRIM0#

 1
69278-51010C0

JCG1#

BLACK,TRIM2#

 1
69278-51010A0

JCG1#

IVORY,TRIM00,01

 1
69278-51010C0

JCG1#

BLACK,TRIM2#

 1
69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69283-30040A1

JCG1#

IVORY,TRIM0#

 1
69283-30040C0

JCG1#

BLACK,TRIM2#

 1
69283-30040A1

JCG1#

IVORY,TRIM00,01

 1
69283-30040C0

JCG1#

BLACK,TRIM2#

 1
69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69284-30040C0

JCG1#

BLACK,TRIM2#

 1
69284-30040C0

JCG1#

BLACK,TRIM2#

 1
69284-30040A1

JCG1#

IVORY,TRIM00,01

 1
69284-30040A1

JCG1#

IVORY,TRIM0#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12050

JCG1#

ﾎﾜｲﾄ

 1
69293-12060

JCG1#

ｲｴﾛｰ

 1
69293-12060

JCG1#

ｲｴﾛｰ

 1
69293-12050

JCG1#

ﾎﾜｲﾄ

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-51011

JCG1#

 1
69030-51010

JCG1#

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-51010

JCG1#

 1
69311-51010

JCG1#

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-51010

JCG1#

 1
69312-51010

JCG1#

 1
69315D - LINK, FRONT DOOR OUTSIDE LOCKING, RH
69315-51010

JCG1#

 1
69315-51010

JCG1#

 1
69316A - LINK, FRONT DOOR OUTSIDE LOCKING, LH
69316-51010

JCG1#

 1
69316-51010

JCG1#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-51011

JCG1#

 1
69040-51010

JCG1#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-51010

JCG1#

 2
69410-51010

JCG1#

 2
69415B - COVER, DOOR LOCK STRIKER, FRONT
69415-30020

JCG1#

 2
69415-30020

JCG1#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-30050

JCG1#

 2
69749-30050

JCG1#

 2
69759K - SNAP, DOOR LOCK CONTROL LINK
69759-32120

JCG1#

 2
69759-32120

JCG1#

 2
Common parts
90119-06146
90148-60022
90148-80027
90159-50322
90164-50031
90189-05003
91651-40612
