JCG11-AEAZH (2001)

Toyota Progres

Production Apr 2001 - Jun 2007
Engine 2JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

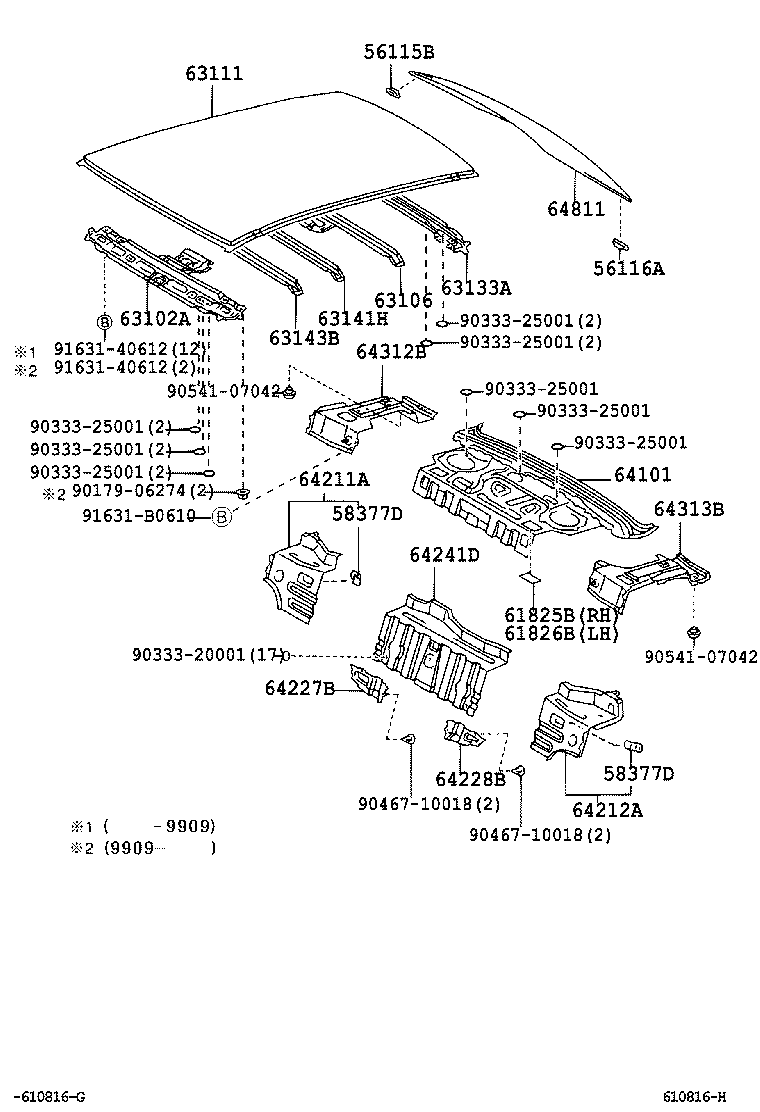

Click highlighted areas on diagram

diagram 56115B 56116A 58377D 58377D 61825B 61826B 63102A 63106 63111 63133A 63141H 63143B 64101 64211A 64212A 64227B 64228B 64241D 64312B 64313B 64811 9017906274 9033320001 9033325001 9033325001 9033325001 9033325001 9033325001 9033325001 9033325001 9033325001 9046710018 9046710018 9054107042 9054107042 9163140612 9163140612 91631B0610
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30100

JCG1#

 2
56115-30100

JCG1#

 2
56116A - SPACER, WINDSHIELD GLASS
56116-22050

JCG1#

 2
56116-22050

JCG1#

 2
58377D - RETAINER, LOWER BACK TRIM
58377-22020

JCG1#

 1
58377-22020

JCG1#

 1
58377D - RETAINER, LOWER BACK TRIM
58377-22020

JCG1#

 1
58377-22020

JCG1#

 1
61825B - PLATE, NOISE CONTROL, NO.2
61825-51010

JCG1#

 2
61825-51010

JCG1#

 2
61826B - PLATE, NOISE CONTROL, NO.3
61825-51010

JCG1#

 2
61825-51010

JCG1#

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-51010

JCG1#

 1
63102-51011

JCG1#

 1
63106 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4
63106-51010

JCG1#

 1
63106-51010

JCG1#

 1
63111 - PANEL, ROOF
63111-51010

JCG1#

 1
63111-51070

JCG1#

ﾍﾙﾌﾟﾈﾂﾄ

 1
63111-51010

JCG1#

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-51010

JCG1#

 1
63133-51011

JCG1#

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-51010

JCG1#

 1
63141-51010

JCG1#

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-51010

JCG1#

 1
63143-51010

JCG1#

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-51900

JCG1#

 1
64101-51902

JCG1#

 1
64211A - STRAINER, PACKAGE TRAY TO FLOOR, RH
64211-51010

JCG1#

 1
64211-51010

JCG1#

 1
64212A - STRAINER, PACKAGE TRAY TO FLOOR, LH
64212-51010

JCG1#

 1
64212-51010

JCG1#

 1
64227B - EXTENSION, CENTER FLOOR TO BLACE, NO.1
64227-51010

JCG1#

 1
64227-51010

JCG1#

 1
64228B - EXTENSION, CENTER FLOOR TO BRACE, NO.2
64228-51010

JCG1#

 1
64228-51010

JCG1#

 1
64241D - PANEL, ROOM PARTITION
64241-51010

JCG1#

 1
64241-51011

JCG1#

 1
64241-51010

JCG1#

 1
64312B - BRACKET, PACKAGE TRAY, RH
64312-51010

JCG1#

 1
64312-51010

JCG1#

 1
64313B - BRACKET, PACKAGE TRAY, LH
64313-51010

JCG1#

 1
64313-51010

JCG1#

 1
64811 - GLASS, BACK WINDOW
64811-51010

JCG1#

*UVCT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
64811-51030

JCG10,11

*TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ

 1
64811-51020

JCG1#

*UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
64811-51010

JCG11

*UVCT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
64811-51020

JCG1#

*UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
64811-51040

JCG10,11

*TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
Common parts
90179-06274
90333-20001
90333-25001
90467-10018
90541-07042
91631-40612
91631-B0610
