JCG11-AEAZH (2001)

Toyota Progres

Production Apr 2001 - Jun 2007
Engine 2JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

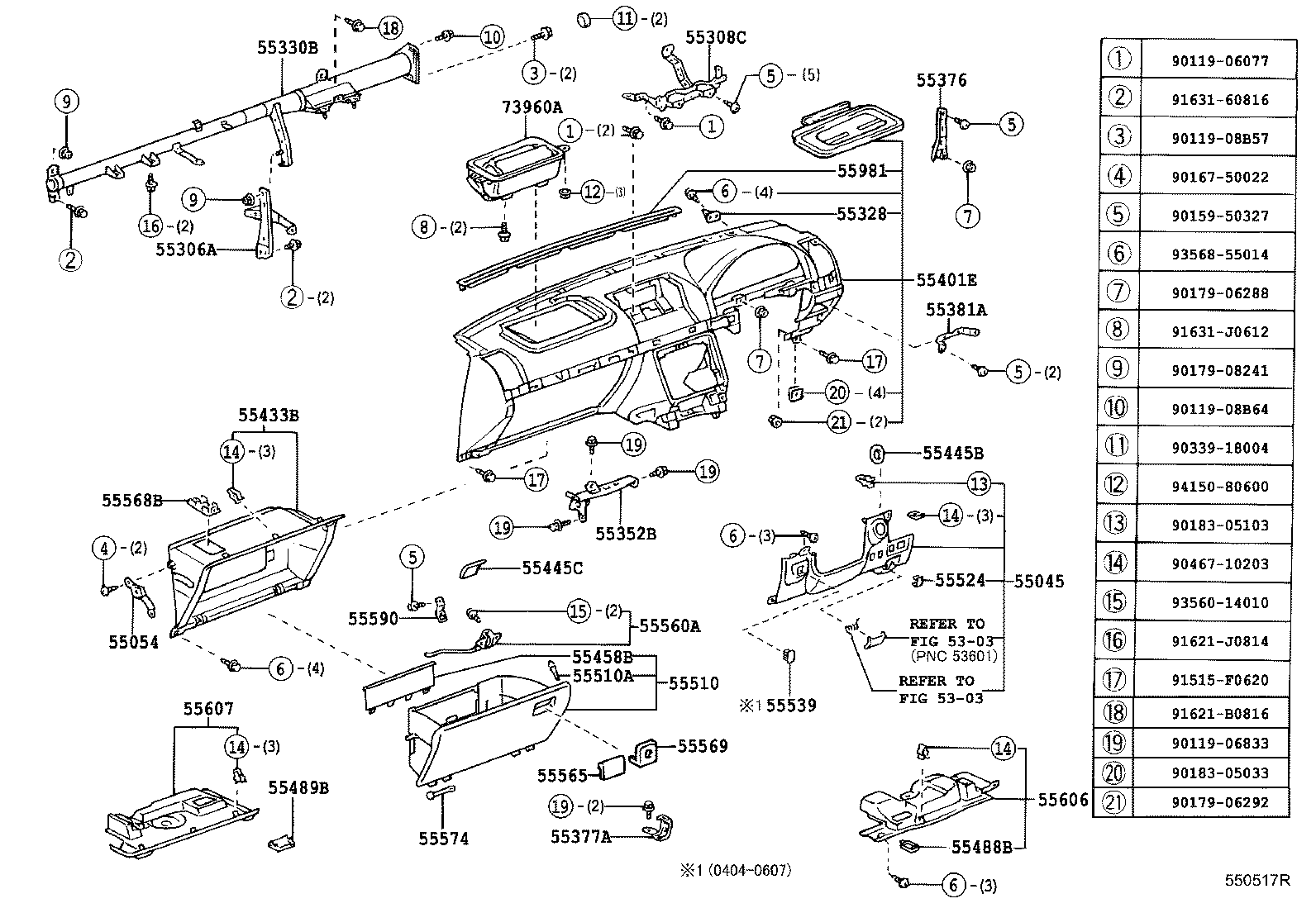

ILLUST NO. 1 OF 2(9805- )

Click highlighted areas on diagram

diagram 5303 5303 55045 55054 55306A 55308C 55328 55330B 55352B 55376 55377A 55381A 55401E 55433B 55445B 55445C 55458B 55488B 55489B 55510 55510A 55524 55539 55560A 55565 55568B 55569 55574 55590 55606 55607 55981 73960A 9011906077 9011906833 9011908B57 9011908B64 9015950327 9016750022 9017906288 9017906292 9017908241 9018305033 9018305103 9033918004 9046710203 91515F0620 91621B0816 91621J0814 9163160816 91631J0612 9356014010 9356855014 9415080600
Part # Description Qty Price
55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
55045-51010C0

JCG1#

BLACK,TRIM2#

 1
55045-51010A0

JCG1#

IVORY,TRIM00,01

 1
55045-51011C0

JCG1#

BLACK,TRIM2#

 1
55045-51010A0

JCG1#

IVORY,TRIM0#

 1
55045-51011A0

JCG1#

IVORY,TRIM0#

 1
55045-51010C0

JCG1#

BLACK,TRIM2#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-51010

JCG1#

 1
55054-51010

JCG1#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-51030

JCG1#

 1
55306-51010

JCG10,11

 1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-51010

JCG1#

 1
55308-51010

JCG1#

 1
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-51020

JCG1#

 2
55328-51020

JCG1#

 2
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-51010

JCG1#

 1
55330-51010

JCG1#

 1
55352B - BRACKET, CENTER CONSOLE, NO.2
55352-51030

JCG10,11

 1
55352-51010

JCG10,11

 1
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-51010

JCG1#

 1
55376-51010

JCG1#

 1
55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55377-51010

JCG1#

 1
55377-51010

JCG1#

 1
55381A - BRACKET, FINISH PANEL MOUNTING
55381-51010

JCG1#

 1
55381-51010

JCG1#

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-51010C0

JCG1#

BLACK,TRIM2#

 1
55401-51010E0

JCG1#

SANDAL WOOD,TRIM0#

 1
55401-51010E0

JCG1#

SANDAL WOOD,TRIM01

 1
55401-51010C0

JCG1#

BLACK,TRIM2#

 1
55401-51010J0

JCG1#

DK.BLUE,TRIM00

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-51010

JCG1#

 1
55433-51010

JCG1#

 1
55445B - PLATE, INSTRUMENT PANEL FINISH
55445-30160A1

JCG1#

IVORY,TRIM00,01

 1
55445-30160A1

JCG1#

IVORY,TRIM0#

 1
55445-30160C0

JCG1#

BLACK,TRIM2#

 1
55445-30160C0

JCG1#

BLACK,TRIM2#

 1
55445C - PLATE, INSTRUMENT PANEL BOX
55445-51010

JCG1#

 1
55445-51010

JCG1#

 1
55458B - COVER, INSTRUMENT, LWR
55458-48010

JCG1#

 1
55458-48010

JCG1#

 1
55488B - LENS, FRONT FOOT LAMP, NO.1
55489-50010

JCG1#

 1
55489-50010

JCG1#

 1
55489B - LENS, FRONT FOOT LAMP, NO.2
55489-50010

JCG1#

 1
55489-50010

JCG1#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55501-51010A0

JCG1#

IVORY,TRIM0#

 1
55501-51010C0

JCG1#

BLACK,TRIM2#

 1
55501-51010A0

JCG1#

IVORY,TRIM00,01

 1
55501-51010C0

JCG1#

BLACK,TRIM2#

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-05020

JCG1#

 2
90541-05020

JCG1#

 2
55524 - COVER, SWITCH BACE HOLE
55524-51010C0

JCG1#

BLACK,TRIM2#

 1
55524-51010A0

JCG1#

IVORY,TRIM0#

 1
55524-51010A0

JCG1#

IVORY,TRIM00,01

 1
55524-51010C0

JCG1#

BLACK,TRIM2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-51020C0

JCG11

BLACK,TRIM2#

 1
55539-51020A0

JCG11

IVORY,TRIM0#

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-51010

JCG1#

 1
55560-51010

JCG1#

 1
55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK
55565-50010A1

JCG1#

IVORY,TRIM00,01

 1
55565-5001022

JCG1#

BLACK,TRIM2#

 1
55565-50010A1

JCG1#

IVORY,TRIM0#

 1
55565-5001022

JCG1#

BLACK,TRIM2#

 1
55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH
55568-24020

JCG1#

 1
55568-24020

JCG1#

 1
55569 - COVER, GLOVE COMPARTMENT DOOR LOCK
55569-50010A1

JCG1#

IVORY,TRIM0#

 1
55569-5001022

JCG1#

BLACK,TRIM2#

 1
55569-50010A1

JCG1#

IVORY,TRIM00,01

 1
55569-5001022

JCG1#

BLACK,TRIM2#

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

JCG1#

 2
55574-10010

JCG1#

 2
55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55590-51010

JCG1#

 1
55590-51010

JCG1#

 1
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606-51010

JCG1#

 1
55606-51010

JCG1#

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-51012C0

JCG1#

BLACK,TRIM2#

 1
55607-51010C0

JCG1#

BLACK,TRIM2#

 1
55607-51012A0

JCG1#

IVORY,TRIM0#

 1
55607-51010A0

JCG1#

IVORY,TRIM00,01

 1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-51010E0

JCG1#

SANDAL WOOD,TRIM01

 1
55981-51010C0

JCG1#

BLACK,TRIM2#

 1
55981-51010E0

JCG1#

SANDAL WOOD,TRIM0#

 1
55981-51010J0

JCG1#

DK.BLUE,TRIM00

 1
55981-51010C0

JCG1#

BLACK,TRIM2#

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-51010

JCG1#

 1
73960-51020

JCG1#

 1
Common parts
90119-06077
90119-06833
90119-08B57
90119-08B64
90159-50327
90167-50022
90179-06288
90179-06292
90179-08241
90183-05033
90183-05103
90339-18004
90467-10203
91515-F0620
91621-B0816
91621-J0814
91631-60816
91631-J0612
93560-14010
93568-55014
94150-80600
Linked diagrams
5303

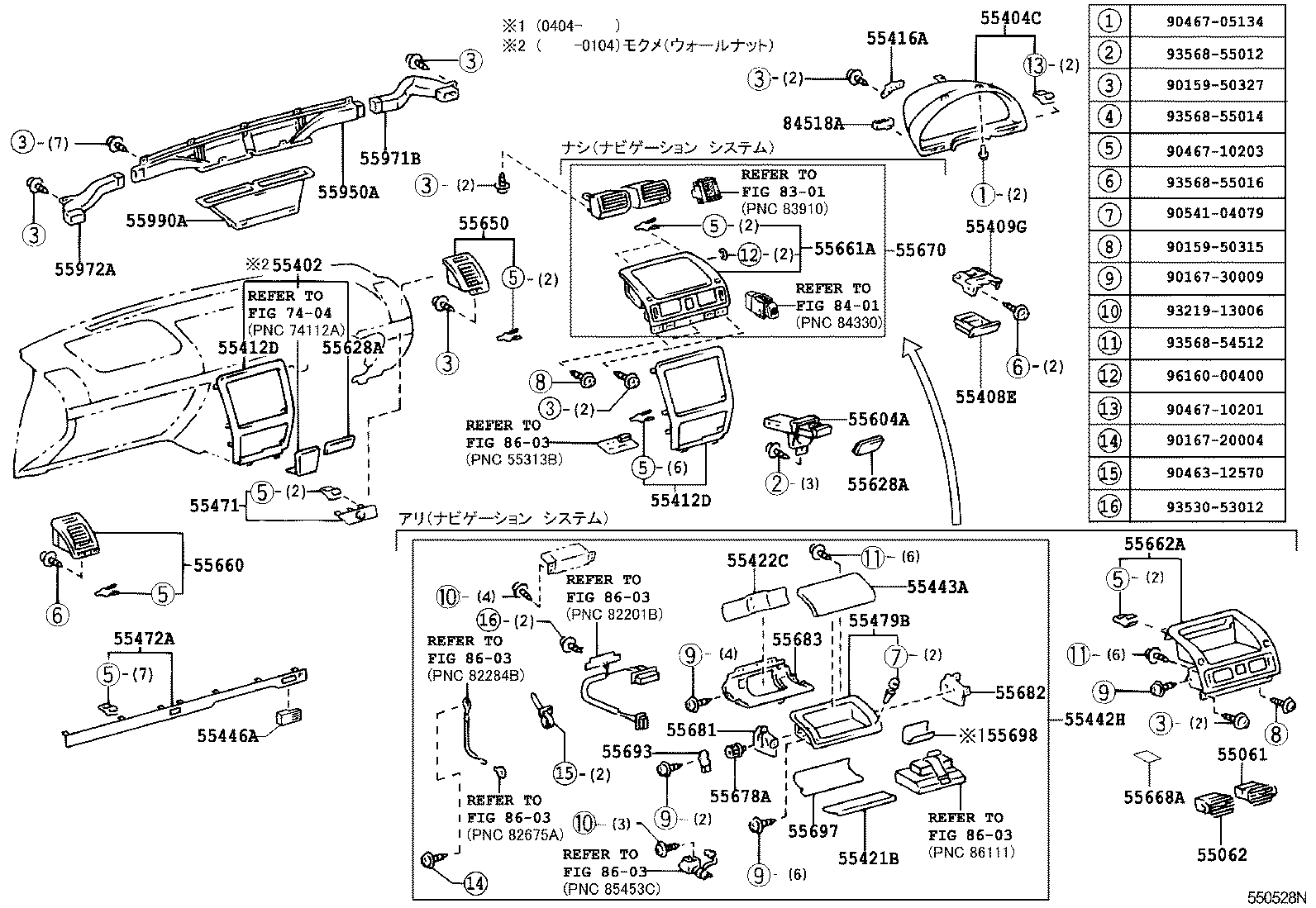

ILLUST NO. 2 OF 2(9805- )

Click highlighted areas on diagram

diagram 55061 55062 55402 55404C 55408E 55409G 55412D 55412D 55416A 55421B 55422C 55442H 55443A 55446A 55471 55472A 55479B 55604A 55628A 55628A 55650 55660 55661A 55662A 55668A 55670 55678A 55681 55682 55683 55693 55697 55698 55950A 55971B 55972A 55990A 7404 8301 8401 84518A 8603 8603 8603 8603 8603 8603 9015950315 9015950327 9016720004 9016730009 9046312570 9046705134 9046710201 9046710203 9054104079 9321913006 9353053012 9356854512 9356855012 9356855014 9356855016 9616000400
Part # Description Qty Price
55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1
55061-51010J0

JCG1#

DK.BLUE,TRIM00

 1
55061-51010E0

JCG1#

SANDAL WOOD,TRIM01

 1
55061-51010C0

JCG1#

BLACK,TRIM2#

 1
55061-51010C0

JCG1#

BLACK,TRIM2#

 1
55061-51010E0

JCG1#

SANDAL WOOD,TRIM0#

 1
55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2
55062-51010C0

JCG1#

BLACK,TRIM2#

 1
55062-51010E0

JCG1#

SANDAL WOOD,TRIM0#

 1
55062-51010J0

JCG1#

DK.BLUE,TRIM00

 1
55062-51010E0

JCG1#

SANDAL WOOD,TRIM01

 1
55062-51010C0

JCG1#

BLACK,TRIM2#

 1
55402 - PANEL SUB-ASSY, INSTRUMENT LAYOUT, CENTER
55412-59015

JCG1#

 1
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-51010

JCG1#

 1
55404-51020

JCG10,11

ｱﾘ(ﾚｰｻﾞｰﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)

 1
55404-51020

JCG10,11

ｱﾘ(ﾚｰｻﾞｰﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)

 1
55404-51010

JCG1#

 1
55408E - BOX SUB-ASSY, INSTRUMENT PANEL COIN
55408-50070A0

JCG1#

IVORY,TRIM00,01

 1
55408-50070C0

JCG1#

BLACK,TRIM2#

 1
55408-50070A0

JCG1#

IVORY,TRIM0#

 1
55408-50070C0

JCG1#

BLACK,TRIM2#

 1
55409G - RETAINER SUB-ASSY, COIN BOX
55409-50010

JCG1#

 1
55409-50010

JCG1#

 1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-51030E0

JCG1#

ﾓｸﾒ(ｻﾍﾟﾘﾏﾎｶﾞﾆ-),LT.BROWN,TRIM0#,2#

 1
55412-51020

JCG1#

ﾓｸﾒ(ｳｵ-ﾙﾅﾂﾄ)

 1
55412-51020E0

JCG1#

ﾓｸﾒ(ｳｵ-ﾙﾅﾂﾄ),MD.BROWN,TRIM0#,2#

 1
55412-51040E0

JCG1#

ﾓｸﾒ(ﾊﾞ-ｽﾞｱｲﾒｲﾌﾟﾙ),LIGHTBROWN,TRIM0#

 1
55412-51010

JCG1#

ﾓｸﾒ ﾁﾖｳ

 1
55412-51010

JCG1#

ﾓｸﾒ ﾁﾖｳ

 1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-51030E0

JCG1#

ﾓｸﾒ(ｻﾍﾟﾘﾏﾎｶﾞﾆ-),LT.BROWN,TRIM0#,2#

 1
55412-51020

JCG1#

ﾓｸﾒ(ｳｵ-ﾙﾅﾂﾄ)

 1
55412-51020E0

JCG1#

ﾓｸﾒ(ｳｵ-ﾙﾅﾂﾄ),MD.BROWN,TRIM0#,2#

 1
55412-51040E0

JCG1#

ﾓｸﾒ(ﾊﾞ-ｽﾞｱｲﾒｲﾌﾟﾙ),LIGHTBROWN,TRIM0#

 1
55412-51010

JCG1#

ﾓｸﾒ ﾁﾖｳ

 1
55412-51010

JCG1#

ﾓｸﾒ ﾁﾖｳ

 1
55416A - RETAINER, METER HOOD, NO.1
55416-51010

JCG1#

 2
55416-51010

JCG1#

 2
55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER
55421-51010

JCG1#

 1
55421-51010

JCG1#

 1
55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER
55422-51010

JCG1#

 1
55422-51010

JCG1#

 1
55442H - DOOR, INSTRUMENT PANEL
55442-51010E0

JCG1#

SANDAL WOOD,TRIM01

 1
55442-51031C0

JCG1#

BLACK,TRIM2#

 1
55442-51030E0

JCG1#

SANDAL WOOD,TRIM0#

 1
55442-51010C0

JCG1#

BLACK,TRIM2#

 1
55442-51031E0

JCG1#

SANDAL WOOD,TRIM0#

 1
55442-51010J0

JCG1#

DK.BLUE,TRIM00

 1
55442-51030C0

JCG1#

BLACK,TRIM2#

 1
55443A - COVER, INSTRUMENT PANEL BOX DOOR
55443-51010J0

JCG1#

DK.BLUE,TRIM00

 1
55443-51020C0

JCG1#

BLACK,TRIM2#

 1
55443-51020E0

JCG1#

SANDAL WOOD,TRIM0#

 1
55443-51010C0

JCG1#

BLACK,TRIM2#

 1
55443-51010E0

JCG1#

SANDAL WOOD,TRIM01

 1
55446A - BASE, SWITCH HOLE, NO.1
55446-51010

JCG10,11

 1
55446-51010

JCG10,11

 1
55471 - MOULDING, INSTRUMENT CLUSTER, NO.1
55471-51020

JCG1#

ﾓｸﾒ(ｳｵ-ﾙﾅﾂﾄ)

 1
55471-51010

JCG1#

ﾓｸﾒ ﾁﾖｳ

 1
55471-51010

JCG1#

ﾓｸﾒ ﾁﾖｳ

 1
55471-51020E0

JCG1#

ﾓｸﾒ(ｳｵ-ﾙﾅﾂﾄ),MD.BROWN,TRIM0#,2#

 1
55471-51030E0

JCG1#

ﾓｸﾒ(ｻﾍﾟﾘﾏﾎｶﾞﾆ-),LT.BROWN,TRIM0#,2#

 1
55471-51040E0

JCG1#

ﾓｸﾒ(ﾊﾞ-ｽﾞｱｲﾒｲﾌﾟﾙ),LIGHTBROWN,TRIM0#

 1
55472A - MOULDING, INSTRUMENT CLUSTER, NO.2
55472-51020

JCG1#

ﾓｸﾒ(ｳｵ-ﾙﾅﾂﾄ)

 1
55472-51010

JCG1#

ﾓｸﾒ ﾁﾖｳ

 1
55472-51030E0

JCG1#

ﾓｸﾒ(ｻﾍﾟﾘﾏﾎｶﾞﾆ-),LT.BROWN,TRIM0#,2#

 1
55472-51050E0

JCG1#

ﾓｸﾒ(ﾊﾞ-ｽﾞｱｲﾒｲﾌﾟﾙ),LIGHTBROWN,TRIM0#

 1
55472-51020E0

JCG1#

ﾓｸﾒ(ｳｵ-ﾙﾅﾂﾄ),MD.BROWN,TRIM0#,2#

 1
55472-51010

JCG1#

ﾓｸﾒ ﾁﾖｳ

 1
55479B - COVER, INSTRUMENT, LOWER CENTER
55479-51010J0

JCG1#

DK.BLUE,TRIM00

 1
55479-51010E0

JCG1#

SANDAL WOOD,TRIM01

 1
55479-51020E0

JCG1#

SANDAL WOOD,TRIM0#

 1
55479-51010C0

JCG1#

BLACK,TRIM2#

 1
55479-51020C0

JCG1#

BLACK,TRIM2#

 1
55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-51010

JCG1#

 1
55604-51010

JCG1#

 1
55628A - KNOB, INSTRUMENT PANEL CUP HOLDER
55628-51010

JCG1#

ﾓｸﾒ ﾁﾖｳ

 1
55628-51020E0

JCG1#

ﾓｸﾒ(ｳｵ-ﾙﾅﾂﾄ),MD.BROWN,TRIM0#,2#

 1
55628-51020

JCG1#

ﾓｸﾒ(ｳｵ-ﾙﾅﾂﾄ)

 1
55628-51030E0

JCG1#

ﾓｸﾒ(ｻﾍﾟﾘﾏﾎｶﾞﾆ-),LT.BROWN,TRIM0#,2#

 1
55628-51040E0

JCG1#

ﾓｸﾒ(ﾊﾞ-ｽﾞｱｲﾒｲﾌﾟﾙ),LIGHTBROWN,TRIM0#

 1
55628-51010

JCG1#

ﾓｸﾒ ﾁﾖｳ

 1
55628A - KNOB, INSTRUMENT PANEL CUP HOLDER
55628-51010

JCG1#

ﾓｸﾒ ﾁﾖｳ

 1
55628-51020E0

JCG1#

ﾓｸﾒ(ｳｵ-ﾙﾅﾂﾄ),MD.BROWN,TRIM0#,2#

 1
55628-51020

JCG1#

ﾓｸﾒ(ｳｵ-ﾙﾅﾂﾄ)

 1
55628-51030E0

JCG1#

ﾓｸﾒ(ｻﾍﾟﾘﾏﾎｶﾞﾆ-),LT.BROWN,TRIM0#,2#

 1
55628-51040E0

JCG1#

ﾓｸﾒ(ﾊﾞ-ｽﾞｱｲﾒｲﾌﾟﾙ),LIGHTBROWN,TRIM0#

 1
55628-51010

JCG1#

ﾓｸﾒ ﾁﾖｳ

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-51010C0

JCG1#

BLACK,TRIM2#

 1
55650-51010C0

JCG1#

BLACK,TRIM2#

 1
55650-51010E0

JCG1#

SANDAL WOOD,TRIM0#

 1
55650-51010J0

JCG1#

DK.BLUE,TRIM00

 1
55650-51010E0

JCG1#

SANDAL WOOD,TRIM01

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-51010E0

JCG1#

SANDAL WOOD,TRIM0#

 1
55660-51010E0

JCG1#

SANDAL WOOD,TRIM01

 1
55660-51010J0

JCG1#

DK.BLUE,TRIM00

 1
55660-51010C0

JCG1#

BLACK,TRIM2#

 1
55660-51010C0

JCG1#

BLACK,TRIM2#

 1
55661A - BEZEL, INSTRUMENT PANEL REGISTER
55661-51010J0

JCG1#

DK.BLUE,TRIM00

 1
55661-51010C0

JCG1#

BLACK,TRIM2#

 1
55661-51010E0

JCG1#

SANDAL WOOD,TRIM01

 1
55661-51010C0

JCG11

BLACK,TRIM2#

 1
55661-51010E0

JCG11

SANDAL WOOD,TRIM0#

 1
55662A - BEZEL, INSTRUMENT PANEL RESISTER, NO.2
55662-51010C0

JCG1#

BLACK,TRIM2#

 1
55662-51010J0

JCG1#

DK.BLUE,TRIM00

 1
55662-51010C0

JCG1#

BLACK,TRIM2#

 1
55662-51010E0

JCG1#

SANDAL WOOD,TRIM0#

 1
55662-51010E0

JCG1#

SANDAL WOOD,TRIM01

 1
55668A - CUSHION, INSTR PANEL REGISTER, NO.1
55668-51010

JCG1#

 1
55668-51010

JCG1#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-51070C0

JCG11

BLACK,TRIM2#

 1
55670-51070E0

JCG11

SANDAL WOOD,TRIM0#

 1
55670-51010E0

JCG1#

SANDAL WOOD,TRIM01

 1
55670-51010J0

JCG1#

DK.BLUE,TRIM00

 1
55670-51010C0

JCG1#

BLACK,TRIM2#

 1
55678A - GEAR, INSTRUMENT PANEL REGISTER CONTROL
55678-51010

JCG1#

 1
55678-51010

JCG1#

 1
55681 - SUPPORT, INSTRUMENT PANEL REGISTER, NO.1
55681-51010

JCG1#

 1
55681-51010

JCG1#

 1
55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT
55682-51010

JCG1#

 1
55682-51010

JCG1#

 1
55683 - SUPPORT, INSTRUMENT REGISTER, NO.3
55683-51010

JCG1#

 1
55683-51010

JCG1#

 1
55693 - PROTECTOR, CONTROL KNOB, NO.1
55693-51010

JCG1#

 1
55693-51010

JCG1#

 1
55697 - SEAL, INSTRUMENT PANEL REGISTER, NO.1
55697-51010

JCG1#

 1
55697-51010

JCG1#

 1
55698 - SEAL, INSTRUMENT PANEL REGISTER, NO.2
55698-51010

JCG1#

 1
55950A - NOZZLE ASSY, DEFROSTER
55950-51010

JCG1#

 1
55950-51010

JCG1#

 1
55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-51010

JCG1#

 1
55971-51010

JCG1#

 1
55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-51010

JCG1#

 1
55972-51010

JCG1#

 1
55990A - NOZZLE ASSY, DEFROSTER, LOWER
55990-51010

JCG1#

 1
55990-51010

JCG1#

 1
84518A - HOLDER, SWITCH COVER
84518-51010

JCG1#

 1
84518-51010

JCG1#

 1
Common parts
90159-50315
90159-50327
90167-20004
90167-30009
90463-12570
90467-05134
90467-10201
90467-10203
90541-04079
93219-13006
93530-53012
93568-54512
93568-55012
93568-55014
93568-55016
96160-00400
Linked diagrams
7404
8301
8401
8603
