JCG11-AEAZH (2001)

Toyota Progres

Production Apr 2001 - Jun 2007
Engine 2JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

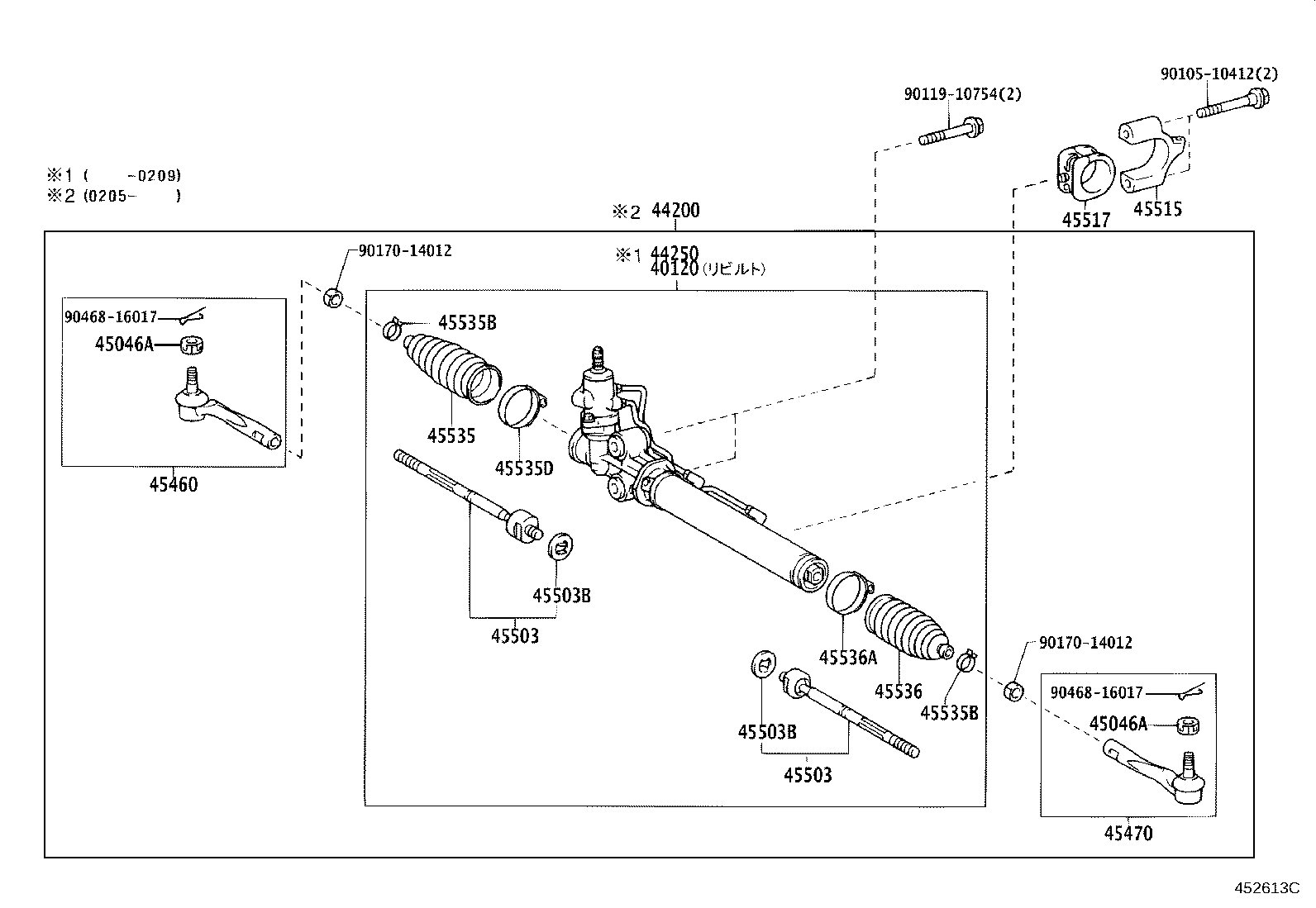

ILLUST NO. 1 OF 2(0104- )JCG10,11

Click highlighted areas on diagram

diagram 40120 44200 44250 45046A 45046A 45460 45470 45503 45503 45503B 45503B 45515 45517 45535 45535B 45535B 45535D 45536 45536A 9010510412 9011910754 9017014012 9017014012 9046816017 9046816017
Part # Description Qty Price
40120 - GEAR ASSY,POWER STEERING,REBUILT
40120-51060

JCG10,11

IR ﾊﾞ-ｼﾞﾖﾝ *(S) OR IR ﾊﾞ-ｼﾞﾖﾝ ｳｵ-ﾙﾅﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(X),TOYODA KOKI

 1
40120-51050

JCG10,11

TOYODA KOKI

 1
40120-51100

JCG10,11

IR ﾊﾞ-ｼﾞﾖﾝ *(S) OR IR ﾊﾞ-ｼﾞﾖﾝ ｳｵ-ﾙﾅﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(X),TOYODA KOKI

 1
40120-51090

JCG10,11

TOYODA KOKI

 1
40120-51010

JCG1#

TOYODA KOKI

 1
44200 - LINK ASSY, POWER STEERING
44200-51120

JCG10,11

IR ﾊﾞ-ｼﾞﾖﾝ *(S) OR IR ﾊﾞ-ｼﾞﾖﾝ ｳｵ-ﾙﾅﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(X)

 1
44200-51110

JCG10,11

 1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-51090

JCG10,11

 1
44250-51050

JCG10,11

 1
44250-51010

JCG1#

 1
44250-51060

JCG10,11

IR ﾊﾞ-ｼﾞﾖﾝ *(S) OR IR ﾊﾞ-ｼﾞﾖﾝ ｳｵ-ﾙﾅﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(X)

 1
44250-51100

JCG10,11

IR ﾊﾞ-ｼﾞﾖﾝ *(S) OR IR ﾊﾞ-ｼﾞﾖﾝ ｳｵ-ﾙﾅﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(X)

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

JCG1#

 2
90171-12002

JCG1#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

JCG1#

 2
90171-12002

JCG1#

 2
45460 - ROD ASSY, TIE, RH
45460-59035

JCG10,11

 1
45460-59035

JCG10,11

 1
45470 - ROD ASSY, TIE, LH
45470-59035

JCG10,11

 1
45470-59035

JCG10,11

 1
45503 - END SUB-ASSY, STEERING RACK
45503-29785

JCG10,11

 2
45503-39105

JCG10,11

 2
45503 - END SUB-ASSY, STEERING RACK
45503-29785

JCG10,11

 2
45503-39105

JCG10,11

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14002

JCG10,11

外径=37

 2
90214-14007

JCG1#

外径=38

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14002

JCG10,11

外径=37

 2
90214-14007

JCG1#

外径=38

 2
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-22120

JCG10,11

 1
45515-22120

JCG10,11

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-51010

JCG10,11

 1
45517-51010

JCG10,11

 1
45535 - BOOT, STEERING RACK, NO.1
45535-30010

JCG1#

 1
45535-30010

JCG1#

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19012

JCG1#

 2
90467-19019

JCG1#

 2
90467-19012

JCG1#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19012

JCG1#

 2
90467-19019

JCG1#

 2
90467-19012

JCG1#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-49004

JCG1#

 1
90460-49004

JCG1#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-30010

JCG1#

 1
45535-30010

JCG1#

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-49004

JCG1#

 1
90460-49004

JCG1#

 1
Common parts
90105-10412
90119-10754
90170-14012
90468-16017

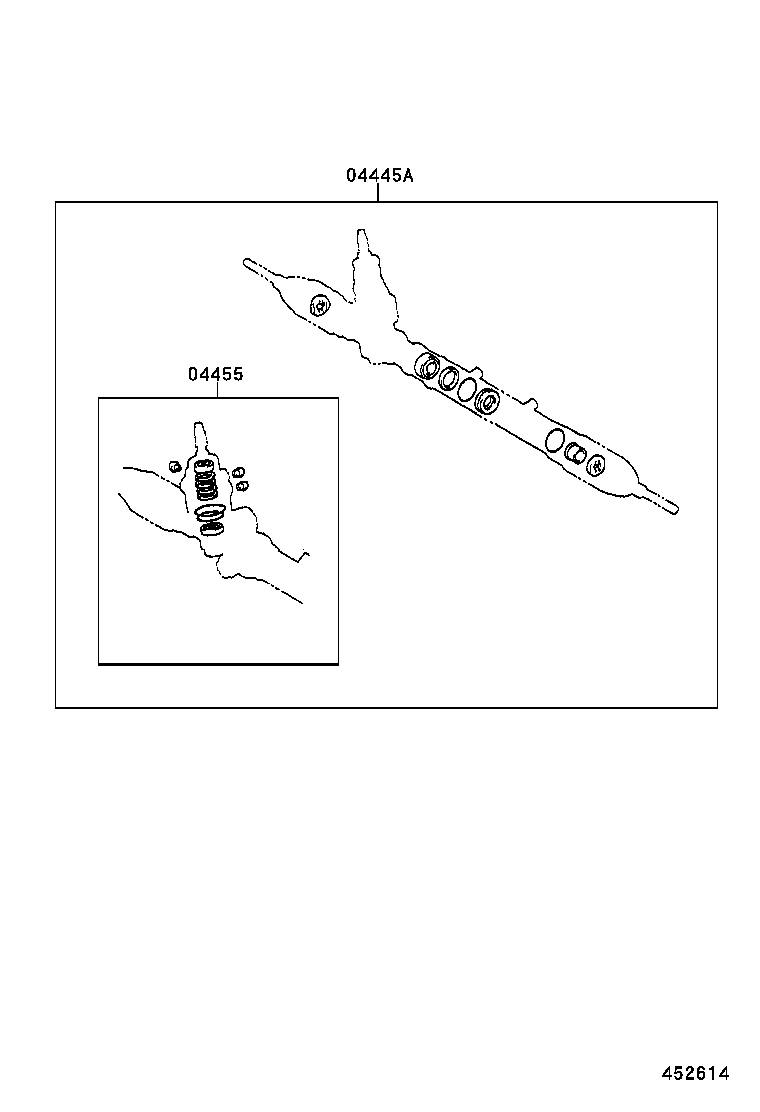

ILLUST NO. 2 OF 2(0104- )

Click highlighted areas on diagram

diagram 04445A 04455
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-51011

JCG1#

 1
04445-51010

JCG1#

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-51010

JCG1#

 1
04455-51010

JCG1#

 1
