JCG11-AEAZH (2001)

Toyota Progres

Production Apr 2001 - Jun 2007
Engine 2JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )JCG10,11

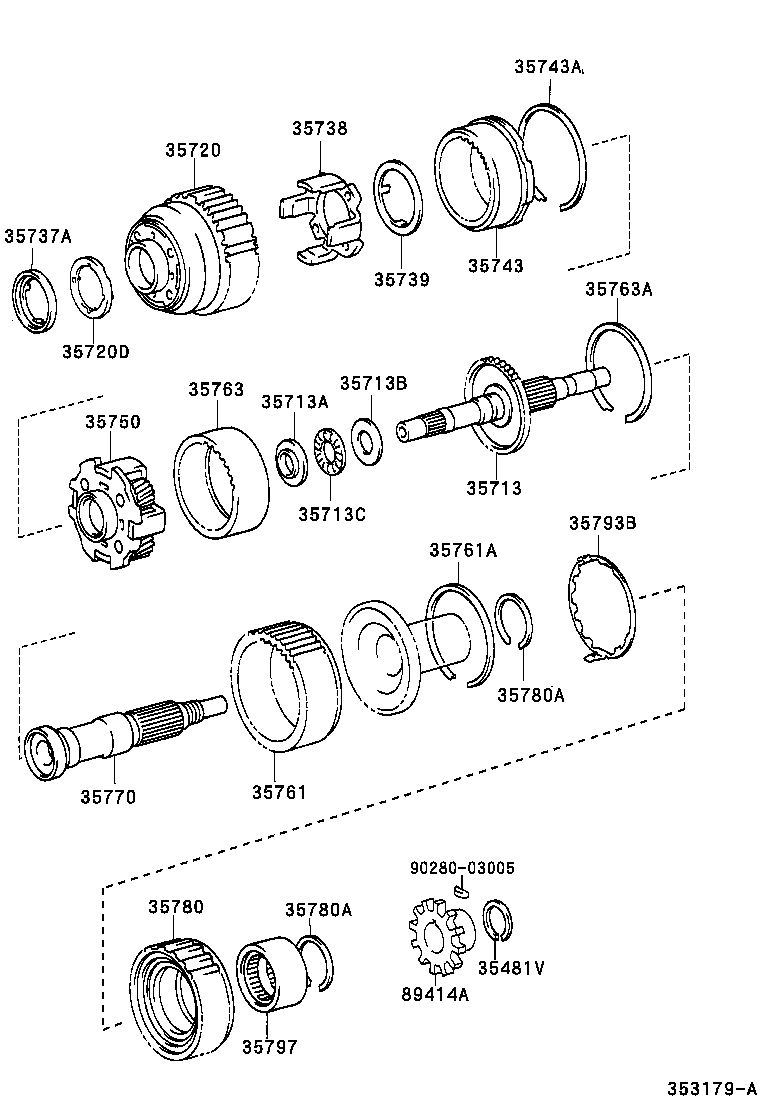

Click highlighted areas on diagram

A650E

diagram 35481V 35713 35713A 35713B 35713C 35720 35720D 35737A 35738 35739 35743 35743A 35750 35761 35761A 35763 35763A 35770 35780 35780A 35780A 35793B 35797 89414A 9028003005
Part # Description Qty Price
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

JCG1#

厚さ=1.50,外径=33.8

 1
90520-28009

JCG1#

厚さ=1.50,外径=33.8

 1
90520-32002

JCG10,11

厚さ=1.50,外径=37.7

 1
35713 - SHAFT, INTERMEDIATE
35713-30060

JCG10,11

 1
35713A - RACE, THRUST BEARING, NO.1 (FOR INTERMEDIATE SHAFT)
35789-30290

JCG10,11

 1
35713B - RACE, THRUST BEARING, NO.2 (FOR INTERMEDIATE SHAFT)
35789-30300

JCG10,11

 1
35713C - BEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)
90374-25008

JCG10,11

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-30120

JCG10,11

 1
35720-30080

JCG1#

 1
35720D - WASHER (FOR FRONT PLANETARY GEAR)
90209-57001

JCG10,11

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-30030

JCG1#

 1
35737-30040

JCG10,11

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35739-30030

JCG1#

 1
35738-30050

JCG10,11

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-30050

JCG10,11

 1
35743 - GEAR, FRONT PLANETARY RING
35743-30040

JCG10,11

 1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99022

JCG10,11

 1
35750 - GEAR ASSY, CENTER PLANETARY
35750-30020

JCG10,11

 1
35761 - GEAR, REAR PLANETARY RING
35761-30030

JCG10,11

 1
35761-50010

JCG10,11

 1
35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
90521-99024

JCG1#

 1
90520-99021

JCG10,11

 1
35763 - GEAR, CENTER PLANETARY RING
35763-30010

JCG10,11

 1
35763A - RING, SNAP(FOR CENTER PLANETARY RING GEAR)
90520-96004

JCG10,11

 1
35770 - SHAFT ASSY, OUTPUT
35770-30050

JCG10,11

 1
35780 - CLUTCH ASSY, 1 WAY NO.2
35780-50010

JCG10,11

 1
35780A - RING, SNAP (FOR 1 WAY CLUTCH)
90520-45011

JCG10,11

 2
35780A - RING, SNAP (FOR 1 WAY CLUTCH)
90520-45011

JCG10,11

 2
35793B - RETAINER, 1 WAY CLUTCH
35793-50030

JCG10,11

 1
35797 - RACE, 1 WAY CLUTCH INNER
35797-30040

JCG10,11

 1
35797-50010

JCG1#

 1
89414A - ROTOR, SENSOR
89414-30040

JCG10,11

 1
89414-30040

JCG10,11

 1
Common parts
90280-03005
