JCG11-AEAZH (2001)

Toyota Progres

Production Apr 2001 - Jun 2007
Engine 2JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )

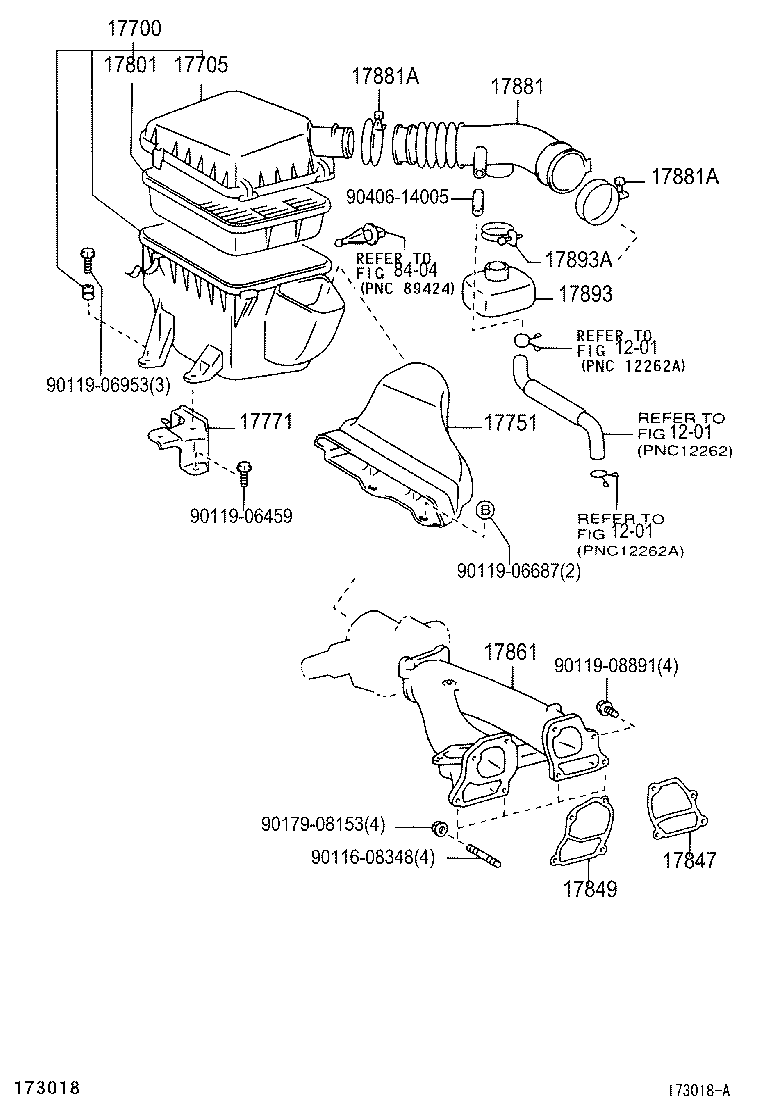

Click highlighted areas on diagram

diagram 1201 1201 1201 17700 17705 17751 17771 17801 17847 17849 17861 17881 17881A 17881A 17893 17893A 8404 9011608348 9011906459 9011906687 9011906953 9011908891 9017908153 9040614005
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-46460

1JZFSE,2JZFSE..JCG1#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-46160

1JZFSE,2JZFSE..JCG1#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-46180

1JZFSE,2JZFSE..JCG1#

 1
17771 - BRACKET, AIR CLEANER INLET DUCT
17771-46020

1JZFSE,2JZFSE..JCG1#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-46090

1JZFSE,2JZFSE..JCG1#

 1
17847 - GASKET, INTAKE AIR CONNECTOR, NO.2
17847-46010

1JZFSE,2JZFSE..JCG1#

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-46040

1JZFSE,2JZFSE..JCG1#

 1
17861 - CONNECTOR, INTAKE AIR
17860-46180

2JZFSE..JCG11

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-46350

1JZFSE,2JZFSE..JCG10,11

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

1JZFSE,2JZFSE..JCG1#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

1JZFSE,2JZFSE..JCG1#

 2
17893 - RESONATOR, INTAKE AIR
17893-46170

1JZFSE,2JZFSE..JCG1#

 1
17893A - CLAMP, HOSE
96111-10560

1JZFSE,2JZFSE..JCG1#

 1
Common parts
90116-08348
90119-06459
90119-06687
90119-06953
90119-08891
90179-08153
90406-14005
Linked diagrams
1201
8404
