JCG11-AEAZH (2001)

Toyota Progres

Production Apr 2001 - Jun 2007
Engine 2JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )2JZFSE

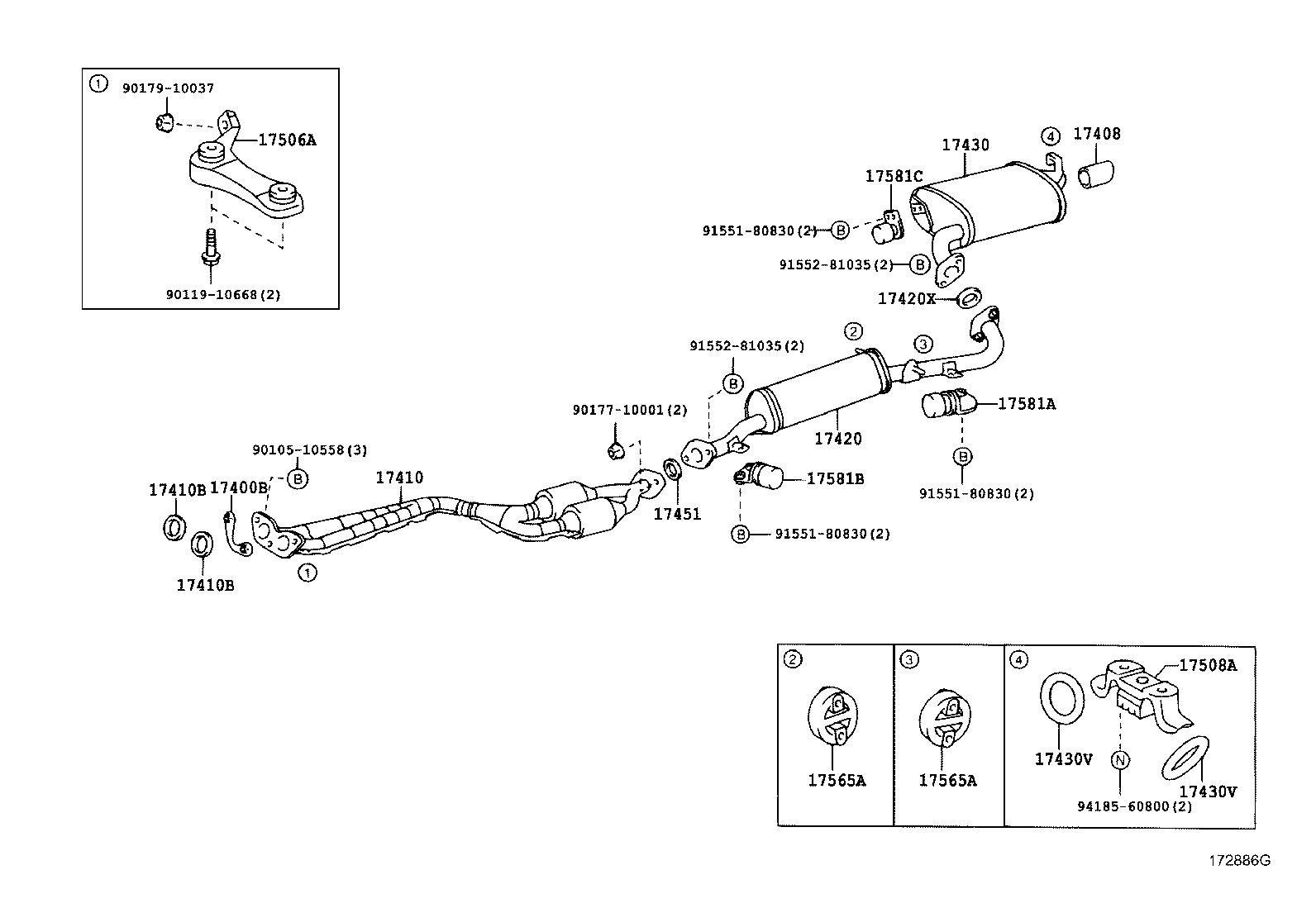

Click highlighted areas on diagram

diagram 17400B 17408 17410 17410B 17410B 17420 17420X 17430 17430V 17430V 17451 17506A 17508A 17565A 17565A 17581A 17581B 17581C 9010510558 9011910668 9017710001 9017910037 9155180830 9155180830 9155180830 9155281035 9155281035 9418560800
Part # Description Qty Price
17400B - RETAINER, EXHAUST PIPE
18495-46020

1JZFSE,2JZFSE..JCG1#

 1
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-74040

1JZFSE,2JZFSE..JCG1#

 1
17408-46030

1JZFSE,2JZFSE..JCG1#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-46531

2JZFSE..JCG11

 1
17410B - GASKET, EXHAUST PIPE
90917-06046

1JZFSE,2JZFSE..JCG1#

 2
17410B - GASKET, EXHAUST PIPE
90917-06046

1JZFSE,2JZFSE..JCG1#

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-46450

2JZFSE..JCG11

 1
17420-46451

2JZFSE..JCG11

 1
17420-46450

2JZFSE..JCG11

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06073

2JZFSE..JCG11

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-46631

2JZFSE..JCG11

 1
17430-46630

2JZFSE..JCG11

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36012

1JZFSE,2JZFSE..JCG1#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36012

1JZFSE,2JZFSE..JCG1#

 2
17451 - GASKET, EXHAUST PIPE
90917-06076

1JZFSE,2JZFSE..JCG1#

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-46210

1JZFSE,2JZFSE..JCG10,11

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-46060

1JZFSE,2JZFSE..JCG1#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

1JZFSE,2JZFSE..JCG1#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

1JZFSE,2JZFSE..JCG1#

 2
17581A - DAMPER, EXHAUST PIPE
17581-62010

1JZFSE,2JZFSE..JCG1#

 1
17581B - DAMPER, EXHAUST PIPE, NO.2
17581-46070

1JZFSE,2JZFSE..JCG1#

 1
17581C - DAMPER, EXHAUST PIPE, NO.3
17581-46140

1JZFSE,2JZFSE..JCG1#

 1
Common parts
90105-10558
90119-10668
90177-10001
90179-10037
91551-80830
91552-81035
94185-60800
