NSP160V-EXXGK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Sep 9999
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

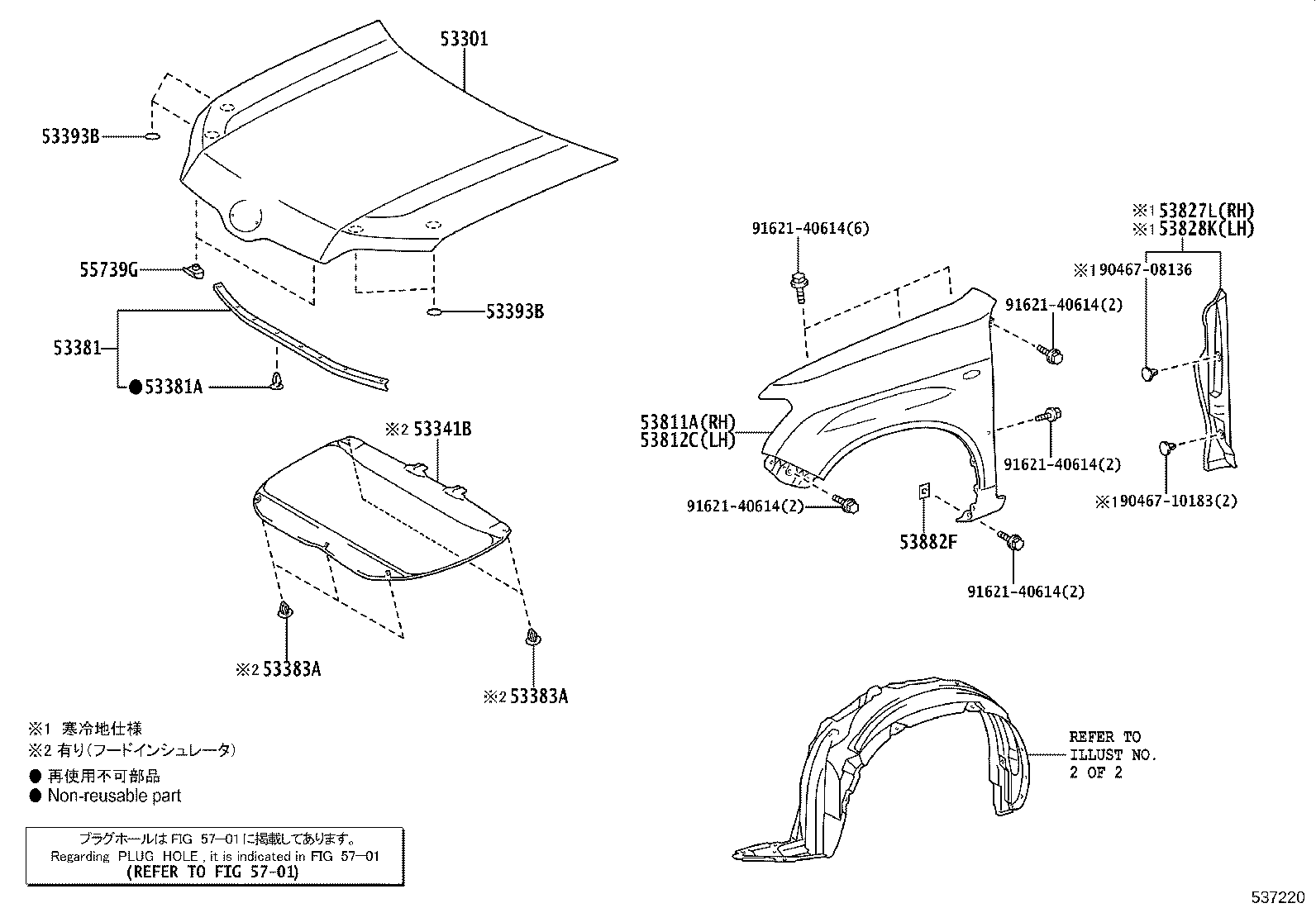

ILLUST NO. 1 OF 2(1409- )

Click highlighted areas on diagram

diagram 53301 53341B 53381 53381A 53383A 53383A 53393B 53393B 53811A 53812C 53827L 53828K 53882F 55739G 5701 9046708136 9046710183 9162140614 9162140614 9162140614 9162140614 9162140614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-52380

NCP16#,NHP160,NSP160..PROB

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-52080

NCP16#,NHP160,NSP160..PROB

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

NCP16#,NHP160,NSP160..PROB

 8
53393B - PROTECTOR, HOOD, FRONT
90950-06096

NCP16#,NHP160,NSP160..PROB

 4
53393B - PROTECTOR, HOOD, FRONT
90950-06096

NCP16#,NHP160,NSP160..PROB

 4
53811A - PANEL, FRONT FENDER, RH
53811-52360

NCP16#,NHP160,NSP160..PROB

 1
53812C - PANEL, FRONT FENDER, LH
53812-52460

NCP16#,NHP160,NSP160..PROB

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-52060

NCP16#,NSP160..PROB

寒冷地仕様

 1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-52060

NCP16#,NSP160..PROB

寒冷地仕様

 1
53882F - SEAL, FRONT FENDER
53882-16030

NCP16#,NHP160,NSP160..PROB

 2
55739G - STOPPER, HOOD
55738-52050

NCP16#,NHP160,NSP160..PROB

 2
Common parts
90467-08136
90467-10183
91621-40614
Linked diagrams
5701

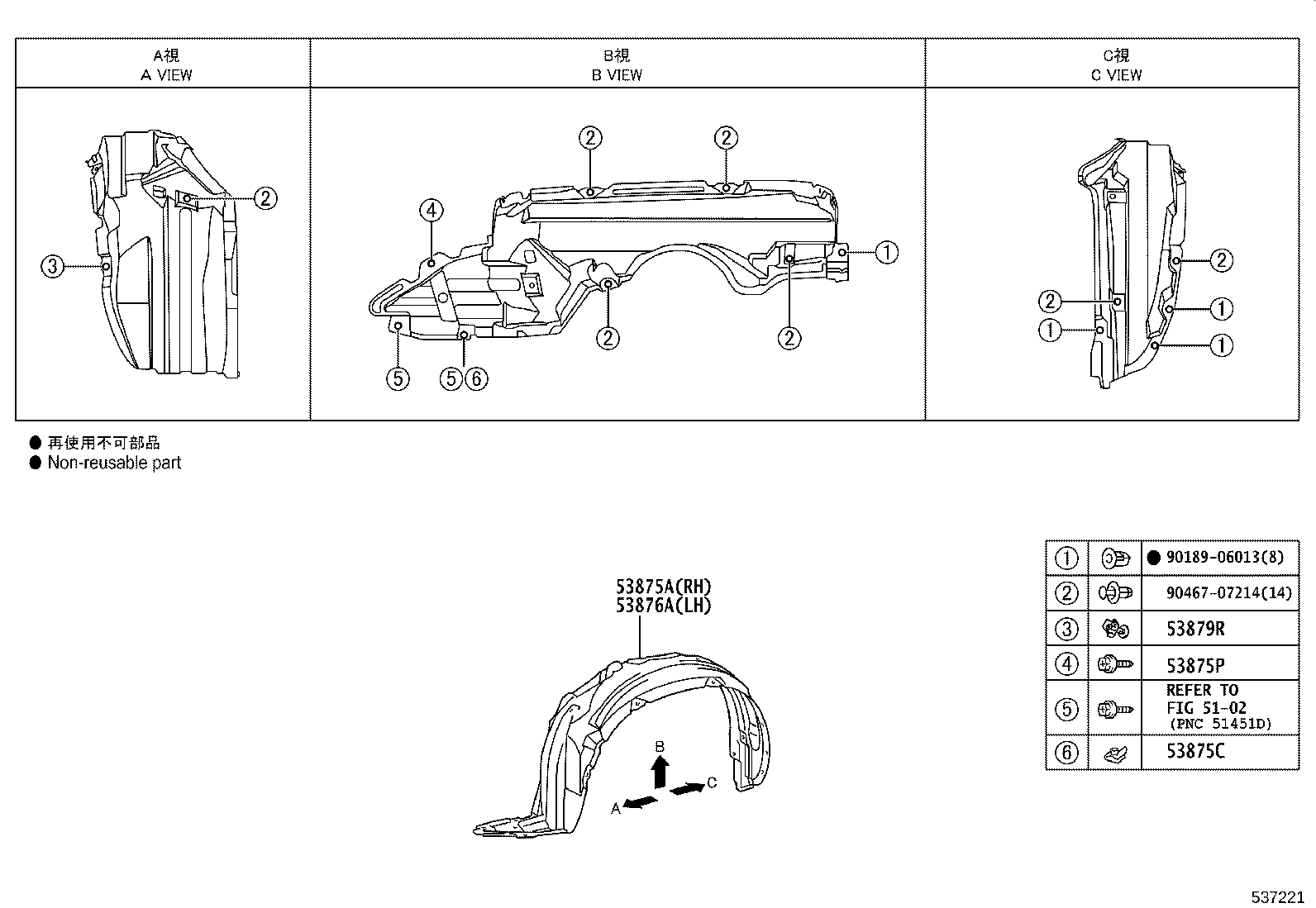

ILLUST NO. 2 OF 2(1409- )

Click highlighted areas on diagram

ﾌｴﾝﾀﾞﾗｲﾅ

diagram 5102 53875A 53875C 53875P 53876A 53879R 9018906013 9046707214
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
53875-52400

NCP16#,NHP160,NSP160..PROB

 1
53875C - CLIP, FRONT FENDER LINER
90467-05128

NCP16#,NHP160,NSP160..PROB

 2
53875P - SCREW, NO.1
90159-60383

NCP16#,NHP160,NSP160..PROB

 2
53876A - LINER, FRONT FENDER, LH
53876-52310

NCP16#,NHP160,NSP160..PROB

 1
53879R - RETAINER, FRONT FENDER LINER
53879-28010

NCP16#,NHP160,NSP160..PROB

 2
Common parts
90189-06013
90467-07214
Linked diagrams
5102
