NSP160V-EXXDK (2014)
Toyota Probox/Succeed
(1409- )NCP16#,NSP160

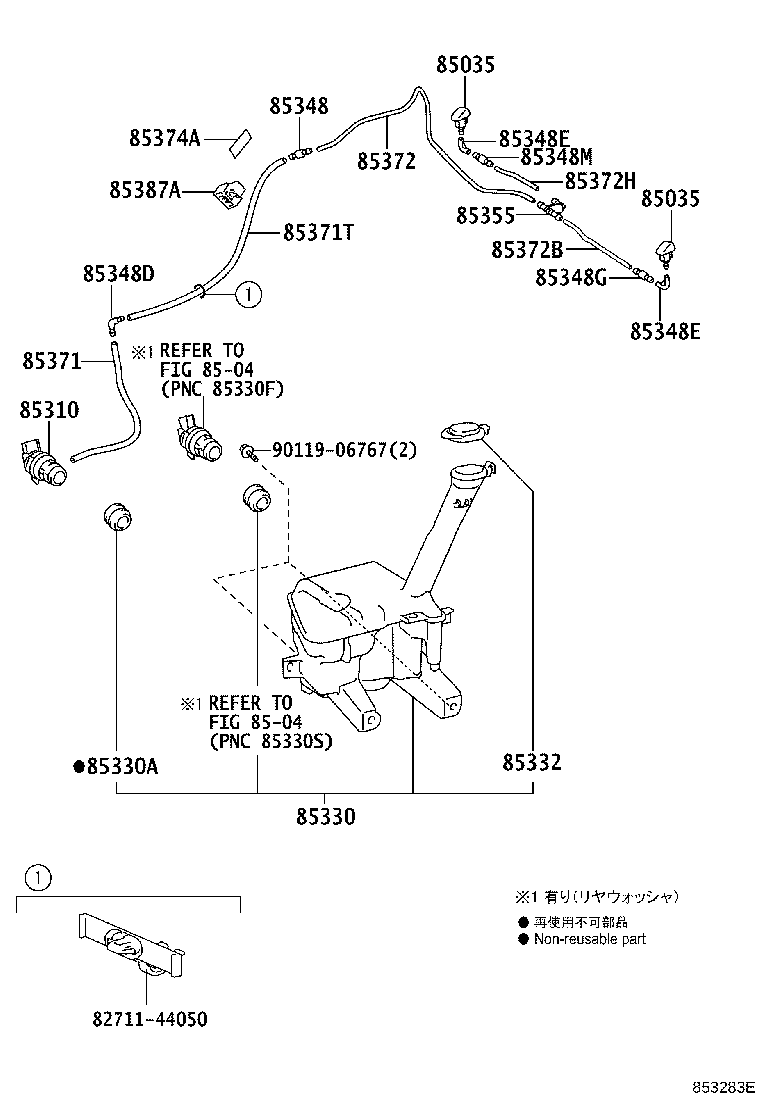

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-52430 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-52430 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-21010 |
NCP16#,NHP160,NSP160 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-52400 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL |
1 | ||
| 85315-52420 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 85315-52420 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
NCP16#,NHP160,NSP160 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-16070 |
NCP16#,NHP160,NSP160 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
NCP16#,NHP160,NSP160 |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-14481 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-14481 |
NCP16#,NHP160,NSP160..PROB |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85349-89122 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
NCP16#,NHP160,NSP160..PROB |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
NCP16#,NSP160..DX,DXCOM,U,UL *H,L=260,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 90099-33299 |
NCP16#,NSP160 *H,L=260 |
1 | ||
| 85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT) | ||||
| 90099-33299 |
NCP16#,NSP160..DX,DXCOM,U,UL *H,L=530,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 90099-33299 |
NCP16#,NSP160 *H,L=530 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
NCP16#,NSP160 *H,L=790 |
1 | ||
| 90099-33299 |
NCP16#,NHP160,NSP160..PROB *H,L=740 |
1 | ||
| 90446-07001 |
NCP16#,NSP160 *H,L=790,寒冷地仕様 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33299 |
NCP16#,NHP160,NSP160..PROB *H,L=240 |
1 | ||
| 90099-33299 |
NCP16#,NSP160 *H,L=240,寒冷地仕様 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
NCP16#,NHP160,NSP160..PROB *H,L=200 |
1 | ||
| 90446-07001 |
NCP16#,NSP160 *H,L=200,寒冷地仕様 |
1 | ||
| 85374A - PROTECTOR, WASHER HOSE | ||||
| 85389-52320 |
NCP16#,NSP160 |
1 | ||
| 85389-48020 |
NCP16#,NSP160 |
1 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 90949-01C82 |
NCP16#,NSP160 |
1 | ||
| Common parts | ||||
| 82711-44050 | ||||
| 90119-06767 | ||||
| Linked diagrams | ||||
| 8504 | ||||
