NLP51V-FXMGX (2002)
Toyota Probox/Succeed

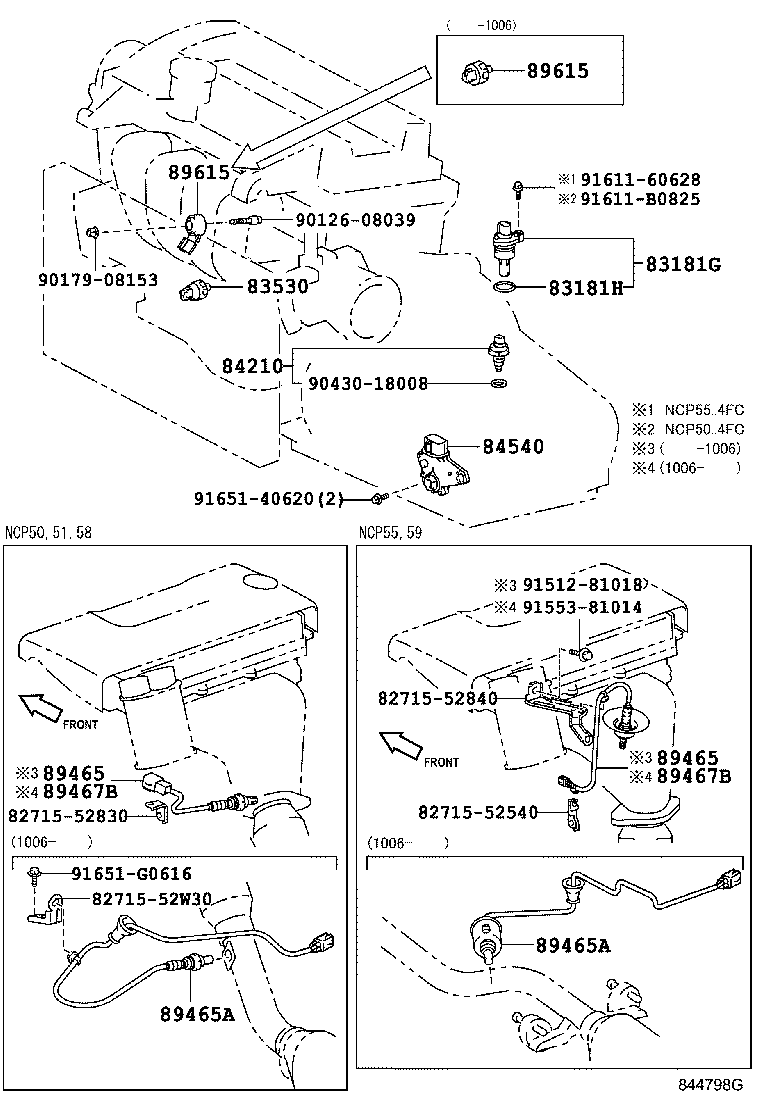

ILLUST NO. 1 OF 7(0206- )NCP50,51,55,58,59
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP50,51,55..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 83181-12020 |
NLP51;NCP50..4FC;NCP50,55..5F..DXJ 無し(ABS) |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NLP51;NCP50..4FC;NCP50,55..5F..DXJ 無し(ABS) |
1 | ||
| 96711-24030 |
NCP50,51,55..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
NLP51 YAZAKI |
1 | ||
| 83530-28010 |
NLP51 DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
NCP50,51,55,58,59,NLP51..5F..(DX,F,GL,U,UL) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20810 |
NCP50,51,58..DX,F,GL,TX,U,UL |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20810 |
NCP50,51,58..DX,F,GL,TX,U,UL |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-52030 |
NCP50,51,55,58,59 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-52030 |
NCP50,51,55,58,59 |
1 | ||
| Common parts | ||||
| 82715-52540 | ||||
| 82715-52830 | ||||
| 82715-52840 | ||||
| 82715-52W30 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91512-81018 | ||||
| 91553-81014 | ||||
| 91611-60628 | ||||
| 91611-B0825 | ||||
| 91651-40620 | ||||
| 91651-G0616 | ||||

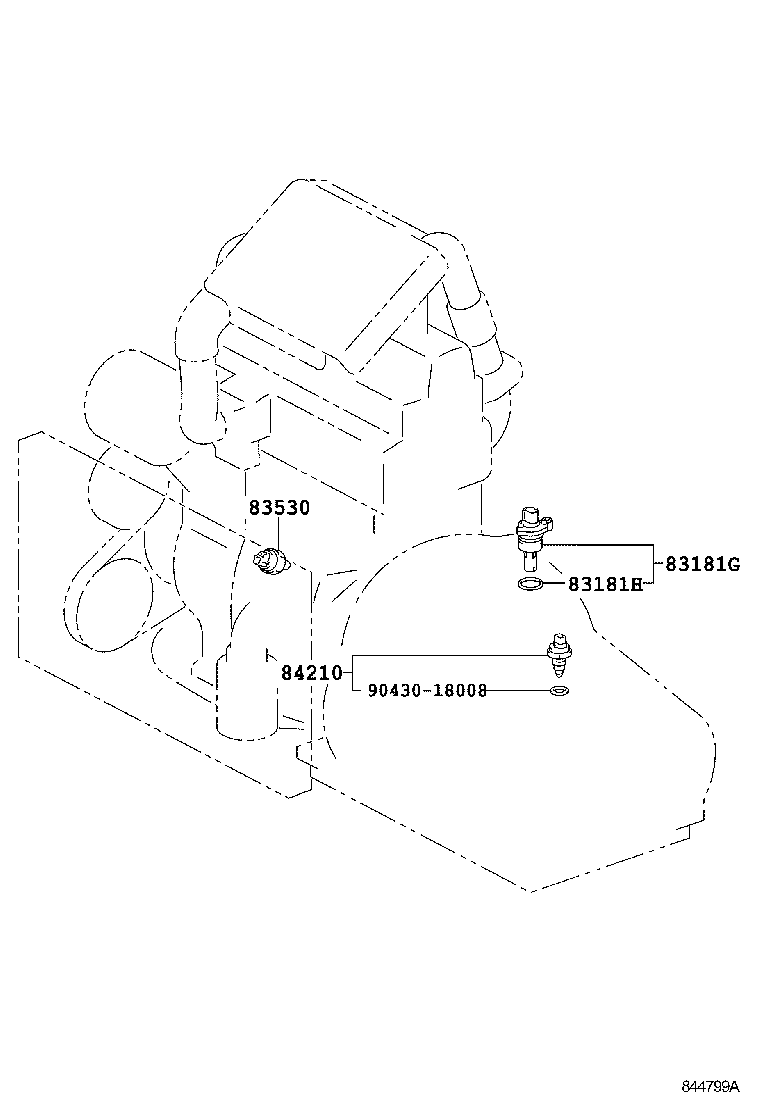

ILLUST NO. 1 OF 7(0206- )NLP51
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP50,51,55..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 83181-12020 |
NLP51;NCP50..4FC;NCP50,55..5F..DXJ 無し(ABS) |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NLP51;NCP50..4FC;NCP50,55..5F..DXJ 無し(ABS) |
1 | ||
| 96711-24030 |
NCP50,51,55..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
NLP51 YAZAKI |
1 | ||
| 83530-28010 |
NLP51 DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
NCP50,51,55,58,59,NLP51..5F..(DX,F,GL,U,UL) |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||

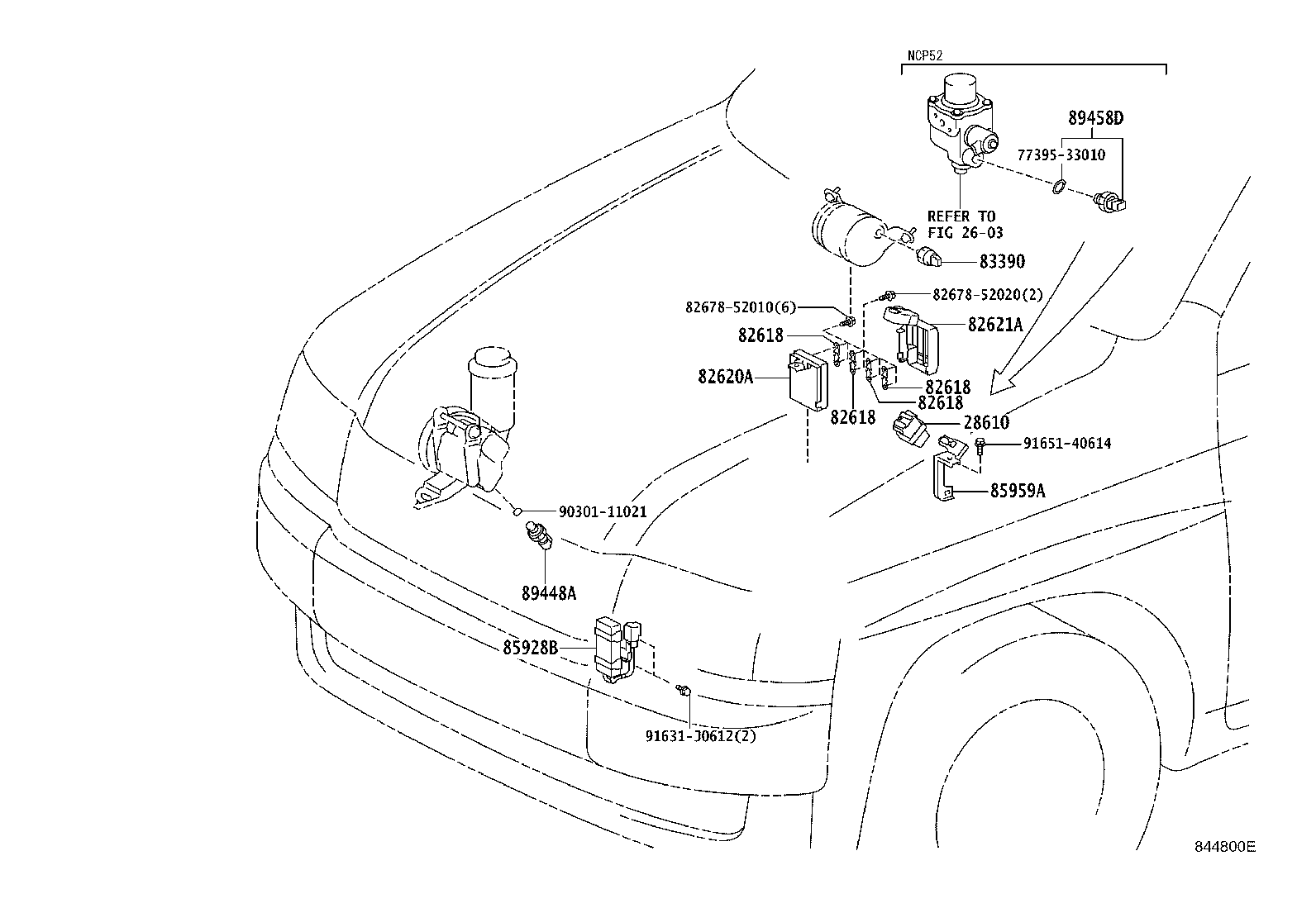

ILLUST NO. 2 OF 7(0206- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-67010 |
1NDTV..NLP51 |
1 | ||
| 82618 - FUSE, FUSE BLOCK | ||||
| 82618-52040 |
NLP51 80A |
1 | ||
| 82618-52030 |
NLP51 120A |
1 | ||
| 82618-52010 |
NLP51 60A |
2 | ||
| 82618 - FUSE, FUSE BLOCK | ||||
| 82618-52040 |
NLP51 80A |
1 | ||
| 82618-52030 |
NLP51 120A |
1 | ||
| 82618-52010 |
NLP51 60A |
2 | ||
| 82618 - FUSE, FUSE BLOCK | ||||
| 82618-52040 |
NLP51 80A |
1 | ||
| 82618-52030 |
NLP51 120A |
1 | ||
| 82618-52010 |
NLP51 60A |
2 | ||
| 82618 - FUSE, FUSE BLOCK | ||||
| 82618-52040 |
NLP51 80A |
1 | ||
| 82618-52030 |
NLP51 120A |
1 | ||
| 82618-52010 |
NLP51 60A |
2 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52010 |
NCP5#,NLP51 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52031 |
NLP51 |
1 | ||
| 82621-52030 |
NLP51 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30100 |
NLP51..DX,GL,U,UL |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52010 |
NCP50,51,55,58,59..DX,DXJ,F,TX,U ｴｱｺﾝ−無し |
1 | ||
| 85928-52010 |
NCP5#,NLP51 |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-52010 |
NLP51 |
1 | ||
| Common parts | ||||
| 77395-33010 | ||||
| 82678-52010 | ||||
| 82678-52020 | ||||
| 90301-11021 | ||||
| 91631-J0612 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 2603 | ||||

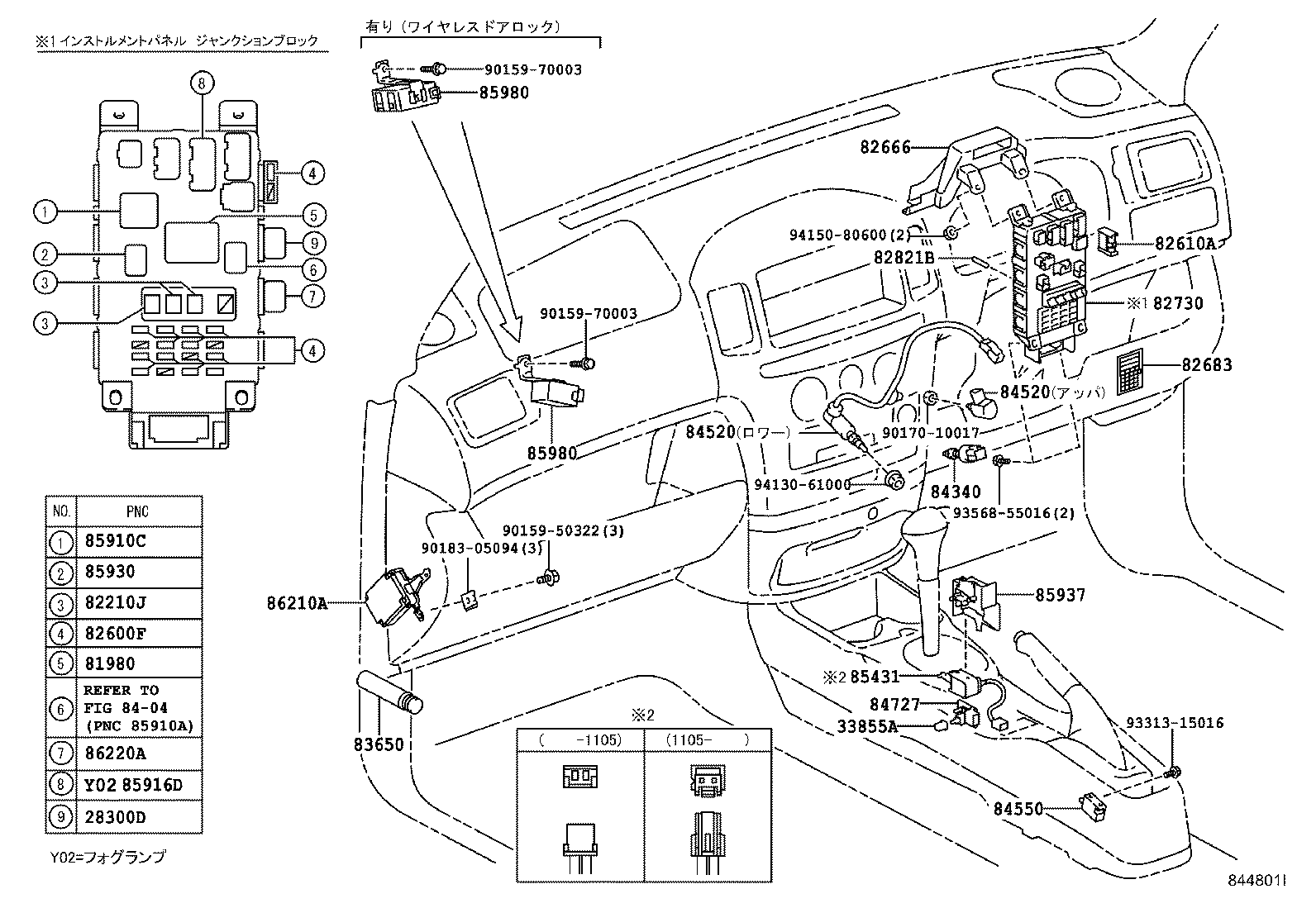

ILLUST NO. 4 OF 7(0206- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-28010 |
NCP5#,NLP51 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08284 |
NCP5#,NLP51 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08283 |
NCP5#,NLP51 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08285 |
NCP5#,NLP51 50A,ﾒｽ端子,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
NCP5#,NLP51 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
NCP5#,NLP51 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09012 |
NCP5#,NLP51 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
NCP5#,NLP51 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
NCP5#,NLP51 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
NCP5#,NLP51 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20080 |
NLP51 |
1 | ||
| 82610-20080 |
NLP51 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-58010 |
NCP5#,NLP51 |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-52070 |
NCP5#,NLP51 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82732-52010 |
NCP5#,NLP51 |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52020 |
NCP5#,NLP51 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
NCP5#,NLP51 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-20060 |
NLP51 MATSUSHITA |
1 | ||
| 84340-35030 |
NLP51 東海理化 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-52010 |
NCP50,51,55,58,59,NLP51..5F..(DX,F,GL,U,UL) 下側 |
1 | ||
| 84520-42010 |
NLP51 上側 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-52010 |
NCP50,51,55,58,59,NLP51..5F..(DX,F,GL,U,UL) 下側 |
1 | ||
| 84520-42010 |
NLP51 上側 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
NLP51;NCP50,55..DXJ |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02022 |
NCP5#,NLP51 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02022 |
NCP50,51,55,58,59,NLP51..DX,F,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り |
1 | ||
| 90987-02022 |
NCP52;NCP50,51,55,58,59,NLP51..GL,TX,UL |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-52110 |
NCP50,51,55,58,59,NLP51..DX,F,U 有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ)&運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り |
1 | ||
| 85980-52110 |
NCP50,51,55,58,59,NLP51..GL,TX,UL 有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ) |
1 | ||
| 85980-52120 |
NCP52;NCP50,51,55,58,59,NLP51..GL,TX,UL |
1 | ||
| 85980-52120 |
NCP50,51,55,58,59,NLP51..DX,F,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-52110 |
NCP50,51,55,58,59,NLP51..DX,F,U 有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ)&運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り |
1 | ||
| 85980-52110 |
NCP50,51,55,58,59,NLP51..GL,TX,UL 有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ) |
1 | ||
| 85980-52120 |
NCP52;NCP50,51,55,58,59,NLP51..GL,TX,UL |
1 | ||
| 85980-52120 |
NCP50,51,55,58,59,NLP51..DX,F,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-52020 |
NCP5#,NLP51 ｱｸｾｻﾘｰｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-02022 |
NCP5#,NLP51 ｱｸｾｻﾘｰｺﾈｸﾀ−有り(AC100V) |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90159-70003 | ||||
| 90170-10017 | ||||
| 90183-05094 | ||||
| 93313-15016 | ||||
| 93568-55016 | ||||
| 94130-61000 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||

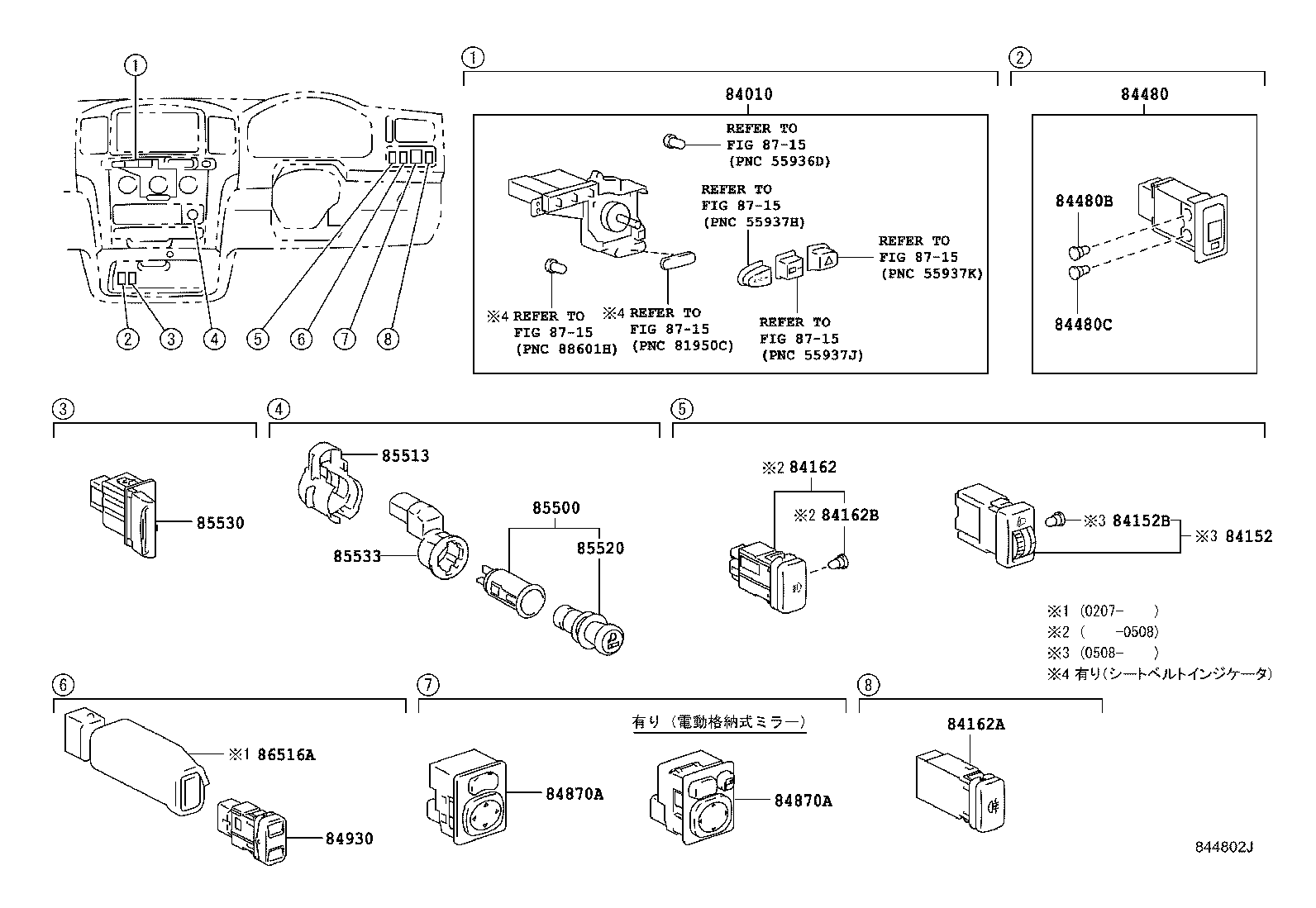

ILLUST NO. 5 OF 7(0206- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010 - SWITCH ASSY, CENTER CLUSTER INTEGRATION | ||||
| 84010-52300 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 84010-52310 |
NCP50,51,55,58,59..DX,F,TX,U ｴｱｺﾝ−無し |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-33030 |
NCP5#,NLP51 |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08107 |
NCP5#,NLP51 14V 40MA,ｸﾞﾘｰﾝ |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-52040 |
NCP5#,NLP51..DX,F,GL,TX,U,UL ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-52050 |
NCP5#,NLP51 有り(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 90010-01061 |
NCP5#,NLP51 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-52020 |
NCP5#,NLP51 ｱｸｾｻﾘｰｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10310 |
NCP5#,NLP51 14V 0.91W,ｱｸｾｻﾘｰｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 84480C - CAP BULB, MAIN SWITCH ASSY | ||||
| 90010-01050 |
NCP5#,NLP51 ｱｸｾｻﾘｰｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
NCP51,55,NLP51..UL Xﾊﾟｯｹｰｼﾞ&ﾊﾞﾝﾊﾟ−ｶﾗｰｴﾃﾞｨｼｮﾝ |
1 | ||
| 84870-28020 |
NCP51,55,NLP51..UL Xﾊﾟｯｹｰｼﾞ |
1 | ||
| 84870-34010 |
NLP51..DX,GL,U;NCP50,51,55..GL,U 電動ﾄﾞｱﾐﾗｰ有り |
1 | ||
| 84870-34010 |
NCP51,55,58,59,NLP51..TX,UL |
1 | ||
| 84870-28020 |
NCP51,55,NLP51..UL ﾊﾞﾝﾊﾟ−ｶﾗｰｴﾃﾞｨｼｮﾝ |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
NCP51,55,NLP51..UL Xﾊﾟｯｹｰｼﾞ&ﾊﾞﾝﾊﾟ−ｶﾗｰｴﾃﾞｨｼｮﾝ |
1 | ||
| 84870-28020 |
NCP51,55,NLP51..UL Xﾊﾟｯｹｰｼﾞ |
1 | ||
| 84870-34010 |
NLP51..DX,GL,U;NCP50,51,55..GL,U 電動ﾄﾞｱﾐﾗｰ有り |
1 | ||
| 84870-34010 |
NCP51,55,58,59,NLP51..TX,UL |
1 | ||
| 84870-28020 |
NCP51,55,NLP51..UL ﾊﾞﾝﾊﾟ−ｶﾗｰｴﾃﾞｨｼｮﾝ |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-52020 |
NCP50,51,55,58,59,NLP51..DX,F,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り |
1 | ||
| 84930-52020 |
NCP50,51,55,58,59,NLP51..DX,F,U |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
NCP5#,NLP51 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
NCP5#,NLP51 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
NCP5#,NLP51 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-35010 |
NCP5#,NLP51 ｱｸｾｻﾘｰｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
NCP5#,NLP51 |
1 | ||
| 86516A - CONDENSER | ||||
| 86516-52010 |
NCP50,51,55,58,59,NLP51..DX,F,U |
1 | ||
| 86516-52010 |
NCP50,51,55,58,59,NLP51..DX,F,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り |
1 | ||
| Linked diagrams | ||||
| 8715 | ||||

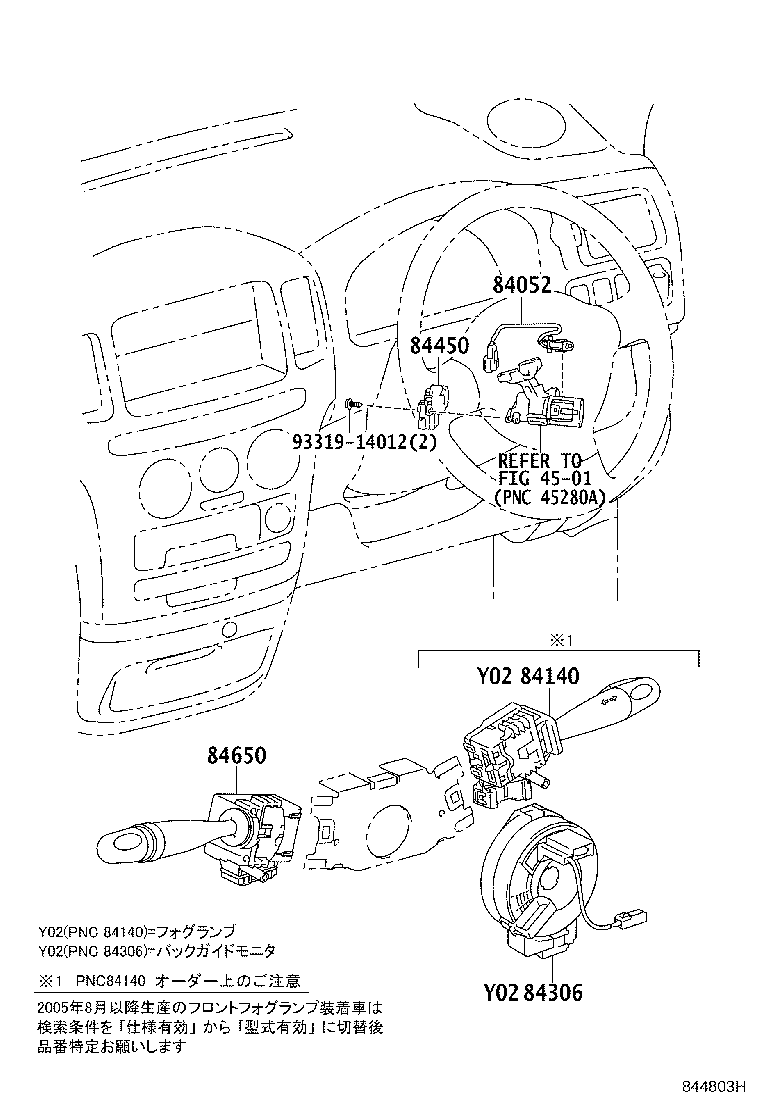

ILLUST NO. 6 OF 7(0206- )
ｲｸﾞﾆｯｼｮﾝ & ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-60010 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12510 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52041 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42100 |
NCP51,55,58,59,NLP51..SUCD |
1 | ||
| 84652-42100 |
NCP5#,NLP51..DX,F,GL ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付) |
1 | ||
| 84652-52080 |
NCP5#,NLP51..DX,F,GL |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 4501 | ||||

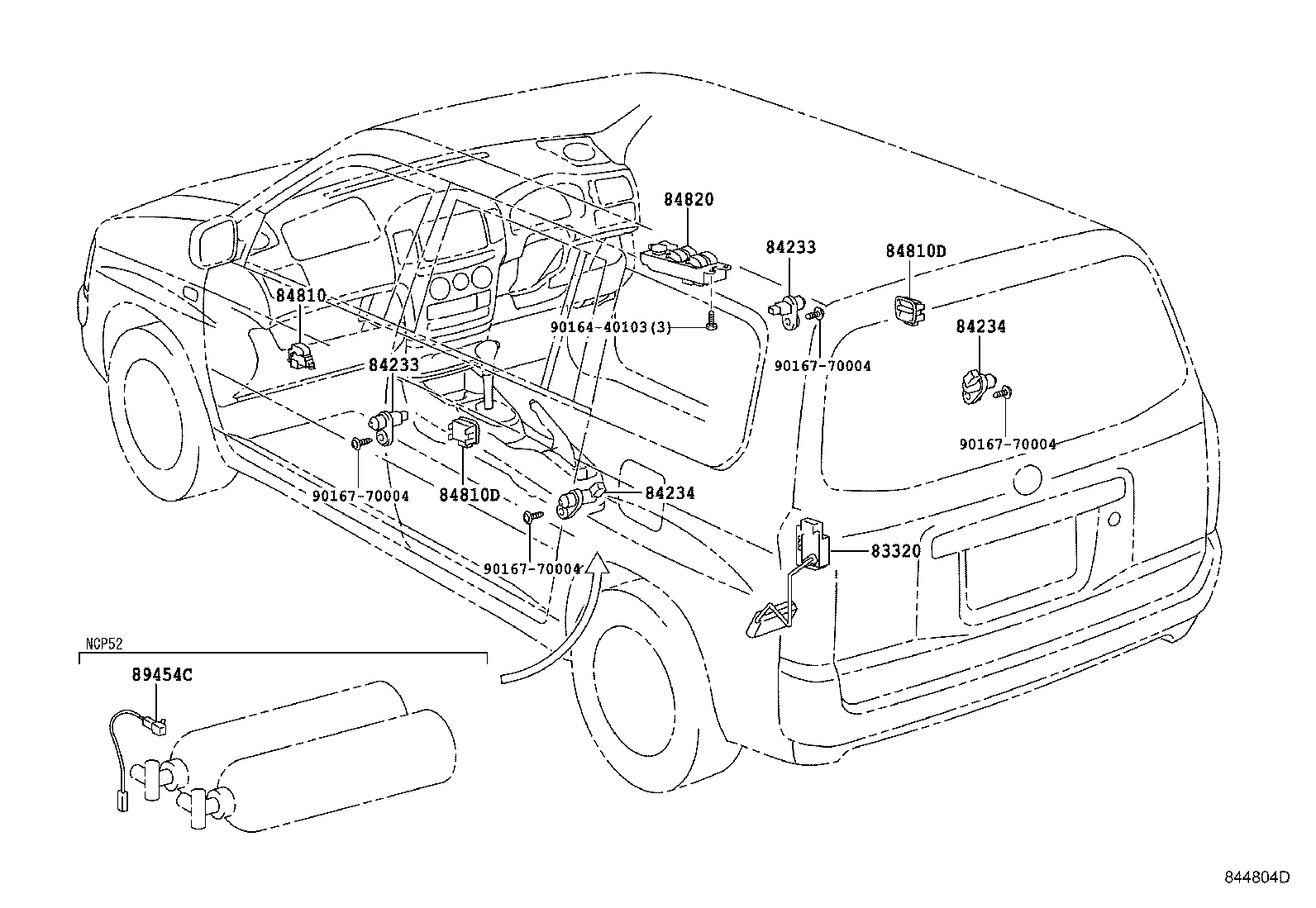

ILLUST NO. 7 OF 7(0206- )
ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗｯｹﾞｰｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52120 |
NCP50,51,55,58,59,NLP51 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP5#,NLP51 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP5#,NLP51 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NCP5#,NLP51 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NCP5#,NLP51 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
NCP50,51,55,58,59,NLP51..DX,F,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り |
1 | ||
| 84810-12080 |
NCP52;NCP50,51,55,58,59,NLP51..GL,TX,UL |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B4 |
NCP51,55,NLP51..UL Xﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B4 |
NCP51,55,NLP51..UL Xﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-52120 |
NCP52;NCP50,51,55,58,59,NLP51..GL,TX,UL |
1 | ||
| 84820-52120 |
NCP50,51,55,58,59,NLP51..DX,F,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り |
1 | ||
| 84820-52121 |
NCP50,51,55,58,59,NLP51..DX,F,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り |
1 | ||
| 84820-52130 |
NCP51,55,NLP51..UL Xﾊﾟｯｹｰｼﾞ |
1 | ||
| 84820-52131 |
NCP51,55,NLP51..UL Xﾊﾟｯｹｰｼﾞ |
1 | ||
| 84820-52121 |
NCP52;NCP50,51,55,58,59,NLP51..GL,TX,UL |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90167-70004 | ||||

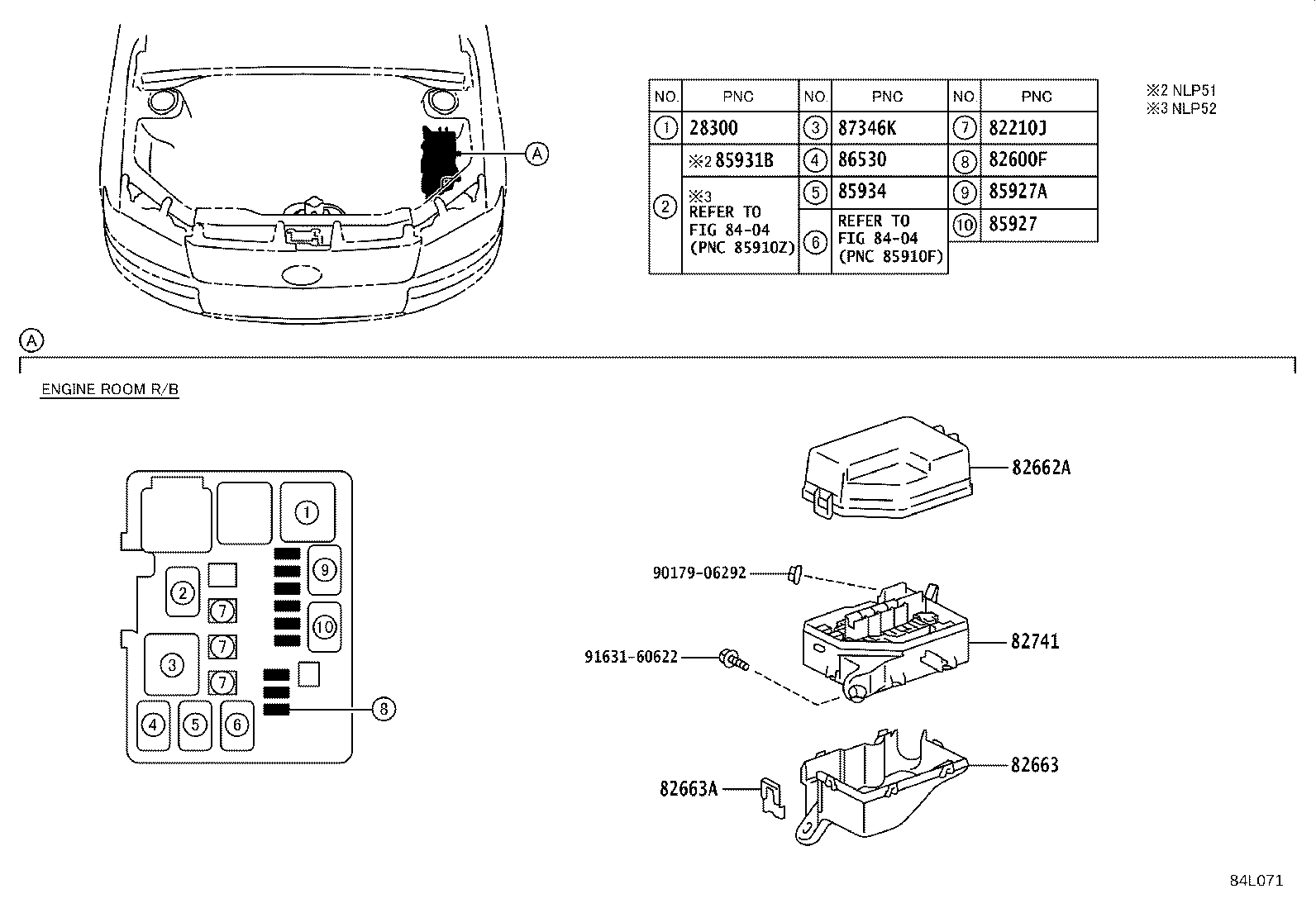

ILLUST NO. 3 OF 7(0206- )
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1NZ#,1NDTV,2NZFE..NCP5#,NLP51 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08284 |
NCP5#,NLP51 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08283 |
NCP5#,NLP51 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08285 |
NCP5#,NLP51 50A,ﾒｽ端子,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
NCP5#,NLP51 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
NCP5#,NLP51 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09012 |
NCP5#,NLP51 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
NCP5#,NLP51 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
NCP5#,NLP51 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
NCP5#,NLP51 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52170 |
NLP51 |
1 | ||
| 82662-52010 |
NCP50,51,55,58,59 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52040 |
NCP5#,NLP51 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52050 |
NCP5#,NLP51 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-52010 |
NCP5#,NLP51 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02022 |
NCP5#,NLP51 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NCP5#,NLP51 |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02022 |
NLP51 寒冷地仕様 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 90987-02028 |
NCP50,51,55,58,59..5F..(DX,DXJ,F,U) ｴｱｺﾝ−無し |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02022 |
NCP5#,NLP51 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
NLP51 寒冷地仕様 |
2 | ||
| Common parts | ||||
| 90179-06292 | ||||
| 91631-60622 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
