NLP51V-FXMGX (2002)

Toyota Probox/Succeed

Production Jun 2002 - Aug 2007
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )1NDTV

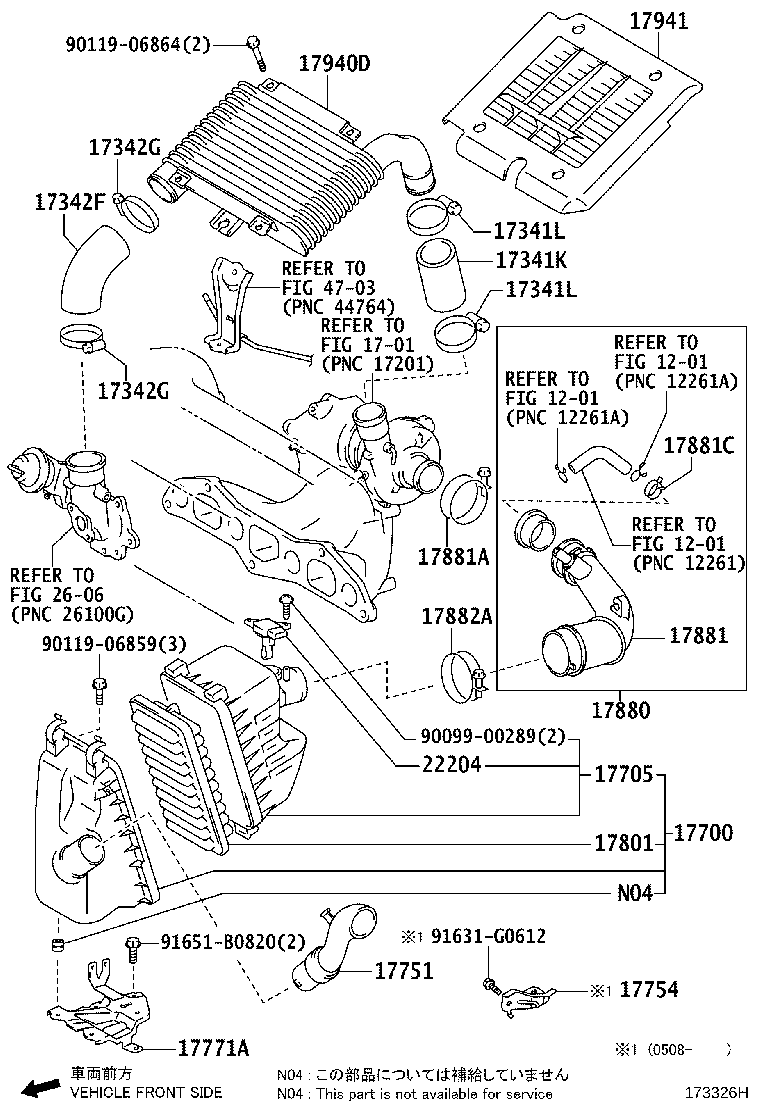

Click highlighted areas on diagram

diagram 1201 1201 1201 1701 17341K 17341L 17341L 17342F 17342G 17342G 17700 17705 17751 17754 17771A 17801 17880 17881 17881A 17881C 17882A 17940D 17941 22204 2606 4703 9009900289 9011906859 9011906864 91631G0612 91651B0820
Part # Description Qty Price
17341K - HOSE, AIR, NO.1(FOR INTERCOOLER)
17341-33010

1NDTV..NLP51

 1
17341-33030

1NDTV..NLP51

 1
17341L - CLAMP, HOSE
90466-41005

1NDTV..NLP51

 2
17341L - CLAMP, HOSE
90466-41005

1NDTV..NLP51

 2
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-33010

1NDTV..NLP51

 1
17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER)
90460-60006

1NDTV..NLP51

 2
17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER)
90460-60006

1NDTV..NLP51

 2
17700 - CLEANER ASSY, AIR
17700-33170

1NDTV..NLP51..DX,GL,U,UL

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-33050

1NDTV..NLP51..DX,GL,U,UL

 1
17751 - INLET, AIR CLEANER, NO.1
17751-33040

1NDTV..NLP51..DX,GL,U,UL

 1
17754 - STAY, AIR CLEANER INLET
53994-52010

1NZ#,1NDTV,2NZFE..NCP5#,NLP51

 1
17771A - BRACKET, AIR CLEANER
17771-33010

1NDTV..NLP51..DX,GL,U,UL

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-33040

1NDTV..NLP51..DX,GL,U,UL

 1
17880 - HOSE ASSY, AIR CLEANER
17880-33010

1NDTV..NLP51..DX,GL,U,UL

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-33010

1NDTV..NLP51..DX,GL,U,UL

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10580

1NDTV..NLP51..DX,GL,U,UL

 1
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96134-52600

1NDTV..NLP51..DX,GL,U,UL

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10690

1NDTV..NLP51..DX,GL,U,UL

 1
17940D - INTERCOOLER ASSY
17940-33010

1NDTV..NLP51

 1
17941 - GUIDE, INTERCOOLER AIR, NO.1
17941-33010

1NDTV..NLP51

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-30010

1NDTV..NLP51..DX,GL,U,UL

 1
Common parts
90099-00289
90119-06859
90119-06864
91631-G0612
91651-B0820
Linked diagrams
1201
1701
2606
4703
