NLP51V-FXMGX (2002)

Toyota Probox/Succeed

Production Jun 2002 - Aug 2007
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )1NDTV

Click highlighted areas on diagram

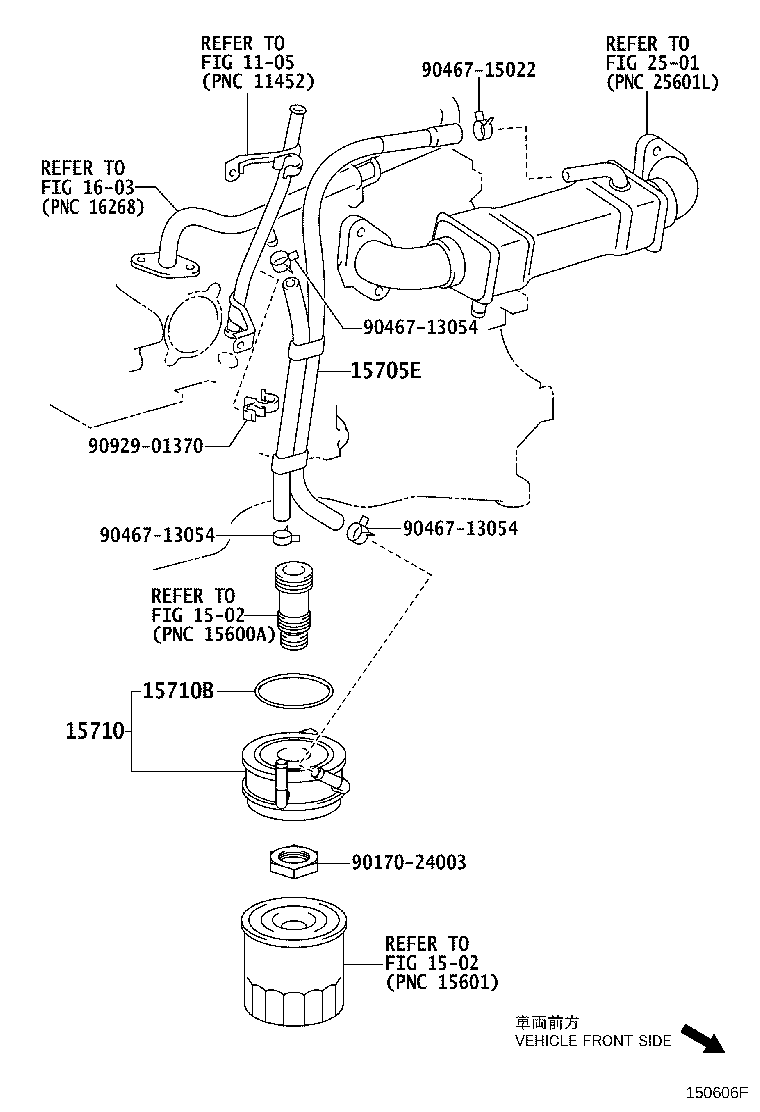

diagram 1105 1502 1502 15705E 15710 15710B 1603 2501 9017024003 9046713054 9046713054 9046713054 9046715022 9092901370
Part # Description Qty Price
15705E - HOSE SUB-ASSY, OIL COOLER
15705-33020

1NDTV..NLP51

 1
15710 - COOLER ASSY, OIL
15710-33010

1NDTV..NLP51

 1
15710B - RING, O(FOR OIL COOLER)
90301-58002

1NDTV..NLP51

 1
Common parts
90170-24003
90467-13054
90467-15022
90929-01370
Linked diagrams
1105
1502
1603
2501
