NLP51V-FXMDX (2002)
Toyota Probox/Succeed
Production
Jun 2002
-
Aug 2007
Engine
1NDTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0206- )5F

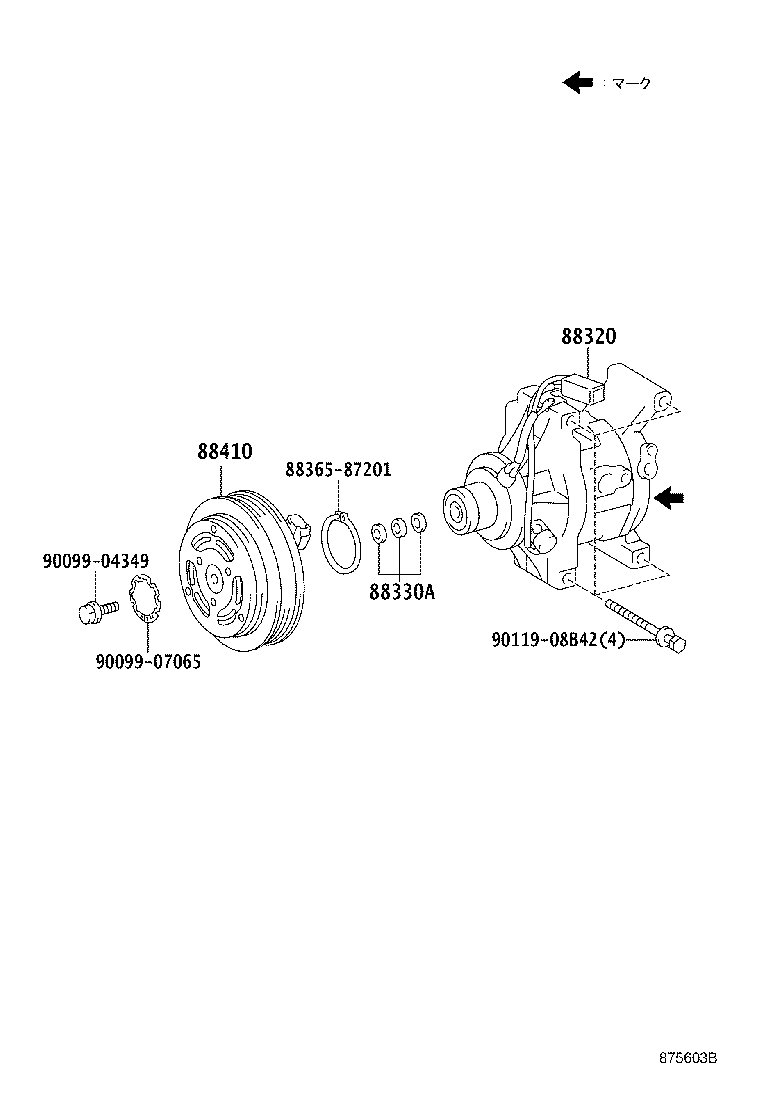

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-52110 |
NLP51 |
1 | ||
| 88320-52390 |
NLP51 |
1 | ||
| 88320-52100 |
NCP50,51,55,58,59..5F ﾏｰｸ=447180−7950 |
1 | ||
| 88320-52100 |
NCP50,51,55,58,59..5F..(DX,DXJ,F,U) ｴｱｺﾝ−無し |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 88335-14020 |
NCP50,51,55,58,59..5F..(DX,DXJ,F,U) ｴｱｺﾝ−無し |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-2B260 |
NCP50,51,55,58,59..5F ﾏｰｸ=447180−7950 |
1 | ||
| 88410-52130 |
NLP51 |
1 | ||
| 88410-2B280 |
NCP50,51,55,58,59..5F..(DX,F,U) ｴｱｺﾝ−無し,外径=115 |
1 | ||
| 88410-52270 |
NLP51 |
1 | ||
| 88410-52131 |
NLP51 |
1 | ||
| 88410-2B260 |
NCP50,51,55,58,59..5F..(DX,DXJ,F,U) ｴｱｺﾝ−無し,外径=105 |
1 | ||
| 88410-2B280 |
NCP50,51,55,58,59..5F ﾏｰｸ=447180−8800 |
1 | ||
| Common parts | ||||
| 88365-87201 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90119-08B42 | ||||
