NLP51V-FXMDX (2002)

Toyota Probox/Succeed

Production Jun 2002 - Aug 2007
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

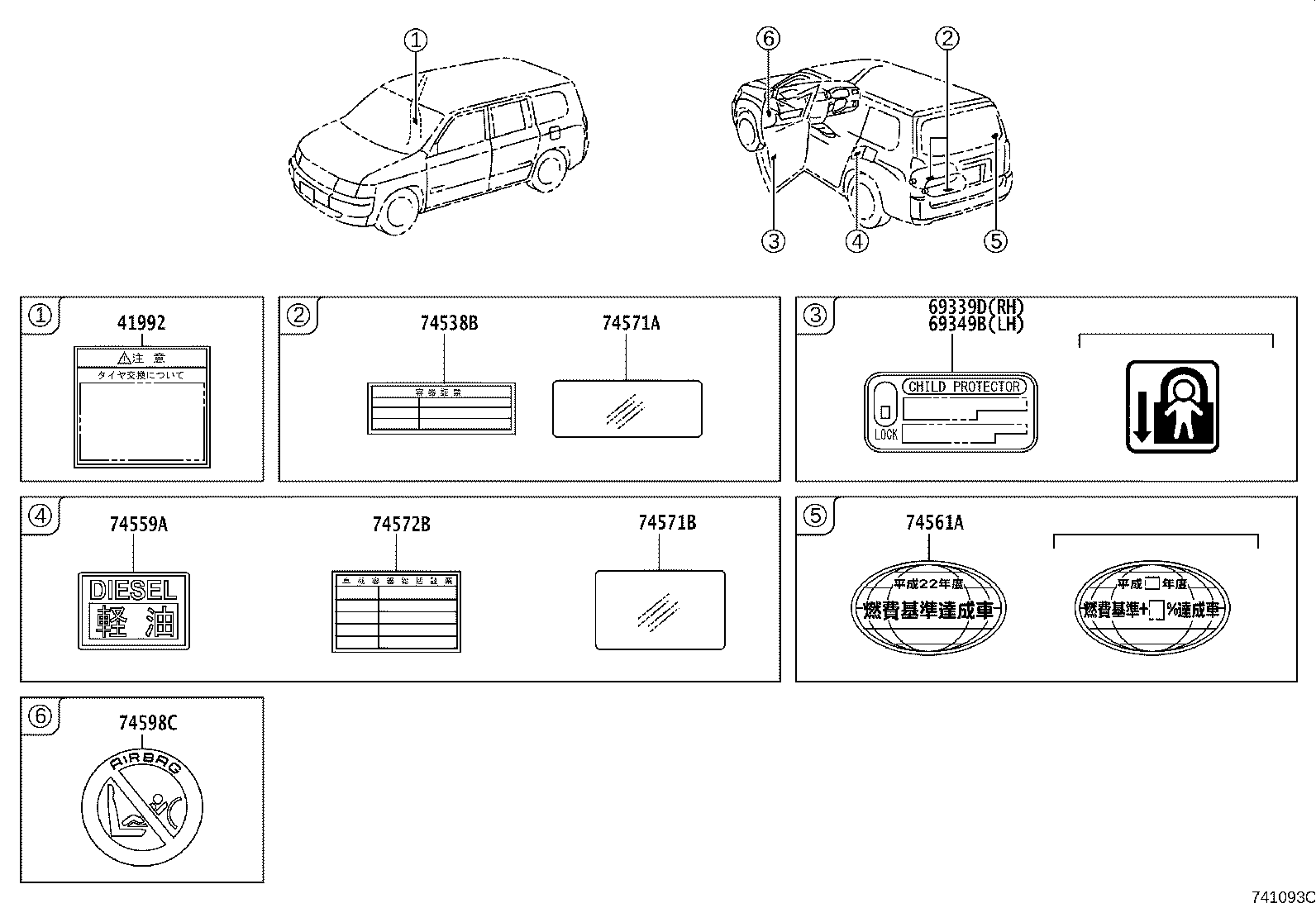

ILLUST NO. 2 OF 3(0206- )

Click highlighted areas on diagram

ｶﾞｲｿｳﾊﾟﾈﾙ&ﾅｲｿｳ (1/2)

diagram 41992 69339D 69349B 74538B 74559A 74561A 74571A 74571B 74572B 74598C
Part # Description Qty Price
69339D - LABEL, CHILD PROTECTOR INFORMATION, RH
69339-12010

NCP5#,NLP51

 1
69349B - LABEL, CHILD PROTECTOR INFORMATION, LH
69339-12010

NCP5#,NLP51

 1
74559A - PLATE, FUEL CAUTION
74559-14030

NLP51

 1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
74561-60040

NLP51

指定自動車適合−指定

 1
74561-60040

NLP51

 1
74561-52050

NLP51

指定自動車適合−指定

 1
74561-52050

NLP51

 1

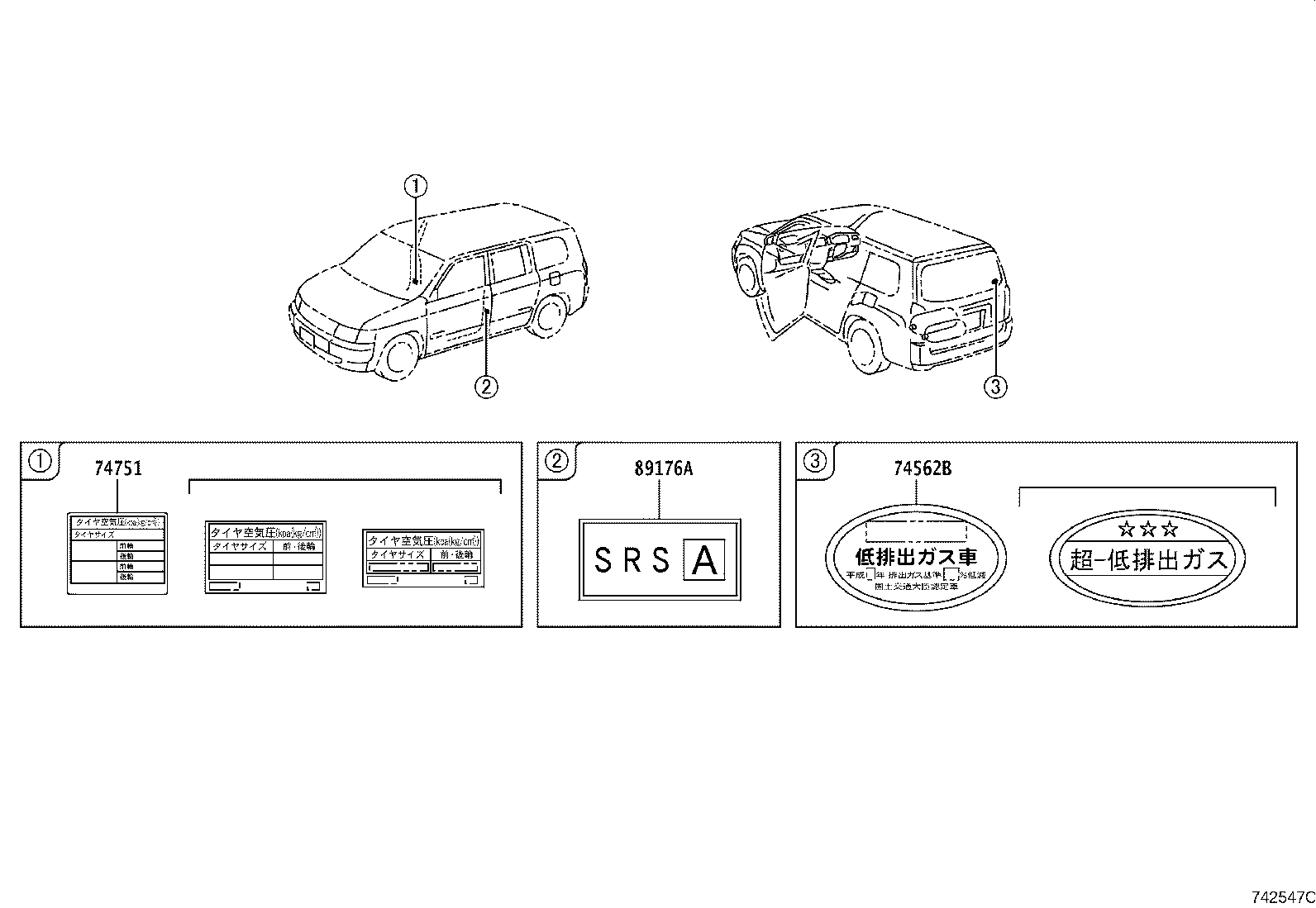

ILLUST NO. 3 OF 3(0206- )

Click highlighted areas on diagram

ｶﾞｲｿｳﾊﾟﾈﾙ&ﾅｲｿｳ (2/2)

diagram 74562B 74751 89176A
Part # Description Qty Price
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-52260

NCP51..5F;NCP50,52,55,NLP51..DX,GL,U,UL

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-32010

NCP5#,NLP51

 1

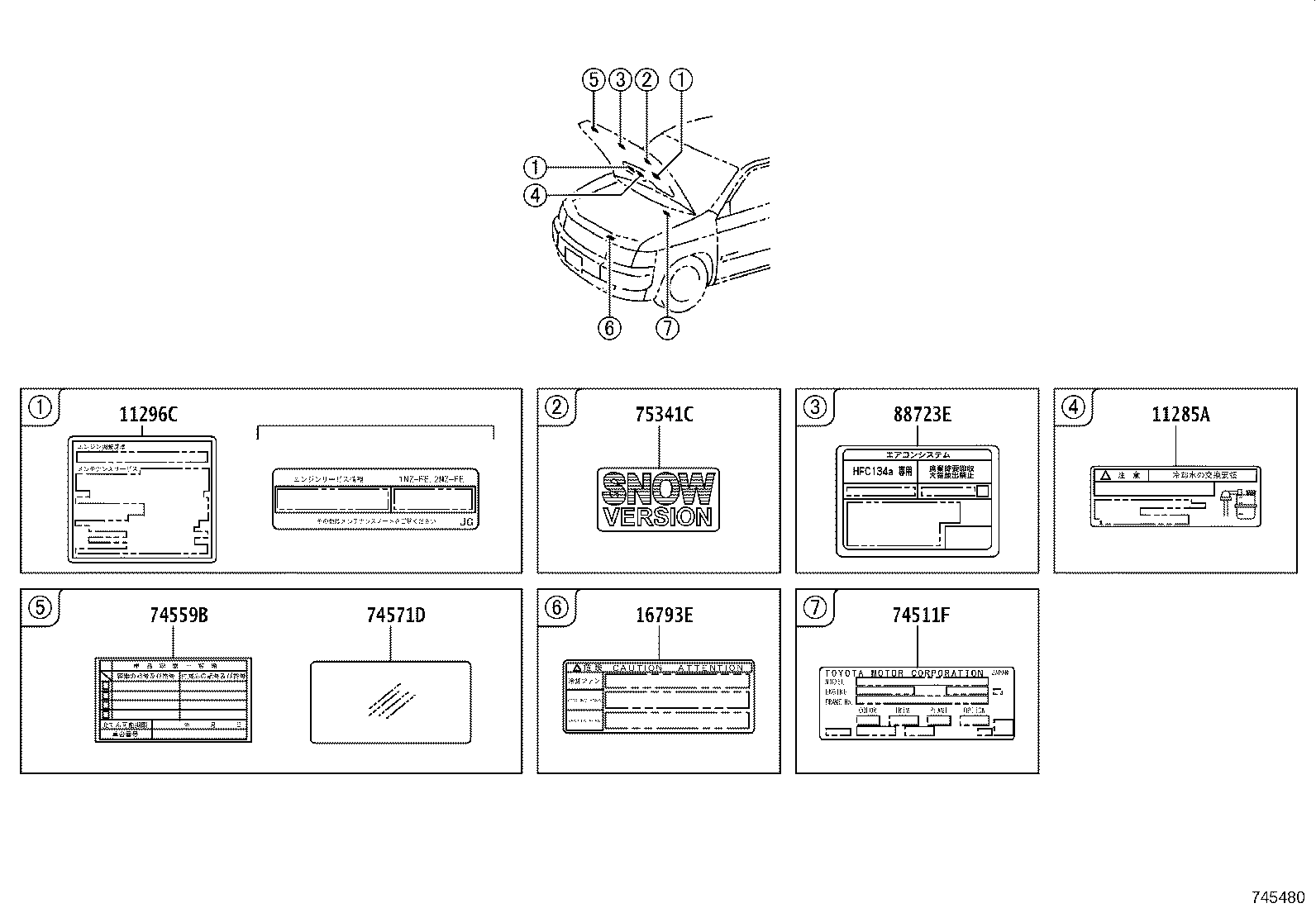

ILLUST NO. 1 OF 3(0206- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

diagram 11285A 11296C 16793E 74511F 74559B 74571D 75341C 88723E
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-33020

1NDTV..NLP51..DX,GL,U,UL

 1
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-33011

1NDTV..NLP51

 1
16793E - LABEL, COOLING FAN CAUTION
16793-46010

1NZ#,1NDTV,2NZFE..NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
75341C - PLATE, HOOD NAME
75341-20060

NCP5#,NLP51

ｽﾉｰﾊﾞｰｼﾞｮﾝ(雪国仕様)

 1
88723E - LABEL, COOLER SERVICE CAUTION
88733-52040

NLP51

 1
88733-52030

NCP50,51,55,58,59..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
