NLP51V-FXMDX (2002)
Toyota Probox/Succeed

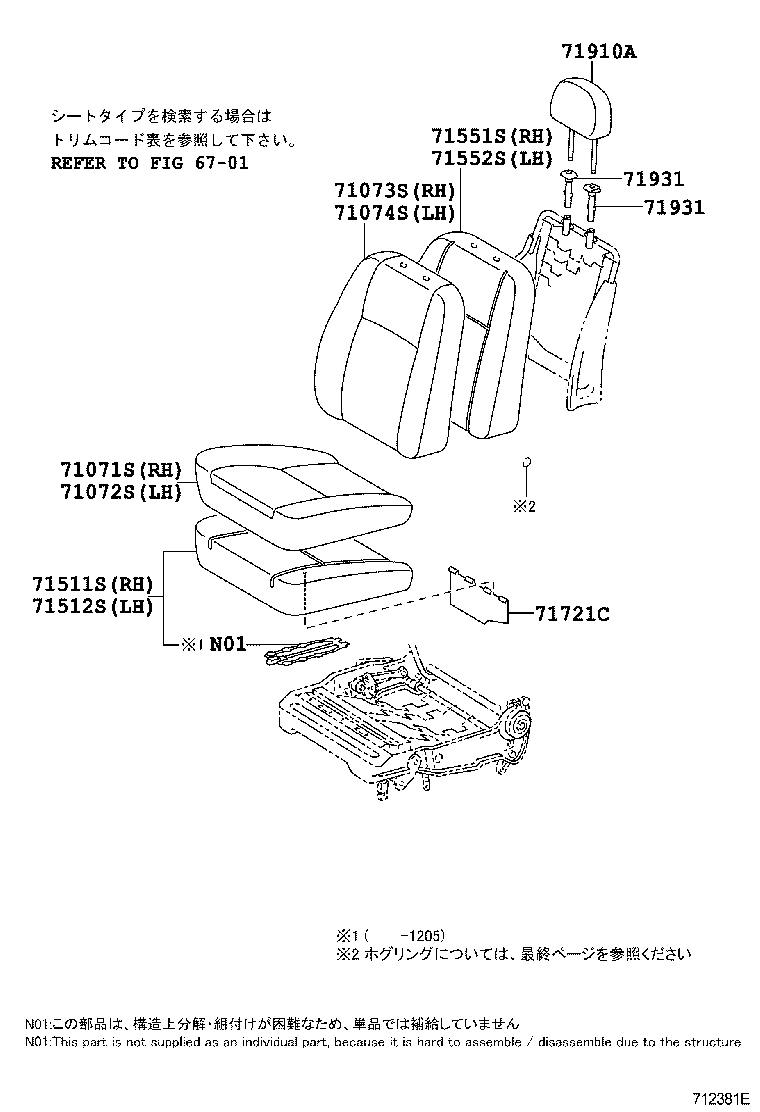

ILLUST NO. 1 OF 2(0206- )NCP50,51,55,58,59,NLP51..DX,F,GL,TX,U,UL
ﾍﾂﾄﾞﾚｽﾄ ﾌﾞﾝﾘｼｷ(ﾛｰﾊﾞｯｸ ｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-5C090B0 |
NCP51,55,58,59,NLP51..SUCD GRAY,TRIM1# |
1 | ||
| 71071-52800B0 |
NCP5#,NLP51..DX,F,GL GRAY,TRIM1# |
1 | ||
| 71071-52730B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,GRAY,TRIM1# |
1 | ||
| 71071-52730B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-52690B0 |
NCP51,55,58,59,NLP51..SUCD GRAY,TRIM1# |
1 | ||
| 71072-52480B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,GRAY,TRIM1# |
1 | ||
| 71072-52480B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-52520B0 |
NCP50,51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,GRAY,TRIM1# |
1 | ||
| 71073-52530B0 |
NCP51,55,58,59,NLP51..SUCD GRAY,TRIM1# |
1 | ||
| 71073-52520B0 |
NCP55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,GRAY,TRIM1# |
1 | ||
| 71073-52520B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-52520B0 |
NCP50,51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,GRAY,TRIM1# |
1 | ||
| 71073-52530B0 |
NCP51,55,58,59,NLP51..SUCD GRAY,TRIM1# |
1 | ||
| 71073-52520B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,GRAY,TRIM1# |
1 | ||
| 71073-52520B0 |
NCP55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-52140 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-52020 |
NCP5#,NLP51 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-52130 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 71551-52130 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 71551-52130 |
NCP51,55,58,59,NLP51..SUCD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-52150 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 71552-52150 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 71552-52150 |
NCP51,55,58,59,NLP51..SUCD |
1 | ||
| 71721C - FABRIC, FOR SEAT | ||||
| 71721-52010 |
NLP51 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52200B1 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,GRAY,TRIM1# |
2 | ||
| 71910-52210B0 |
NCP51,55,58,59,NLP51..SUCD GRAY,TRIM1# |
2 | ||
| 71910-52200B1 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NCP50,51,55,58,59,NLP51..DX,F,GL ﾛｯｸ付,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP51,55,58,59,NLP51..SUCD ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP50,51,55,NLP51..DX,GL ﾛｯｸ無,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP50,51,55,NLP51..DX,GL ﾛｯｸ付,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP50,51,55,NLP51..DX,GL ﾛｯｸ無,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP51,55,58,59,NLP51..SUCD ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NLP51..SUCD ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NCP50,51,55,58,59,NLP51..DX,F,GL ﾛｯｸ付,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP51,55,58,59,NLP51..SUCD ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP50,51,55,NLP51..DX,GL ﾛｯｸ無,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP50,51,55,NLP51..DX,GL ﾛｯｸ付,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP50,51,55,NLP51..DX,GL ﾛｯｸ無,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP51,55,58,59,NLP51..SUCD ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NLP51..SUCD ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| Linked diagrams | ||||
| 6701 | ||||

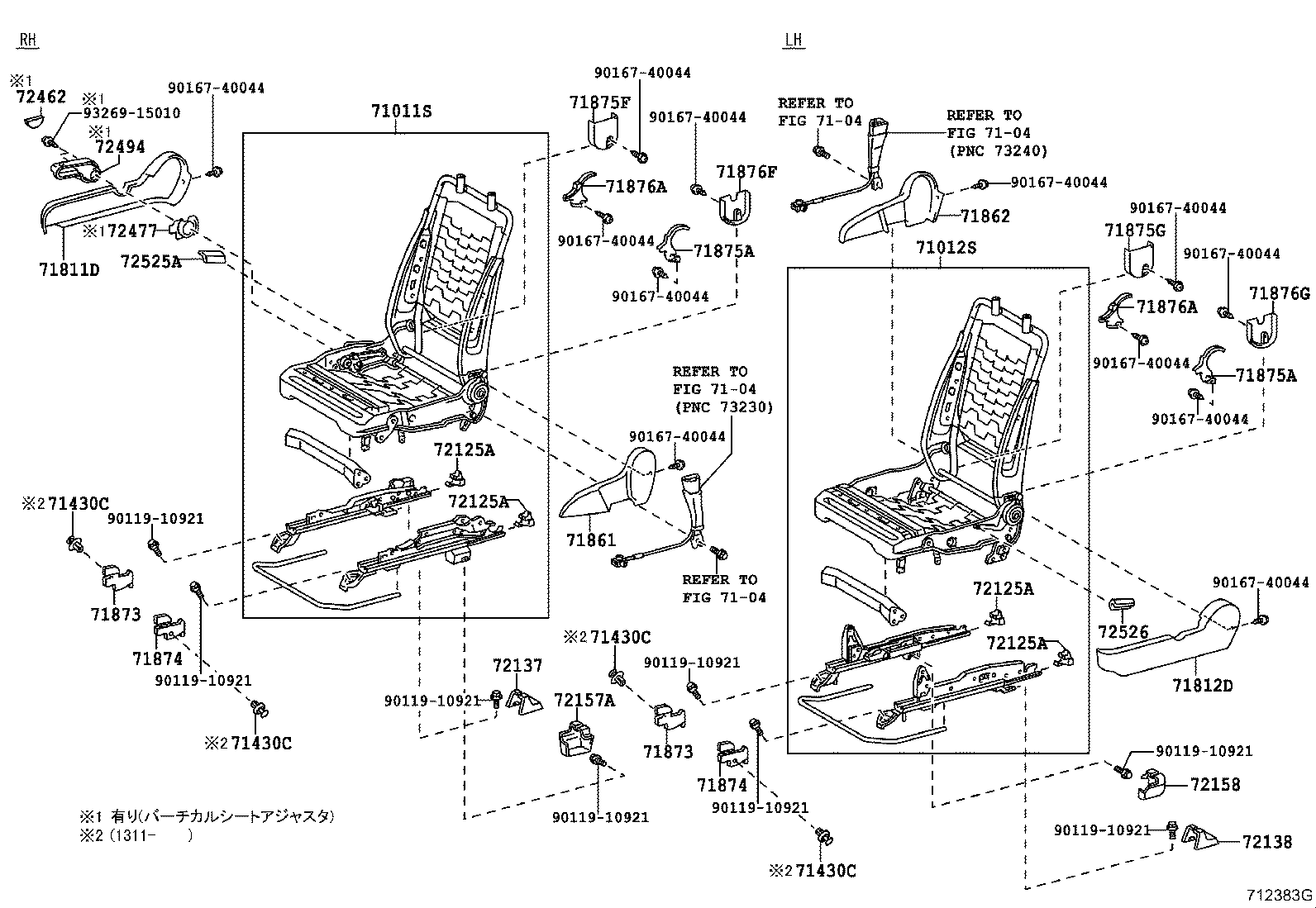

ILLUST NO. 2 OF 2(0206- )NCP50,51,55,58,59,NLP51..DX,F,GL,TX,U,UL
ﾍﾂﾄﾞﾚｽﾄ ﾌﾞﾝﾘｼｷ(ﾛｰﾊﾞｯｸ ｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71110-52020 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 71110-52070 |
NCP50,51,52,58,NLP51..DX,F,GL |
1 | ||
| 71110-52020 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 71110-52020 |
NCP51,58,NLP51..SUCD |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71120-52020 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 71120-52020 |
NCP51,55,58,59,NLP51..SUCD |
1 | ||
| 71120-52020 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52150B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52140B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52100B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52090B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52040B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52040B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52050B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52050B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52030B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52030B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL DK.GRAY,TRIM1# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58060 |
NCP5#,NLP51 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-58060 |
NCP5#,NLP51 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52030B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52030B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL DK.GRAY,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58060 |
NCP55..DXJ,U,UL;NCP50,51,52,58,59;NLP51..DX,DXJ,GL,UL |
1 | ||
| 71876-58060 |
NLP51..U |
1 | ||
| 71876-58060 |
NLP51..U ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-58060 |
NLP51..U ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 71876-58060 |
NLP51..U |
1 | ||
| 71876-58060 |
NCP55..DXJ,U,UL;NCP50,51,52,58,59;NLP51..DX,DXJ,GL,UL |
1 | ||
| 71876-58060 |
NLP51..U |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-52010 |
NCP5#,NLP51 |
1 | ||
| 72137-52070 |
NCP5#,NLP51 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-52010 |
NCP5#,NLP51 |
1 | ||
| 72137-52070 |
NCP5#,NLP51 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-52010 |
NCP50,51,58,NLP51 |
1 | ||
| 72157-52120 |
NCP50,51,52,58,NLP51 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-52010 |
NCP5#,NLP51 |
1 | ||
| 72158-52080 |
NCP5#,NLP51 |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-58010B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL DK.GRAY,TRIM1# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-52010B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL DK.GRAY,TRIM1# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-52010B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 93269-15010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0206- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
