NLP51V-FXMDX (2002)

Toyota Probox/Succeed

Production Jun 2002 - Aug 2007
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )NCP50,51,52,58,NLP51

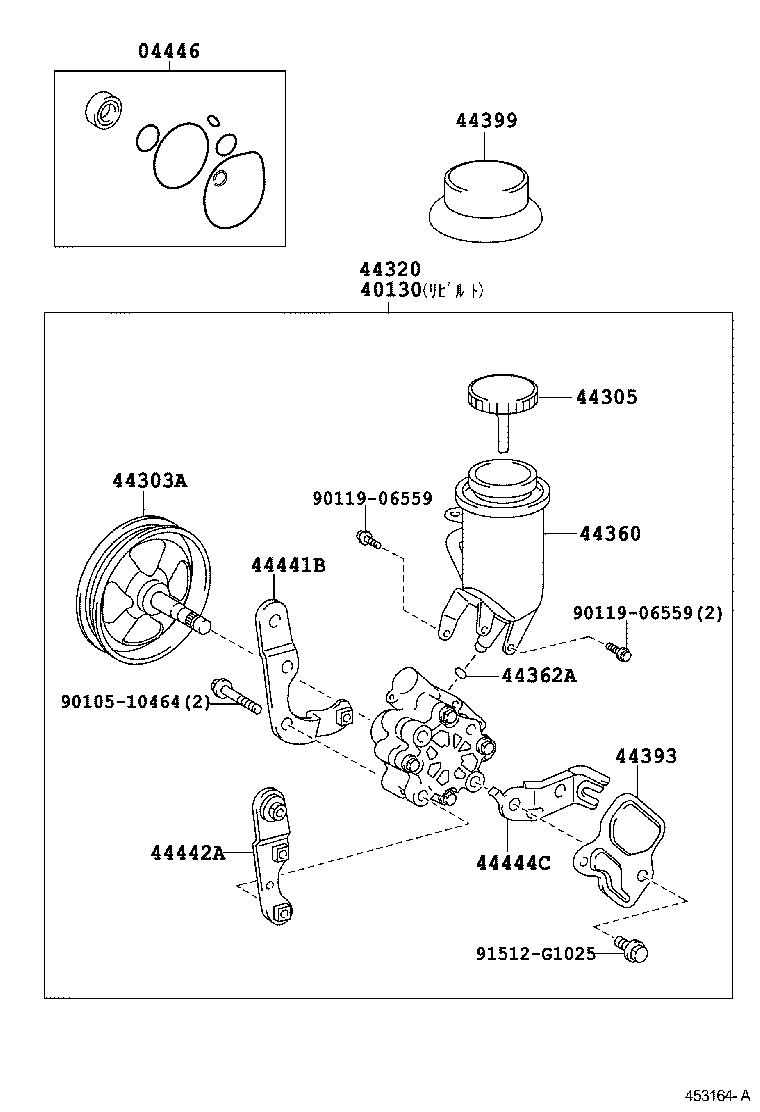

Click highlighted areas on diagram

diagram 04446 40130 44303A 44305 44320 44360 44362A 44393 44399 44441B 44442A 44444C 9010510464 9011906559 9011906559 91512G1025
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-32050

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
40130 - PUMP ASSY,VANE REBUILT
40130-52160

NLP51..DX,GL,U,UL

 1
40130-52050

NCP50,51,52,58..DX,F,GL,TX,U,UL

 1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-52030

NLP51..DX,GL,U,UL

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-50010

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
44320 - PUMP ASSY, VANE
44310-52050

NCP50,51,52,58..DX,F,GL,TX,U,UL

 1
44310-52160

NLP51..DX,GL,U,UL

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44306-52020

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
44362A - RING, O(FOR VANE PUMP OIL RESERVOIR)
90301-11020

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
44393 - INSULATOR, POWER STEERING PUMP HEAT
44393-52010

NLP51..DX,GL,U,UL

 1
44393-52010

NCP50,51,52,58..DX,F,GL,TX,U,UL

 1
44393-52040

NCP50,51,52,58

 1
44399 - COVER, VANE PUMP OIL RESERVOIR
44399-52010

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
44441B - BRACKET, PUMP, FRONT
44441-52010

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
44442A - BRACKET, VANE PUMP, REAR
44442-52020

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
44444C - STAY, VANE PUMP, REAR
44444-52010

NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL

 1
Common parts
90105-10464
90119-06559
91512-G1025
