NLP51V-FXMDX (2002)
Toyota Probox/Succeed
(0206- )5F
C50,C50F,C53,C54
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 91612-61050 |
NCP50,51,55,58,59,NLP51..5F *10−1.25PX50−30 |
7 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 91612-61050 |
NCP50,51,55,58,59,NLP51..5F *10−1.25PX50−30 |
7 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08086 |
NCP50,51,55,58,59,NLP51..5F *8−1.25PX45−27.5 |
3 | ||
| 90105-08430 |
NCP50,51,55,58,59,NLP51..5F *8−1.25PX45−27.5 |
3 | ||
| 90105-08353 |
NCP50,51,55,58,59,NLP51..5F *8−1.25PX50−30 |
13 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
NCP50,51,58,NLP51..5F |
1 | ||
| 90341-18033 |
NCP50,51,58,NLP51..5F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-12021 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18033 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 90341-18006 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-16064 |
NCP50,51,55,58,59,NLP51..5F TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 33111-52140 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33111-52110 |
NCP50,51,55,58,59,NLP51..5F TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 33111-16063 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
NCP50,51,55,58,59,NLP51..5F 長さ=23,外径=8 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
NCP50,51,55,58,59,NLP51..5F 長さ=11,外径=11 |
2 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90119-08782 |
NCP50,51,55,58,59,NLP51..5F |
9 | ||
| 91611-60835 |
NCP50,51,55,58,59,NLP51..5F |
9 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-20050 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-12021 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91611-G0820 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33124J - BOLT, W/WASHER | ||||
| 91611-G0820 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-35230 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33403L - RING, O | ||||
| 96711-24030 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| Common parts | ||||
| 90101-08166 | ||||
| 90201-08049 | ||||
| 91611-B0825 | ||||

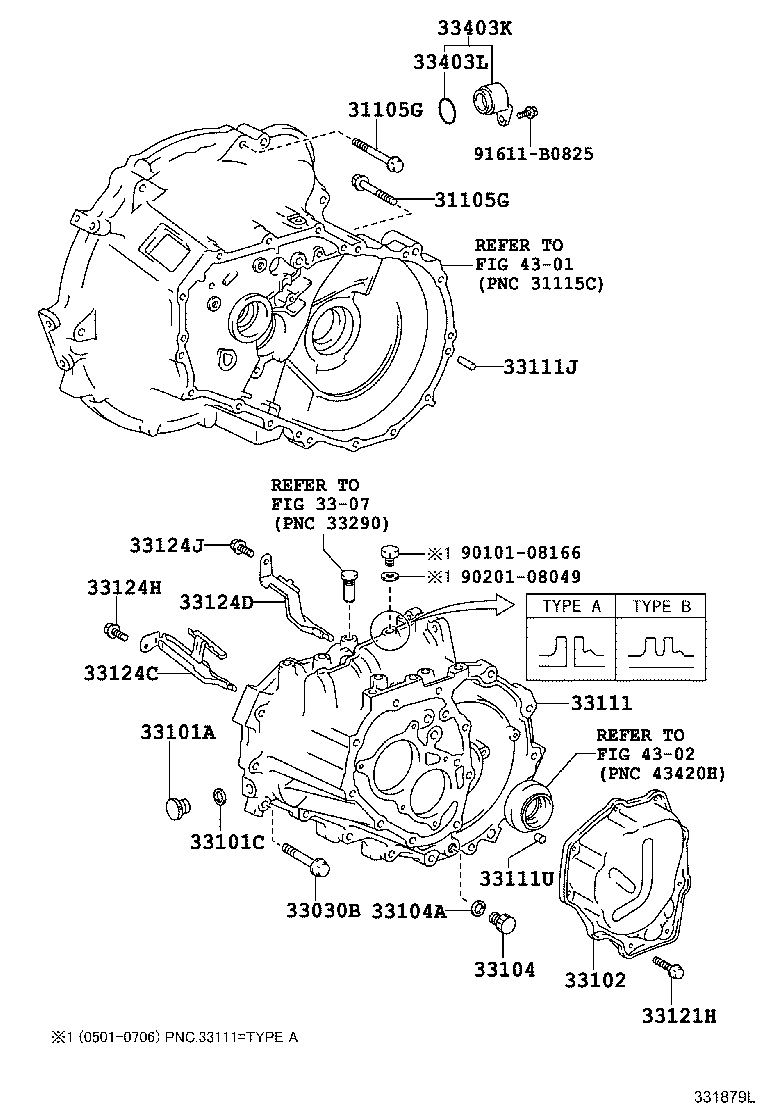

| Linked diagrams | ||||
| 3307 | ||||
| 4301 | ||||
| 4302 | ||||
