NLP51V-EXMJX (2002)

Toyota Probox/Succeed

Production Jun 2002 - May 2003
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )NCP50,51,52,58,NLP51

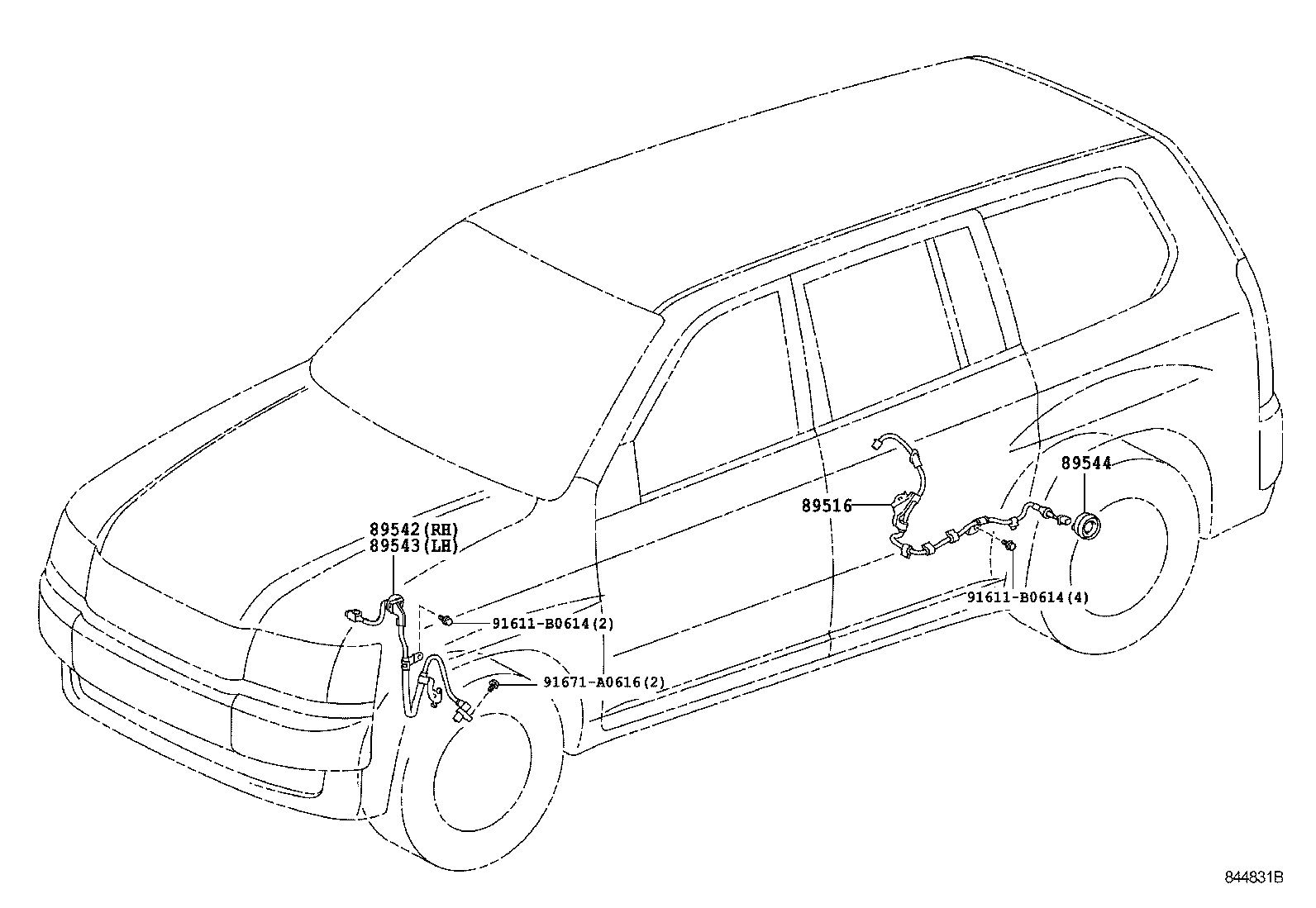

Click highlighted areas on diagram

diagram 89516 89542 89543 89544 91611B0614 91611B0614 91671A0616
Part # Description Qty Price
89516 - WIRE, SKID CONTROL SENSOR
89516-52030

NCP50,51,NLP51

無し(ABS),右側

 1
89516-52030

NCP50,51,52,58,NLP51

右側

 1
89516-52040

NCP50,51,52,58,NLP51

左側

 1
89542 - SENSOR, SPEED, FRONT RH
89542-52010

NCP5#,NLP51

 1
89543 - SENSOR, SPEED, FRONT LH
89543-52010

NCP5#,NLP51

 1
89544 - SENSOR, SKID CONTROL
89544-32040

NCP50,51,52,58,NLP51

 2
89544-32040

NCP50,51,NLP51

無し(ABS)

 2
Common parts
91611-B0614
91671-A0616
