NLP51V-EXMJX (2002)

Toyota Probox/Succeed

Production Jun 2002 - May 2003
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )

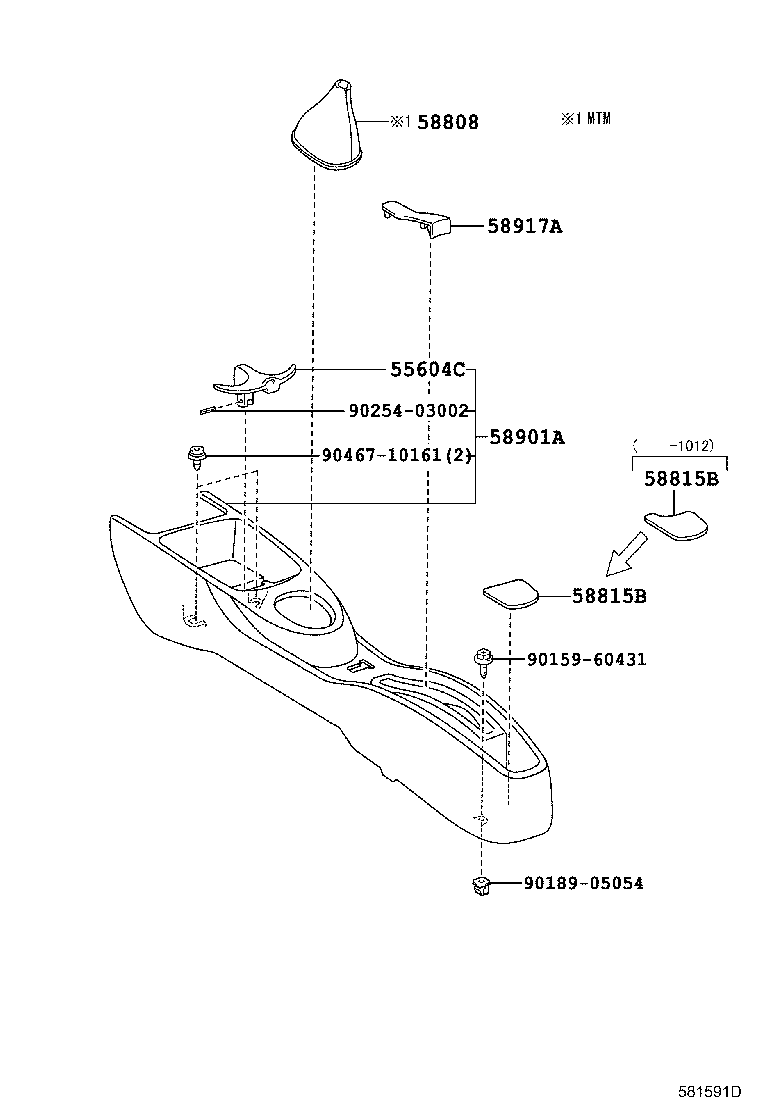

Click highlighted areas on diagram

diagram 55604C 58808 58815B 58815B 58901A 58917A 9015960431 9018905054 9025403002 9046710161
Part # Description Qty Price
55604C - HOLDER SUB-ASSY, CONSOLE BOX CUP
55604-52020B0

NCP5#,NLP51

DK.GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-52020B4

NCP50,51,55,58,59,NLP51..5F

DK.GRAY,TRIM1#

 1
58815B - CARPET, CONSOLE BOX
58815-52030

NCP5#,NLP51

 1
58815B - CARPET, CONSOLE BOX
58815-52030

NCP5#,NLP51

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-52030B0

NCP5#,NLP51

DK.GRAY,TRIM1#

 1
58917A - COVER, CONSOLE BOX, REAR
58917-52030B0

NCP5#,NLP51

DK.GRAY,TRIM1#

 1
Common parts
90159-60431
90189-05054
90254-03002
90467-10161
