NLP51V-EXMJX (2002)

Toyota Probox/Succeed

Production Jun 2002 - May 2003
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )

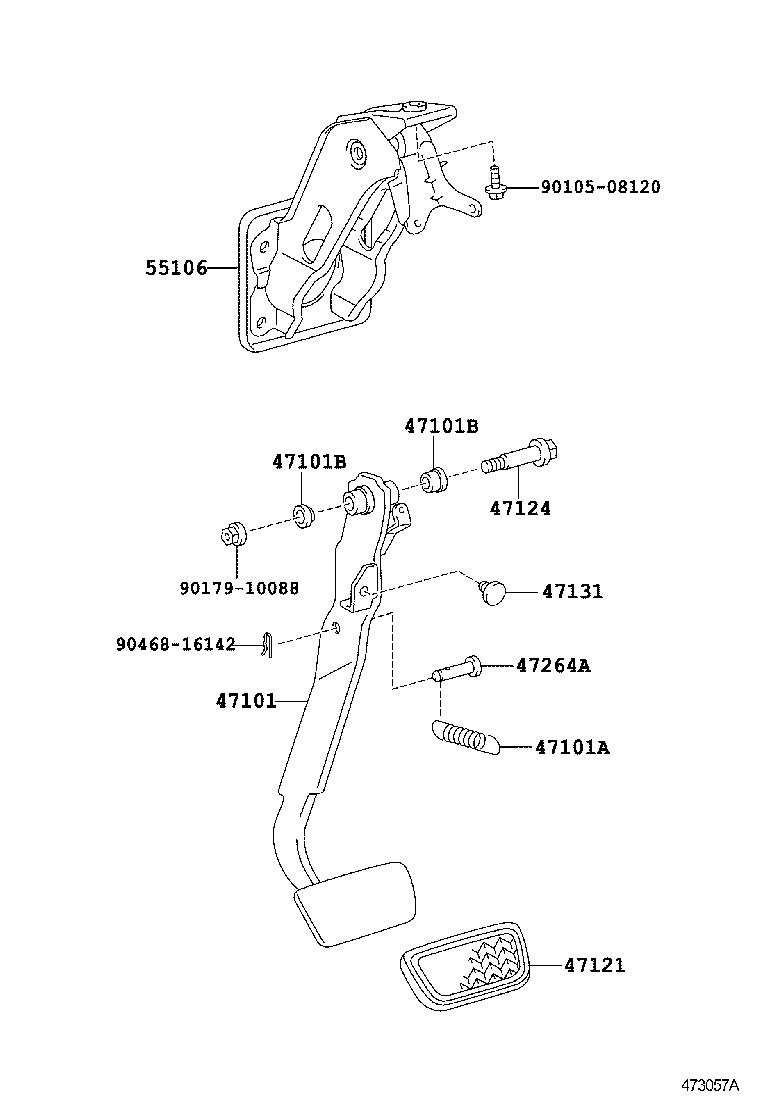

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47131 47264A 55106 9010508120 9017910088 9046816142
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-52100

NCP50,51,55,58,59,NLP51..5F..(DX,F,GL,U,UL)

 1
47101-52100

NCP50,55,NLP51..5F..DXJ

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-14077

NCP50,55,NLP51..DXJ

 1
90506-14077

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

NCP5#,NLP51..DX,F,GL,TX,U,UL

 2
90386-13015

NCP50,55,NLP51..DXJ

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

NCP5#,NLP51..DX,F,GL,TX,U,UL

 2
90386-13015

NCP50,55,NLP51..DXJ

 2
47121 - PAD, BRAKE PEDAL
31321-52010

NCP50,55,NLP51..5F..DXJ

 1
31321-52010

NCP50,51,55,58,59,NLP51..5F..(DX,F,GL,U,UL)

 1
47124 - SHAFT, BRAKE PEDAL
90109-10167

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
90109-10167

NCP50,55,NLP51..DXJ

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
90541-06036

NCP50,55,NLP51..DXJ

 1
47264A - PIN(FOR PUSH ROD)
90249-08297

NCP50,55,NLP51..DXJ

 1
90249-08297

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-52090

NCP5#,NLP51

 1
Common parts
90105-08120
90179-10088
90468-16142
