NLP51V-EXMGX (2002)

Toyota Probox/Succeed

Production Jun 2002 - Aug 2007
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )

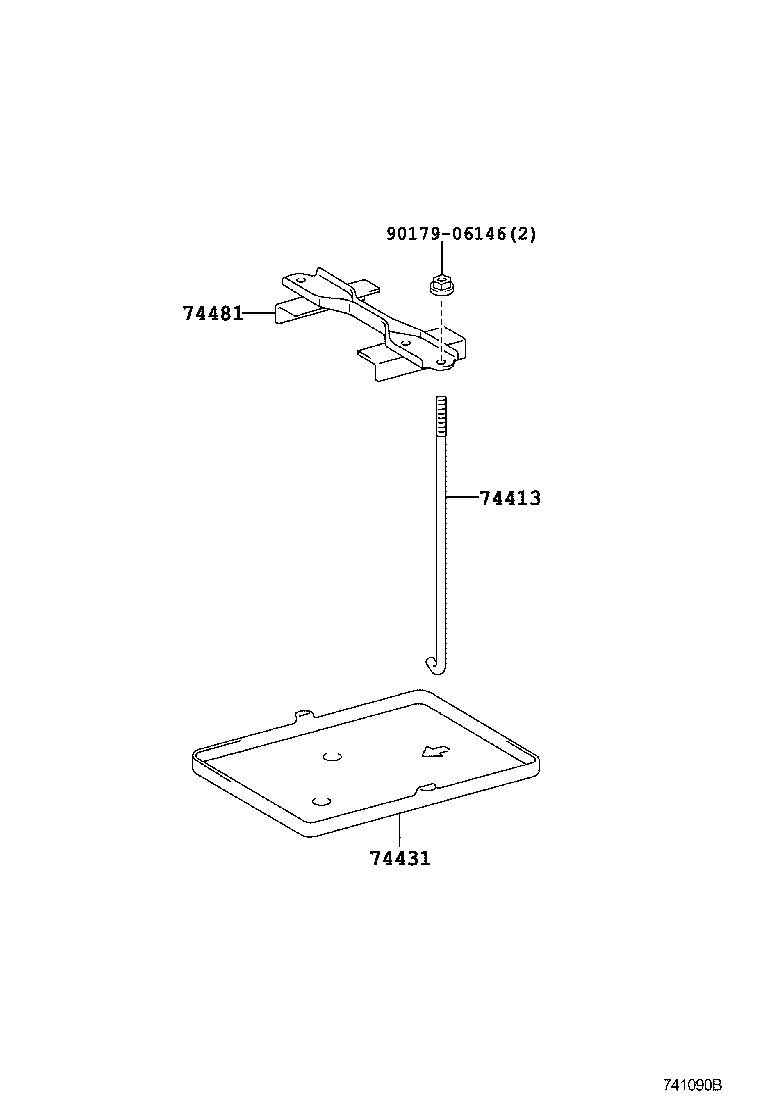

Click highlighted areas on diagram

diagram 74413 74431 74481 9017906146
Part # Description Qty Price
74413 - BOLT, BATTERY CLAMP
74451-16030

NCP5#,NLP51

 2
74431 - TRAY, BATTERY
74431-52010

NCP52,NLP51

 1
74431-14030

NLP51

寒冷地仕様

 1
74431-52020

NCP50,51,55,58,59

 1
74431-14030

NLP51

ｽﾉｰﾊﾞｰｼﾞｮﾝ(雪国仕様)

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-42030

NCP52,NLP51

 1
74404-52020

NCP50,51,55,58,59

 1
Common parts
90179-06146
