NLP51V-EXMGX (2002)
Toyota Probox/Succeed
Production
Jun 2002
-
Aug 2007
Engine
1NDTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0206- )NLP51

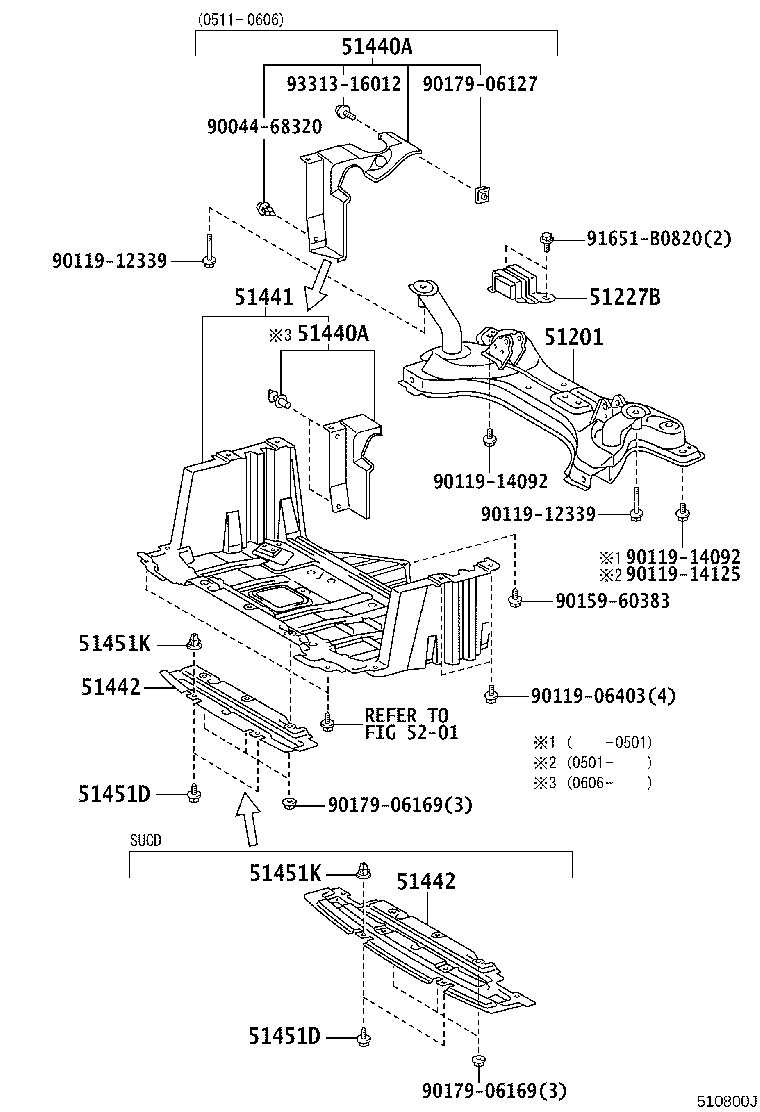

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-52012 |
NCP50,51,58,NLP51 |
1 | ||
| 51201-52013 |
NCP50,51,52,58,NLP51 |
1 | ||
| 51201-52011 |
NCP50,51,58,NLP51 |
1 | ||
| 51201-52014 |
NCP50,51,52,58,NLP51 |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-52010 |
NCP50..DXJ;NCP50,51,58..5F..(DX,F,GL,U,UL) |
1 | ||
| 51227-52030 |
NLP51 |
1 | ||
| 51440A - COVER ASSY, ENGINE UNDER | ||||
| 51440-52010 |
NCP5#,NLP51 |
1 | ||
| 51440-52010 |
NCP5#,NLP51 |
1 | ||
| 51440-52020 |
NCP5#,NLP51 寒冷地仕様 |
1 | ||
| 51440A - COVER ASSY, ENGINE UNDER | ||||
| 51440-52010 |
NCP5#,NLP51 |
1 | ||
| 51440-52010 |
NCP5#,NLP51 |
1 | ||
| 51440-52020 |
NCP5#,NLP51 寒冷地仕様 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-52110 |
NCP50,51,55,58,59..5F |
1 | ||
| 51410-52020 |
NLP51 |
1 | ||
| 51410-52050 |
NCP50,51,55,58,59..5F 寒冷地仕様 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-52050 |
NCP5#,NLP51..PROB |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-52050 |
NCP5#,NLP51..PROB |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60431 |
NCP5#,NLP51 |
2 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60431 |
NCP5#,NLP51 |
2 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
NCP5#,NLP51 |
2 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
NCP5#,NLP51 |
2 | ||
| Common parts | ||||
| 90044-68320 | ||||
| 90119-06403 | ||||
| 90119-12339 | ||||
| 90119-14092 | ||||
| 90119-14125 | ||||
| 90159-60383 | ||||
| 90179-06127 | ||||
| 90179-06169 | ||||
| 91651-B0820 | ||||
| 93313-16012 | ||||
| Linked diagrams | ||||
| 5201 | ||||
