NLP51V-EXMGX (2002)

Toyota Probox/Succeed

Production Jun 2002 - Aug 2007
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )5F

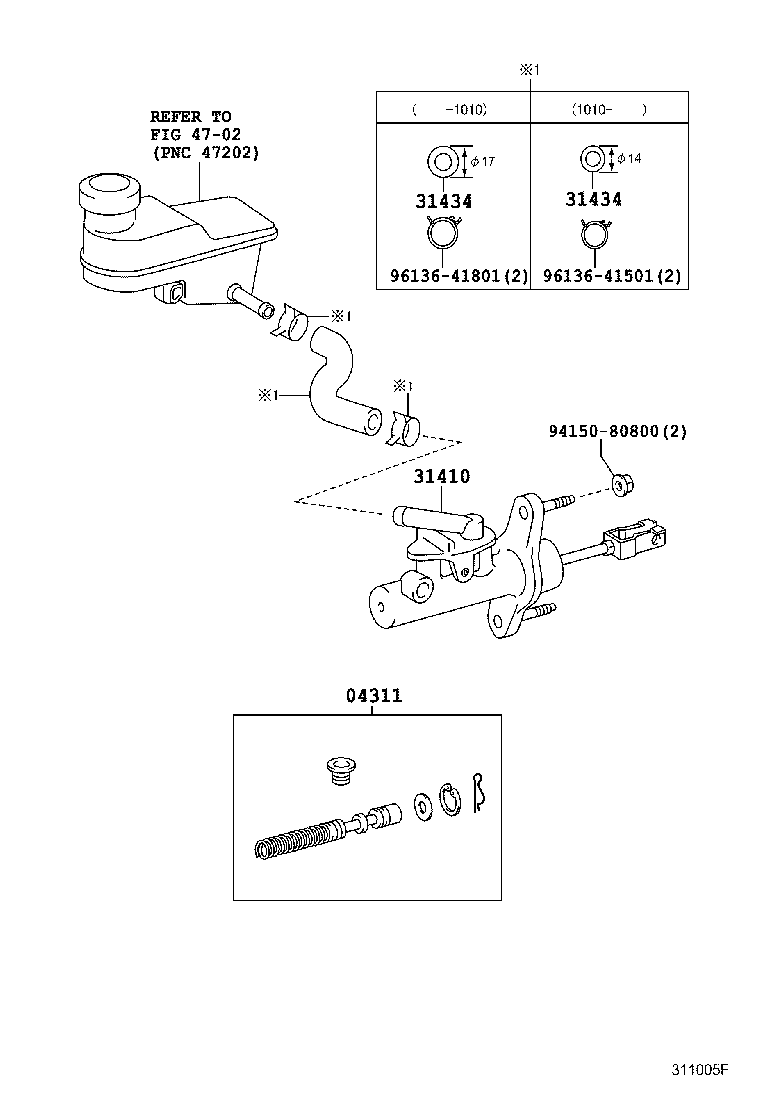

Click highlighted areas on diagram

diagram 04311 31410 31434 31434 4702 9415080800 9613641501 9613641801
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-12110

NCP50,51,55,58,59,NLP51..5F

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-52030

NCP50,51,55,58,59,NLP51..5F

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-52030

NCP50,51,55,58,59,NLP51..5F

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-52030

NCP50,51,55,58,59,NLP51..5F

 1
Common parts
94150-80800
96136-41501
96136-41801
Linked diagrams
4702
