NLP51V-EXMGX (2002)

Toyota Probox/Succeed

Production Jun 2002 - Aug 2007
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )1NDTV

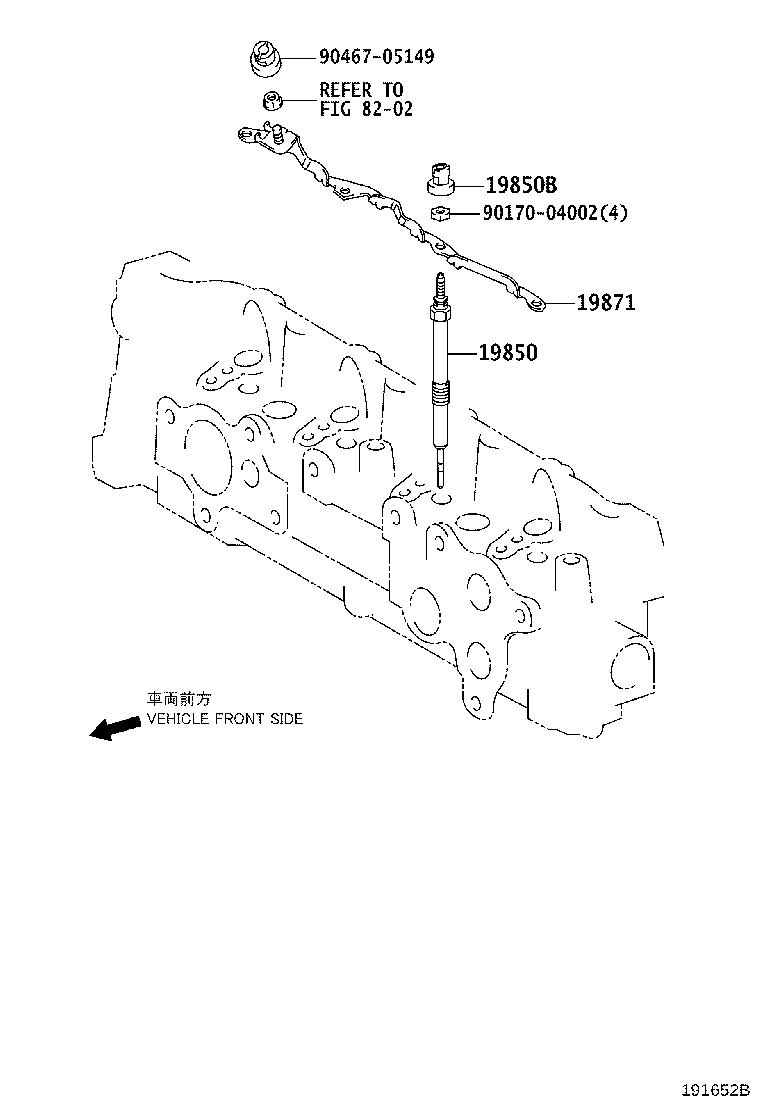

Click highlighted areas on diagram

diagram 19850 19850B 19871 8202 9017004002 9046705149
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-0W010

1NDTV..NLP51

*BV−GV=12V−11V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

1NDTV..NLP51

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-33010

1NDTV..NLP51

 1
Common parts
90170-04002
90467-05149
Linked diagrams
8202
