NHP160V-FXXRB (2018)

Toyota Probox/Succeed

Production Dec 2018 - Jul 2020
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )NHP160

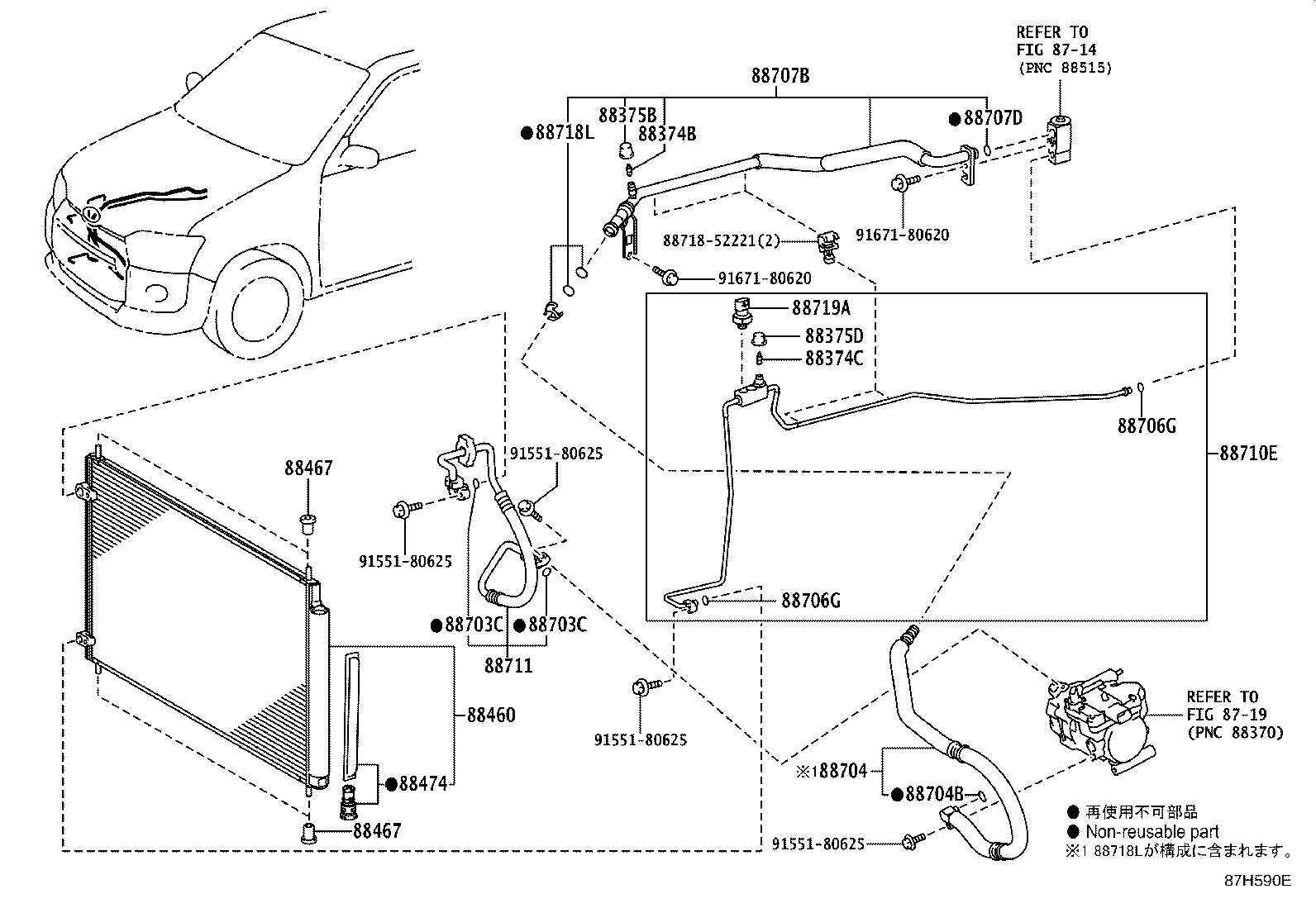

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88467 88467 88474 88703C 88703C 88704 88704B 88706G 88706G 88707B 88707D 88710E 88711 8871852221 88718L 88719A 9155180625 9155180625 9155180625 9155180625 9167180620 9167180620
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

NCP16#,NHP160,NSP160

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

NCP16#,NHP160,NSP160

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

NCP16#,NHP160..SUCD

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

NCP16#,NHP160,NSP160

 1
88460 - CONDENSER ASSY, COOLER
88460-12590

NHP160..SUCD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

NHP160..SUCD

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

NHP160..SUCD

 4
88474 - DRYER, COOLER
88474-12020

NHP160..SUCD

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

NHP160..SUCD

内径=10.8,外径=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

NHP160..SUCD

内径=10.8,外径=15.6

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-52260

NHP160..SUCD

 1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

NHP160..SUCD

内径=13.4,外径=18.2

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

NHP160

内径=6.7,外径=10.3

 2
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

NHP160

内径=6.7,外径=10.3

 2
88707B - TUBE SUB-ASSY, SUCTION, B
88707-52340

NHP160..SUCD

 1
88707D - RING, O(FOR SUCTION TUBE)
90099-14121

NHP160..SUCD

内径=13.4,外径=18.2

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-52110

NHP160..SUCD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12A00

NHP160..SUCD

 1
88718L - CLAMP, PIPING
88718-52280

NHP160..SUCD

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

NCP16#,NHP160,NSP160

 1
Common parts
88718-52221
91551-80625
91671-80620
Linked diagrams
8714
8719
