NHP160V-FXXRB (2018)
Toyota Probox/Succeed
Production
Dec 2018
-
Jul 2020
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1812- )

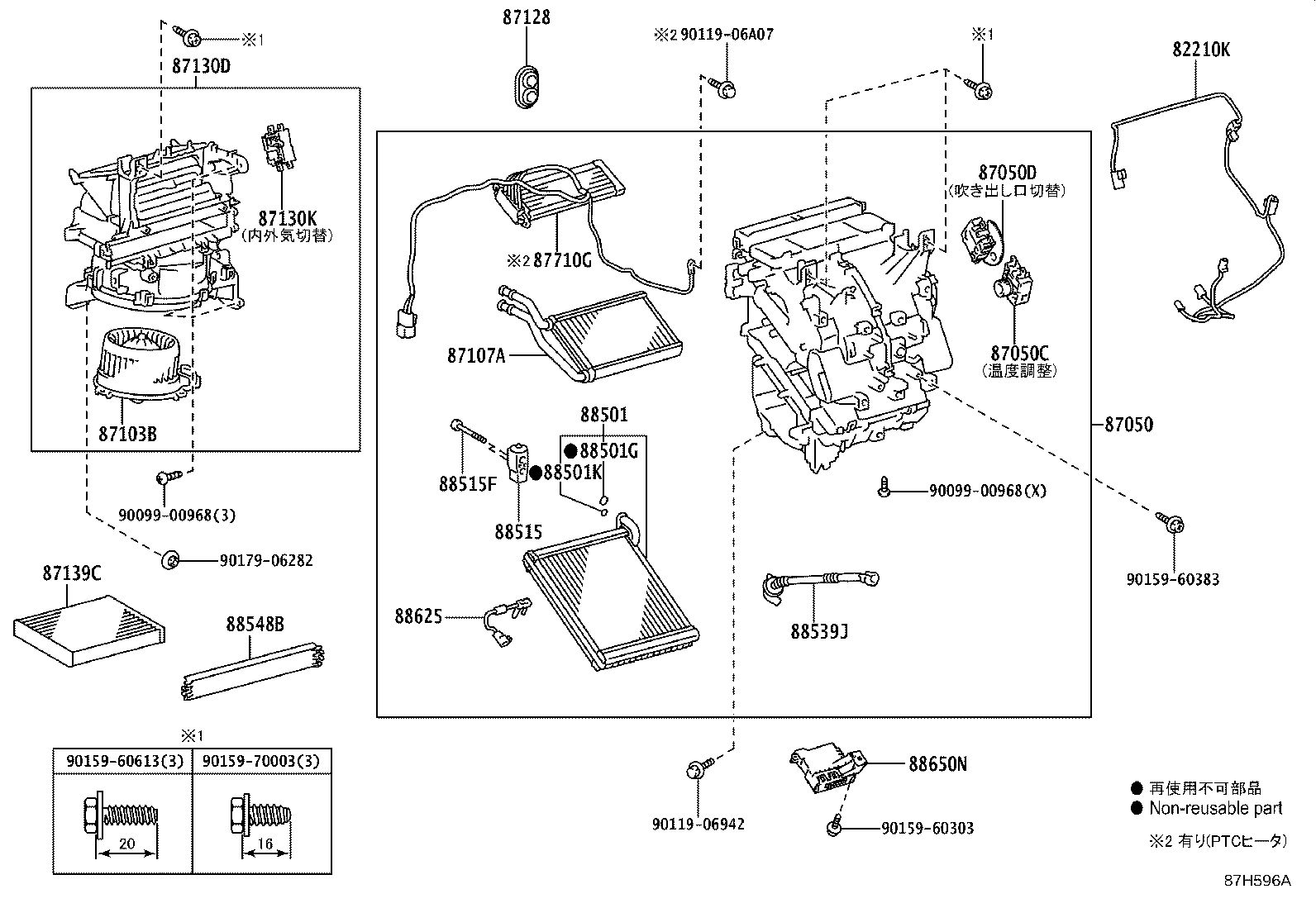

Click highlighted areas on diagram
ｵｰﾄ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-52070 |
NHP160..SUCD |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52460 |
NHP160..SUCD |
1 | ||
| 87050-52470 |
NHP160..SUCD 寒冷地仕様 |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-52130 |
NHP160..SUCD |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-52140 |
NHP160..SUCD |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52200 |
NHP160..SUCD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52070 |
NCP16#,NHP160..SUCD |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 90480-01696 |
NCP16#,NHP160..SUCD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52240 |
NHP160..SUCD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-52150 |
NHP160..SUCD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-52040 |
NCP16#,NHP160..SUCD 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-50100 |
NCP16#,NHP160..SUCD 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-52080 |
NHP160..SUCD 寒冷地仕様 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52120 |
NHP160..SUCD |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NCP16#,NHP160..SUCD 内径=13.4,外径=18.2 |
1 | ||
| 88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID) | ||||
| 90099-14120 |
NCP16#,NHP160..SUCD 内径=10.8,外径=15.6 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30780 |
NCP16#,NHP160..SUCD |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
NCP16#,NHP160..SUCD |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52060 |
NCP16#,NHP160..SUCD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
NCP16#,NHP160..SUCD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-52010 |
NCP16#,NHP160..SUCD |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52E30 |
NHP160..SUCD |
1 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90119-06942 | ||||
| 90119-06A07 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
