NHP160V-FXXRB (2018)

Toyota Probox/Succeed

Production Dec 2018 - Jul 2020
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

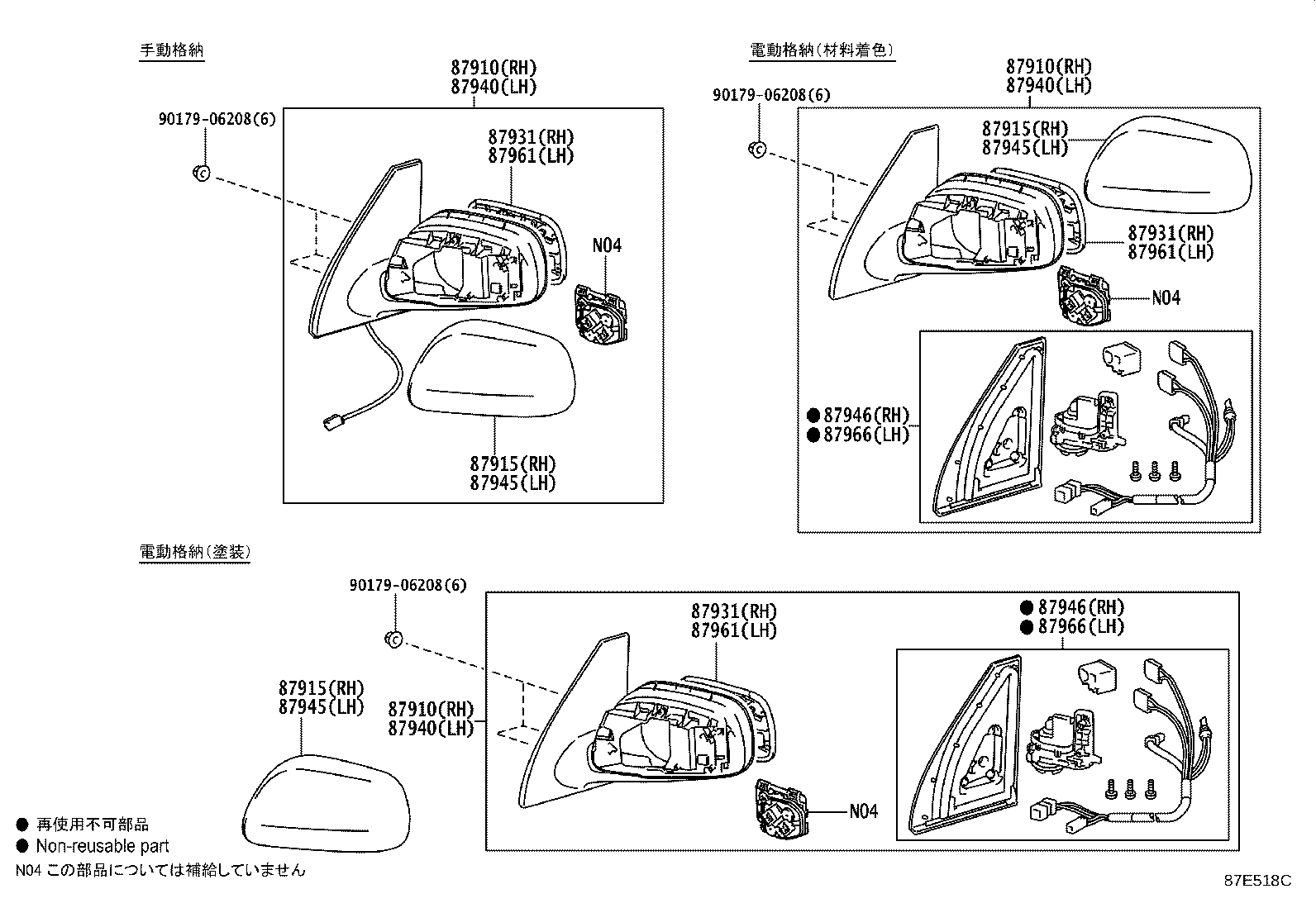

ILLUST NO. 1 OF 2(1409-2008)

Click highlighted areas on diagram

ｱｳﾀﾘﾔﾋﾞｭｰﾐﾗｰ

diagram 87910 87910 87910 87915 87915 87915 87931 87931 87931 87940 87940 87940 87945 87945 87945 87946 87946 87961 87961 87961 87966 87966 9017906208 9017906208 9017906208
Part # Description Qty Price
87915 - COVER, OUTER MIRROR, RH
87915-12010C2

NCP16#,NHP160,NSP160..F,GL,TX,ULX

BLACK MC.,209

 1
87915-12010A4

NCP16#,NHP160,NSP160..F,GL,TX,ULX

WHITE,058

 1
87915-12010J0

NCP16#,NHP160,NSP160..F,GL,TX,ULX

DK.BLUE M.M.,8P4

 1
87915-12010P1

NCP16#,NHP160,NSP160..F,GL,TX,ULX

SILVER M.M.,1E7

 1
87915-12010G5

NCP16#,NHP160,NSP160..F,GL,TX,ULX

LT.GREEN ME.,6U6

 1
87915-52010

NCP16#,NHP160,NSP160..DX,DXCOM,U,UL

材料着色

 1
87915-12010X2

NCP16#,NHP160,NSP160..F,GL,TX,ULX

BORDEAUX M.M,3R9

 1
87915 - COVER, OUTER MIRROR, RH
87915-12010C2

NCP16#,NHP160,NSP160..F,GL,TX,ULX

BLACK MC.,209

 1
87915-12010A4

NCP16#,NHP160,NSP160..F,GL,TX,ULX

WHITE,058

 1
87915-12010J0

NCP16#,NHP160,NSP160..F,GL,TX,ULX

DK.BLUE M.M.,8P4

 1
87915-12010P1

NCP16#,NHP160,NSP160..F,GL,TX,ULX

SILVER M.M.,1E7

 1
87915-12010G5

NCP16#,NHP160,NSP160..F,GL,TX,ULX

LT.GREEN ME.,6U6

 1
87915-52010

NCP16#,NHP160,NSP160..DX,DXCOM,U,UL

材料着色

 1
87915-12010X2

NCP16#,NHP160,NSP160..F,GL,TX,ULX

BORDEAUX M.M,3R9

 1
87915 - COVER, OUTER MIRROR, RH
87915-12010C2

NCP16#,NHP160,NSP160..F,GL,TX,ULX

BLACK MC.,209

 1
87915-12010A4

NCP16#,NHP160,NSP160..F,GL,TX,ULX

WHITE,058

 1
87915-12010J0

NCP16#,NHP160,NSP160..F,GL,TX,ULX

DK.BLUE M.M.,8P4

 1
87915-12010P1

NCP16#,NHP160,NSP160..F,GL,TX,ULX

SILVER M.M.,1E7

 1
87915-12010G5

NCP16#,NHP160,NSP160..F,GL,TX,ULX

LT.GREEN ME.,6U6

 1
87915-52010

NCP16#,NHP160,NSP160..DX,DXCOM,U,UL

材料着色

 1
87915-12010X2

NCP16#,NHP160,NSP160..F,GL,TX,ULX

BORDEAUX M.M,3R9

 1
87931 - OUTER MIRROR, RH
87931-1H070

NCP16#,NHP160,NSP160..DX,F,GL,TX,U,ULX

寒冷地仕様

 1
87931-52320

NCP16#,NHP160,NSP160

 1
87931 - OUTER MIRROR, RH
87931-1H070

NCP16#,NHP160,NSP160..DX,F,GL,TX,U,ULX

寒冷地仕様

 1
87931-52320

NCP16#,NHP160,NSP160

 1
87931 - OUTER MIRROR, RH
87931-1H070

NCP16#,NHP160,NSP160..DX,F,GL,TX,U,ULX

寒冷地仕様

 1
87931-52320

NCP16#,NHP160,NSP160

 1
87945 - COVER, OUTER MIRROR, LH
87945-52010

NCP16#,NHP160,NSP160..DX,DXCOM,U,UL

材料着色

 1
87945-12010G5

NCP16#,NHP160,NSP160..F,GL,TX,ULX

LT.GREEN ME.,6U6

 1
87945-12010C2

NCP16#,NHP160,NSP160..F,GL,TX,ULX

BLACK MC.,209

 1
87945-12010X1

NCP16#,NHP160,NSP160..F,GL,TX,ULX

BORDEAUX M.M,3R9

 1
87945-12010P1

NCP16#,NHP160,NSP160..F,GL,TX,ULX

SILVER M.M.,1E7

 1
87945-12010A4

NCP16#,NHP160,NSP160..F,GL,TX,ULX

WHITE,058

 1
87945-12010J0

NCP16#,NHP160,NSP160..F,GL,TX,ULX

DK.BLUE M.M.,8P4

 1
87945 - COVER, OUTER MIRROR, LH
87945-52010

NCP16#,NHP160,NSP160..DX,DXCOM,U,UL

材料着色

 1
87945-12010G5

NCP16#,NHP160,NSP160..F,GL,TX,ULX

LT.GREEN ME.,6U6

 1
87945-12010C2

NCP16#,NHP160,NSP160..F,GL,TX,ULX

BLACK MC.,209

 1
87945-12010X1

NCP16#,NHP160,NSP160..F,GL,TX,ULX

BORDEAUX M.M,3R9

 1
87945-12010P1

NCP16#,NHP160,NSP160..F,GL,TX,ULX

SILVER M.M.,1E7

 1
87945-12010A4

NCP16#,NHP160,NSP160..F,GL,TX,ULX

WHITE,058

 1
87945-12010J0

NCP16#,NHP160,NSP160..F,GL,TX,ULX

DK.BLUE M.M.,8P4

 1
87945 - COVER, OUTER MIRROR, LH
87945-52010

NCP16#,NHP160,NSP160..DX,DXCOM,U,UL

材料着色

 1
87945-12010G5

NCP16#,NHP160,NSP160..F,GL,TX,ULX

LT.GREEN ME.,6U6

 1
87945-12010C2

NCP16#,NHP160,NSP160..F,GL,TX,ULX

BLACK MC.,209

 1
87945-12010X1

NCP16#,NHP160,NSP160..F,GL,TX,ULX

BORDEAUX M.M,3R9

 1
87945-12010P1

NCP16#,NHP160,NSP160..F,GL,TX,ULX

SILVER M.M.,1E7

 1
87945-12010A4

NCP16#,NHP160,NSP160..F,GL,TX,ULX

WHITE,058

 1
87945-12010J0

NCP16#,NHP160,NSP160..F,GL,TX,ULX

DK.BLUE M.M.,8P4

 1
87961 - MIRROR OUTER, LH
87961-2A470

NCP16#,NHP160,NSP160

 1
87961-53080

NCP16#,NHP160,NSP160..DX,F,GL,TX,U,ULX

寒冷地仕様

 1
87961 - MIRROR OUTER, LH
87961-2A470

NCP16#,NHP160,NSP160

 1
87961-53080

NCP16#,NHP160,NSP160..DX,F,GL,TX,U,ULX

寒冷地仕様

 1
87961 - MIRROR OUTER, LH
87961-2A470

NCP16#,NHP160,NSP160

 1
87961-53080

NCP16#,NHP160,NSP160..DX,F,GL,TX,U,ULX

寒冷地仕様

 1
Common parts
90179-06208
