NHP160V-FXXRB (2018)
Toyota Probox/Succeed

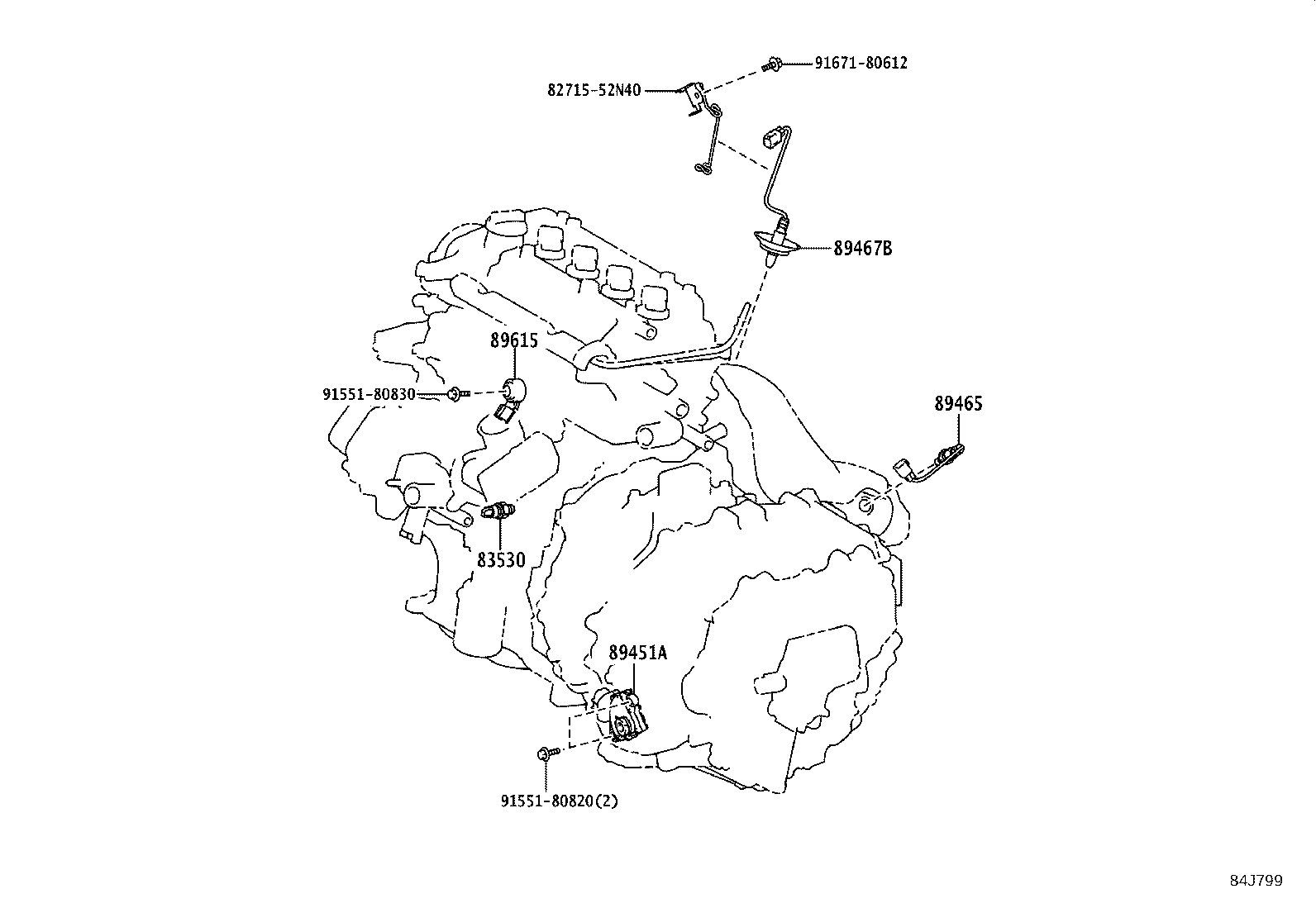

ILLUST NO. 1 OF 7(1812- )NHP160
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NCP16#,NHP160..SUCD YAZAKI |
1 | ||
| 83530-28020 |
NCP16#,NHP160..SUCD DENSO |
1 | ||
| 89451A - SENSOR, SHIFT LEVER POSITION | ||||
| 89451-52040 |
NHP160..SUCD |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52670 |
NHP160..SUCD |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52080 |
NHP160..SUCD |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NCP16#,NHP160..SUCD |
1 | ||
| Common parts | ||||
| 82715-52N40 | ||||
| 91551-80820 | ||||
| 91551-80830 | ||||
| 91671-80612 | ||||

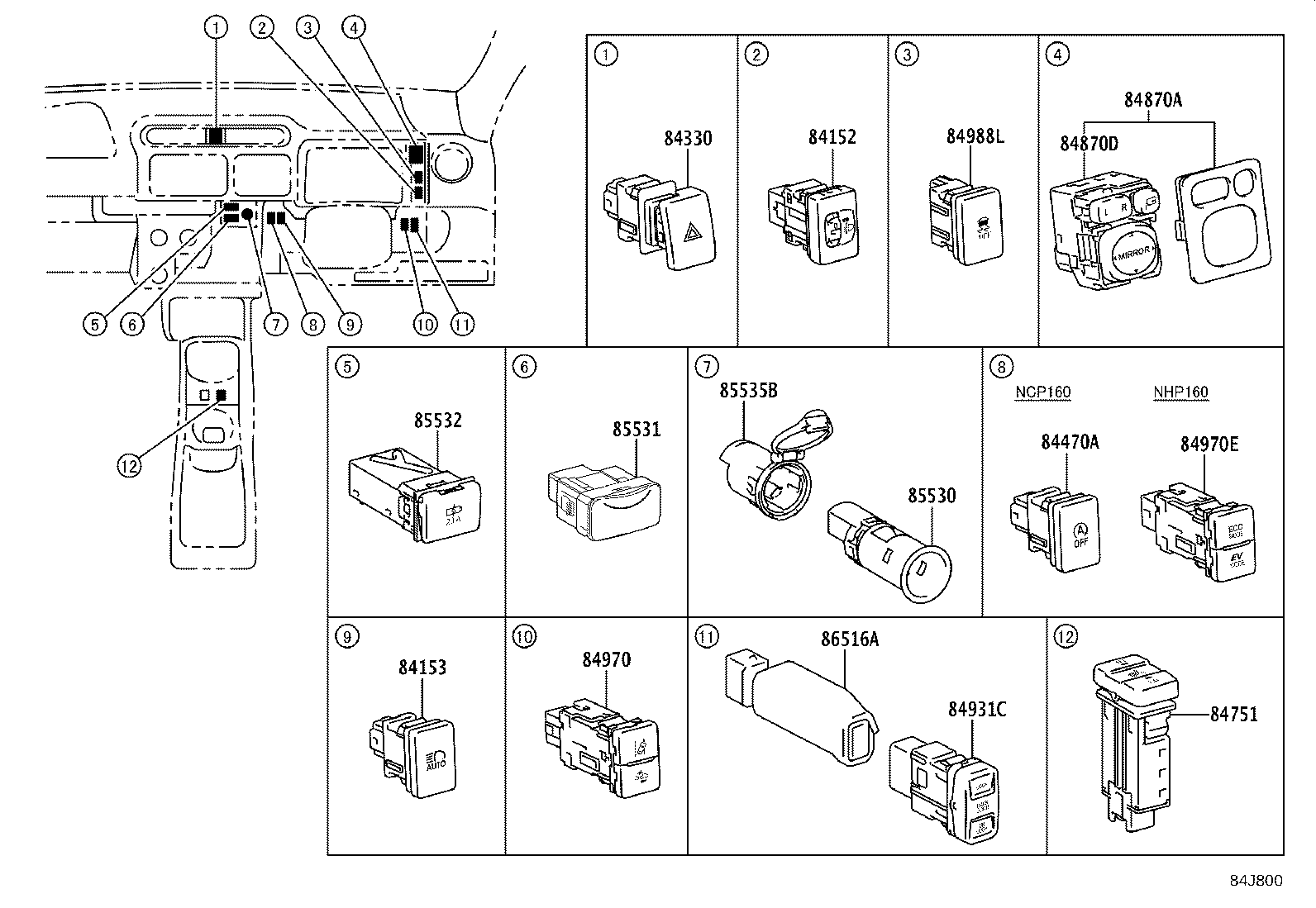

ILLUST NO. 5 OF 7(1812- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52091 |
NCP16#,NHP160..SUCD |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-52082 |
NHP160..SUCD ｼｰﾄﾋｰﾀ−有り |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 84870-28020 |
NCP16#,NHP160,NSP160..DX,U 寒冷地仕様 |
1 | ||
| 84870-34010 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52030 |
NCP16#,NHP160,NSP160..DX,DXCOM,U,UL |
1 | ||
| 84872-52040 |
NCP16#,NHP160,NSP160..F,GL,TX,ULX |
1 | ||
| 84872-52040 |
NCP16#,NHP160,NSP160..DX,U 寒冷地仕様 |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-52020 |
NCP16#,NHP160..U |
1 | ||
| 84970E - SWITCH ASSY, COMBINATION NO.2 | ||||
| 84970-52150 |
NHP160..SUCD |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
NCP16#,NHP160..SUCD |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85530-58080C0 |
NCP16#,NHP160..TX,UL,ULX ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V),BLACK,TRIM1# |
1 | ||
| 85530-58080C0 |
NCP16#,NHP160,NSP160..DXCOM,F,GL ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V),BLACK,TRIM1# |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-12010 |
NCP16#,NHP160..SUCD |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-30020 |
NCP16#,NHP160..SUCD |
1 | ||
| 86516A - CONDENSER | ||||
| 86516-52010 |
NCP16#,NHP160..U |
1 | ||

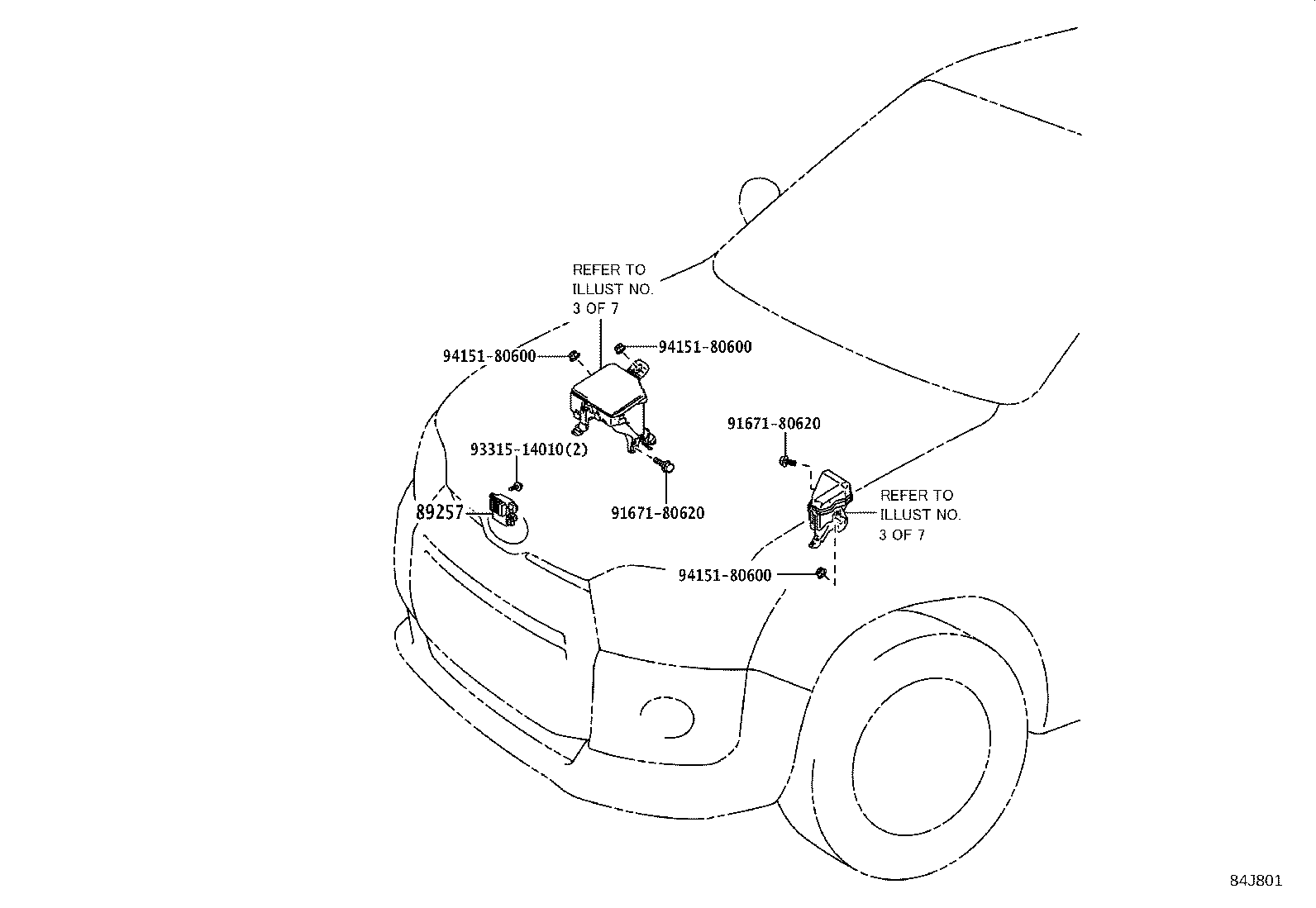

ILLUST NO. 2 OF 7(1812- )NHP160
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12020 |
NHP160 |
1 | ||
| 89257-K0020 |
NHP160..SUCD |
1 | ||
| Common parts | ||||
| 91671-80620 | ||||
| 93315-14010 | ||||
| 94151-80600 | ||||

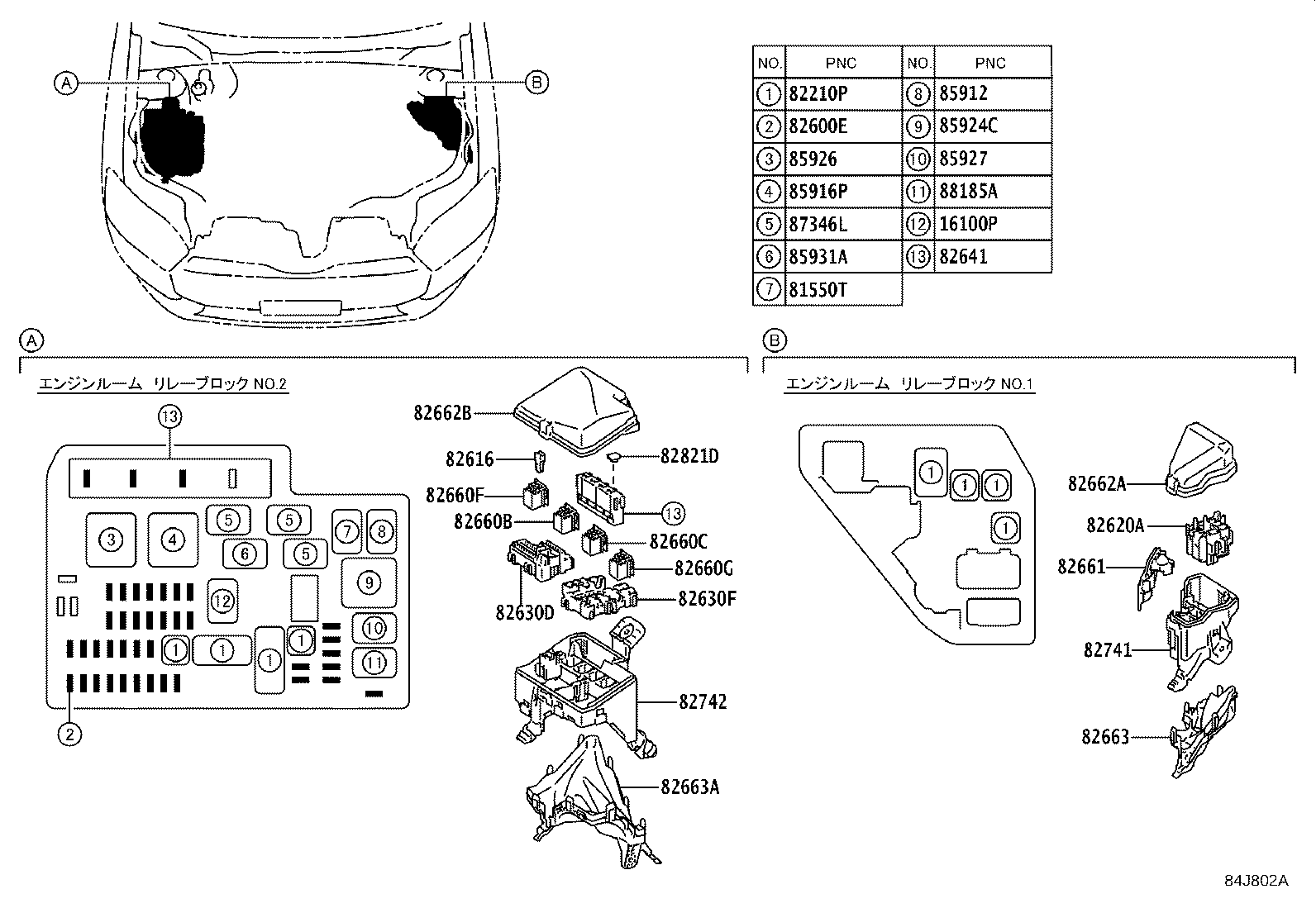

ILLUST NO. 3 OF 7(1812- )NHP160
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-02027 |
1NZFXE..NHP160..SUCD |
1 | ||
| 81550T - RELAY, BACK UP LAMP | ||||
| 90987-02027 |
NHP160..SUCD |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08296 |
NHP160 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08301 |
NHP160 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08246 |
NHP160 100A,ｵｽ端子,青 |
1 | ||
| 90982-08295 |
NCP16#,NHP160,NSP160 30A,ﾒｽ端子,桃 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09025 |
NCP16#,NHP160,NSP160 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
NCP16#,NHP160,NSP160 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
NCP16#,NHP160,NSP160 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
NCP16#,NHP160,NSP160 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
NCP16#,NHP160,NSP160 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NHP160..SUCD |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52091 |
NHP160 |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-52050 |
NHP160 |
1 | ||
| 82630F - HOLDER, FUSE | ||||
| 82631-52060 |
NHP160 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
NHP160..SUCD |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0C110 |
NHP160 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
NHP160 |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NHP160..SUCD 寒冷地仕様 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-52030 |
NHP160..SUCD |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-12C20 |
NHP160 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52B00 |
NHP160 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52100 |
NHP160 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52110 |
NHP160 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-52090 |
NHP160 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52100 |
NHP160 |
1 | ||
| 82821D - COVER, CONNECTOR | ||||
| 82821-47090 |
NHP160..SUCD |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04004 |
NHP160..SUCD |
1 | ||
| 85924C - RELAY, IGCT | ||||
| 90987-02025 |
NHP160..SUCD |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NCP160,NHP160..SUCD |
1 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-02027 |
NHP160..SUCD 寒冷地仕様 |
3 | ||
| 88185A - RELAY, PRE-COLLISION CITY HEATER | ||||
| 90987-02027 |
NCP16#,NHP160,NSP160 |
1 | ||
| 90987-02027 |
NCP16#,NHP160..SUCD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
