NHP160V-FXXRB (2018)

Toyota Probox/Succeed

Production Dec 2018 - Jul 2020
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF10(1812- )NHP160

Click highlighted areas on diagram

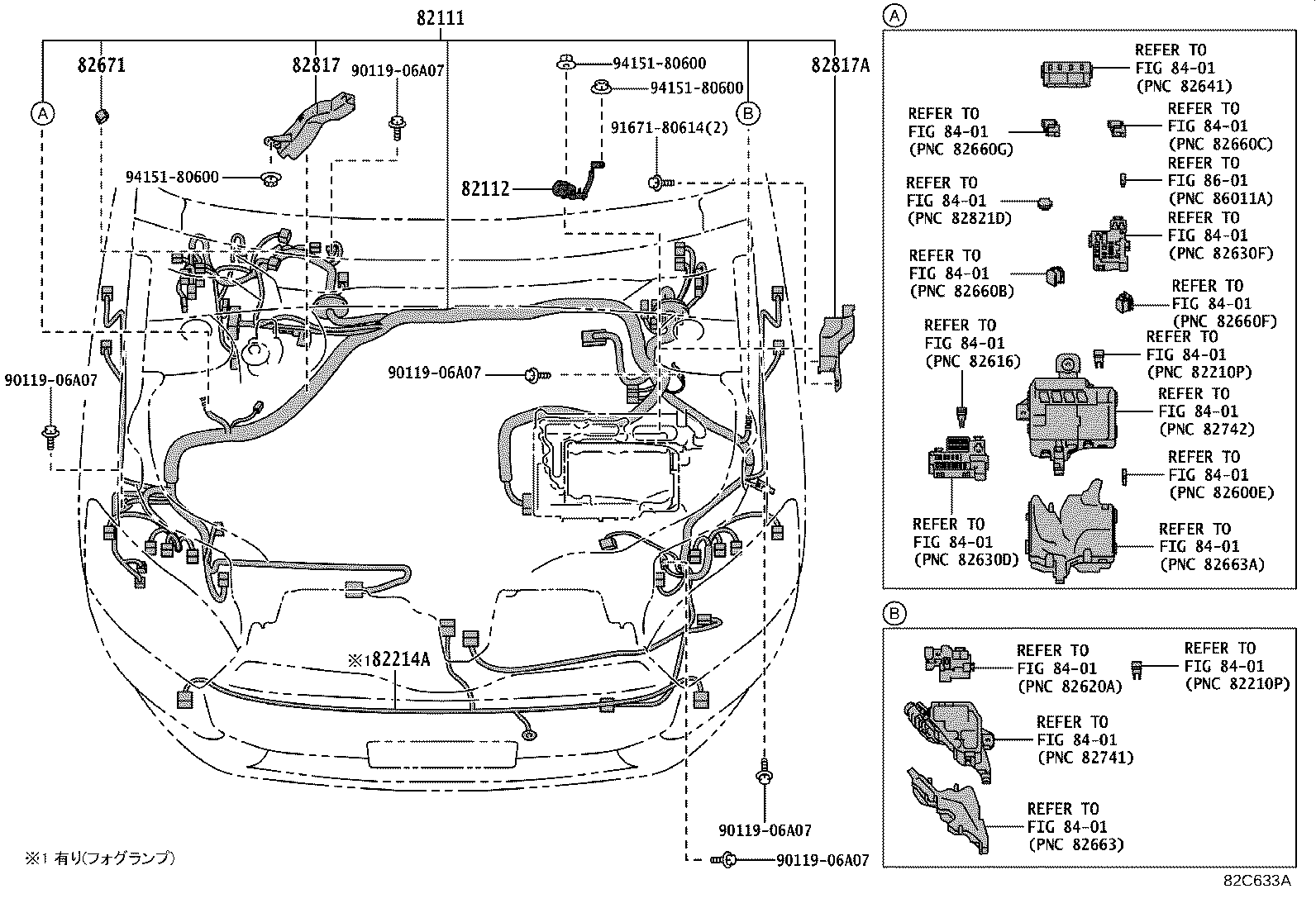

ｴﾝｼﾞﾝﾙｰﾑ

diagram 82111 82112 82214A 82671 82817 82817A 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8601 9011906A07 9011906A07 9011906A07 9011906A07 9011906A07 9167180614 9415180600 9415180600 9415180600
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-5CZ50

NHP160..SUCD

 1
82111-5CZ70

NHP160..SUCD

寒冷地仕様

 1
82112 - WIRE, ENGINE ROOM, NO.2
82112-52530

NHP160..SUCD

 1
82214A - WIRE, LAMP
82214-52100

NCP16#,NHP160..SUCD

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
82671 - BLOCK, JUNCTION
82671-30350

NHP160..SUCD

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-52D10

NHP160..SUCD

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-52D20

NHP160..SUCD

 1
Common parts
90119-06A07
91671-80614
94151-80600
Linked diagrams
8401
8601

ILLUST NO. 2 OF10(1812- )NHP160

Click highlighted areas on diagram

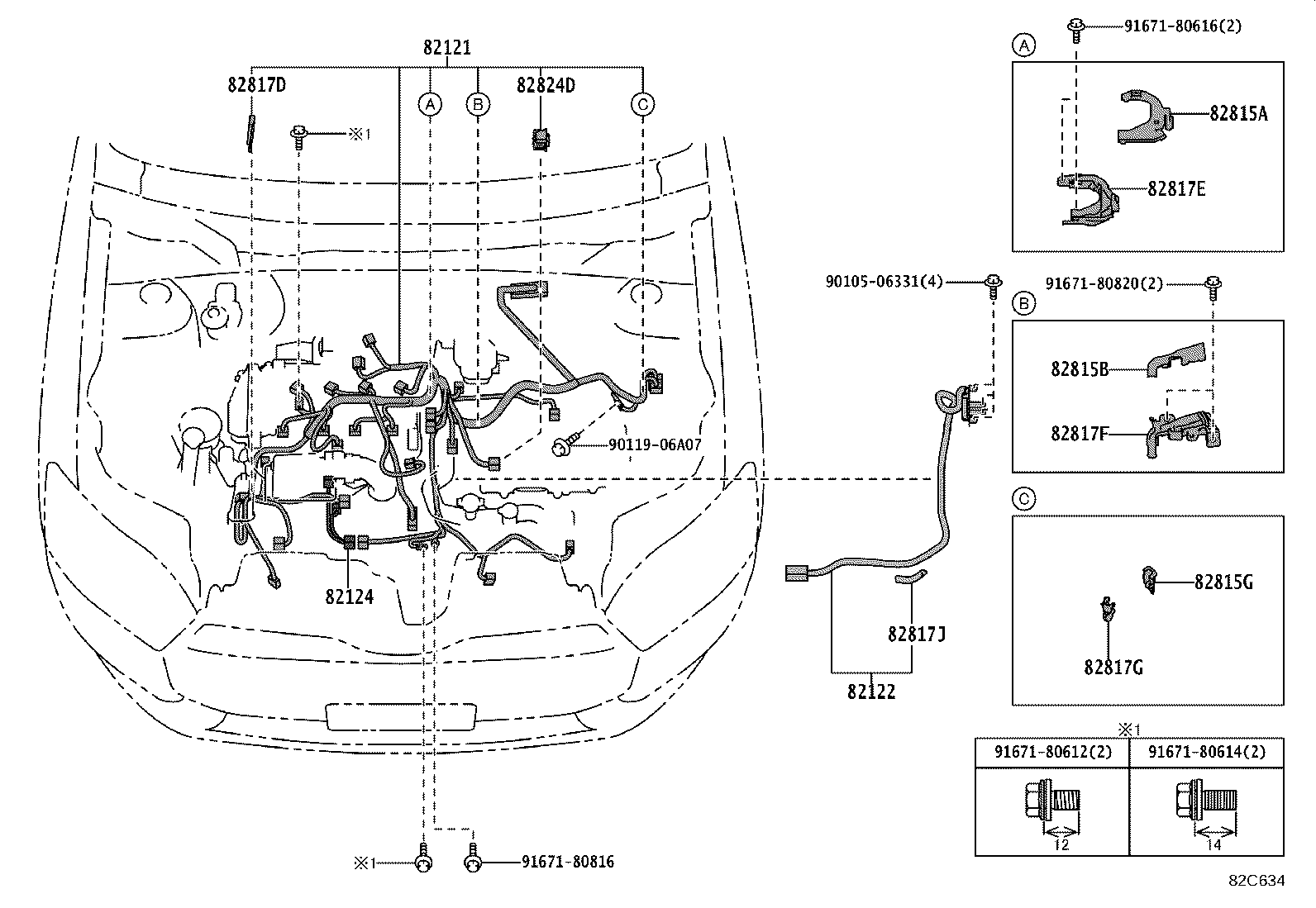

ｴﾝｼﾞﾝ

diagram 82121 82122 82124 82815A 82815B 82815G 82817D 82817E 82817F 82817G 82817J 82824D 9010506331 9011906A07 9167180612 9167180614 9167180616 9167180816 9167180820
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-52U10

NHP160..SUCD

 1
82122 - WIRE, ENGINE, NO.2
82122-52070

NHP160..SUCD

 1
82124 - WIRE, ENGINE, NO.4
82124-52020

NHP160..SUCD

 1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-52250

NHP160..SUCD

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-52260

NHP160..SUCD

 1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-52270

NHP160..SUCD

 1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-52890

NHP160..SUCD

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-52C30

NHP160..SUCD

 1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-52C40

NHP160..SUCD

 1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-52C50

NHP160..SUCD

 1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-95J00

NHP160..SUCD

 1
82824D - CONNECTOR, WIRING HARNESS
G9266-47010

NHP160..SUCD

 1
Common parts
90105-06331
90119-06A07
91671-80612
91671-80614
91671-80616
91671-80816
91671-80820

ILLUST NO. 6 OF10(1812- )NHP160

Click highlighted areas on diagram

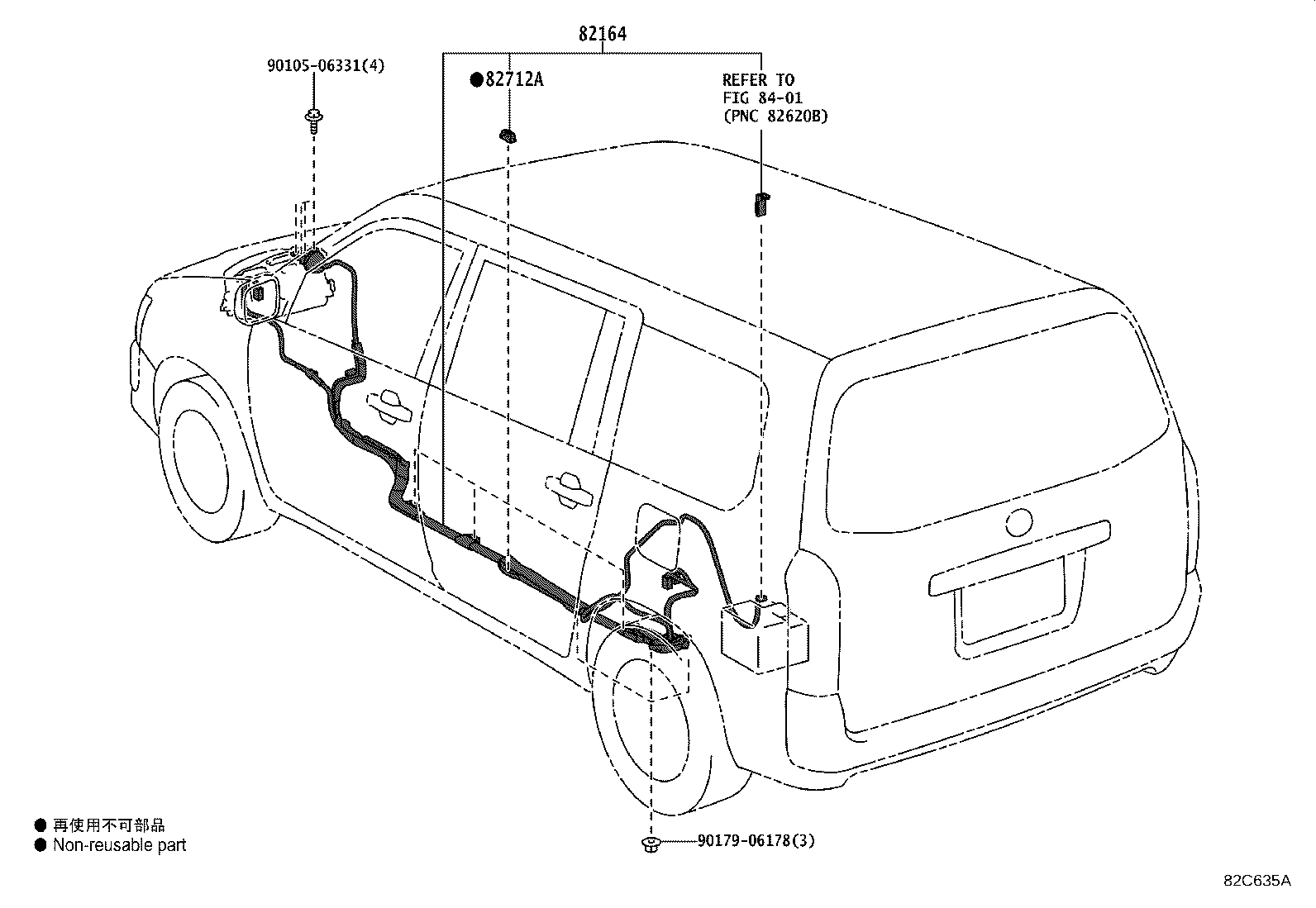

ｺｳｱﾂｹｰﾌﾞﾙ

diagram 82164 82712A 8401 9010506331 9017906178
Part # Description Qty Price
82164 - WIRE, FRAME
82164-52210

NHP160..SUCD

 1
82712A - SUPPORT, WIRING HARNESS
82712-47270

NHP160..SUCD

 4
Common parts
90105-06331
90179-06178
Linked diagrams
8401

ILLUST NO. 5 OF10(1812- )NHP160

Click highlighted areas on diagram

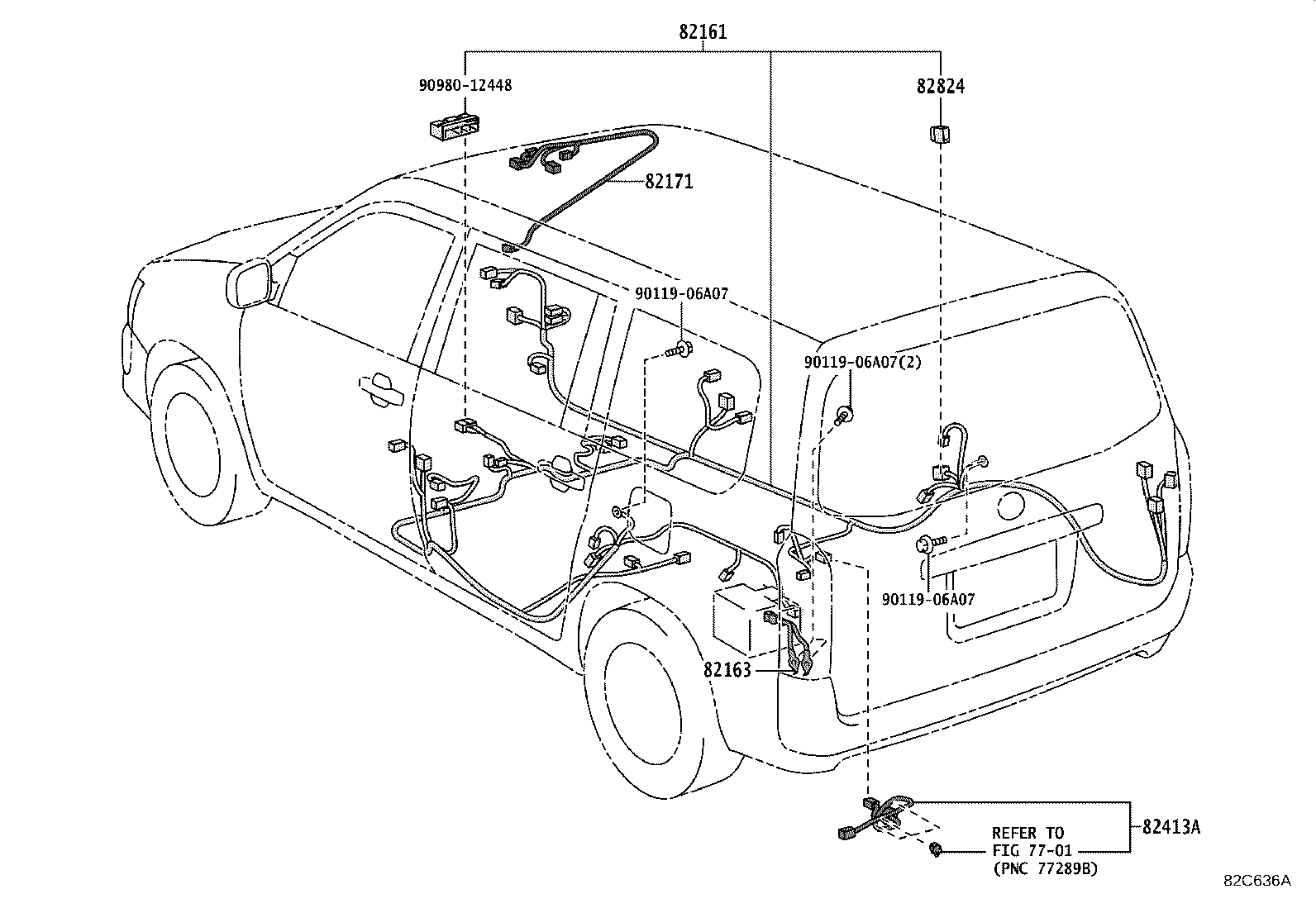

ﾌﾛｱ & ﾙｰﾌ

diagram 7701 82161 82163 82171 82413A 82824 9011906A07 9011906A07 9011906A07 9098012448
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-5DD70

NHP160..U

ｼｰﾄﾋｰﾀ−有り

 1
82161-5DD90

NHP160..TX

ｼｰﾄﾋｰﾀ−有り

 1
82161-5DE20

NHP160..F

 1
82161-5DE00

NHP160..U

 1
82161-5DE20

NHP160..TX

 1
82161-5DD90

NHP160..F

ｼｰﾄﾋｰﾀ−有り

 1
82163 - WIRE, FLOOR, NO.3
82163-52070

NHP160..SUCD

 1
82171 - WIRE, ROOF, NO.1
82171-52841

NCP16#,NHP160..SUCD

ﾊﾞｯｸﾓﾆﾀ−有り

 1
82171-52831

NCP16#,NHP160..SUCD

 1
82413A - WIRE, FUEL TANK
82413-52020

NHP160..SUCD

 1
82824 - CONNECTOR, WIRING HARNESS
82824-50360

NCP16#,NHP160..SUCD

 1
Common parts
90119-06A07
90980-12448
Linked diagrams
7701
