NHP160V-FXXRB (2018)

Toyota Probox/Succeed

Production Dec 2018 - Jul 2020
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

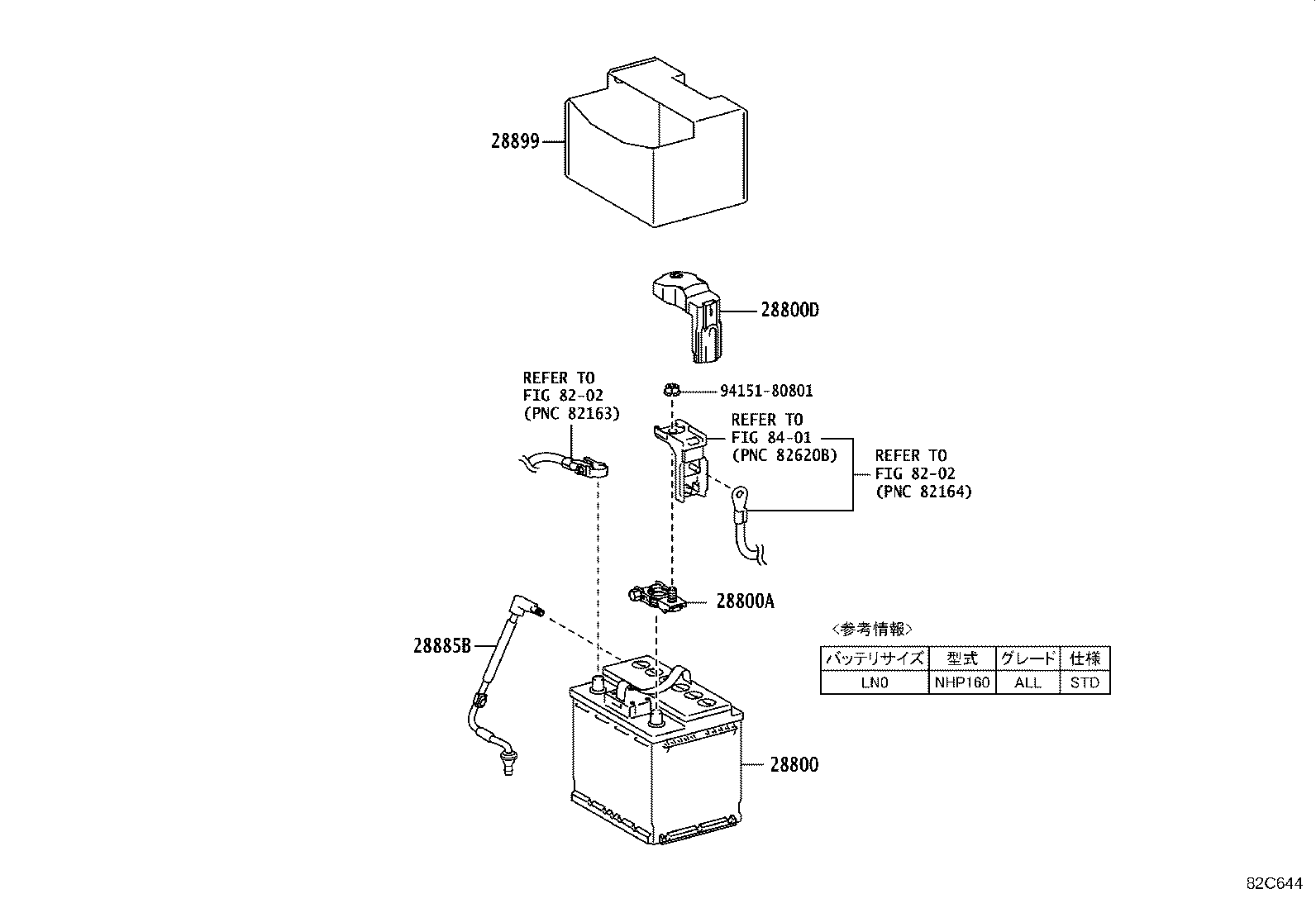

ILLUST NO. 1 OF 4(1812- )NHP160

Click highlighted areas on diagram

12V ﾊﾞｯﾃﾘ

diagram 28800 28800A 28800D 28885B 28899 8401 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-21211

1NZFXE..NHP160..SUCD

LN0

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05062

1NZFXE..NHP160

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-52320

1NZFXE..NHP160..SUCD

 1
28885B - HOSE, BATTERY
28885-21110

1NZFXE..NHP160..SUCD

 1
28899 - INSULATOR, BATTERY
28877-21040

1NZFXE..NHP160..SUCD

 1
Common parts
94151-80801
Linked diagrams
8401

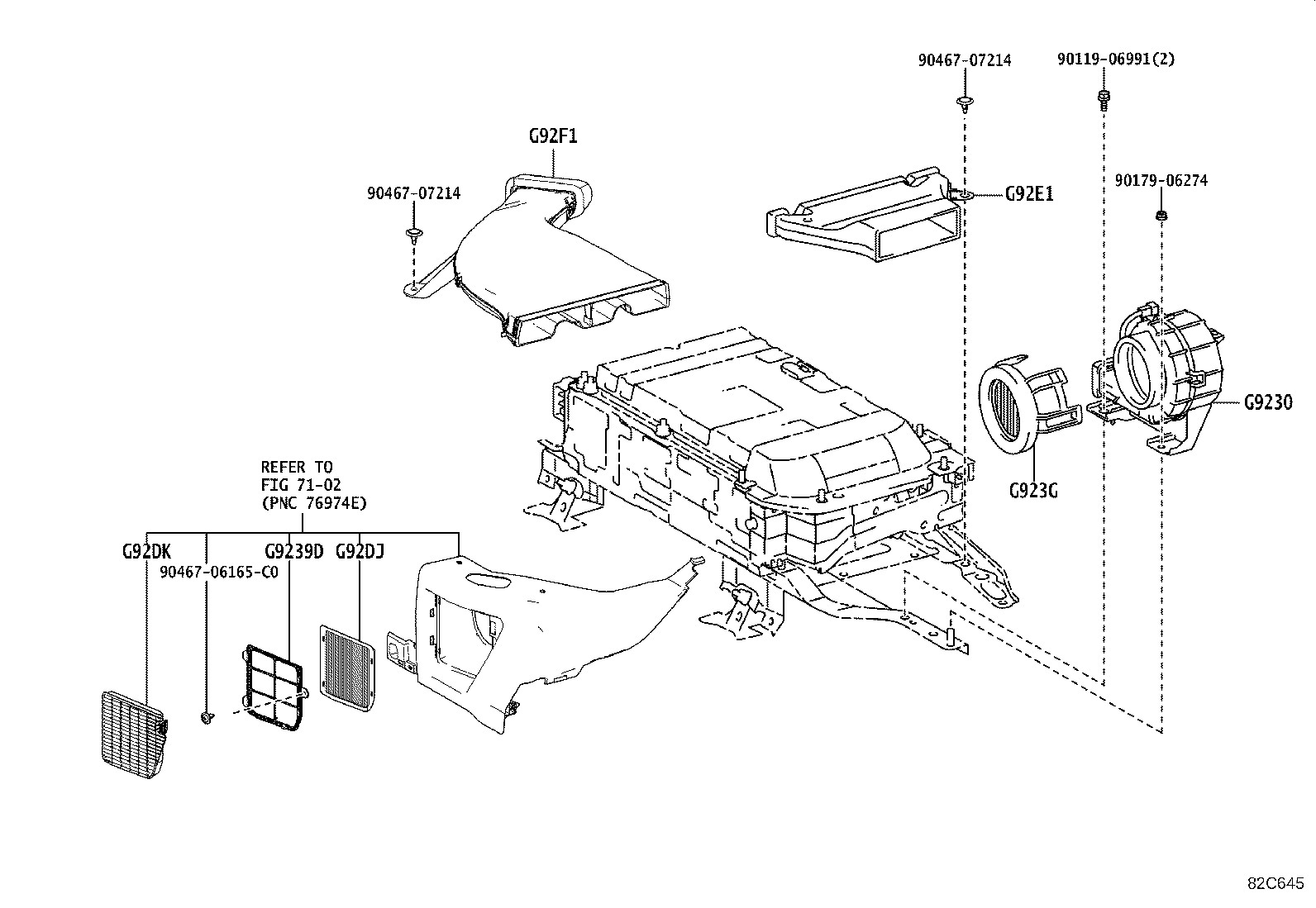

ILLUST NO. 2 OF 4(1812- )NHP160

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 9011906991 9017906274 9046706165C0 9046707214 9046707214 G9230 G9239D G923G G92DJ G92DK G92E1 G92F1
Part # Description Qty Price
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-52040

NHP160..SUCD

 1
G9239D - COVER, HV BATTERY INTAKE, NO.1
G9239-52010

NHP160

 1
G923G - MESH, BATTERY COOLING BLOWER
G923G-52030

NHP160..SUCD

 1
G92DJ - FILTER, HV BATTERY INTAKE, NO.2
G92DJ-52010

NHP160

 1
G92DK - FILTER, HV BATTERY INTAKE, NO.3
G92DK-52010

NHP160

 1
G92E1 - DUCT, HV BATTERY COVER INTAKE, NO.1
G92E1-52010

NHP160..SUCD

 1
G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1
G92F1-52030

NHP160

 1
Common parts
90119-06991
90179-06274
90467-06165C0
90467-07214

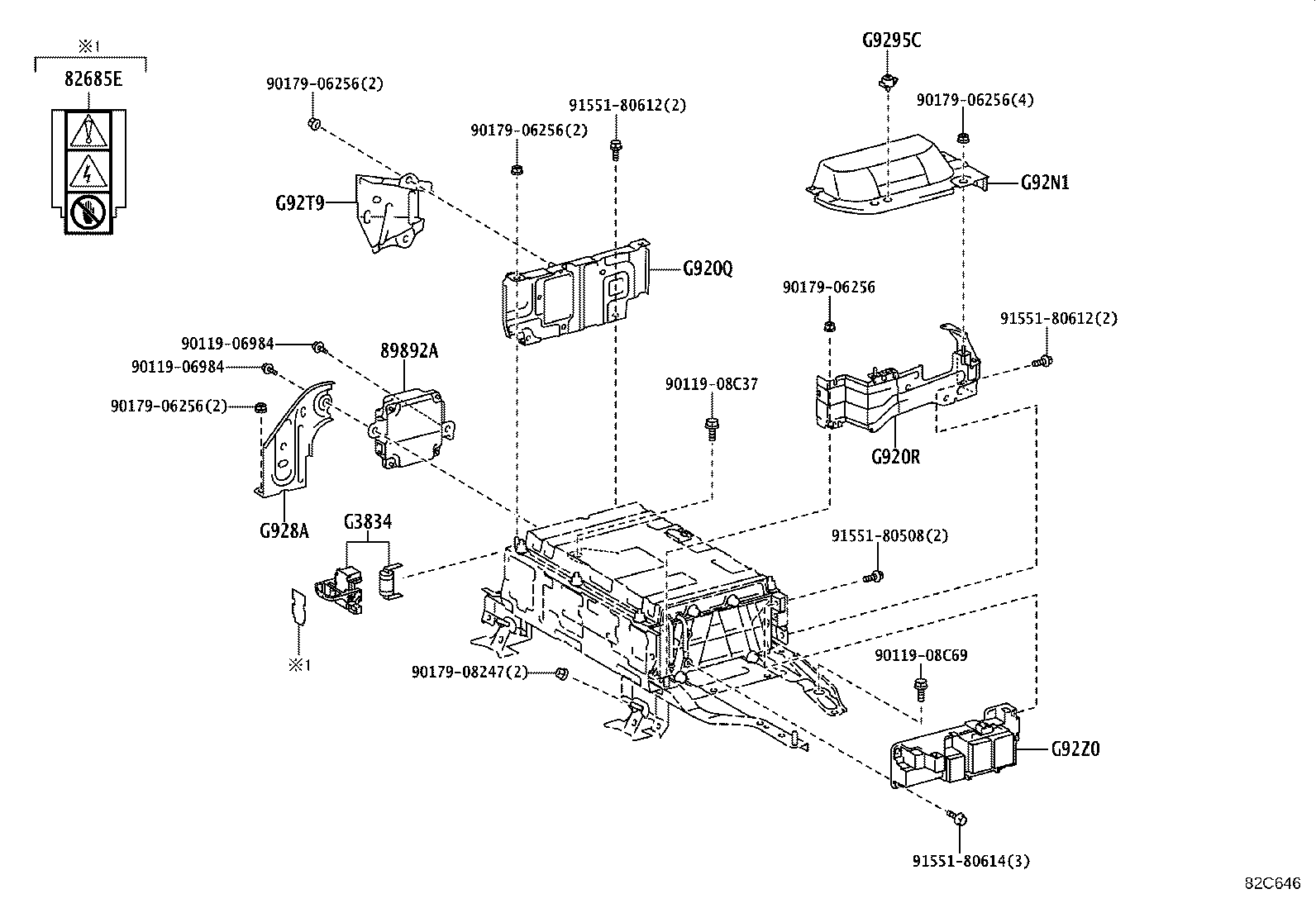

ILLUST NO. 3 OF 4(1812- )NHP160

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 82685E 89892A 9011906984 9011906984 9011908C37 9011908C69 9017906256 9017906256 9017906256 9017906256 9017906256 9017908247 9155180508 9155180612 9155180612 9155180614 G3834 G920Q G920R G928A G9295C G92N1 G92T9 G92Z0
Part # Description Qty Price
89892A - SENSOR, BATTERY VOLTAGE
89892-52011

NHP160..SUCD

 1
G3834 - GRIP, SERVICE PLUG
G3834-48010

NHP160..SUCD

 1
G920Q - SHIELD SUB-ASSY, HYBRID BATTERY, NO.1
G920Q-52010

NHP160..SUCD

 1
G920R - SHIELD SUB-ASSY, HYBRID BATTERY, NO.2
G920R-52010

NHP160..SUCD

 1
G928A - BRACKET, HV BATTERY, RH
G92LB-52010

NHP160..SUCD

 1
G9295C - STRIKER, BATTERY COVER LOCK, NO.2
G9295-30020

NHP160..SUCD

 1
G92N1 - PANEL, HV BATTERY UPPER COVER
G92NE-52010

NHP160..SUCD

 1
G92T9 - COVER, HYBRID BATTERY SERVICE PLUG
G92T9-52010

NHP160..SUCD

 1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G3850-52010

NHP160..SUCD

 1
G92Z0-33031

NHP160

 1
Common parts
90119-06984
90119-08C37
90119-08C69
90179-06256
90179-08247
91551-80508
91551-80612
91551-80614

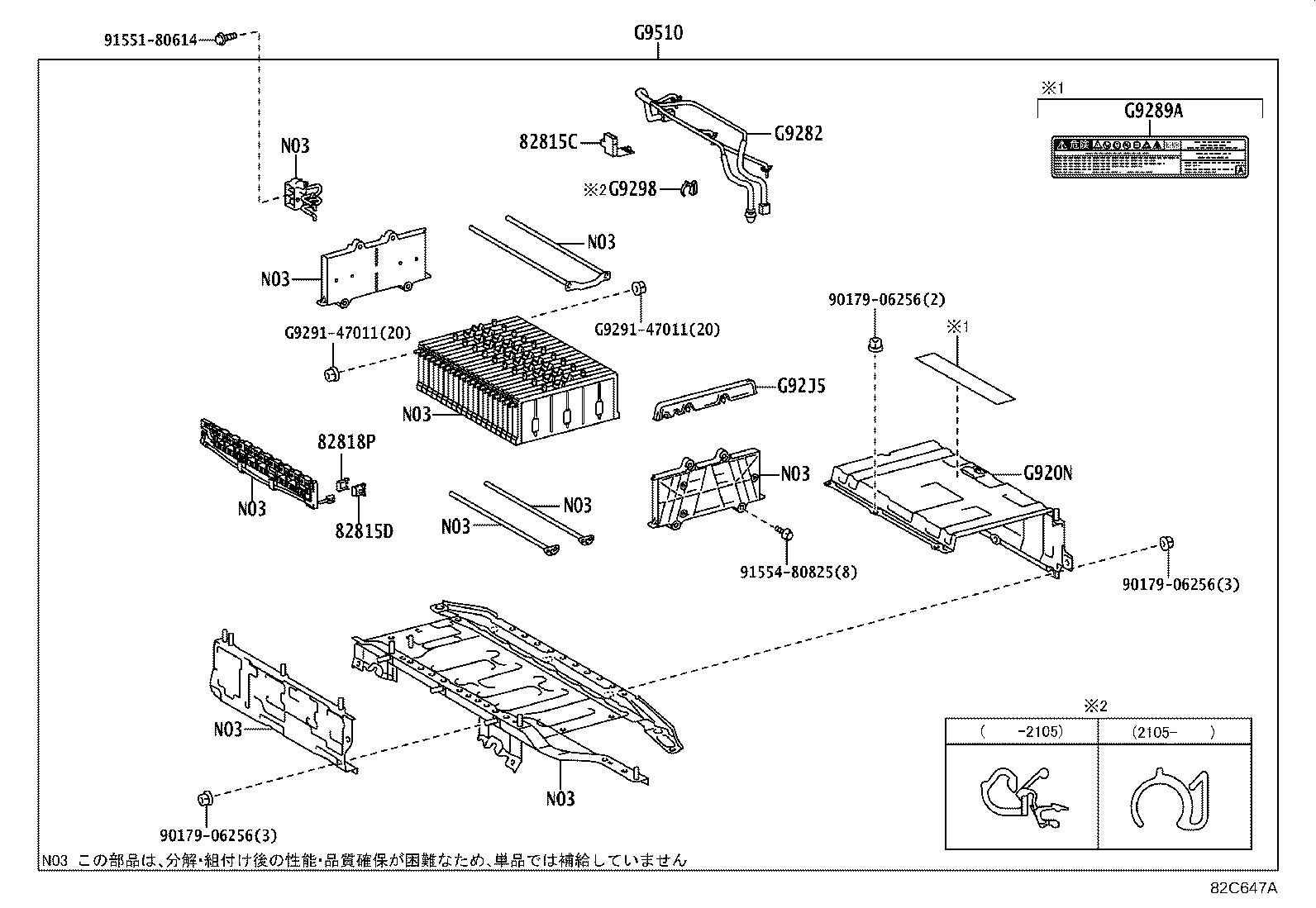

ILLUST NO. 4 OF 4(1812- )NHP160

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 82815C 82815D 82818P 9017906256 9017906256 9017906256 9155180614 9155480825 G920N G9282 G9289A G929147011 G929147011 G9298 G92J5 G9510
Part # Description Qty Price
82815C - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-47120

NHP160..SUCD

 1
82815D - COVER, WIRING HARNESS PROTECTOR, NO.2
82815-52430

NHP160..SUCD

 1
82818P - PROTECTOR, WIRING HARNESS
82817-52G00

NHP160..SUCD

 1
G920N - COVER SUB-ASSY, HV BATTERY, UPPER NO.2
G920N-52010

NHP160..SUCD

 1
G9289A - LABEL, BATTERY CAUTION
G9288-50010

NHP160..SUCD

 1
G92J5 - PACKING, HYBRID BATTERY, NO.1
G92J5-52010

NHP160..SUCD

 1
G9510 - BATTERY ASSY, HV SUPPLY
G9510-52070

NHP160..SUCD

 1
Common parts
90179-06256
91551-80614
91554-80825
G9291-47011
