NHP160V-FXXRB (2018)
Toyota Probox/Succeed
Production
Dec 2018
-
Jul 2020
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1409-2201)

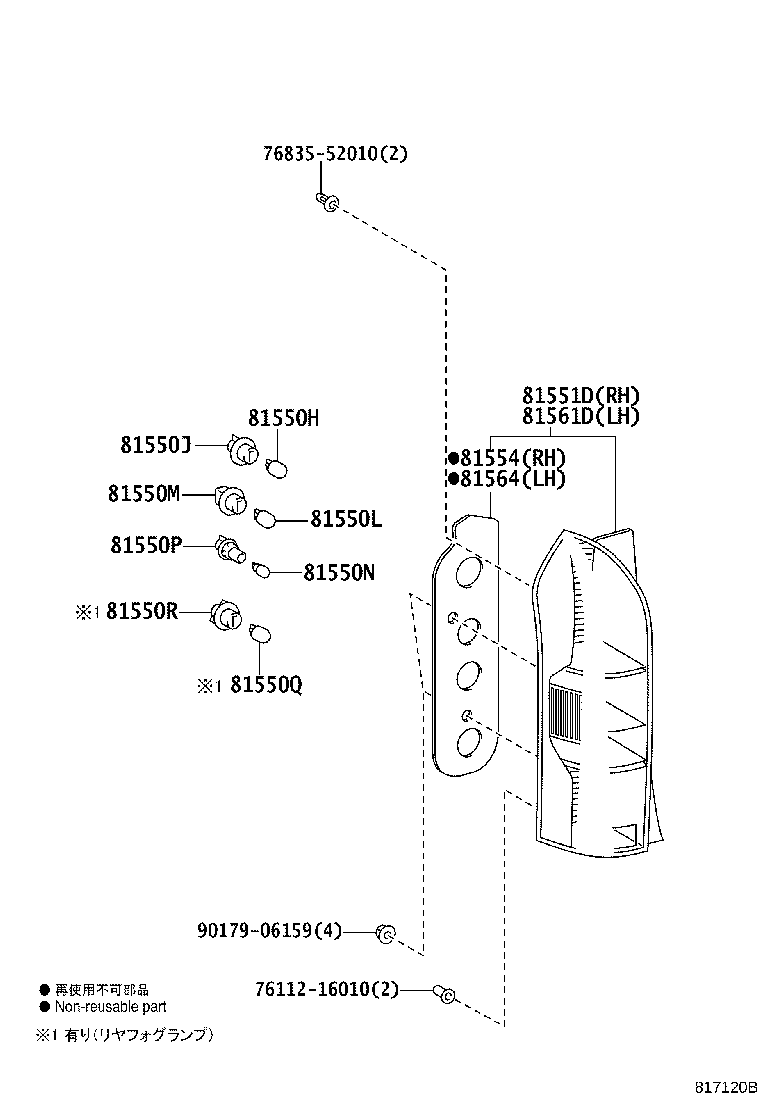

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-13044 |
NCP16#,NHP160,NSP160 12V 21/5W |
2 | ||
| 81550J - SOCKET, TAIL & STOP LAMP | ||||
| 81585-30290 |
NCP16#,NHP160,NSP160 |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
NCP16#,NHP160,NSP160 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81550M - SOCKET, REAR TURN SIGNAL LAMP | ||||
| 81565-52100 |
NCP16#,NHP160,NSP160 |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
NCP16#,NHP160,NSP160 12V 16W |
2 | ||
| 81550P - SOCKET, BACK UP LAMP | ||||
| 81555-28240 |
NCP16#,NHP160,NSP160 |
2 | ||
| 81550Q - BULB, REAR FOG LAMP, NO.1 | ||||
| 90981-13043 |
NCP16#,NHP160,NSP160 12V 21W,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
2 | ||
| 81550R - SOCKET, REAR FOG LAMP | ||||
| 81555-52110 |
NCP16#,NHP160,NSP160 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-52C40 |
NCP16#,NHP160,NSP160 |
1 | ||
| 81551-52C50 |
NCP16#,NHP160,NSP160 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-52240 |
NCP16#,NHP160,NSP160 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-52C40 |
NCP16#,NHP160,NSP160 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 81561-52C20 |
NCP16#,NHP160,NSP160 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-52220 |
NCP16#,NHP160,NSP160 |
1 | ||
| Common parts | ||||
| 76112-16010 | ||||
| 76835-52010 | ||||
| 90179-06159 | ||||
