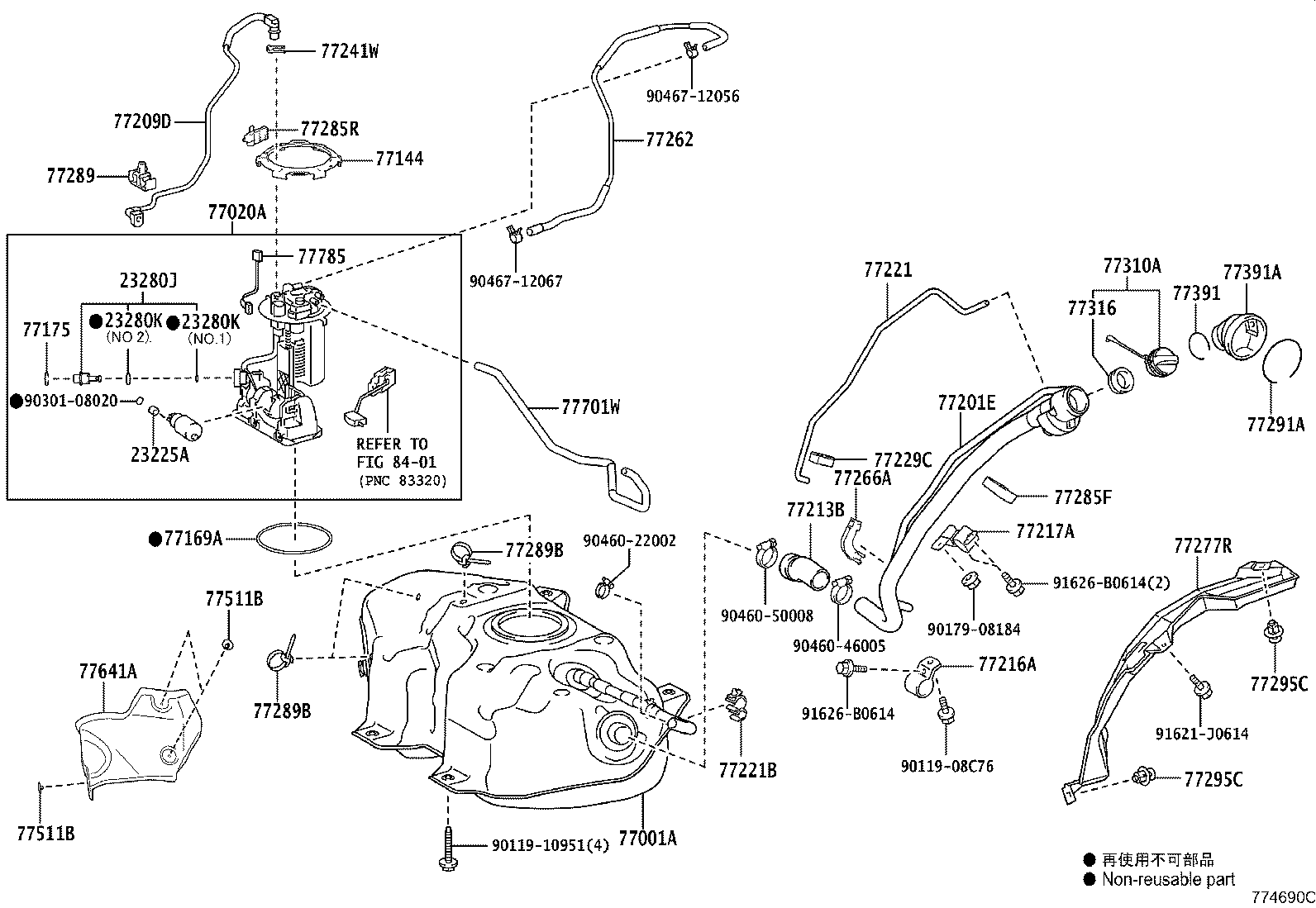

Toyota Probox/succeed NHP160 FUEL TANK & TUBE

Part #	Description	Period	Qty
23225A - SPACER, FUEL PUMP
23225-21020	1NZFXE..NHP160	09/2014 - 12/2999	1
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-21010	1NZFXE..NHP160	12/2018 - 12/2999	1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013	1NZFXE..NHP160 NO.1:ｲﾗｽﾄ参照	12/2018 - 12/2999	1
90301-15024	1NZFXE..NHP160 NO.2:ｲﾗｽﾄ参照	12/2018 - 12/2999	1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013	1NZFXE..NHP160 NO.1:ｲﾗｽﾄ参照	12/2018 - 12/2999	1
90301-15024	1NZFXE..NHP160 NO.2:ｲﾗｽﾄ参照	12/2018 - 12/2999	1
77001A - TANK SUB-ASSY, FUEL
77001-52520	NHP160	12/2018 - 10/2019	1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-52550	NHP160	12/2018 - 12/2999	1
77144 - RETAINER, FUEL PUMP GAUGE
77144-30030	NHP160	12/2018 - 12/2999	1
77175 - SUPPORT, FUEL SUCTION, NO.2
77175-78010	NHP160	12/2018 - 12/2999	1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-52560	NHP160	12/2018 - 12/2999	1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-52250	NHP160	12/2018 - 08/2019	1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-32050	NCP16#,NHP160,NSP160	09/2014 - 12/2999	1
77221 - TUBE, FUEL TANK BREATHER, NO.1
77226-52200	NCP16#,NHP160,NSP160	09/2014 - 12/2999	1
77221B - CLAMP, BREATHR TUBE
77229-52100	NHP160..SUCD	12/2018 - 07/2020	1
77229C - CLAMP, BREATHER TUBE
77229-47060	NCP16#,NHP160,NSP160	09/2014 - 12/2999	2
77241W - CLIP, TUBE JOINT
77241-33011	NHP160	12/2018 - 12/2999	1
77262 - TUBE, FUEL EMISSION, NO.2
77028-52080	NHP160	12/2018 - 12/2999	1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-52140	NCP16#,NHP160,NSP160	09/2014 - 12/2999	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-52011	NCP16#,NHP160..SUCD	09/2014 - 07/2020	1
77285F - CLAMP, FUEL TUBE, NO.1
77285-52080	NCP16#,NHP160,NSP160	09/2014 - 12/2999	1
77285R - CLAMP, FUEL TUBE, NO.1
77285-30350	NHP160	12/2018 - 12/2999	1
77289 - HOLDER, FUEL TANK PIPE SETTING
77289-52130	NHP160	12/2018 - 12/2999	1
77289B - CLAMP, FUEL TUBE, NO.3
77289-52160	NHP160	12/2018 - 12/2999	3
77289B - CLAMP, FUEL TUBE, NO.3
77289-52160	NHP160	12/2018 - 12/2999	3
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-52050	NCP16#,NHP160..SUCD	09/2014 - 07/2020	1
77295C - GROMMET, FUEL TUBE
77295-52020	NCP16#,NHP160..SUCD	09/2014 - 07/2020	2
77295C - GROMMET, FUEL TUBE
77295-52020	NCP16#,NHP160..SUCD	09/2014 - 07/2020	2
77310A - CAP ASSY, FUEL TANK
77300-12020	NCP16#,NHP160,NSP160	09/2014 - 12/2021	1
77316 - GASKET, FUEL TANK CAP
77316-52040	NCP16#,NHP160,NSP160	09/2014 - 01/2022	1
77391 - RING, FUEL INLET BOX
77391-12020	NCP16#,NHP160..SUCD	09/2014 - 07/2020	1
77391A - RING, FUEL INLET BOX
77391-12040	NCP16#,NHP160..SUCD	09/2014 - 07/2020	1
77511B - BRACKET, FUEL TANK
77512-47030	NHP160..SUCD	12/2018 - 07/2020	3
77511B - BRACKET, FUEL TANK
77512-47030	NHP160..SUCD	12/2018 - 07/2020	3
77641A - PROTECTOR, FUEL TANK, NO.1
87268-52050	NHP160..SUCD	12/2018 - 07/2020	1
77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1
77701-52050	NHP160	12/2018 - 12/2999	1
77785 - HARNESS, FUEL PUMP
77785-52140	NHP160	12/2018 - 12/2999	1
Common parts
90119-08C76
90119-10951
90179-08184
90301-08020
90460-22002
90460-46005
90460-50008
90467-12056
90467-12067
91621-J0614
91626-B0614
Linked diagrams
8401

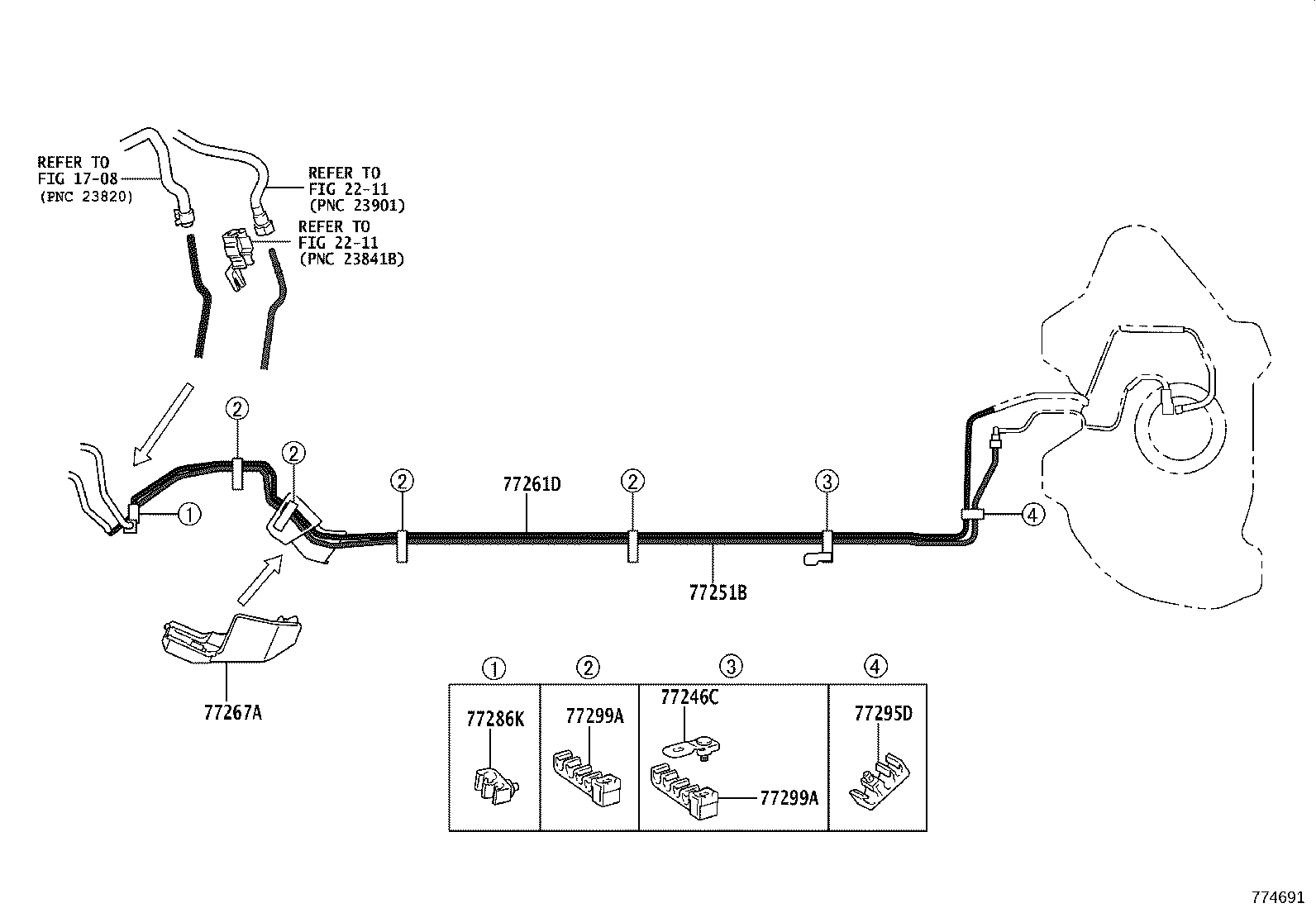

Part #	Description	Period	Qty
77246C - SUPPORT, FUEL MAIN TUBE
77246-52020	NHP160..SUCD	12/2018 - 07/2020	1
77251B - TUBE, FUEL MAIN
77251-52520	NHP160..SUCD	12/2018 - 07/2020	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-52530	NHP160..SUCD	12/2018 - 07/2020	1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-52061	NHP160..SUCD	12/2018 - 07/2020	1
77286K - CLAMP, FUEL TUBE, NO.2
77286-20190	NHP160..SUCD	12/2018 - 07/2020	1
77295D - GROMMET, FUEL TUBE
77295-42061	NHP160..SUCD	12/2018 - 07/2020	1
77299A - CLAMP, FUEL TUBE, NO.5
77299-52050	NHP160..SUCD	12/2018 - 07/2020	6
77299A - CLAMP, FUEL TUBE, NO.5
77299-52050	NHP160..SUCD	12/2018 - 07/2020	6
Linked diagrams
1708
2211

NHP160V-FXXRB (2018)

ILLUST NO. 1 OF 3(1812- )NHP160

ILLUST NO. 2 OF 3(1812- )NHP160
