NHP160V-FXXRB (2018)
Toyota Probox/Succeed

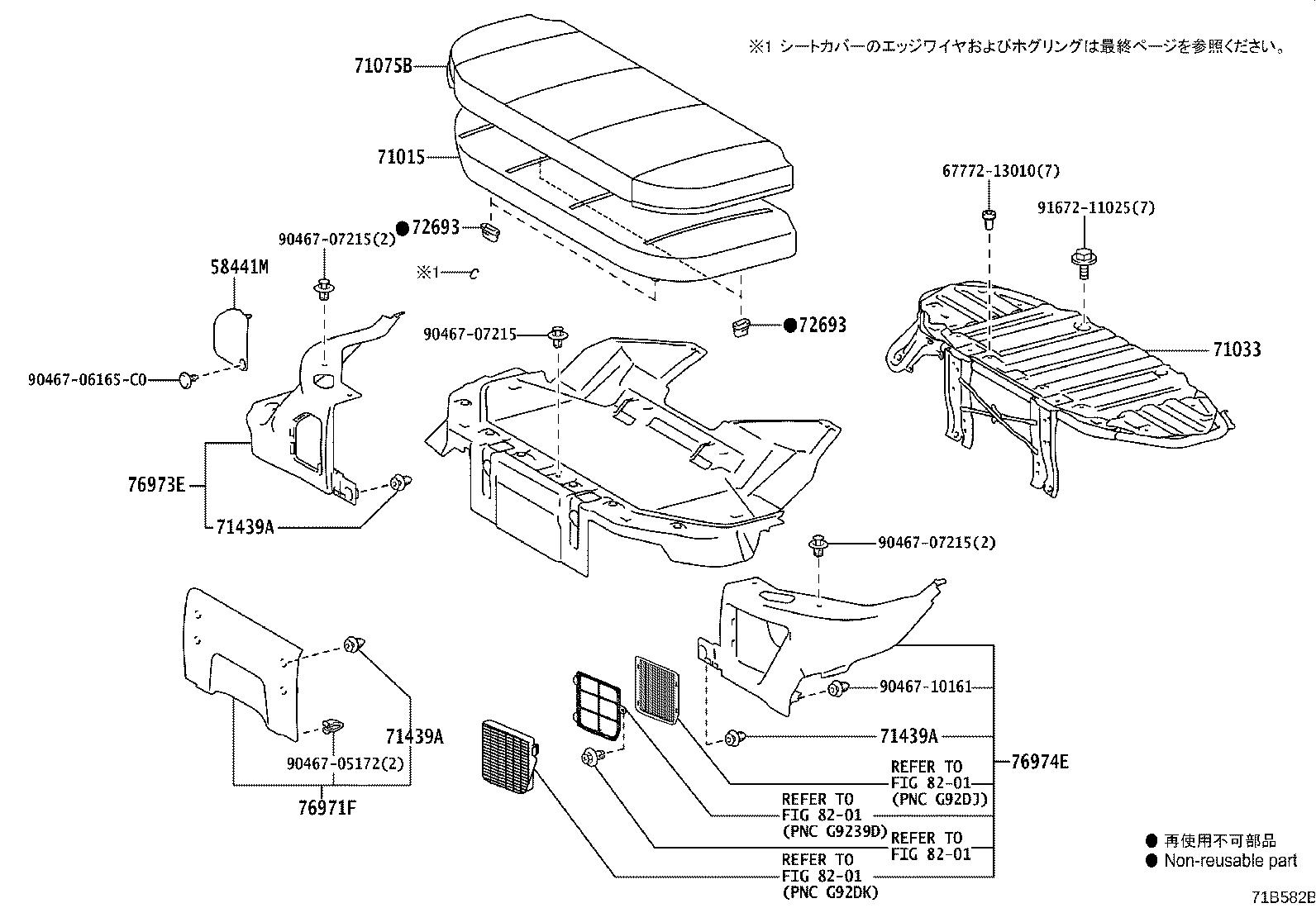

ILLUST NO. 2 OF 2(1812- )NHP160
ｼｰﾄｸｯｼｮﾝ(ｸｯｼｮﾝｺﾃｲｼｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58441M - COVER, BATTERY SERVICE HOLE | ||||
| 58441-52030C0 |
NHP160 BLACK,TRIM1# |
1 | ||
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71503-52570 |
NHP160..U,UL,ULX |
1 | ||
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-52070 |
NHP160..SUCD |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-52S30C0 |
NHP160..U,UL,ULX BLACK,TRIM1# |
1 | ||
| 71075-52S40C1 |
NHP160..TX BLACK,TRIM1# |
1 | ||
| 71075-52S40C1 |
NHP160..F BLACK,TRIM1# |
1 | ||
| 71439A - CLIP | ||||
| 75395-28080B0 |
NHP160..F,TX DK.GRAY |
2 | ||
| 75395-28080B0 |
NHP160..DX,DXCOM,GL,U,UL,ULX DK.GRAY |
6 | ||
| 71439A - CLIP | ||||
| 75395-28080B0 |
NHP160..F,TX DK.GRAY |
2 | ||
| 75395-28080B0 |
NHP160..DX,DXCOM,GL,U,UL,ULX DK.GRAY |
6 | ||
| 71439A - CLIP | ||||
| 75395-28080B0 |
NHP160..F,TX DK.GRAY |
2 | ||
| 75395-28080B0 |
NHP160..DX,DXCOM,GL,U,UL,ULX DK.GRAY |
6 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NCP16#,NHP160..U,UL,ULX |
4 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NCP16#,NHP160..U,UL,ULX |
4 | ||
| 76971F - COVER, REAR UNDER | ||||
| 76971-52040C0 |
NHP160..DX,DXCOM,GL,U,UL,ULX BLACK,TRIM1# |
1 | ||
| 76971-52030C0 |
NHP160..F,TX BLACK,TRIM1# |
1 | ||
| 76973E - COVER, REAR UNDER SIDE, RH | ||||
| 76973-52030C0 |
NHP160 BLACK,TRIM1# |
1 | ||
| 76974E - COVER, REAR UNDER SIDE, LH | ||||
| 76974-52030C0 |
NHP160 BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 67772-13010 | ||||
| 90467-05172 | ||||
| 90467-06165C0 | ||||
| 90467-07215 | ||||
| 90467-10161 | ||||
| 91672-11025 | ||||
| Linked diagrams | ||||
| 8201 | ||||

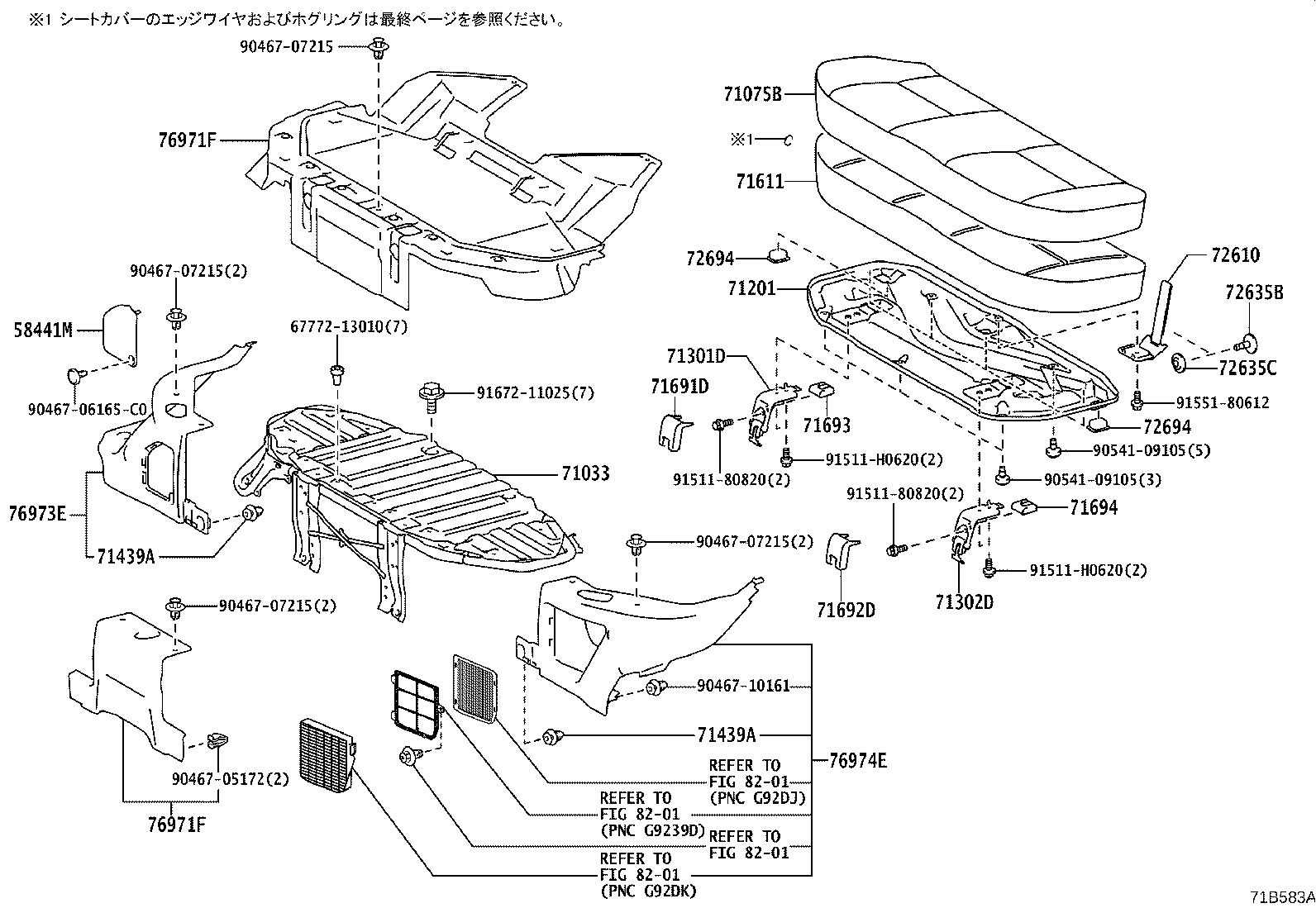

ILLUST NO. 2 OF 2(1812- )NHP160
ｼｰﾄｸｯｼｮﾝ(ｸｯｼｮﾝﾋｷｵｺｼｼｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58441M - COVER, BATTERY SERVICE HOLE | ||||
| 58441-52030C0 |
NHP160 BLACK,TRIM1# |
1 | ||
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-52070 |
NHP160..SUCD |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-52S30C0 |
NHP160..U,UL,ULX BLACK,TRIM1# |
1 | ||
| 71075-52S40C1 |
NHP160..TX BLACK,TRIM1# |
1 | ||
| 71075-52S40C1 |
NHP160..F BLACK,TRIM1# |
1 | ||
| 71201 - PANEL SUB-ASSY, REAR SEAT CUSHION | ||||
| 71201-52030 |
NHP160..TX |
1 | ||
| 71201-52030 |
NHP160..F |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-52050C0 |
NHP160..F BLACK,TRIM1# |
1 | ||
| 71301-52050C0 |
NHP160..TX BLACK,TRIM1# |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-52050C0 |
NHP160..TX BLACK,TRIM1# |
1 | ||
| 71302-52050C0 |
NHP160..F BLACK,TRIM1# |
1 | ||
| 71439A - CLIP | ||||
| 75395-28080B0 |
NHP160..F,TX DK.GRAY |
2 | ||
| 75395-28080B0 |
NHP160..DX,DXCOM,GL,U,UL,ULX DK.GRAY |
6 | ||
| 71439A - CLIP | ||||
| 75395-28080B0 |
NHP160..F,TX DK.GRAY |
2 | ||
| 75395-28080B0 |
NHP160..DX,DXCOM,GL,U,UL,ULX DK.GRAY |
6 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-52580 |
NHP160..TX |
1 | ||
| 71503-52580 |
NHP160..F |
1 | ||
| 71691D - COVER, REAR SEAT CUSHION HINGE, UPPER RH | ||||
| 71691-52100C0 |
NHP160..TX BLACK,TRIM1# |
1 | ||
| 71691-52100C0 |
NHP160..F BLACK,TRIM1# |
1 | ||
| 71692D - COVER, REAR SEAT CUSHION HINGE, UPPER LH | ||||
| 71692-52070C0 |
NHP160..TX BLACK,TRIM1# |
1 | ||
| 71692-52070C0 |
NHP160..F BLACK,TRIM1# |
1 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-52080C0 |
NHP160..TX BLACK,TRIM1# |
1 | ||
| 71693-52080C0 |
NHP160..F BLACK,TRIM1# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71693-52080C0 |
NHP160..F BLACK,TRIM1# |
1 | ||
| 71693-52080C0 |
NHP160..TX BLACK,TRIM1# |
1 | ||
| 72610 - LOCK ASSY, REAR SEAT CUSHION | ||||
| 72670-52040C0 |
NCP16#,NHP160..TX BLACK,TRIM1# |
1 | ||
| 72670-52040C0 |
NCP16#,NHP160..F BLACK,TRIM1# |
1 | ||
| 72694 - COVER, REAR SEAT CUSHION LOCK | ||||
| 72694-13011 |
NCP16#,NHP160..F |
2 | ||
| 72694-13011 |
NCP16#,NHP160..TX |
2 | ||
| 72694 - COVER, REAR SEAT CUSHION LOCK | ||||
| 72694-13011 |
NCP16#,NHP160..F |
2 | ||
| 72694-13011 |
NCP16#,NHP160..TX |
2 | ||
| 76971F - COVER, REAR UNDER | ||||
| 76971-52040C0 |
NHP160..DX,DXCOM,GL,U,UL,ULX BLACK,TRIM1# |
1 | ||
| 76971-52030C0 |
NHP160..F,TX BLACK,TRIM1# |
1 | ||
| 76971F - COVER, REAR UNDER | ||||
| 76971-52040C0 |
NHP160..DX,DXCOM,GL,U,UL,ULX BLACK,TRIM1# |
1 | ||
| 76971-52030C0 |
NHP160..F,TX BLACK,TRIM1# |
1 | ||
| 76973E - COVER, REAR UNDER SIDE, RH | ||||
| 76973-52030C0 |
NHP160 BLACK,TRIM1# |
1 | ||
| 76974E - COVER, REAR UNDER SIDE, LH | ||||
| 76974-52030C0 |
NHP160 BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 67772-13010 | ||||
| 90467-05172 | ||||
| 90467-06165C0 | ||||
| 90467-07215 | ||||
| 90467-10161 | ||||
| 90541-09105 | ||||
| 91511-80820 | ||||
| 91511-H0620 | ||||
| 91551-80612 | ||||
| 91672-11025 | ||||
| Linked diagrams | ||||
| 8201 | ||||

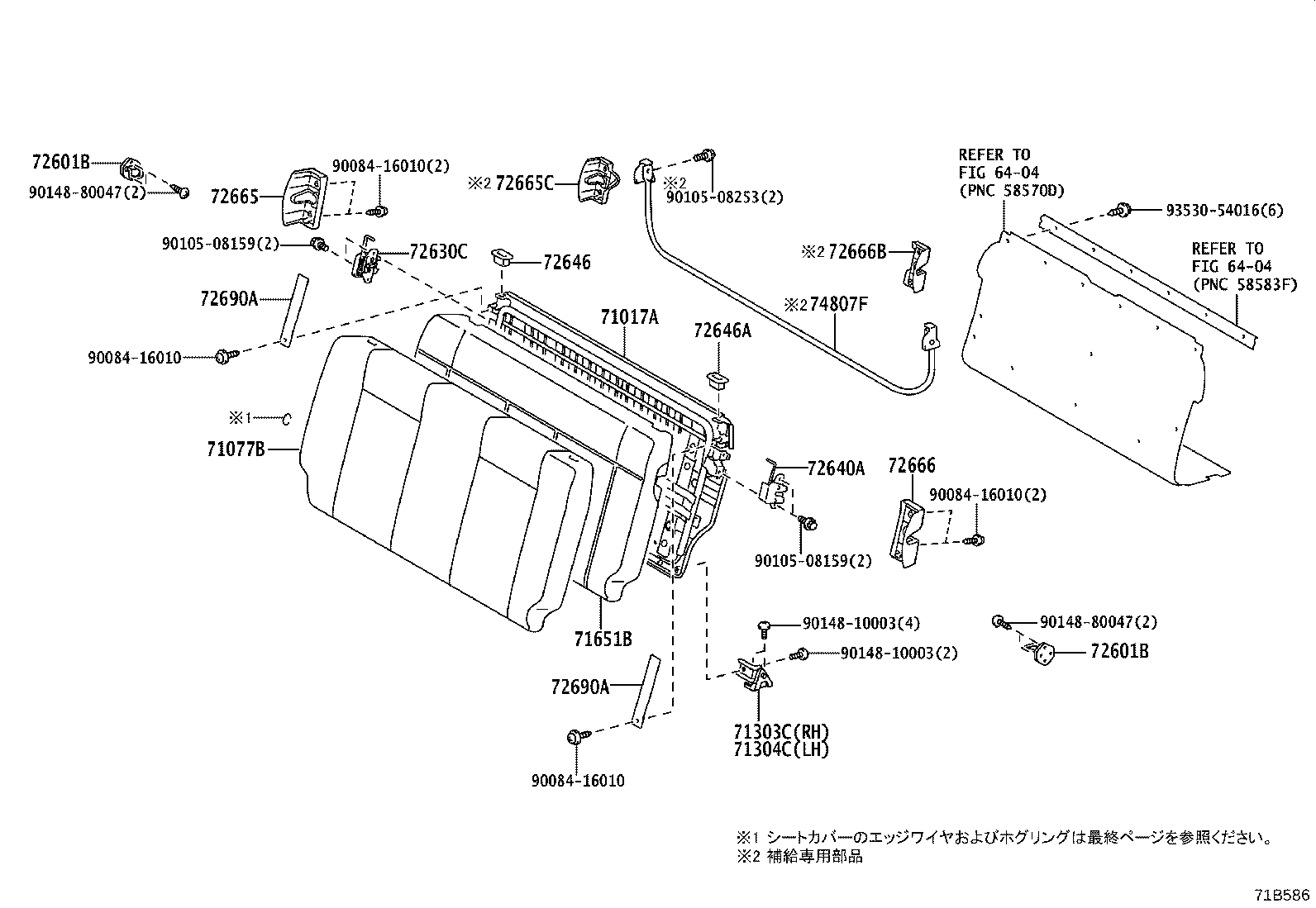

ILLUST NO. 1 OF 2(1812- )NHP160
ｼｰﾄﾊﾞｯｸ(ｸｯｼｮﾝｺﾃｲｼｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-52840 |
NCP16#,NHP160..TX |
1 | ||
| 71017-52830 |
NCP16#,NHP160..U,UL,ULX |
1 | ||
| 71017-52840 |
NCP16#,NHP160..F |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-52V00C0 |
NHP160..TX BLACK,TRIM1# |
1 | ||
| 71077-52N60C1 |
NCP16#,NHP160..U,UL,ULX BLACK,TRIM1# |
1 | ||
| 71077-52V00C0 |
NHP160..F BLACK,TRIM1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-52030C0 |
NCP16#,NHP160..SUCD BLACK,TRIM1# |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-52020C0 |
NCP16#,NHP160..SUCD BLACK,TRIM1# |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-52610 |
NCP16#,NHP160..U,UL,ULX |
1 | ||
| 71651-52830 |
NHP160..F |
1 | ||
| 71651-52830 |
NHP160..TX |
1 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-52101 |
NCP16#,NHP160..TX |
2 | ||
| 72601-52250 |
NCP16#,NHP160..U,UL,ULX |
2 | ||
| 72601-52101 |
NCP16#,NHP160..F |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-52101 |
NCP16#,NHP160..TX |
2 | ||
| 72601-52250 |
NCP16#,NHP160..U,UL,ULX |
2 | ||
| 72601-52101 |
NCP16#,NHP160..F |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52070 |
NCP16#,NHP160..U,UL,ULX |
1 | ||
| 72630-52080 |
NCP16#,NHP160..TX |
1 | ||
| 72630-52080 |
NCP16#,NHP160..F |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-52060 |
NCP16#,NHP160..U,UL,ULX |
1 | ||
| 72640-52070 |
NCP16#,NHP160..TX |
1 | ||
| 72640-52070 |
NCP16#,NHP160..F |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-52010C0 |
NCP16#,NHP160..SUCD BLACK,TRIM1# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-52010C0 |
NCP16#,NHP160..SUCD BLACK,TRIM1# |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-52060C0 |
NCP16#,NHP160..U,UL,ULX BLACK,TRIM1# |
1 | ||
| 72665-52040C0 |
NCP16#,NHP160..F BLACK,TRIM1# |
1 | ||
| 72665-52040C0 |
NCP16#,NHP160..TX BLACK,TRIM1# |
1 | ||
| 72665C - COVER, REAR SEAT LOCK, RH | ||||
| 72665-52030C0 |
NCP16#,NHP160..SUCD BLACK,TRIM1# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-52040C0 |
NCP16#,NHP160..TX BLACK,TRIM1# |
1 | ||
| 72666-52040C0 |
NCP16#,NHP160..F BLACK,TRIM1# |
1 | ||
| 72666-52060C0 |
NCP16#,NHP160..U,UL,ULX BLACK,TRIM1# |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-52030C0 |
NCP16#,NHP160..SUCD BLACK,TRIM1# |
1 | ||
| 74807F - BAR SUB-ASSY, RR SEPARATOR | ||||
| 74807-52010 |
NCP16#,NHP160..SUCD |
1 | ||
| Common parts | ||||
| 90084-16010 | ||||
| 90105-08159 | ||||
| 90105-08253 | ||||
| 90148-10003 | ||||
| 90148-80047 | ||||
| 93530-54016 | ||||
| Linked diagrams | ||||
| 6404 | ||||

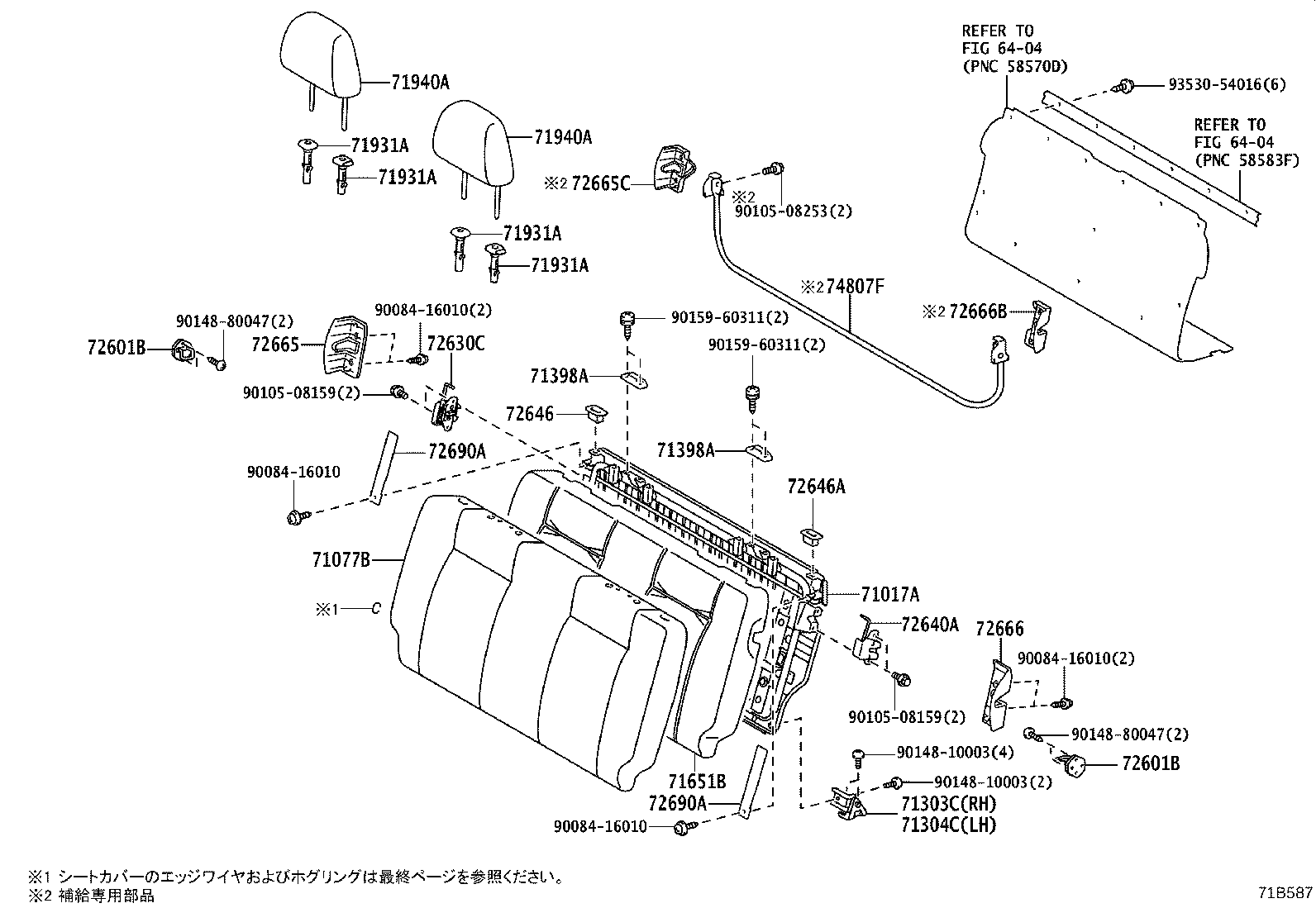

ILLUST NO. 1 OF 2(1812- )NHP160
ｼｰﾄﾊﾞｯｸ(ｸｯｼｮﾝﾋｷｵｺｼｼｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-52840 |
NCP16#,NHP160..TX |
1 | ||
| 71017-52830 |
NCP16#,NHP160..U,UL,ULX |
1 | ||
| 71017-52840 |
NCP16#,NHP160..F |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-52V00C0 |
NHP160..TX BLACK,TRIM1# |
1 | ||
| 71077-52N60C1 |
NCP16#,NHP160..U,UL,ULX BLACK,TRIM1# |
1 | ||
| 71077-52V00C0 |
NHP160..F BLACK,TRIM1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-52030C0 |
NCP16#,NHP160..SUCD BLACK,TRIM1# |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-52020C0 |
NCP16#,NHP160..SUCD BLACK,TRIM1# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-52010C0 |
NCP16#,NHP160..TX BLACK,TRIM1# |
2 | ||
| 71398-52010C0 |
NCP16#,NHP160..F BLACK,TRIM1# |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-52010C0 |
NCP16#,NHP160..TX BLACK,TRIM1# |
2 | ||
| 71398-52010C0 |
NCP16#,NHP160..F BLACK,TRIM1# |
2 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-52610 |
NCP16#,NHP160..U,UL,ULX |
1 | ||
| 71651-52830 |
NHP160..F |
1 | ||
| 71651-52830 |
NHP160..TX |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010C0 |
NCP16#,NHP160..TX ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71956-47010C0 |
NCP16#,NHP160..F ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71956-47010C0 |
NCP16#,NHP160..TX ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71970-47010C0 |
NCP16#,NHP160..F ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010C0 |
NCP16#,NHP160..TX ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71956-47010C0 |
NCP16#,NHP160..F ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71956-47010C0 |
NCP16#,NHP160..TX ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71970-47010C0 |
NCP16#,NHP160..F ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010C0 |
NCP16#,NHP160..TX ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71956-47010C0 |
NCP16#,NHP160..F ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71956-47010C0 |
NCP16#,NHP160..TX ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71970-47010C0 |
NCP16#,NHP160..F ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010C0 |
NCP16#,NHP160..TX ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71956-47010C0 |
NCP16#,NHP160..F ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71956-47010C0 |
NCP16#,NHP160..TX ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71970-47010C0 |
NCP16#,NHP160..F ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52D30C0 |
NCP16#,NHP160..TX BLACK,TRIM1# |
2 | ||
| 71940-52D30C0 |
NCP16#,NHP160..F BLACK,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52D30C0 |
NCP16#,NHP160..TX BLACK,TRIM1# |
2 | ||
| 71940-52D30C0 |
NCP16#,NHP160..F BLACK,TRIM1# |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-52101 |
NCP16#,NHP160..TX |
2 | ||
| 72601-52250 |
NCP16#,NHP160..U,UL,ULX |
2 | ||
| 72601-52101 |
NCP16#,NHP160..F |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-52101 |
NCP16#,NHP160..TX |
2 | ||
| 72601-52250 |
NCP16#,NHP160..U,UL,ULX |
2 | ||
| 72601-52101 |
NCP16#,NHP160..F |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52070 |
NCP16#,NHP160..U,UL,ULX |
1 | ||
| 72630-52080 |
NCP16#,NHP160..TX |
1 | ||
| 72630-52080 |
NCP16#,NHP160..F |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-52060 |
NCP16#,NHP160..U,UL,ULX |
1 | ||
| 72640-52070 |
NCP16#,NHP160..TX |
1 | ||
| 72640-52070 |
NCP16#,NHP160..F |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-52010C0 |
NCP16#,NHP160..SUCD BLACK,TRIM1# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-52010C0 |
NCP16#,NHP160..SUCD BLACK,TRIM1# |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-52060C0 |
NCP16#,NHP160..U,UL,ULX BLACK,TRIM1# |
1 | ||
| 72665-52040C0 |
NCP16#,NHP160..F BLACK,TRIM1# |
1 | ||
| 72665-52040C0 |
NCP16#,NHP160..TX BLACK,TRIM1# |
1 | ||
| 72665C - COVER, REAR SEAT LOCK, RH | ||||
| 72665-52030C0 |
NCP16#,NHP160..SUCD BLACK,TRIM1# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-52040C0 |
NCP16#,NHP160..TX BLACK,TRIM1# |
1 | ||
| 72666-52040C0 |
NCP16#,NHP160..F BLACK,TRIM1# |
1 | ||
| 72666-52060C0 |
NCP16#,NHP160..U,UL,ULX BLACK,TRIM1# |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-52030C0 |
NCP16#,NHP160..SUCD BLACK,TRIM1# |
1 | ||
| 74807F - BAR SUB-ASSY, RR SEPARATOR | ||||
| 74807-52010 |
NCP16#,NHP160..SUCD |
1 | ||
| Common parts | ||||
| 90084-16010 | ||||
| 90105-08159 | ||||
| 90105-08253 | ||||
| 90148-10003 | ||||
| 90148-80047 | ||||
| 90159-60311 | ||||
| 93530-54016 | ||||
| Linked diagrams | ||||
| 6404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
