NHP160V-FXXRB (2018)

Toyota Probox/Succeed

Production Dec 2018 - Jul 2020
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )NHP160

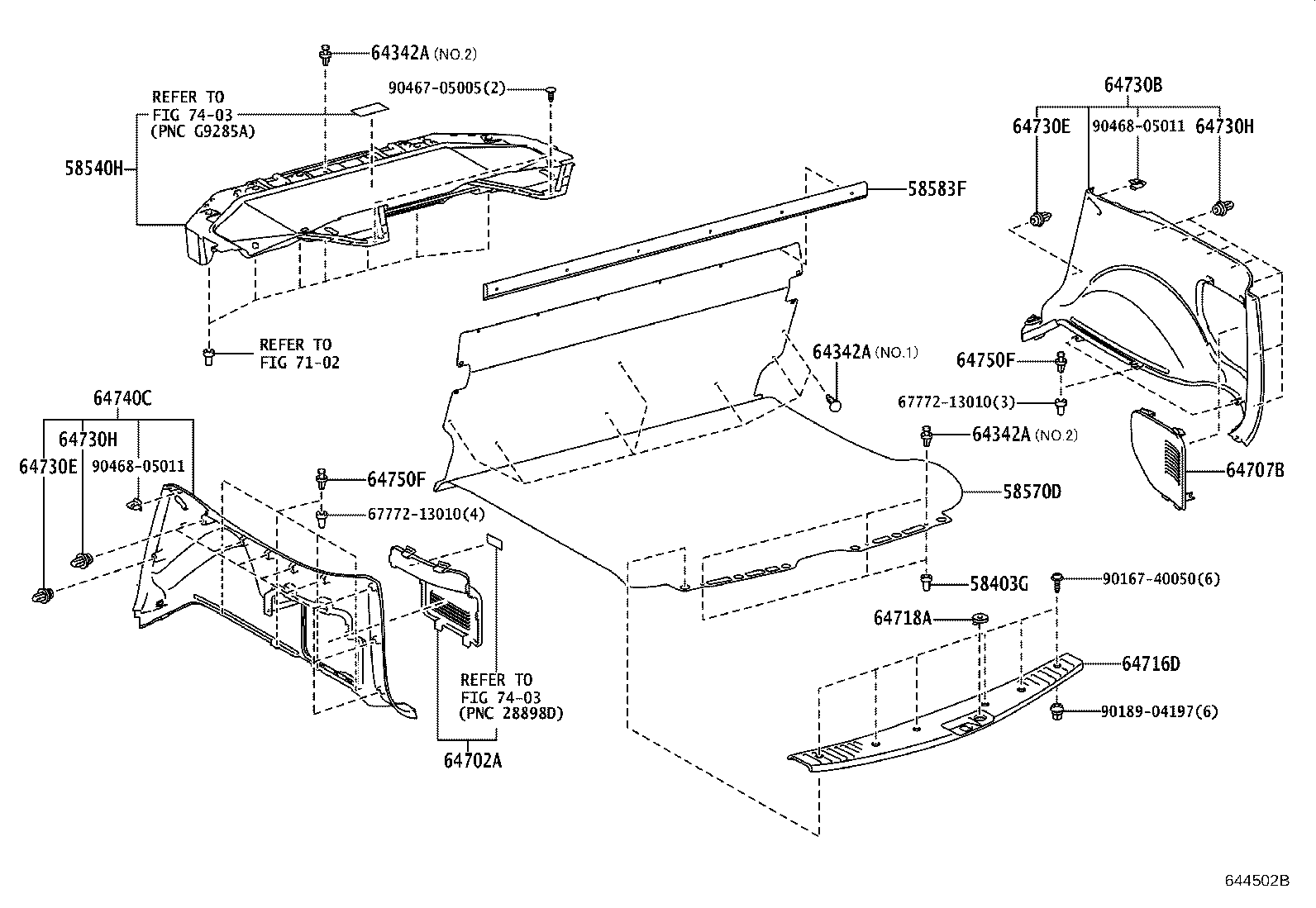

Click highlighted areas on diagram

diagram 58403G 58540H 58570D 58583F 64342A 64342A 64342A 64702A 64707B 64716D 64718A 64730B 64730E 64730E 64730H 64730H 64740C 64750F 64750F 6777213010 6777213010 7102 7403 7403 9016740050 9018904197 9046705005 9046805011 9046805011
Part # Description Qty Price
58403G - CAP, DECK BOARD SERVICE HOLE
67772-13010

NCP16#,NHP160,NSP160

 3
58540H - MAT ASSY, FLOOR, REAR
58540-52020B1

NHP160..F,TX

GRAY,TRIM1#

 1
58540-52030B1

NHP160..DX,DXCOM,GL,U,UL,ULX

GRAY,TRIM1#

 1
58570D - CARPET ASSY, REAR FLOOR
58570-52460B0

NHP160..F,TX

GRAY,TRIM1#

 1
58570-52510C0

NHP160..DX,DXCOM,GL,U,UL,ULX

BLACK,TRIM1#

 1
58583F - PLATE, REAR SEAT BACK CARPET SUPPORT
58583-52010

NCP16#,NHP160..SUCD

 1
64342A - CLIP
90467-07215

NHP160

NO.2:ｲﾗｽﾄ参照

 4
90467-05129C0

NCP16#,NHP160,NSP160

BLACK,TRIM1#,NO.1:ｲﾗｽﾄ参照

 7
64342A - CLIP
90467-07215

NHP160

NO.2:ｲﾗｽﾄ参照

 4
90467-05129C0

NCP16#,NHP160,NSP160

BLACK,TRIM1#,NO.1:ｲﾗｽﾄ参照

 7
64342A - CLIP
90467-07215

NHP160

NO.2:ｲﾗｽﾄ参照

 4
90467-05129C0

NCP16#,NHP160,NSP160

BLACK,TRIM1#,NO.1:ｲﾗｽﾄ参照

 7
64702A - COVER SUB-ASSY, DECK TRIM SIDE SERVICE HOLE
64702-52010C0

NHP160

BLACK,TRIM1#

 1
64707B - COVER SUB-ASSY, QUARTER TRIM JACK
64707-52010C0

NCP16#,NHP160,NSP160

BLACK,TRIM1#

 1
64716D - COVER, DECK TRIM, REAR
64716-52040C0

NCP16#,NHP160,NSP160

BLACK,TRIM1#

 1
64718A - COVER, DECK TRIM SERVICE HOLE
58285-52020

NCP16#,NHP160..SUCD

 1
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-52510C0

NHP160

BLACK,TRIM1#

 1
64730E - CLIP(FOR DECK TRIM SIDE BOARD)
90467-10167

NCP16#,NHP160,NSP160

 2
64730E - CLIP(FOR DECK TRIM SIDE BOARD)
90467-10167

NCP16#,NHP160,NSP160

 2
64730H - CLIP(FOR DECK TRIM SIDE PANEL)
90467-10161

NCP16#,NHP160,NSP160

 16
64730H - CLIP(FOR DECK TRIM SIDE PANEL)
90467-10161

NCP16#,NHP160,NSP160

 16
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-52630C0

NHP160

BLACK,TRIM1#

 1
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-07215

NHP160

 7
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-07215

NHP160

 7
Common parts
67772-13010
90167-40050
90189-04197
90467-05005
90468-05011
Linked diagrams
7102
7403
