NHP160V-FXXRB (2018)

Toyota Probox/Succeed

Production Dec 2018 - Jul 2020
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )NHP160

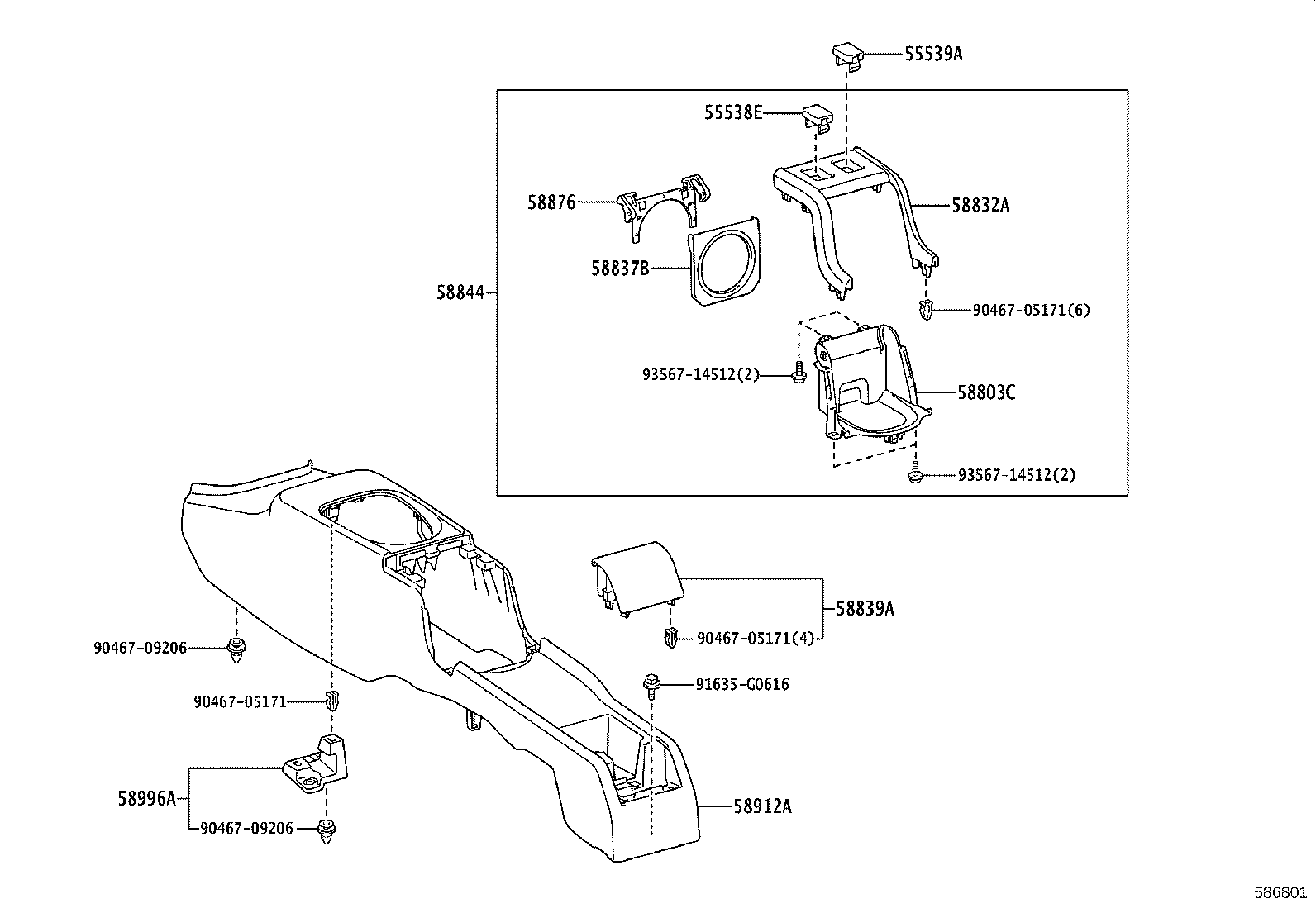

Click highlighted areas on diagram

diagram 55538E 55539A 58803C 58832A 58837B 58839A 58844 58876 58912A 58996A 9046705171 9046705171 9046705171 9046709206 9046709206 91635G0616 9356714512 9356714512
Part # Description Qty Price
55538E - COVER, SPARE SWITCH HOLE
55539-52060C4

NHP160

BLACK,TRIM1#

 1
55539A - COVER, SPARE SWITCH HOLE
55539-52060C4

NHP160

BLACK,TRIM1#

 1
58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER
58803-52020C0

NHP160

BLACK,TRIM1#

 1
58832A - GARNISH, CONSOLE UPPER PANEL, REAR
58832-52010C0

NHP160

BLACK,TRIM1#

 1
58837B - BOX, CONSOLE CUP HOLDER
58837-52050C0

NCP16#,NHP160,NSP160

BLACK,TRIM1#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-52040C0

NHP160

BLACK,TRIM1#

 1
58844 - BEZEL, CONSOLE BOX
58844-52070C0

NHP160

BLACK,TRIM1#

 1
58876 - ARM, CONSOLE UPPER PANEL
58876-52010C0

NCP16#,NHP160,NSP160

BLACK,TRIM1#

 1
58912A - BOX, REAR CONSOLE
58911-52260C0

NHP160

BLACK,TRIM1#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-52040

NHP160

 1
Common parts
90467-05171
90467-09206
91635-G0616
93567-14512
