NHP160V-FXXRB (2018)

Toyota Probox/Succeed

Production Dec 2018 - Jul 2020
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )NHP160

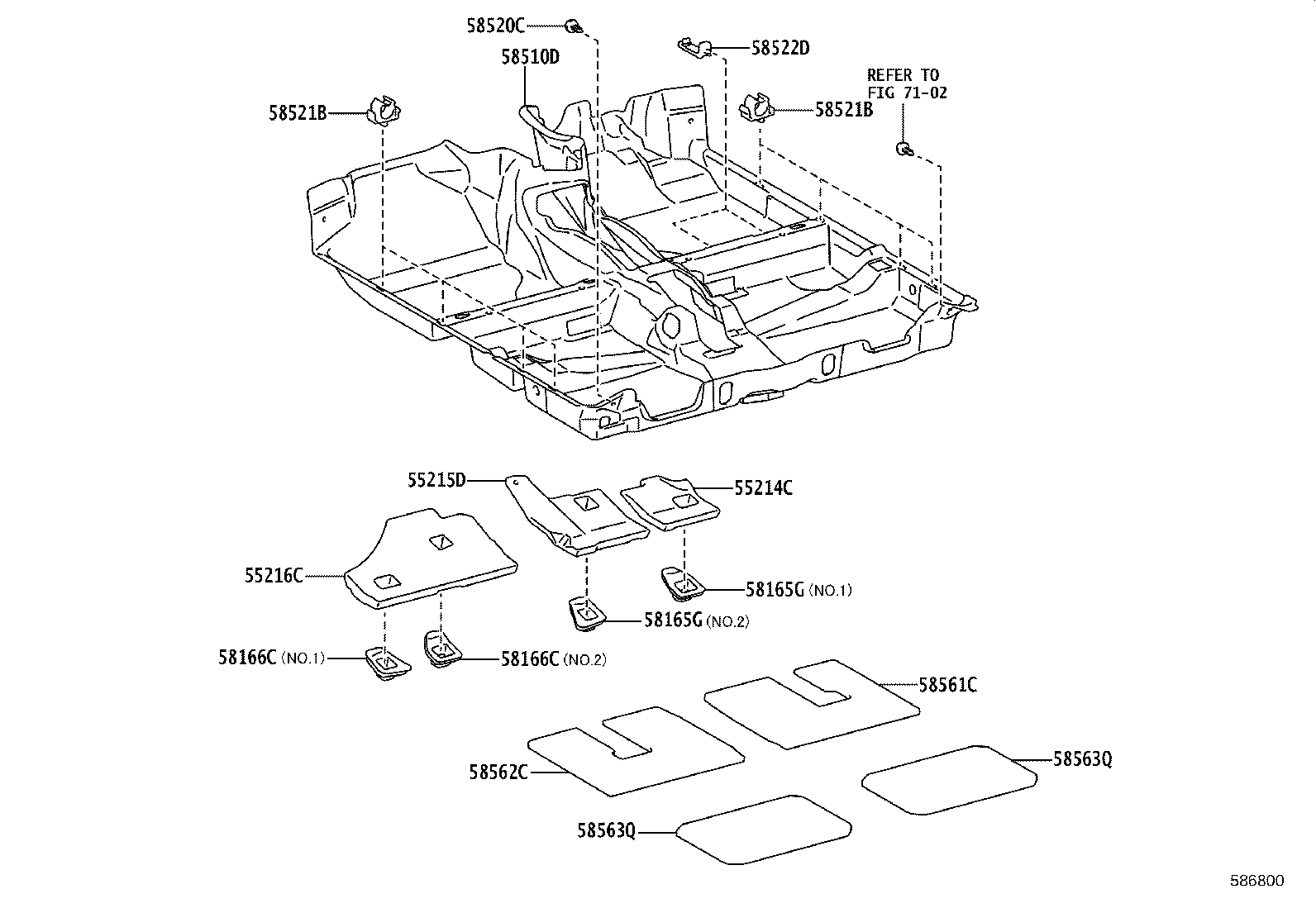

Click highlighted areas on diagram

diagram 55214C 55215D 55216C 58165G 58165G 58166C 58166C 58510D 58520C 58521B 58521B 58522D 58561C 58562C 58563Q 58563Q 7102
Part # Description Qty Price
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-52190

NCP16#,NHP160..SUCD

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-52150

NCP16#,NHP160..SUCD

 1
55216C - PAD, DASH PANEL INSULATOR, NO.4
55216-52060

NCP16#,NHP160..SUCD

 1
58165G - COVER, FRONT FLOOR, RH
55129-52051

NCP16#,NHP160..SUCD

NO.2:ｲﾗｽﾄ参照

 1
58165-52011

NCP16#,NHP160..SUCD

NO.1:ｲﾗｽﾄ参照

 1
58165G - COVER, FRONT FLOOR, RH
55129-52051

NCP16#,NHP160..SUCD

NO.2:ｲﾗｽﾄ参照

 1
58165-52011

NCP16#,NHP160..SUCD

NO.1:ｲﾗｽﾄ参照

 1
58166C - COVER, FRONT FLOOR, LH
58166-52011

NCP16#,NHP160..SUCD

NO.1:ｲﾗｽﾄ参照

 1
55139-52021

NCP16#,NHP160..SUCD

NO.2:ｲﾗｽﾄ参照

 1
58166C - COVER, FRONT FLOOR, LH
58166-52011

NCP16#,NHP160..SUCD

NO.1:ｲﾗｽﾄ参照

 1
55139-52021

NCP16#,NHP160..SUCD

NO.2:ｲﾗｽﾄ参照

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-52S60B0

NHP160

寒冷地仕様,GRAY,TRIM1#

 1
58510-52S50B0

NHP160

GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07215

NHP160

 1
58521B - HOOK, FLOOR CARPET
58521-52010

NCP16#,NHP160,NSP160

 8
58521B - HOOK, FLOOR CARPET
58521-52010

NCP16#,NHP160,NSP160

 8
58522D - HOOK, FLOOR CARPET, NO.2
58522-52030

NCP16#,NHP160,NSP160

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-52240

NCP16#,NHP160,NSP160

 1
58561-52370

NCP16#,NHP160,NSP160

寒冷地仕様

 1
58562C - SILENCER, FRONT FLOOR, NO.2
58562-52190

NCP16#,NHP160,NSP160

 1
58562-52220

NCP16#,NHP160,NSP160

寒冷地仕様

 1
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-52290

NCP16#,NHP160,NSP160

 2
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-52290

NCP16#,NHP160,NSP160

 2
Linked diagrams
7102
