NHP160V-FXXRB (2018)

Toyota Probox/Succeed

Production Dec 2018 - Jul 2020
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )NHP160

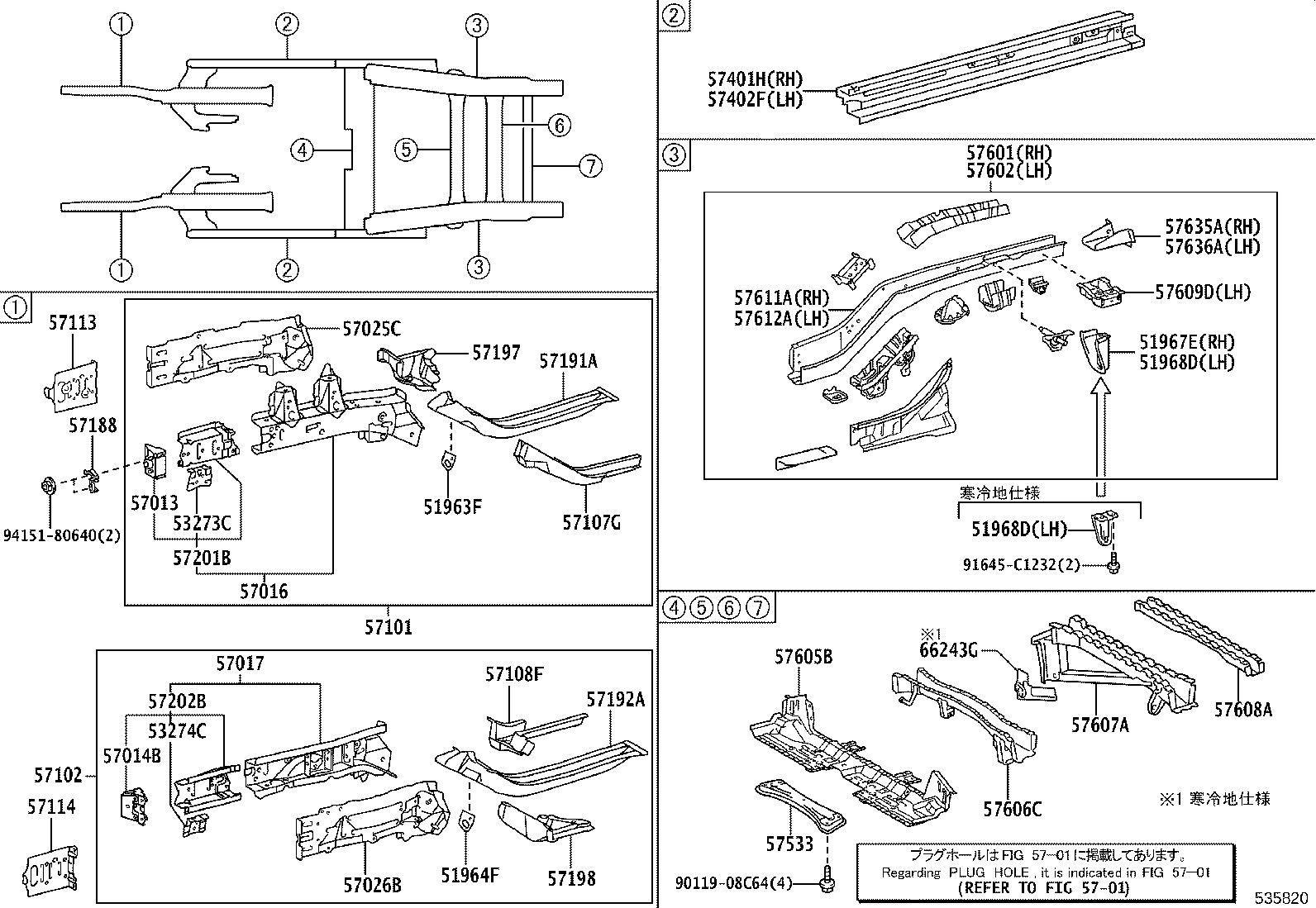

Click highlighted areas on diagram

diagram 51963F 51964F 51967E 51968D 51968D 53273C 53274C 5701 57013 57014B 57016 57017 57025C 57026B 57101 57102 57107G 57108F 57113 57114 57188 57191A 57192A 57197 57198 57201B 57202B 57401H 57402F 57533 57601 57602 57605B 57606C 57607A 57608A 57609D 57611A 57612A 57635A 57636A 66243G 9011908C64 91645C1232 9415180640
Part # Description Qty Price
51963F - HOOK, TRANSPORT
51963-52050

NCP16#,NHP160..SUCD

 1
51964F - HOOK, TRANSPORT, LH
51963-52050

NCP16#,NHP160..SUCD

 1
51967E - HOOK, TRANSPORT, REAR RH
51968-52040

NCP16#,NHP160..SUCD

 1
51968D - HOOK, TRANSPORT, REAR LH
51968-52040

NCP16#,NHP160..SUCD

 1
51095-52010

NCP16#,NHP160..SUCD

寒冷地仕様

 1
51968D - HOOK, TRANSPORT, REAR LH
51968-52040

NCP16#,NHP160..SUCD

 1
51095-52010

NCP16#,NHP160..SUCD

寒冷地仕様

 1
53273C - REINFORCEMENT, RADIATOR SUPPORT, RH
53273-52030

NCP16#,NHP160..SUCD

 1
53274C - REINFORCEMENT, RADIATOR SUPPORT, LH
53274-52020

NCP16#,NHP160..SUCD

 1
57013 - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-52040

NCP16#,NHP160..SUCD

 1
57014B - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-52030

NCP16#,NHP160..SUCD

 1
57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-52090

NCP16#,NHP160..SUCD

 1
57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-52100

NCP16#,NHP160..SUCD

 1
57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57025-52010

NCP16#,NHP160..SUCD

 1
57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57026-52010

NCP16#,NHP160..SUCD

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-52210

NCP16#,NHP160..SUCD

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-52270

NCP16#,NHP160..SUCD

 1
57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA
57107-52030

NCP16#,NHP160..SUCD

 1
57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA
57108-52030

NCP16#,NHP160..SUCD

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-52010

NCP16#,NHP160..SUCD

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-52010

NCP16#,NHP160..SUCD

 1
57188 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57188-52020

NCP16#,NHP160..SUCD

 1
57191A - MEMBER, FRONT SIDE, INNER REAR RH
57191-52020

NCP16#,NHP160..SUCD

 1
57192A - MEMBER, FRONT SIDE, INNER REAR LH
57192-52020

NCP16#,NHP160..SUCD

 1
57197 - BOX, TORQUE, FRONT RH
57197-52040

NCP16#,NHP160..SUCD

 1
57198 - BOX, TORQUE, FRONT LH
57198-52040

NCP16#,NHP160..SUCD

 1
57201B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
57201-52020

NCP16#,NHP160..SUCD

 1
57202B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
57202-52020

NCP16#,NHP160..SUCD

 1
57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-52240

NHP160..SUCD

 1
57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-52290

NHP160..SUCD

 1
57533 - BRACE, FRONT FLOOR, CENTER
57533-52030

NCP160,NHP160..SUCD

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-52360

NCP16#,NHP160..SUCD

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-52460

NHP160..SUCD

 1
57602-52510

NHP160..SUCD

寒冷地仕様

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-52250

NHP160..SUCD

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-52270

NHP160..SUCD

 1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-52140

NCP16#,NHP160..SUCD

 1
57608A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57655-52021

NCP16#,NHP160..SUCD

 1
57609D - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH
57609-52090

NHP160..SUCD

 1
57611A - MEMBER, REAR FLOOR SIDE, RH
57611-52090

NCP16#,NHP160..SUCD

 1
57612A - MEMBER, REAR FLOOR SIDE, LH
57612-52110

NCP16#,NHP160..SUCD

 1
57635A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH
57635-52110

NCP16#,NHP160..SUCD

 1
57636A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH
57636-52110

NCP16#,NHP160..SUCD

 1
57804-52030

NCP16#,NHP160..SUCD

寒冷地仕様

 1
66243G - PROTECTOR, REAR BODY, NO.1
66243-52020

NCP16#,NHP160..SUCD

寒冷地仕様

 1
Common parts
90119-08C64
91645-C1232
94151-80640
Linked diagrams
5701
