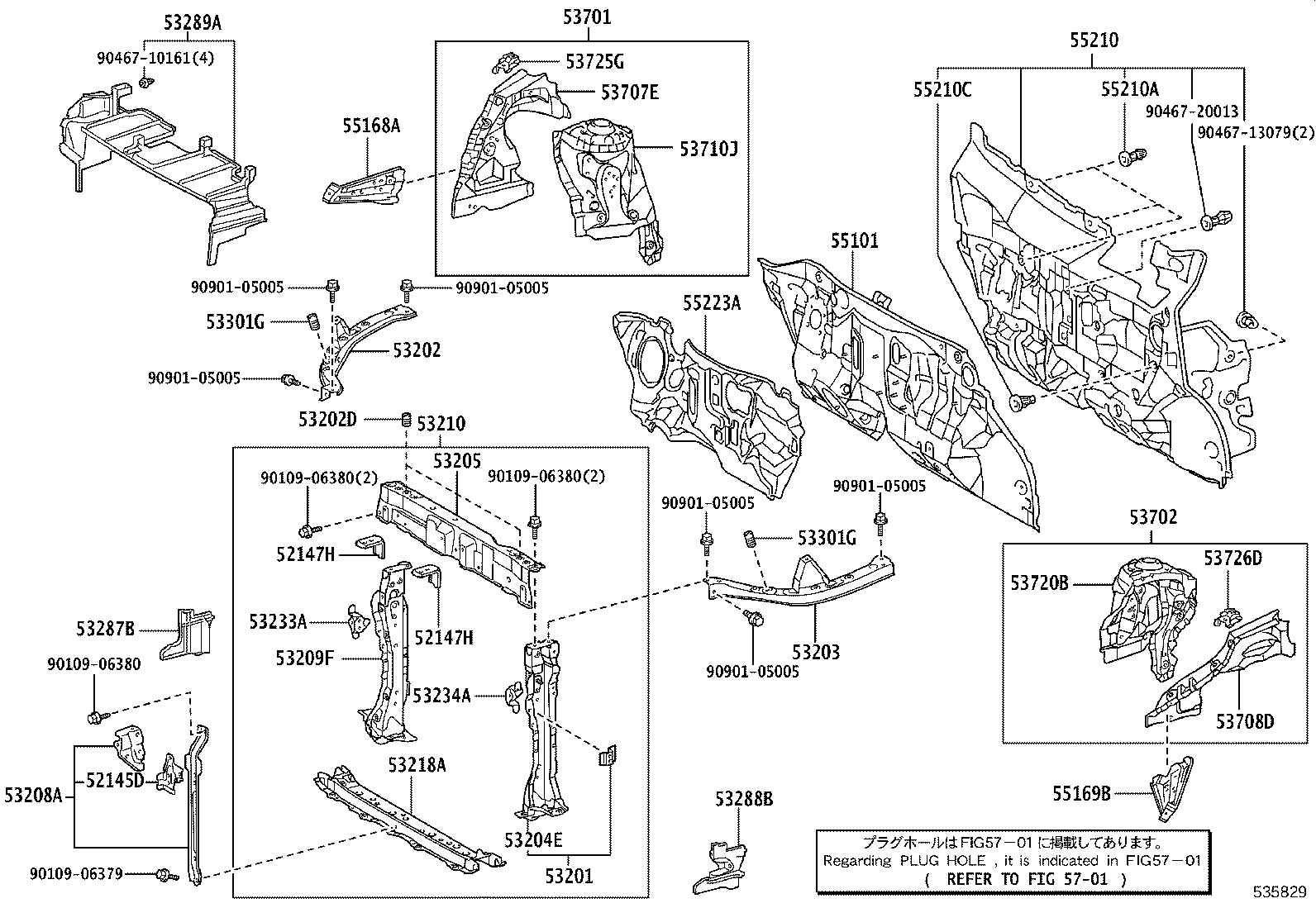

NHP160V-FXXRB (2018)
Toyota Probox/Succeed
(1812- )NHP160
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52145D - BRACKET, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52145-52130 |
NHP160..SUCD |
1 | ||
| 52147H - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-52120 |
NCP16#,NHP160..SUCD |
2 | ||
| 52147H - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-52120 |
NCP16#,NHP160..SUCD |
2 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-52290 |
NHP160..SUCD |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-52220 |
NCP16#,NHP160..SUCD |
1 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 90541-15111 |
NCP16#,NHP160..SUCD |
2 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-52210 |
NCP16#,NHP160..SUCD |
1 | ||
| 53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH | ||||
| 53204-52020 |
NCP16#,NHP160..SUCD |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-52150 |
NHP160..SUCD |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-52170 |
NHP160..SUCD |
1 | ||
| 53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH | ||||
| 53209-52030 |
NCP16#,NHP160..SUCD |
1 | ||
| 53210 - SUPPORT ASSY, RADIATOR | ||||
| 53210-52270 |
NHP160..SUCD |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53028-52091 |
NCP16#,NHP160..SUCD |
1 | ||
| 53233A - BRACKET, HEADLAMP, NO.1 RH | ||||
| 53233-52070 |
NCP16#,NHP160..SUCD |
1 | ||
| 53234A - BRACKET, HEADLAMP, NO.1 LH | ||||
| 53234-52080 |
NCP16#,NHP160..SUCD |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-52240 |
NCP16#,NHP160..SUCD |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-52230 |
NCP16#,NHP160..SUCD |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-52190 |
NHP160..SUCD |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15037 |
NCP16#,NHP160..SUCD |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15037 |
NCP16#,NHP160..SUCD |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-52230 |
NHP160..SUCD |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-52240 |
NCP16#,NHP160..SUCD |
1 | ||
| 53707E - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-52070 |
NCP16#,NHP160..SUCD |
1 | ||
| 53708D - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-52070 |
NCP16#,NHP160..SUCD |
1 | ||
| 53710J - APRON ASSY, FRONT FENDER, RH | ||||
| 53710-52030 |
NHP160..SUCD |
1 | ||
| 53720B - APRON ASSY, FRONT FENDER, LH | ||||
| 53720-52030 |
NCP16#,NHP160..SUCD |
1 | ||
| 53725G - APRON, FRONT FENDER NO.2 SIDE, RH | ||||
| 53725-52020 |
NCP16#,NHP160..SUCD |
1 | ||
| 53726D - APRON, FRONT FENDER NO.2 SIDE, LH | ||||
| 53726-52020 |
NCP16#,NHP160..SUCD |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-52680 |
NHP160..SUCD |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-52150 |
NCP16#,NHP160..SUCD |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-52150 |
NCP16#,NHP160..SUCD |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-52360 |
NHP160..SUCD |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
NCP16#,NHP160..SUCD |
3 | ||
| 55210C - CLIP | ||||
| 90467-11123 |
NCP16#,NHP160..SUCD |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-52121 |
NHP160..SUCD |
1 | ||
| Common parts | ||||
| 90109-06379 | ||||
| 90109-06380 | ||||
| 90467-10161 | ||||
| 90467-13079 | ||||
| 90467-20013 | ||||
| 90901-05005 | ||||
| Linked diagrams | ||||
| 5701 | ||||
