NHP160V-FXXRB (2018)

Toyota Probox/Succeed

Production Dec 2018 - Jul 2020
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

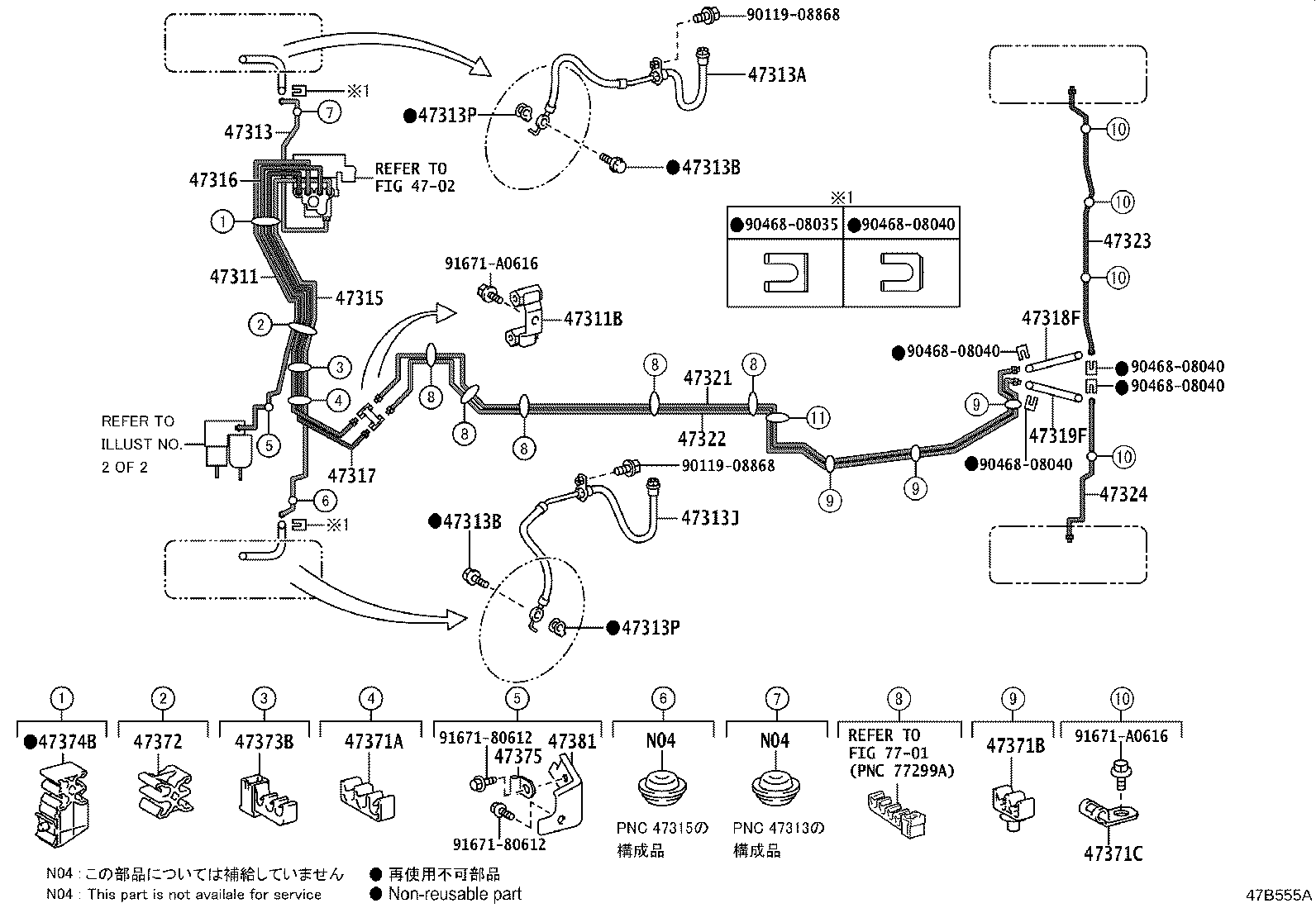

ILLUST NO. 1 OF 2(1812- )NHP160

Click highlighted areas on diagram

ﾌﾞﾚｰｷﾁｭｰﾌﾞ

diagram 4702 47311 47311B 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47371A 47371B 47371C 47372 47373B 47374B 47375 47381 7701 9011908868 9011908868 9046808035 9046808040 9046808040 9046808040 9046808040 9046808040 9167180612 9167180612 91671A0616 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52770

NHP160..SUCD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10285

NCP16#,NHP160..SUCD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52360

NHP160..SUCD

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP16#,NHP160..SUCD

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP16#,NHP160..SUCD

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP16#,NHP160..SUCD

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP16#,NHP160..SUCD

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52310

NHP160..SUCD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52290

NHP160..SUCD

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52300

NHP160..SUCD

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02H27

NCP16#,NHP160..SUCD

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02H27

NCP16#,NHP160..SUCD

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52480

NHP160..SUCD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-52420

NHP160..SUCD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52180

NCP160,NHP160..SUCD

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52170

NCP16#,NHP160..SUCD

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00857

NHP160..SUCD

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01E02

NHP160..SUCD

 4
47371C - CLAMP, BRAKE TUBE, NO.7
96221-10706

NHP160..SUCD

 4
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00876

NHP160..SUCD

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D08

NHP160..SUCD

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D64

NHP160..SUCD

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90461-10854

NHP160..SUCD

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52050

NHP160..SUCD

 1
Common parts
90119-08868
90468-08035
90468-08040
91671-80612
91671-A0616
Linked diagrams
4702
7701

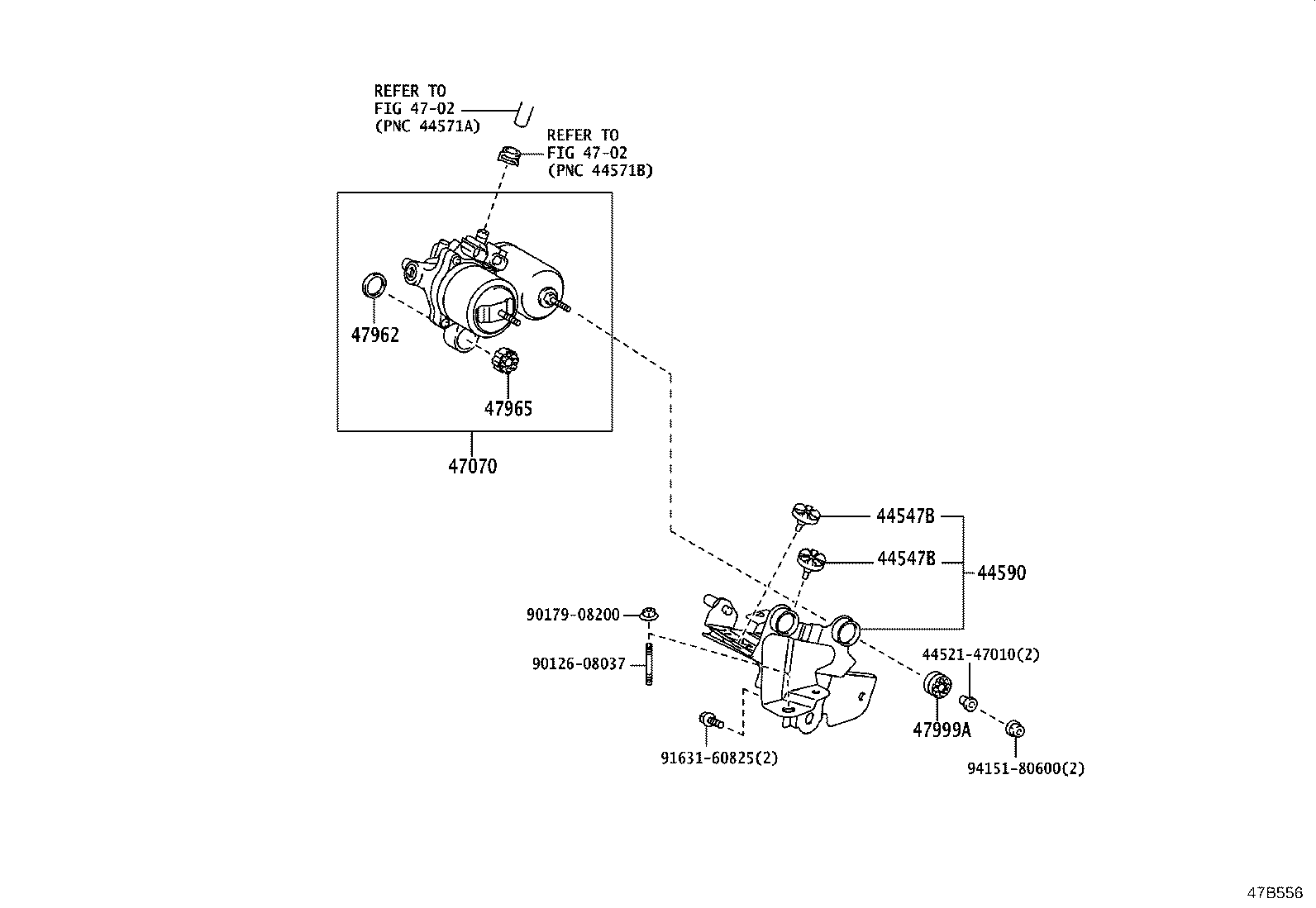

ILLUST NO. 2 OF 2(1812- )NHP160

Click highlighted areas on diagram

ﾌﾞﾚｰｷﾌﾞｰｽﾀﾎﾟﾝﾌﾟ

diagram 4452147010 44547B 44547B 44590 4702 4702 47070 47962 47965 47999A 9012608037 9017908200 9163160825 9415180600
Part # Description Qty Price
44547B - CUSHION, BRAKE ACTUATOR BRACKET
47131-47070

NHP160..SUCD

 2
44547B - CUSHION, BRAKE ACTUATOR BRACKET
47131-47070

NHP160..SUCD

 2
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-52271

NHP160..SUCD

 1
47070 - PUMP ASSY, BRAKE BOOSTER
47070-52020

NHP160..SUCD

 1
47962 - COLLAR, BRAKE BOOSTER PUMP
47962-60090

NHP160..SUCD

 1
47965 - BUSH, BRAKE BOOSTER PUMP
47965-30010

NHP160..SUCD

 1
47999A - BUSH(FOR BRAKE TRACTION ACTUATOR BRACKET)
47965-24010

NHP160..SUCD

 2
Common parts
44521-47010
90126-08037
90179-08200
91631-60825
94151-80600
Linked diagrams
4702
