NHP160V-FXXRB (2018)
Toyota Probox/Succeed
Production
Dec 2018
-
Jul 2020
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1812- )NHP160

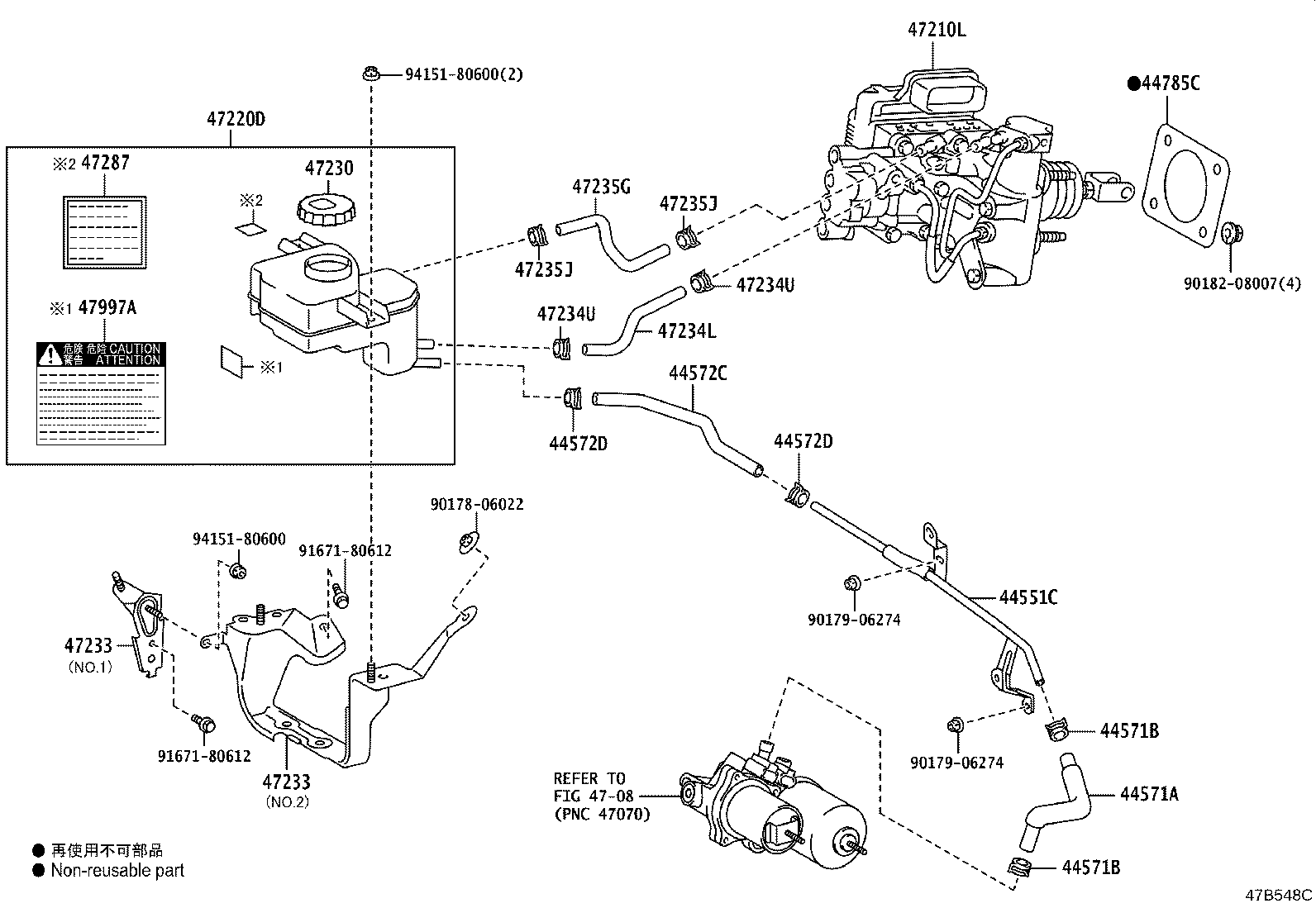

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-52010 |
NHP160..SUCD |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-52011 |
NHP160..SUCD |
1 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 96136-41801 |
NHP160..SUCD |
2 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 96136-41801 |
NHP160..SUCD |
2 | ||
| 44572C - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-52010 |
NHP160..SUCD |
1 | ||
| 44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 96137-41501 |
NHP160..SUCD |
2 | ||
| 44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 96137-41501 |
NHP160..SUCD |
2 | ||
| 44785C - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
NHP160..SUCD |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-52610 |
NHP160 |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-52330 |
NHP160..SUCD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-15010 |
NHP160 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-52040 |
NHP160..SUCD NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 47233-52110 |
NHP160..SUCD NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-52040 |
NHP160..SUCD NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 47233-52110 |
NHP160..SUCD NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-52050 |
NHP160..SUCD |
1 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96137-41501 |
NHP160..SUCD |
2 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96137-41501 |
NHP160..SUCD |
2 | ||
| 47235G - HOSE, RESERVOIR, NO.2 | ||||
| 47235-52050 |
NHP160..SUCD |
1 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
NHP160..SUCD |
2 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
NHP160..SUCD |
2 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-15010 |
NHP160 |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-76010 |
NHP160..SUCD |
1 | ||
| Common parts | ||||
| 90178-06022 | ||||
| 90179-06274 | ||||
| 90182-08007 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4708 | ||||
