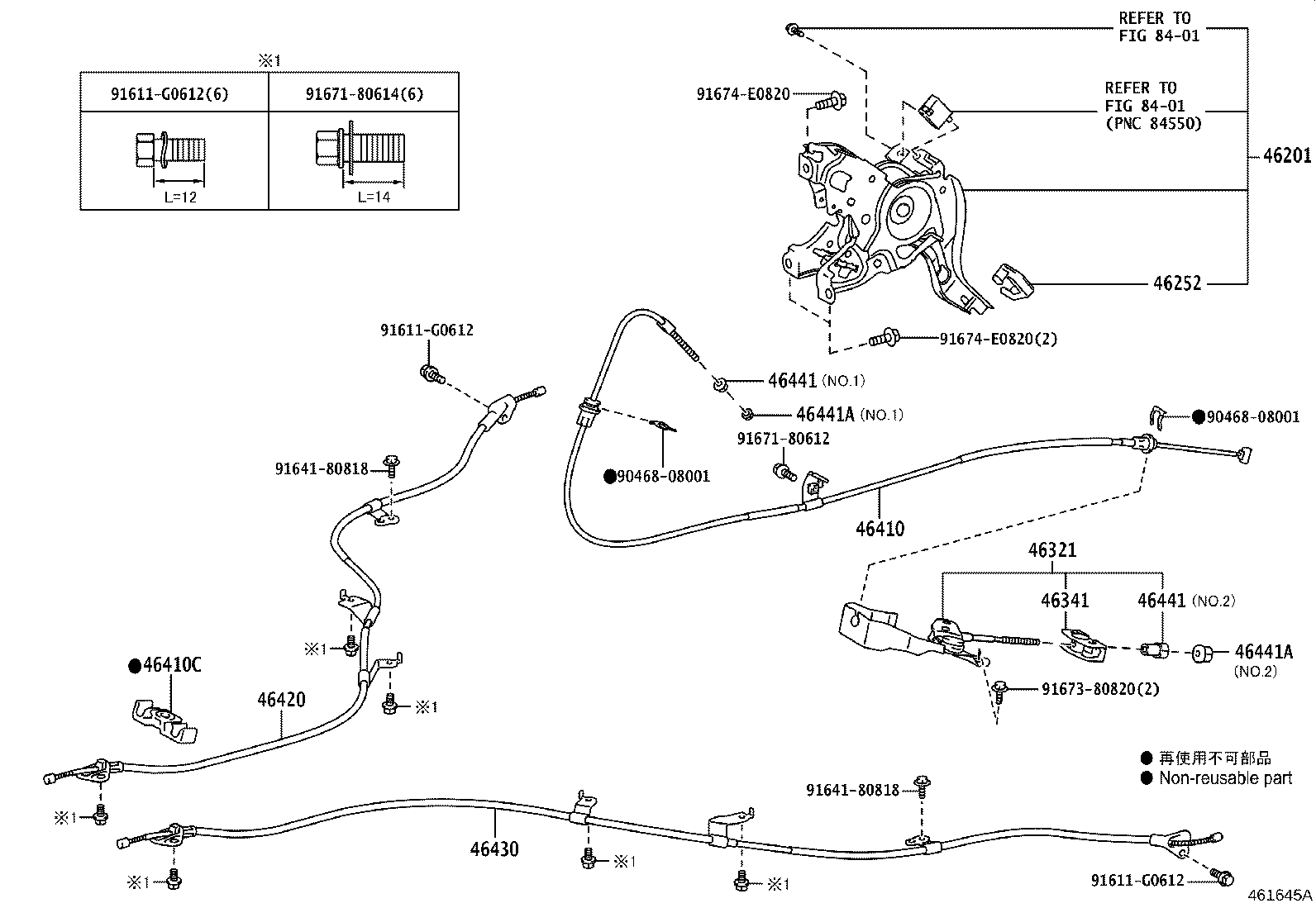

Toyota Probox/succeed NHP160 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46201 - PEDAL SUB-ASSY, PARKING BRAKE
46250-52010	NCP16#,NHP160..SUCD	09/2014 - 07/2020	1
46252 - PAD, PARKING PEDAL
46252-52020	NCP16#,NHP160..SUCD	09/2014 - 07/2020	1
46321 - LEVER, PARKING BRAKE INTERMEDIATE
46320-52060	NHP160..SUCD	12/2018 - 07/2020	1
46341 - EQUALIZER, PARKING BRAKE
46341-52010	NHP160..SUCD	12/2018 - 07/2020	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-52130	NHP160..SUCD	12/2018 - 07/2020	1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46411-52030	NHP160..SUCD	12/2018 - 07/2020	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-52470	NHP160..SUCD	12/2018 - 07/2020	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-52470	NHP160..SUCD	12/2018 - 07/2020	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010	NCP16#,NHP160..SUCD NO.1:ｲﾗｽﾄ参照	09/2014 - 07/2020	1
46441-52010	NCP16#,NHP160..SUCD NO.2:ｲﾗｽﾄ参照	09/2014 - 07/2020	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010	NCP16#,NHP160..SUCD NO.1:ｲﾗｽﾄ参照	09/2014 - 07/2020	1
46441-52010	NCP16#,NHP160..SUCD NO.2:ｲﾗｽﾄ参照	09/2014 - 07/2020	1
46441A - NUT, WIRE ADJUSTING, NO.2
90179-06299	NCP16#,NHP160..SUCD NO.1:ｲﾗｽﾄ参照	09/2014 - 07/2020	1
94151-80600	NCP16#,NHP160..SUCD NO.2:ｲﾗｽﾄ参照	09/2014 - 07/2020	1
46441A - NUT, WIRE ADJUSTING, NO.2
90179-06299	NCP16#,NHP160..SUCD NO.1:ｲﾗｽﾄ参照	09/2014 - 07/2020	1
94151-80600	NCP16#,NHP160..SUCD NO.2:ｲﾗｽﾄ参照	09/2014 - 07/2020	1
Common parts
90468-08001
91611-G0612
91641-80818
91671-80612
91671-80614
91673-80820
91674-E0820
Linked diagrams
8401

NHP160V-FXXRB (2018)
