NHP160V-FXXRB (2018)
Toyota Probox/Succeed

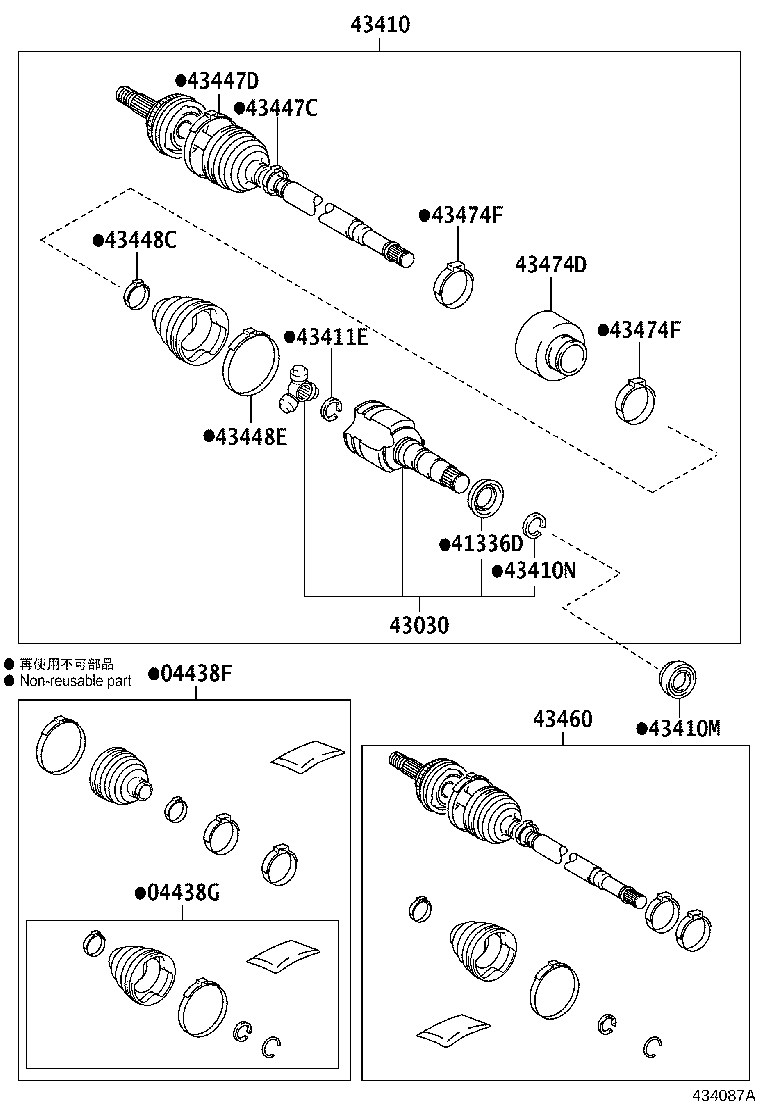

ILLUST NO. 1 OF 2(1812- )NHP160
ﾐｷﾞｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-47052 |
NHP160 |
1 | ||
| 04427-52A50 |
NHP160..SUCD |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-47021 |
NHP160 |
1 | ||
| 04437-52460 |
NHP160..SUCD |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12060 |
NHP160..SUCD |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-52070 |
NHP160..SUCD |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-52350 |
NHP160 |
1 | ||
| 43410-52351 |
NHP160..SUCD |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-35065 |
NHP160 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-27005 |
NHP160..SUCD |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22001 |
NCP160,NHP160,NSP160 |
1 | ||
| 90520-22029 |
NCP160,NHP160..SUCD |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-52260 |
NCP16#,NHP160..SUCD |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-52250 |
NCP16#,NHP160..SUCD |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01078 |
NCP160,NHP160..SUCD |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01146 |
NCP160,NHP160..SUCD |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-59806 |
NHP160 |
1 | ||
| 43460-59895 |
NHP160..SUCD |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-52030 |
NHP160..SUCD |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-12090 |
NCP165,NHP160..SUCD |
2 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-12090 |
NCP165,NHP160..SUCD |
2 | ||

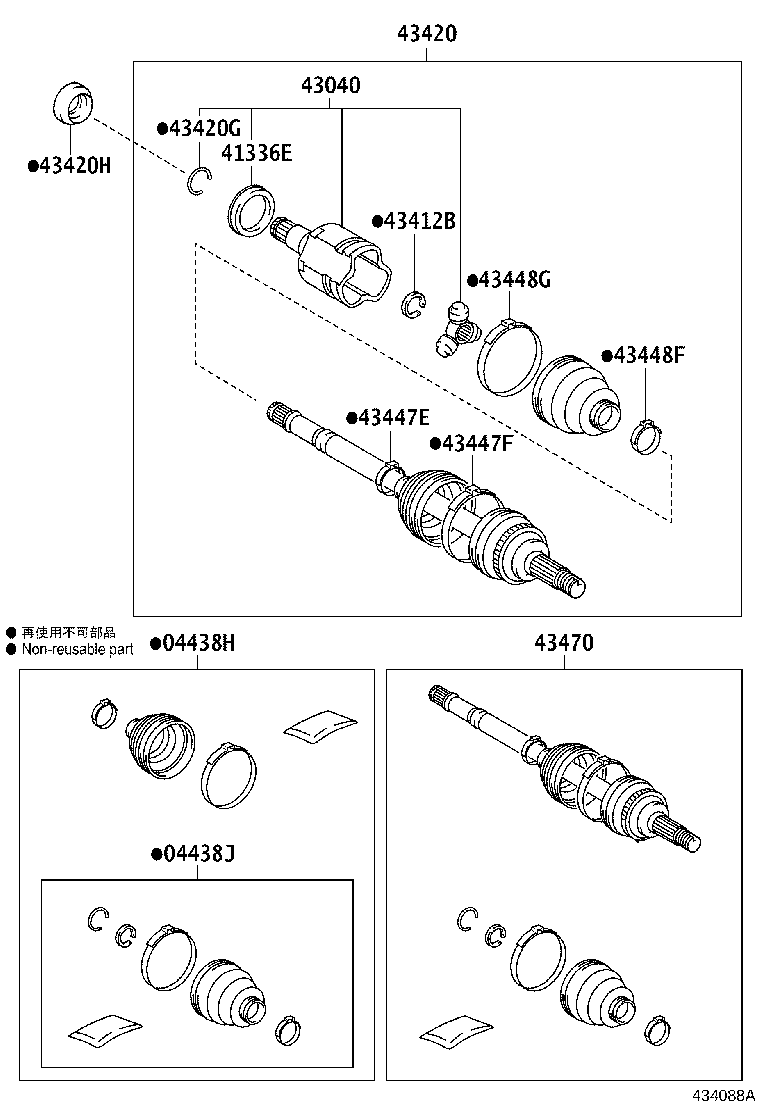

ILLUST NO. 2 OF 2(1812- )NHP160
ﾋﾀﾞﾘｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04427-52A50 |
NHP160..SUCD |
1 | ||
| 04427-47051 |
NHP160 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-47021 |
NHP160 |
1 | ||
| 04437-52460 |
NHP160..SUCD |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12060 |
NCP165,NHP160..SUCD |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-47020 |
NHP160..SUCD |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-22001 |
NCP160,NHP160,NSP160 |
1 | ||
| 90520-22029 |
NCP160,NHP160..SUCD |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-52310 |
NHP160 |
1 | ||
| 43420-52311 |
NHP160..SUCD |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-27005 |
NCP165,NHP160..SUCD |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-35068 |
NHP160 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-52260 |
NCP16#,NHP160..SUCD |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-52250 |
NCP16#,NHP160..SUCD |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01078 |
NCP160,NHP160..SUCD |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01146 |
NCP160,NHP160..SUCD |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-59816 |
NHP160..SUCD |
1 | ||
| 43470-59815 |
NHP160 |
1 | ||
