NHP160V-FXXRB (2018)

Toyota Probox/Succeed

Production Dec 2018 - Jul 2020
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )1NZFXE

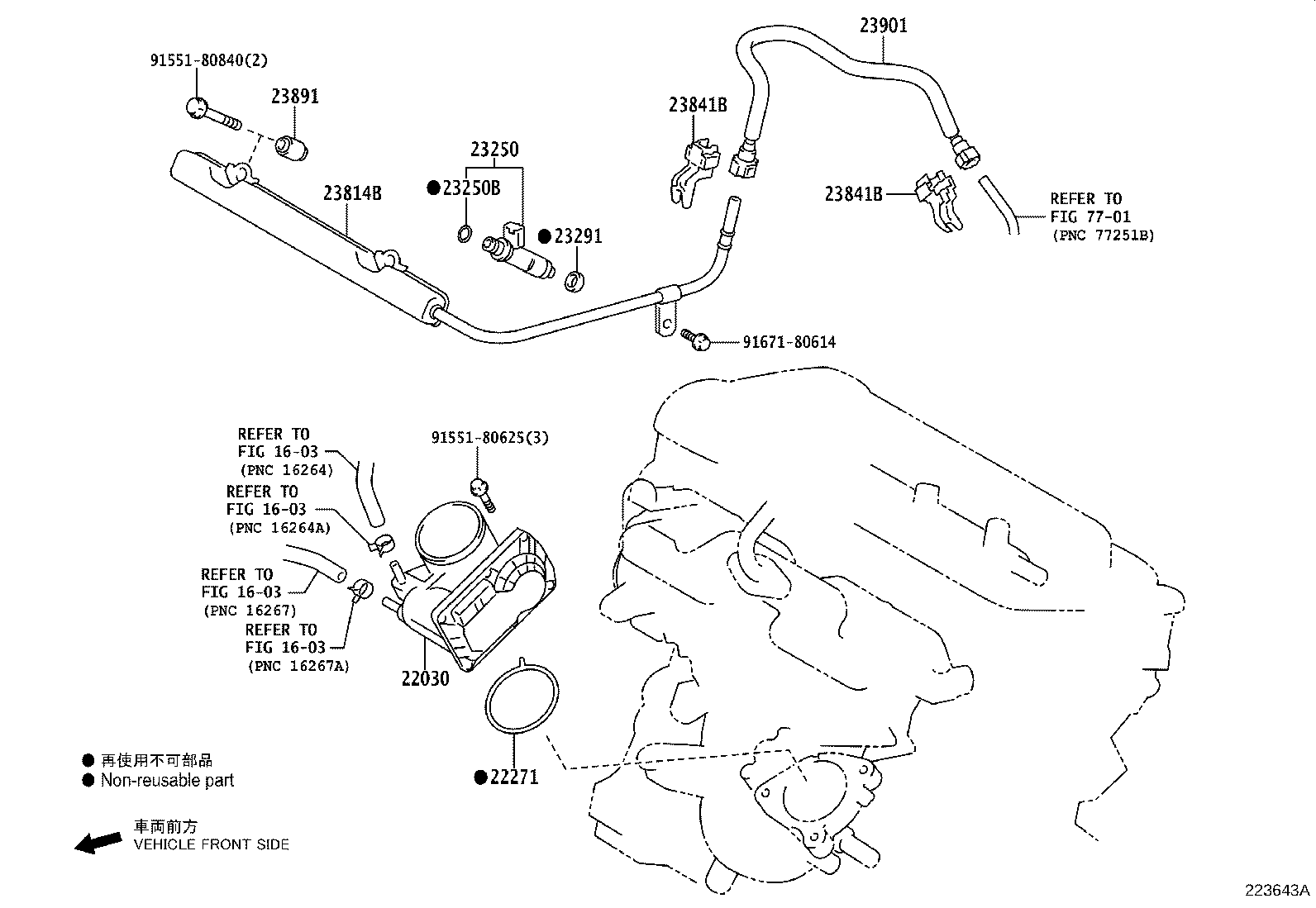

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 22030 22271 23250 23250B 23291 23814B 23841B 23841B 23891 23901 7701 9155180625 9155180840 9167180614
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-47040

1NZFXE..NHP160..SUCD

 1
22271 - GASKET, THROTTLE BODY
22271-21070

1NZFXE..NHP160..SUCD

 1
23250 - INJECTOR ASSY, FUEL
23209-21110

1NZFXE..NHP160..SUCD

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

1NZFXE..NHP160..SUCD

(J)

 4
90301-C0072

1NZFXE..NHP160..SUCD

(L)

 4
90301-07037

1NZFXE..NHP160

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-23010

1NZ#..NCP16#,NHP160..SUCD

 4
23814B - PIPE, FUEL DELIVERY
23814-21073

1NZFXE..NHP160..SUCD

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21050

1NZFXE..NHP160..SUCD

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21050

1NZFXE..NHP160..SUCD

 2
23891 - SPACER, FUEL DELIVERY
23891-21010

1NZFXE..NHP160..SUCD

 2
Common parts
91551-80625
91551-80840
91671-80614
Linked diagrams
1603
7701
