NHP160V-FXXRB (2018)

Toyota Probox/Succeed

Production Dec 2018 - Jul 2020
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )1NZFXE

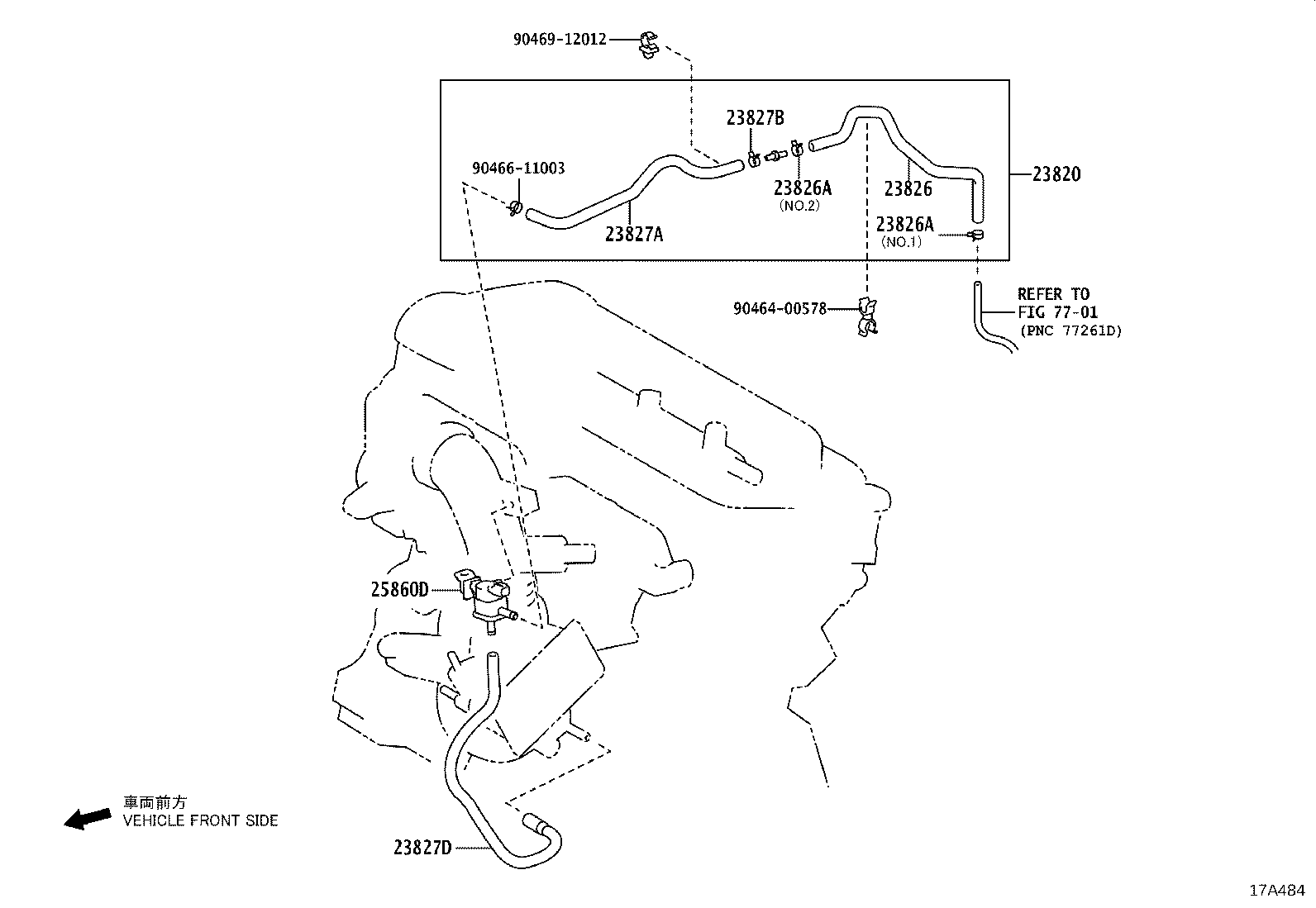

Click highlighted areas on diagram

diagram 23820 23826 23826A 23826A 23827A 23827B 23827D 25860D 7701 9046400578 9046611003 9046912012
Part # Description Qty Price
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-21160

1NZFXE..NHP160..SUCD

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-21200

1NZFXE..NHP160..SUCD

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96133-51101

1NZFXE..NHP160..SUCD

NO.2:ｲﾗｽﾄ参照

 1
96133-51301

1NZFXE..NHP160..SUCD

NO.1:ｲﾗｽﾄ参照

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96133-51101

1NZFXE..NHP160..SUCD

NO.2:ｲﾗｽﾄ参照

 1
96133-51301

1NZFXE..NHP160..SUCD

NO.1:ｲﾗｽﾄ参照

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-21170

1NZFXE..NHP160..SUCD

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96133-51101

1NZFXE..NHP160..SUCD

 1
23827D - HOSE, FUEL VAPOR FEED, NO.2
23827-21180

1NZFXE..NHP160..SUCD

 1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
25860-21130

1NZFXE..NHP160..SUCD

 1
Common parts
90464-00578
90466-11003
90469-12012
Linked diagrams
7701
