NHP160V-FXXRB (2018)
Toyota Probox/Succeed
Production
Dec 2018
-
Jul 2020
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1812- )1NZFXE

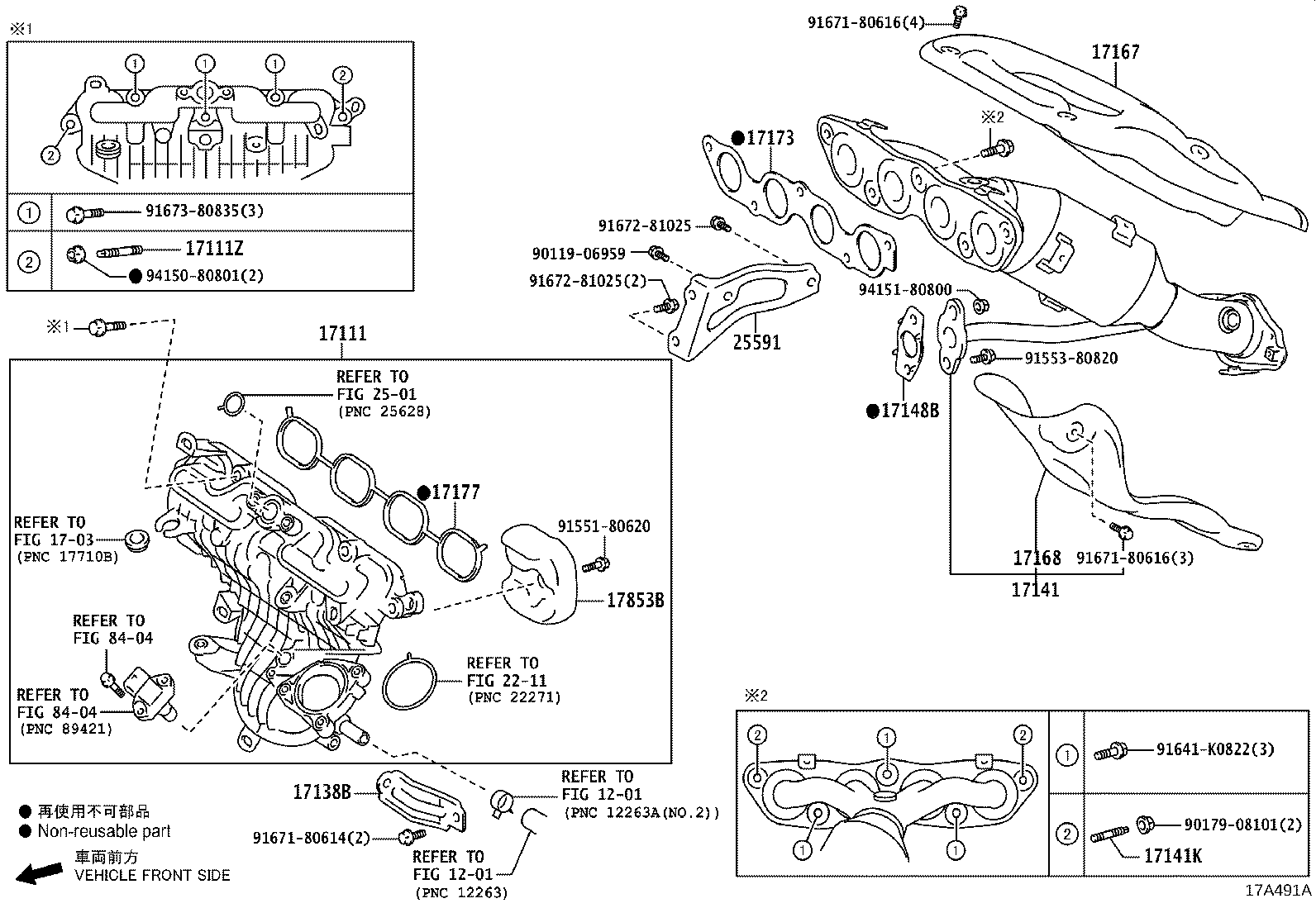

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-21060 |
1NZFXE..NHP160..SUCD |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08026 |
1NZFXE..NHP160..SUCD |
2 | ||
| 17138B - STAY, INTAKE MANIFOLD | ||||
| 17138-21020 |
1NZFXE..NHP160..SUCD |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17140-21080 |
1NZFXE..NHP160..SUCD |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08037 |
1NZFXE..NHP160..SUCD |
2 | ||
| 17148B - GASKET, EGR INLET | ||||
| 25634-21020 |
1NZFXE..NHP160..SUCD |
1 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-21171 |
1NZFXE..NHP160..SUCD |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-21090 |
1NZFXE..NHP160..SUCD |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-21020 |
1NZFXE..NHP160..SUCD |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-21040 |
1NZFXE..NHP160..SUCD |
1 | ||
| 17853B - INSULATOR, INTAKE MANIFOLD | ||||
| 17853-21010 |
1NZFXE..NHP160..SUCD |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-21100 |
1NZFXE..NHP160..SUCD |
1 | ||
| Common parts | ||||
| 90119-06959 | ||||
| 90179-08101 | ||||
| 91551-80620 | ||||
| 91553-80820 | ||||
| 91641-K0822 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91672-81025 | ||||
| 91673-80835 | ||||
| 94150-80801 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1703 | ||||
| 2211 | ||||
| 2501 | ||||
| 8404 | ||||
