NHP160V-FXXRB (2018)
Toyota Probox/Succeed
(1812- )1NZFXE

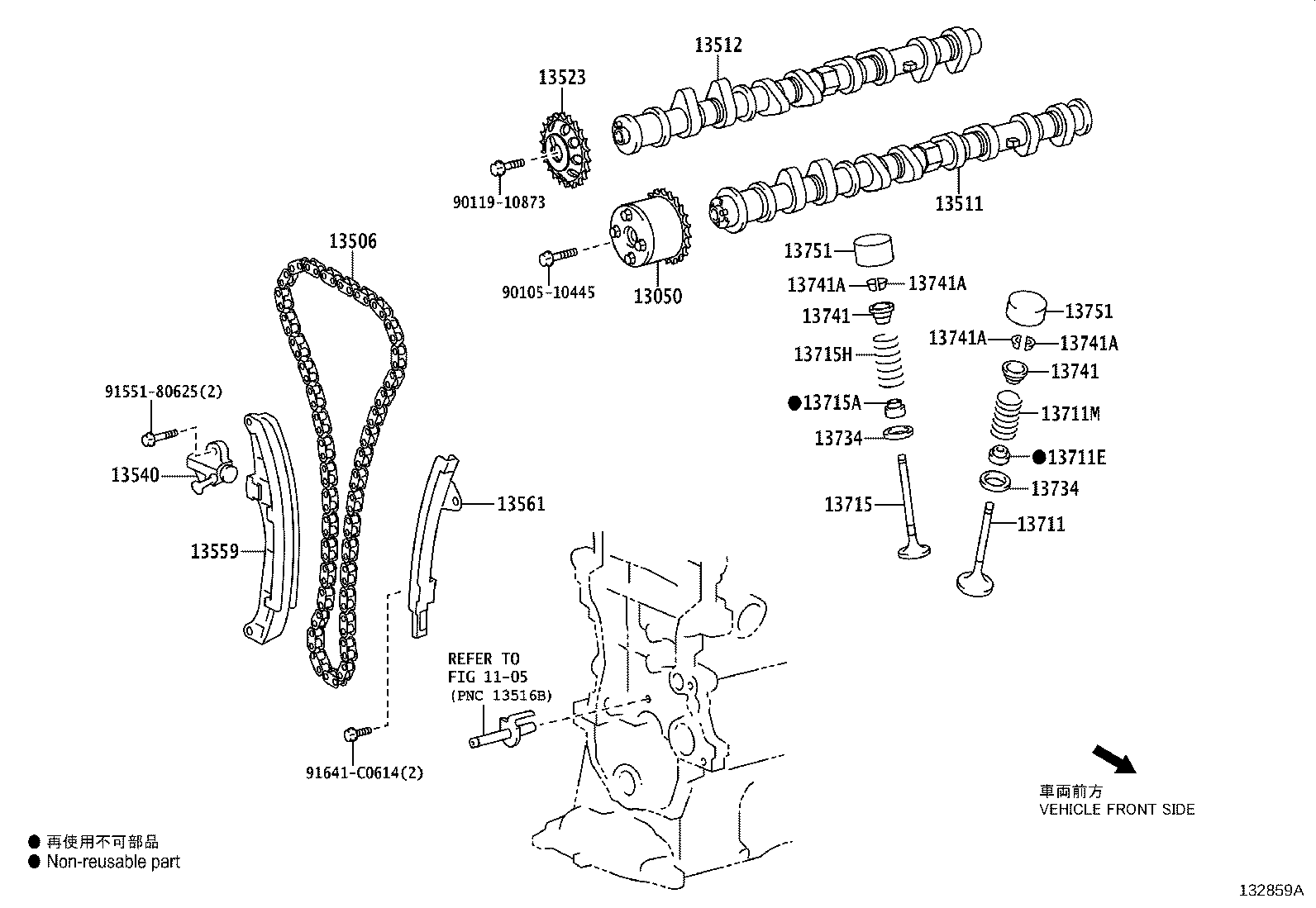

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-21041 |
1NZFXE..NHP160..SUCD |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-21050 |
1NZFXE..NHP160..SUCD |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-21100 |
1NZFXE..NHP160..SUCD |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-21070 |
1NZFXE..NHP160..SUCD |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-22020 |
1NZ#..NCP16#,NHP160..SUCD |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-21020 |
1NZ#..NCP16#,NHP160..SUCD |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-21040 |
1NZFXE..NHP160..SUCD |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-21010 |
1NZFXE..NHP160..SUCD |
8 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02093 |
1NZFXE..NHP160..SUCD |
8 | ||
| 13711M - SPRING, COMPRESSION(FOR INTAKE VALVE) | ||||
| 90501-23135 |
1NZFXE..NHP160..SUCD |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-21010 |
1NZFXE..NHP160..SUCD |
8 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02128 |
1NZFXE..NHP160..SUCD |
8 | ||
| 13715H - SPRING, COMPRESSION(FOR EXHAUST VALVE) | ||||
| 90501-23135 |
1NZFXE..NHP160..SUCD |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-74010 |
1NZFXE..NHP160..SUCD |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-74010 |
1NZFXE..NHP160..SUCD |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
1NZFXE..NHP160..SUCD |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
1NZFXE..NHP160..SUCD |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1NZFXE..NHP160..SUCD |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1NZFXE..NHP160..SUCD |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1NZFXE..NHP160..SUCD |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1NZFXE..NHP160..SUCD |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-21420 |
1NZFXE..NHP160 厚さ=5.14 |
16 | ||
| 13751-21400 |
1NZFXE..NHP160 厚さ=5.10 |
16 | ||
| 13751-21390 |
1NZFXE..NHP160 厚さ=5.08 |
16 | ||
| 13751-21430 |
1NZFXE..NHP160 厚さ=5.16 |
16 | ||
| 13751-21450 |
1NZFXE..NHP160 厚さ=5.20 |
16 | ||
| 13751-21500 |
1NZFXE..NHP160 厚さ=5.30 |
16 | ||
| 13751-21440 |
1NZFXE..NHP160 厚さ=5.18 |
16 | ||
| 13751-21490 |
1NZFXE..NHP160 厚さ=5.28 |
16 | ||
| 13751-21510 |
1NZFXE..NHP160 厚さ=5.32 |
16 | ||
| 13751-21530 |
1NZFXE..NHP160 厚さ=5.36 |
16 | ||
| 13751-21520 |
1NZFXE..NHP160 厚さ=5.34 |
16 | ||
| 13751-21580 |
1NZFXE..NHP160 厚さ=5.46 |
16 | ||
| 13751-21560 |
1NZFXE..NHP160 厚さ=5.42 |
16 | ||
| 13751-21650 |
1NZFXE..NHP160 厚さ=5.60 |
16 | ||
| 13751-21460 |
1NZFXE..NHP160 厚さ=5.22 |
16 | ||
| 13751-21470 |
1NZFXE..NHP160 厚さ=5.24 |
16 | ||
| 13751-21540 |
1NZFXE..NHP160 厚さ=5.38 |
16 | ||
| 13751-21380 |
1NZFXE..NHP160 厚さ=5.06 |
16 | ||
| 13751-21570 |
1NZFXE..NHP160 厚さ=5.44 |
16 | ||
| 13751-21550 |
1NZFXE..NHP160 厚さ=5.40 |
16 | ||
| 13751-21640 |
1NZFXE..NHP160 厚さ=5.58 |
16 | ||
| 13751-21610 |
1NZFXE..NHP160 厚さ=5.52 |
16 | ||
| 13751-21480 |
1NZFXE..NHP160 厚さ=5.26 |
16 | ||
| 13751-21680 |
1NZFXE..NHP160 厚さ=5.66 |
16 | ||
| 13751-21590 |
1NZFXE..NHP160 厚さ=5.48 |
16 | ||
| 13751-21410 |
1NZFXE..NHP160 厚さ=5.12 |
16 | ||
| 13751-21620 |
1NZFXE..NHP160 厚さ=5.54 |
16 | ||
| 13751-21020 |
1NZFXE..NHP160 厚さ=5.06 |
16 | ||
| 13751-21690 |
1NZFXE..NHP160 厚さ=5.68 |
16 | ||
| 13751-21660 |
1NZFXE..NHP160 厚さ=5.62 |
16 | ||
| 13751-21600 |
1NZFXE..NHP160 厚さ=5.50 |
16 | ||
| 13751-21710 |
1NZFXE..NHP160 厚さ=5.72 |
16 | ||
| 13751-21700 |
1NZFXE..NHP160 厚さ=5.70 |
16 | ||
| 13751-21720 |
1NZFXE..NHP160 厚さ=5.74 |
16 | ||
| 13751-21050 |
1NZFXE..NHP160 厚さ=5.12 |
16 | ||
| 13751-21040 |
1NZFXE..NHP160 厚さ=5.10 |
16 | ||
| 13751-21070 |
1NZFXE..NHP160 厚さ=5.16 |
16 | ||
| 13751-21140 |
1NZFXE..NHP160 厚さ=5.30 |
16 | ||
| 13751-21030 |
1NZFXE..NHP160 厚さ=5.08 |
16 | ||
| 13751-21100 |
1NZFXE..NHP160 厚さ=5.22 |
16 | ||
| 13751-21080 |
1NZFXE..NHP160 厚さ=5.18 |
16 | ||
| 13751-21090 |
1NZFXE..NHP160 厚さ=5.20 |
16 | ||
| 13751-21670 |
1NZFXE..NHP160 厚さ=5.64 |
16 | ||
| 13751-21060 |
1NZFXE..NHP160 厚さ=5.14 |
16 | ||
| 13751-21160 |
1NZFXE..NHP160 厚さ=5.34 |
16 | ||
| 13751-21130 |
1NZFXE..NHP160 厚さ=5.28 |
16 | ||
| 13751-21240 |
1NZFXE..NHP160 厚さ=5.50 |
16 | ||
| 13751-21170 |
1NZFXE..NHP160 厚さ=5.36 |
16 | ||
| 13751-21190 |
1NZFXE..NHP160 厚さ=5.40 |
16 | ||
| 13751-21110 |
1NZFXE..NHP160 厚さ=5.24 |
16 | ||
| 13751-21120 |
1NZFXE..NHP160 厚さ=5.26 |
16 | ||
| 13751-21200 |
1NZFXE..NHP160 厚さ=5.42 |
16 | ||
| 13751-21250 |
1NZFXE..NHP160 厚さ=5.52 |
16 | ||
| 13751-21270 |
1NZFXE..NHP160 厚さ=5.56 |
16 | ||
| 13751-21210 |
1NZFXE..NHP160 厚さ=5.44 |
16 | ||
| 13751-21220 |
1NZFXE..NHP160 厚さ=5.46 |
16 | ||
| 13751-21280 |
1NZFXE..NHP160 厚さ=5.58 |
16 | ||
| 13751-21300 |
1NZFXE..NHP160 厚さ=5.62 |
16 | ||
| 13751-21180 |
1NZFXE..NHP160 厚さ=5.38 |
16 | ||
| 13751-21260 |
1NZFXE..NHP160 厚さ=5.54 |
16 | ||
| 13751-21630 |
1NZFXE..NHP160 厚さ=5.56 |
16 | ||
| 13751-21360 |
1NZFXE..NHP160 厚さ=5.74 |
16 | ||
| 13751-21350 |
1NZFXE..NHP160 厚さ=5.72 |
16 | ||
| 13751-21330 |
1NZFXE..NHP160 厚さ=5.68 |
16 | ||
| 13751-21230 |
1NZFXE..NHP160 厚さ=5.48 |
16 | ||
| 13751-21290 |
1NZFXE..NHP160 厚さ=5.60 |
16 | ||
| 13751-21340 |
1NZFXE..NHP160 厚さ=5.70 |
16 | ||
| 13751-21150 |
1NZFXE..NHP160 厚さ=5.32 |
16 | ||
| 13751-21320 |
1NZFXE..NHP160 厚さ=5.66 |
16 | ||
| 13751-21310 |
1NZFXE..NHP160 厚さ=5.64 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-21420 |
1NZFXE..NHP160 厚さ=5.14 |
16 | ||
| 13751-21400 |
1NZFXE..NHP160 厚さ=5.10 |
16 | ||
| 13751-21390 |
1NZFXE..NHP160 厚さ=5.08 |
16 | ||
| 13751-21430 |
1NZFXE..NHP160 厚さ=5.16 |
16 | ||
| 13751-21450 |
1NZFXE..NHP160 厚さ=5.20 |
16 | ||
| 13751-21500 |
1NZFXE..NHP160 厚さ=5.30 |
16 | ||
| 13751-21440 |
1NZFXE..NHP160 厚さ=5.18 |
16 | ||
| 13751-21490 |
1NZFXE..NHP160 厚さ=5.28 |
16 | ||
| 13751-21510 |
1NZFXE..NHP160 厚さ=5.32 |
16 | ||
| 13751-21530 |
1NZFXE..NHP160 厚さ=5.36 |
16 | ||
| 13751-21520 |
1NZFXE..NHP160 厚さ=5.34 |
16 | ||
| 13751-21580 |
1NZFXE..NHP160 厚さ=5.46 |
16 | ||
| 13751-21560 |
1NZFXE..NHP160 厚さ=5.42 |
16 | ||
| 13751-21650 |
1NZFXE..NHP160 厚さ=5.60 |
16 | ||
| 13751-21460 |
1NZFXE..NHP160 厚さ=5.22 |
16 | ||
| 13751-21470 |
1NZFXE..NHP160 厚さ=5.24 |
16 | ||
| 13751-21540 |
1NZFXE..NHP160 厚さ=5.38 |
16 | ||
| 13751-21380 |
1NZFXE..NHP160 厚さ=5.06 |
16 | ||
| 13751-21570 |
1NZFXE..NHP160 厚さ=5.44 |
16 | ||
| 13751-21550 |
1NZFXE..NHP160 厚さ=5.40 |
16 | ||
| 13751-21640 |
1NZFXE..NHP160 厚さ=5.58 |
16 | ||
| 13751-21610 |
1NZFXE..NHP160 厚さ=5.52 |
16 | ||
| 13751-21480 |
1NZFXE..NHP160 厚さ=5.26 |
16 | ||
| 13751-21680 |
1NZFXE..NHP160 厚さ=5.66 |
16 | ||
| 13751-21590 |
1NZFXE..NHP160 厚さ=5.48 |
16 | ||
| 13751-21410 |
1NZFXE..NHP160 厚さ=5.12 |
16 | ||
| 13751-21620 |
1NZFXE..NHP160 厚さ=5.54 |
16 | ||
| 13751-21020 |
1NZFXE..NHP160 厚さ=5.06 |
16 | ||
| 13751-21690 |
1NZFXE..NHP160 厚さ=5.68 |
16 | ||
| 13751-21660 |
1NZFXE..NHP160 厚さ=5.62 |
16 | ||
| 13751-21600 |
1NZFXE..NHP160 厚さ=5.50 |
16 | ||
| 13751-21710 |
1NZFXE..NHP160 厚さ=5.72 |
16 | ||
| 13751-21700 |
1NZFXE..NHP160 厚さ=5.70 |
16 | ||
| 13751-21720 |
1NZFXE..NHP160 厚さ=5.74 |
16 | ||
| 13751-21050 |
1NZFXE..NHP160 厚さ=5.12 |
16 | ||
| 13751-21040 |
1NZFXE..NHP160 厚さ=5.10 |
16 | ||
| 13751-21070 |
1NZFXE..NHP160 厚さ=5.16 |
16 | ||
| 13751-21140 |
1NZFXE..NHP160 厚さ=5.30 |
16 | ||
| 13751-21030 |
1NZFXE..NHP160 厚さ=5.08 |
16 | ||
| 13751-21100 |
1NZFXE..NHP160 厚さ=5.22 |
16 | ||
| 13751-21080 |
1NZFXE..NHP160 厚さ=5.18 |
16 | ||
| 13751-21090 |
1NZFXE..NHP160 厚さ=5.20 |
16 | ||
| 13751-21670 |
1NZFXE..NHP160 厚さ=5.64 |
16 | ||
| 13751-21060 |
1NZFXE..NHP160 厚さ=5.14 |
16 | ||
| 13751-21160 |
1NZFXE..NHP160 厚さ=5.34 |
16 | ||
| 13751-21130 |
1NZFXE..NHP160 厚さ=5.28 |
16 | ||
| 13751-21240 |
1NZFXE..NHP160 厚さ=5.50 |
16 | ||
| 13751-21170 |
1NZFXE..NHP160 厚さ=5.36 |
16 | ||
| 13751-21190 |
1NZFXE..NHP160 厚さ=5.40 |
16 | ||
| 13751-21110 |
1NZFXE..NHP160 厚さ=5.24 |
16 | ||
| 13751-21120 |
1NZFXE..NHP160 厚さ=5.26 |
16 | ||
| 13751-21200 |
1NZFXE..NHP160 厚さ=5.42 |
16 | ||
| 13751-21250 |
1NZFXE..NHP160 厚さ=5.52 |
16 | ||
| 13751-21270 |
1NZFXE..NHP160 厚さ=5.56 |
16 | ||
| 13751-21210 |
1NZFXE..NHP160 厚さ=5.44 |
16 | ||
| 13751-21220 |
1NZFXE..NHP160 厚さ=5.46 |
16 | ||
| 13751-21280 |
1NZFXE..NHP160 厚さ=5.58 |
16 | ||
| 13751-21300 |
1NZFXE..NHP160 厚さ=5.62 |
16 | ||
| 13751-21180 |
1NZFXE..NHP160 厚さ=5.38 |
16 | ||
| 13751-21260 |
1NZFXE..NHP160 厚さ=5.54 |
16 | ||
| 13751-21630 |
1NZFXE..NHP160 厚さ=5.56 |
16 | ||
| 13751-21360 |
1NZFXE..NHP160 厚さ=5.74 |
16 | ||
| 13751-21350 |
1NZFXE..NHP160 厚さ=5.72 |
16 | ||
| 13751-21330 |
1NZFXE..NHP160 厚さ=5.68 |
16 | ||
| 13751-21230 |
1NZFXE..NHP160 厚さ=5.48 |
16 | ||
| 13751-21290 |
1NZFXE..NHP160 厚さ=5.60 |
16 | ||
| 13751-21340 |
1NZFXE..NHP160 厚さ=5.70 |
16 | ||
| 13751-21150 |
1NZFXE..NHP160 厚さ=5.32 |
16 | ||
| 13751-21320 |
1NZFXE..NHP160 厚さ=5.66 |
16 | ||
| 13751-21310 |
1NZFXE..NHP160 厚さ=5.64 |
16 | ||
| Common parts | ||||
| 90105-10445 | ||||
| 90119-10873 | ||||
| 91551-80625 | ||||
| 91641-C0614 | ||||
| Linked diagrams | ||||
| 1105 | ||||
